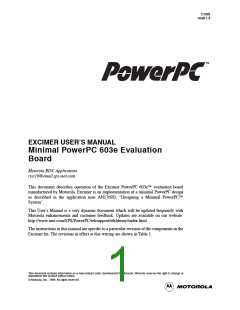

1/1999
Draft 1.4
ª
EXCIMER USERÕS MANUAL
Minimal PowerPC 603e Evaluation
Board
Motorola RISC Applications
risc10@email.sps.mot.com
This document describes operation of the Excimer PowerPC 603eª evaluation board
manufactured by Motorola. Excimer is an implementation of a minimal PowerPC design
as described in the application note AN1769D, ÒDesigning a Minimal PowerPCª
SystemÓ.
This UserÕs Manual is a very dynamic document which will be updated frequently with
Motorola enhancements and customer feedback. Updates are available on our website:
http://www.mot.com/SPS/PowerPC/teksupport/teklibrary/index.html
The instructions in this manual are speciÞc to a particular revision of the components in the
Excimer kit. The revisions in effect at this writing are shown in Table 1.
This document contains information on a new product under development by Motorola. Motorola reserves the right to change or
discontinue this product without notice.
© Motorola, Inc., 1999. All rights reserved.
Table 1. Excimer Kit Component Revisions Addressed in this Document
Date
Component
Revision
(if applicable)
Excimer Board (part no PPCEVAL-EXCM3)
DINK32 UserÕs Guide
X3
Ver 9.0 Rev 5.0
Ver 10.0 Rev 5.0
Sep 1998
Dec 1998
DINK32 Software
Macraigor OCD Interface
This document contains the following topics:
Topic
Page
2
Part 1, ÒIntroductionÓ
Part 2, ÒGetting StartedÓ
Part 3, ÒProgrammingÓ
4
5
Part 2, ÒDebuggingÓ
6
Part 2, ÒDownloading a DINK UpgradeÓ
Part 3, ÒExcimer Memory MapÓ
Part 4, ÒDINK Memory MapÓ
Part 5, ÒUsing the Expansion ConnectorÓ
Part 6, ÒFrequency ControlÓ
Part 7, ÒSummaryÓ
8
10
11
12
12
14
15
Appendix A, ÒTroubleshootingÓ
Part 1 Introduction
The Excimer board is meant to be a low cost evaluation board to show a minimal PowerPC system design.
Possible uses for the EXCIMER include:
¥
¥
¥
¥
¥
¥
PowerPC architecture learning tool
PowerPC assembly language learning tool
Embedded C programming learning tool
University laboratory tool
Running small benchmarks to investigate performance
Proof of concept for system design-in
1.1 Features
The EXCIMER board has the following features:
¥
¥
¥
¥
1 MByte of RAM (only 512KB on rev X2)
4 Mbytes of FLASHROM
2 serial ports
PowerPC 603e microprocessor
2
Minimal PowerPC 603e Evaluation Board
MOTOROLA
¥
¥
Berg connector I/O interface
COP connector
The EXCIMER block diagram is shown in Figure 1.
COP
Processor
Motorola
MPC603r
(optional)
Memory Controller
Main Memory
1MB RAM
Start-up Code
4MB FLASHROM
Serial Ports
16550 UART
I/O Port
Buffer
Berg Connector
User Interface
Figure 1. Excimer Minimal System Board
1.2 Excimer Kit
In addition to the EXCIMER board the EXCIMER kit contains the following:
¥
¥
¥
¥
¥
¥
¥
¥
One power supply
One serial null modem cable
One parallel cable
One Macraigor Systems Inc. Wigglerª
Several demonstration copies of C compilers/debuggers on CDROM
PowerPC documentation CD
EXCIMER UserÕs Manual (this document)
DINK UserÕs Manual
1.3 Physical Layout
Figure 2 shows the physical layout of the Excimer board with several important features labeled.
MOTOROLA
Minimal PowerPC 603e Evaluation Board
3
RESET
BUTTON
POWER
RS232
RS232
CONNECTOR
Serial 1
Serial 2
2.5 V
Heat Sink
PowerPC
Mem
Ctrl
CAUTION!
PC16552
HOT!
603e
21MHz
66MHz
OSC
3.3V
Heat Sink
SRAM
SRAM
LEDS
ERROR
STATUS
3.3V
FLASH
FLASH
FLASH
FLASH
2.5V
I/O
RAM
ROM
Figure 2. Excimer Minimal System Board
Part 2 Getting Started
To begin using the Excimer evaluation board,
1. Connect one end of the serial null modem cable to the boardÕs serial port 1 and the other end to
COM1 on the PC.
2. Launch a terminal emulator program such as Smartcom or HyperTerminal on the PC. ConÞgure for:
Ñ 9600 baud
Ñ 8 data bits
Ñ no parity
Ñ 1 stop bit
Ñ hardware ßow control (RTS/CTS)
Ñ VT100 emulation
3. Connect the parallel cable between the parallel port on the PC and the Wiggler interface board.
4. Connect the twenty pin ribbon cable on the Wiggler to the JTAG/COP header on Excimer.
CAUTION: Get the orientation correct! Pin 1 on the cable has a red stripe; Pin 1 on the JTAG connector is
labeled. While the connector is designed to be keyed, the cables rarely are.
NOTE: The JTAG connectorÕs pin 1 will be rotated 180 degrees from revision X2 to revision X3 to better
4
Minimal PowerPC 603e Evaluation Board
MOTOROLA
accommodate the cable routing.
5. Choose the appropriate international AC power connection (if provided) and plug the power supply
into the AC power source.
6. Connect the power supply to the power connector on the board.
7. The EXCIMER will run a POST (power on self test) which will turn off the status and error LEDs.
A hardware failure will cause one or both LEDs to stay on. If this occurs refer to Appendix A,
ÒTroubleshooting.Ó
8. After successfully completing POST, Excimer will begin executing code from the reset vector at
0xFFF00100. The code executed will copy the contents of ROM into RAM and begin executing
MDINK, the minimal version of MotorolaÕs Diagnostic Nano-Kernel (DINK). The user should see
an MDINK banner and prompt on the terminal emulator screen.
MDINK_603e >>
9. The user now has a short interval to halt the boot process and remain in MDINK by hitting any key.
From MDINK, you can download upgrades to DINK available from MotorolaÕs website or other
software in s-record format.
10. If the user does not intervene in the boot process by hitting a key, Excimer will proceed to branch
to DINK32 and present another banner and the DINK32 prompt on the terminal emulator screen.
DINK32_603e >>
11. The DINK32 monitor is now available to accept commands. Type in ÔhelpÕ. This will show you a
list of DINK commands. Help will further explain a command if you type help and a command
name. For example Ôhelp mmÕ will explain the use of the memory modify command. For more
information on DINK consult the DINK UserÕs Manual.
Part 3 Programming
To write a C program for Excimer you will need an editor, a compiler, and a linker that will generate
Motorola format s-records. Several vendors have offered to provide limited capability, demonstration
versions of their compilers and linkers to be distributed with Excimer. Follow the manufacturerÕs directions
for installing the demo software on your PC.
The following example assumes you have installed MetawareÕs High C/C++ PowerPC Embedded
Development Toolset. The Limited Evaluation Version 3.1 of this program will operate indeÞnitely (no limit
to the demonstration period) but allows only 256 variable declarations and 256 function declarations. Also,
it will only link up to 12 Þles and the resulting executable must be less than 156KB. These limitations
prevent it from building DINK or any large projects but still allow it to be very useful for a minimal
evaluation board like Excimer.
1.1 An Example Program
To compile and download a simple program, type the following program into any text editor, e.g. NotePad
or WordPad on the PC:
/*
example routine to turn on STATUS LED
*/
void main(void)
MOTOROLA
Minimal PowerPC 603e Evaluation Board
5
{
}
*(char *) (0x40200000) = 0x04; /* turn status led on */
Save the Þle as ledon.c as a text Þle. (Many text editors save in their own format with extra formatting
characters that will cause the compile to fail.) Also, text editors like WordPad in Windows will append a .txt
to the Þlename which must be removed before passing to the compiler.
Assuming you have installed a Metaware compiler on your PC type the following in a DOS window.
hcppc -Hppc603 -c ledon.c
To load the program and get a downloadable s-record Þle type the following in the DOS window.
ldppc -B start_addr=0x70000 -xm ledon.o
A Þle named Ôa.hexÕ Þle will be generated and this Þle will be the one to download to Excimer.
In the Excimer terminal window, at the DINK32 prompt type the following:
dl -k <return>
This is the DINK download command that takes the s-record Þle and loads it into RAM on the EXCIMER
board. Downloading to DINK is equivalent to typing entries into the keyboard. In fact, text Þles of
keystrokes or DINK commands can be downloaded as easily as s-records. The terminal emulation program
will provide an autotype function that permits the user to select the a.hex s-record Þle previously generated
and download it through the serial into Excimer.
The DINK32 prompt returns when the download is complete.
Now we can type the ÔgoÕ command to run the program to turn the led on.
go 70000
The Status LED on Excimer is controlled by the OUT 2 signal of the Serial 1 UART (National
Semiconductor PC1655D Dual Universal Asynchronous Reciever/Transmitter). It will turn on when this
program writes a one to bit 3 (bit 0 is the LSB) of the MODEM Control Register at address 0x40200000 of
Excimer. It will remain on until disabled by another program you write, compile, link and download or until
the Excimer board is reset.
If the LED does not go out, the debug capabilities of Excimer and the Wiggler can be used to debug your
program.
Part 2 Debugging
Debug on Excimer is supported with the following capabilities in DINK:
¥
¥
¥
¥
¥
Assembly and disassembly of PowerPC instructions
Display and modiÞcation of registers
Display, modiÞcation and movement of system memory
Singlestep and continued execution from a speciÞc address
Display, setting, removal of instruction breakpoints
DINK is an example of a ROM-resident debugger. It resides in ROM and is copied down to RAM for
execution. ROM resident debuggers are often criticized because:
6
Minimal PowerPC 603e Evaluation Board
MOTOROLA
¥
¥
¥
¥
They take up space in the target system memory
They have to change (save and restore) the context of the userÕs application to run
They are ineffective at debugging boot code that initializes the hardware or ROM resident debugger
They often cannot set breakpoints in ROM
PowerPC microprocessors provide on-chip debugging logic to overcome some of these deÞciencies and
provide other capability without storing code in memory or having to save and restore the state of the UserÕs
program. SpeciÞcally, the PowerPC on-chip debugging support includes:
¥
Run control - the ability to halt, single step, resume execution , or go to a speciÞc address and begin
execution.
¥
¥
Display and modiÞcation of registers and processor resources
Display, modify and download to memory (possibly including on chip memory like cache and/or
TLBs)
¥
Display, setting, removal of instruction breakpoints in hardware
This capability is accessed by sending commands to the common on-chip processor (COP) through the
JTAG (Joint Test Advision Group or IEEE1149.1 standard) interface. A connector is provided to access this
on Excimer and numerous third parties provide software and hardware to take advantage of it while
debugging code. The Excimer kit includes an inexpensive Wiggler JTAG/COP interface from Macraigor
Systems, Inc.
1.1 The Wiggler
The Wiggler from Macraigor Systems is an inexpensive JTAG/COP interface for run control and debug of
the PowerPC Microprocessor though the parallel port of the PC. It translates software commands from
various debugger vendors such as Cygnus, Green Hills, Metaware, Metrowerks, Microtec, Motorola, SDS,
Tasking, and Wind River that utilize MacraigorÕs On-Chip Debug (OCD) Application Programming
Interface (API). The Wiggler supports various Motorola microprocessors including CPU32, MPC5xx,
MPC6xx, MPC7xx, MPC8xx, etc.
Macraigor provides several different but compatible products that perform this function at increasing levels
of performance, functionality, and cost. The Wiggler is the least expensive, simplest device and provides an
appropriate level of performance and capability for an inexpensive evaluation kit like Excimer, but for more
serious software and hardware development the user may be interested in higher capability JTAG/COP
interface tools from Macraigor or other vendors.
The third party debugger solutions provided by developers in the Excimer kit may utilize the Wiggler
interface. Check their documentation.
Macraigor Systems provides a software application that tests and exercises the Wiggler and that can be used
to control the processor, examine registers or memory, download code, etc. The Macraigor application is
included in the Excimer kit and instructions for loading it onto WindowsNT or Windows95 are described in
Section 1.2, ÒInstalling the Wiggler Software.Ó
1.2 Installing the Wiggler Software
To install Wiggler on Windows NT:
1. Log on as administrator.
2. Copy the file setupex.exe to a temporary directory.
MOTOROLA
Minimal PowerPC 603e Evaluation Board
7
3. Execute setupex.exe
4. Reboot the machine when the setup procedure is complete.
5. Log on as user (or remain as administrator).
To install Wiggler on Windows95:
1. No administrator activities are necessary.
2. Perform steps 2-5 above.
To use the wiggler on either NT or Windows95.
1. Connect the parallel port cable from the PC parallel port to the wiggler.
2. Connect the ribbon cable to the JTAG/COP header. (See caution above regarding Pin1.)
3. Copy the Þle, a:\wiggler\raysÞles\Wiggler.exe to your local directory.
4. Copy the Þles, a:\wiggler\cop_debugger\* (i.e. all the Þles) to your local directory.
5. Using a command prompt window, execute Ocd_cmdt.exe. This is a more thorough test.
6. After using this test, terminate the test.
1.2.1 Using the Wiggler Software for Debug
Launch the Wiggler application. A window will appear with pull-down menus and control buttons to halt or
reset the processor. A button displays the general purpose register (GPR) contents. A button allows the user
to specify an address to Ògo toÓ and begin execution. A help command describes additional functionality.
While this debugger is very basic, it is also very powerful and has several advanced capabilities, including
icache and dcache display and modiÞcation and high-speed code download.
Part 2 Downloading a DINK Upgrade
DINK32 as supplied on the Excimer board is available from MotorolaÕs website in source or s-record
format. While not ofÞcially supported, DINK32 serves as an application note of example PowerPC code. It
is often enhanced with new functionality, support for new microprocessors or reference designs, and bug
Þxes. There may be enhancements or bug Þxes after you have received your Excimer kit. Excimer can be
easily upgraded by downloading the latest DINK32 as s-records into FLASHROM. The following
paragraphs contain detailed instructions for downloading a new DINK32 using SmartCom and
HyperTerminal.
To prepare to download:
1. Obtain the latest DINK32.src code from MotorolaÕs website. (Or download the source Þles and
build your own.)
2. Reset Excimer and strike any key to interrupt the booting of DINK32 while in MDINK.
To download a new DINK32 from MDINK using SmartCom:
1. Put the ßash into a cleared state by typing "fw -e" at the MDINK prompt. This will cause the ßash
to be erased and a new copy of MDINK will be copied from RAM (at 0x00000000) to the ßash
ROM (0xfff00000).
WARNING: In X2 revision Excimer boards, the sector in FLASHROM where
MDINK is stored is eraseable! Typing "fw -e" from the DINK32 prompt instead
of MDINK will erase all of FLASHROM and the board will be inoperable at the
next reset. Should such an unfortunate event occur, MDINK will have to be
reloaded into ßash through the JTAG port (probably in MotorolaÕs Apps Lab).
8
Minimal PowerPC 603e Evaluation Board
MOTOROLA
Revision X3 will have the hardware capability to protect the sector where
MDINK resides and should be less vulnerable to unintentional erasure.
WARNING: The Òfw -eÓ command takes a few minutes to execute. Do not power
off the board or attempt to stop the Òfw -eÓ command once it has begun. Since this
command clears the ßash and reloads MDINK, stopping the command will cause
only a partial image of MDINK to be reloaded to ROM. Next time the board is
reset, it will not function correctly.
2. DINK32 is a large Þle. Transfer time at 9600 baud will be lengthy. DINK allows the user to reset
the baud rate to baud rates up to 57600. Check your terminal emulation package for the fastest rate
supported. For example, if the fastest rate supported by your terminal emulation software is 57600,
set the baud rate to 57600 by typing "sb -k 57600" in MDINK.
3. In the terminal emulator, change the baud rate to the new 57600 as well. Under Settings | Speed &
Format, choose 57600 as the baud rate. Click OK in the dialog box and hit <return> in MDINK.
4. Change the autotype protocol so that there is no delay. Do this by selecting Settings | Autotype
Protocol | Protocol Settings. In the space for "Delay", enter a 0 and click OK.
5. Disconnect communication from the board by pressing the telephone icon.
6. Under Connection | Choose Port | Flow Control, select the RTS/CTS option and click OK.
7. Reconnect to the board by pressing the telephone icon again.
8. Press <return> in MDINK.
9. Download the new dink32.src Þle:
Ñ Type "dl -ß -o ffc00000" at the MDINK prompt.
Ñ Hit the autotype icon in Smartcom. Use the directory tree to select the Þle to download and press
the OK button.
Ñ The MDINK prompt returns when the download is complete.
CAUTION: If communication or power is lost during this process, DINK32 in
FLASHROM will be corrupted. If you can reset and get back to the MDINK
prompt, be sure to start over at step one.
10. Set the baud rate in Smartcom back to 9600 (DINK defaults to 9600 baud). Choose 9600 in the
baud rate Þeld under "Settings | Speed & Format " and click OK.
11. Reset the board by pressing the reset button. MDINK will boot up and will branch to the DINK32
that was just downloaded.
12. If you wish to stop the download in step 10 after it has begun, type "S9" and hit <return>.
13. To return to MDINK from DINK32, type "go fff00100". MDINK will start again.
14. Steps 4 and 5 do not need to be repeated after the Þrst time unless they are modiÞed or the terminal
emulation application is restarted.
To download a new DINK32 from MDINK using HyperTerminal:
1. Put the ßash into a cleared state by typing "fw -e" at the MDINK prompt. This will cause the ßash
to be erased and a new copy of MDINK will be copied from RAM (at 0x00000000) to the ßash
ROM (0xfff00000).
WARNING: In X2 revision Excimer boards, the sector in FLASHROM where
MDINK is stored is eraseable! Typing "fw -e" from the DINK32 prompt instead
of MDINK will erase all of FLASHROM and the board will be inoperable at the
next reset. Should such an unfortunate event occur, MDINK will have to be
reloaded into ßash through the JTAG port (probably in MotorolaÕs Apps Lab).
MOTOROLA
Minimal PowerPC 603e Evaluation Board
9
Revision X3 will have the hardware capability to protect the sector where
MDINK resides and should be less vulnerable to unintentional erasure.
WARNING: The Òfw -eÓ command takes a few minutes to execute. Do not power
off the board or attempt to stop the Òfw -eÓ command once it has begun. Since this
command clears the ßash and reloads MDINK, stopping the command will cause
only a partial image of MDINK to be reloaded to ROM. Next time the board is
reset, it will not function correctly.
2. DINK32 is a large Þle. Transfer time at 9600 baud will be lengthy. DINK allows the user to reset
the baud rate to baud rates up to 57600. Check your terminal emulation package for the fastest rate
supported. For example, if the fastest rate supported by your terminal emulation software is 57600,
set the baud rate to 57600 by typing "sb -k 57600" in MDINK.
3. Disconnect from the board by choosing Call | Disconnect.
4. Change the baud rate in HyperTerminal. Select File | Properties | ConÞgure | Connect To and change
the baud rate to 57600 in the space provided.
5. Reconnect to the board by selecting Call | Connect
6. Hit <return> in MDINK. You should return to the prompt.
7. Download the new dink32.src Þle:
Ñ Type "dl -ß -o ffc00000" at the MDINK prompt.
Ñ In HyperTerminal, select Transfer | Send Text File. Fill in the path to your DINK32 s-record in
the space provided and press <return>. The Þle download should begin. If your computer locks
up at this point, you will have to exit HyperTerminal, reset the board, and start over. At this
point, only MDINK remains in the ßash since the DINK32 image has been at least partially
overwritten by the aborted dl attempt. You will have to perform this entire process again.
Ñ The MDINK prompt returns when the download is complete.
CAUTION: If communication or power is lost during this process, DINK32 in
FLASHROM will be corrupted. If you can reset and get back to the MDINK
prompt, be sure to start over at step one.
8. Disconnect again by selecting Call | Disconnect.
9. Change the baud rate in HyperTerminal back to 9600 under File | Properties | ConÞgure | Connect
To and entering 9600 in the appropriate Þeld.
10. Reset the board by pressing the reset button. MDINK will boot up and will branch to the DINK32
that was just downloaded.
Part 3 Excimer Memory Map
The EXCIMER memory map is shown in Table 2. Due to the partial hardware decode used on this simple
design, unimplemented addresses generate no error signal and are aliased at multiple positions within the
address range. The suggested address columns in Table 2 represent the address that DINK uses to address
this function.
10
Minimal PowerPC 603e Evaluation Board
MOTOROLA
Table 2: Excimer Hardware Memory Map
Suggeste Suggested
d Start End
Address
Start
Address
End
R/W Size
Device
0000 0000 00FF FFFF
(007F FFFF
0000 0000 3FFF FFFF 1, 2, 4, 8 byte, 1MB of Static RAM
burst
in rev X2)
1, 2, 4, 8 byte
4000 0000 4000 0000
4008 0000 4008 0000
4010 0000 4010 0000
4018 0000 4018 0000
4020 0000 4020 0000
4028 0000 4028 0000
4030 0000 4030 0000
4038 0000 4038 0000
4040 0000 4040 0000
4048 0000 4048 0000
4050 0000 4050 0000
4058 0000 4058 0000
4060 0000 4060 0000
4068 0000 4068 0000
4070 0000 4070 0000
4078 0000 4078 0000
4000 0000 4000 FFF0
4008 0000 4008 FFF0
4010 0000 4010 FFF0
4018 0000 4018 FFF0
4020 0000 4020 FFF0
4028 0000 4028 FFF0
4030 0000 4030 FFF0
4038 0000 4038 FFF0
4040 0000 4040 FFF0
4048 0000 4048 FFF0
4050 0000 4050 FFF0
4058 0000 4058 FFF0
4060 0000 4060 FFF0
4068 0000 4068 FFF0
4070 0000 4070 FFF0
4078 0000 4078 FFF0
4079 0000 7FFF FFFF
8000 0000 BFFF FFFF
COM2
COM1
Unused
Data register
Interrupt enable
FIFO control
Line control
Status LED (Modem control)
Line status
Modem status
Scratch
Data register
Interrupt enable
FIFO control
Line control
Error LED (Modem control )
Line status
Modem status
Scratch
8000 0000 BFFF FFFF
User/expansion I/O (XCS1)
FF80
0000
FFFF FFFF
C000 0000 FFFF FFFF (1 read only), Flash
2, 4, 8 bytes
Part 4 DINK Memory Map
The hardware memory map shown in Table 2 is useful for programming input/output functions. For
example, controlling the status LED in the coding example of section 1.1 on page 5 required knowledge of
where the Serial One UART Control register could be addressed in the memory space. Equally important is
the knowledge of where the user can download code without overwriting DINK or where functions or
variables in DINK that are useful to the programmer are stored within memory.
Unlike the physical hardware of the UART addresses, the addresses DINK assigns to functions or variables
may change with each compilation and link of DINK. The linker can be conÞgure to generate a Þle which
cross-references the symbol name of functions and global variables with their assigned physical address. A
copy of this Þle name xref.txt is generally provided by Motorola with the s-record Þle for a new build of
DINK. As an example, Table 3 provides some key addresses combed from the xref.txt for DINK32 version
10.3.
MOTOROLA
Minimal PowerPC 603e Evaluation Board
11
Table 3: DINK Memory Map
Use
Start
End
.text (program code)
0x00000000
0x00024bd0
0x0003c194
0x000f1f20
0x00060000
0x00070000
0x00002bcb
0x0003c192
0x00041f1b
0x0005fffff
0x0006fffff
0x000ffffff
.data
.bss
Stack
Reserved memory for DINK
Memory for User programs
Part 5 Using the Expansion Connector
Excimer provides a very limited expansion capability for input/output . The Berg connector on the board is
an expansion connector that pins out the processor or FPGA signals shown in Table 1. See the Excimer
schematics or the Minimal PowerPC System application note to understand this interface.
Table 4: Expansion Connector
Pin
Signal Name
Function
Power
1, 2, 3
Vcc 3.3
4, 6, 8, 10, 12, 12, 14, 16, 18
XD(0), XD(1), XD(2), XD(3), XD(4), XD(5), XD(6), XD(7)
Buffered Data
Bus
5, 7, 9
Vcc 5.0
Power
11, 13, 15, 17
19, 21, 23
A(25), A(26), A(27), A(28)
Address Lines
No Connect
NC
20, 22, 24, 26, 28, 30, 32, 34
XF(0), XF(1), XF(2), XF(3), XF(4), XF(5), XF(6), XF(7)
Unused Pins of
FPGA
36, 37, 38, 40
GND
Ground
39
25
27
29
31
33
35
XCLK 66MHz
Bus Clock
Interrupt 3
Interrupt 2
Reset
IRQ3*
IRQ2*
RESET*
XOE* ROE
Output Enable
Chip Enable
Byte Write Enable
XCS1* 0x8000000 0xBFFFFFF
BWE*
Part 6 Frequency Control
Motorola reserves the right to ship several different frequencies of PowerPC 603e processor on the Excimer
board (Excimer often utilizes excess inventory). Consult the PowerPC 603e Hardware SpeciÞcation on our
12
Minimal PowerPC 603e Evaluation Board
MOTOROLA
website and your local Motorola sales ofÞce for more information on the range of frequencies that the 603e
will operate at. The maximum frequency of operation under the full spec recommended temperature and
voltage ranges is encoded in the part number on the top of the part. This number might be 233MHz or
266MHz or 300MHz (always integer or half integer multiples of the 66MHz Excimer clock speed). The part
can be operated slower than this, to reduce power or for other reasons, as documented in the hardware
speciÞcation. While operation above the maximum frequency or below the minimum frequency for the
particular part is not recommended, the frequency can be changed via the PLL_CFG jumpers on the
Excimer board. If the PLL_CFG on Excimer is conÞgured for a frequency outside of the recommended
frequency range for the processor installed, program execution may fail or be unreliable.
The PLL_CFG jumper settings for Excimer are shown in Table 5.
WARNING: The PLL_CFG jumpers should never be changed while power is applied to the processor.
CAUTION: The microprocessor, linear regulator, and heat sink area of the board (See Figure 2) can get
very hot when the microprocessor is operated at high frequency (temperature at 300MHz is approximately
90¡C/195¡F) . When used for normal code development, 133MHz provides adequate performance and will
reduce the danger of injury (temperature approximately 66¡C/150¡F) if this area of the board is
inadvertently touched. If running above 133MHz, moving air from a nearby fan will assist in cooling the
components; a clip-on heatsink for the microprocessor will further reduce the microprocessorÕs temperature.
Table 5. Excimer Frequency (PLL_CFG jumper ) Settings
Jumper
Position
CPU Frequency in MHz (VCO
Frequency in MHz)
(seen as
pin1 pin2 pin3)
Vdd CFG
PLL_CFG[0Ð3]
Comment
Bus-to-
Core
Multiplier Multiplier
Core-to
VCO
Bus
66.67
MHz
0
1
2
3
0100
0101
0110
1000
1110
1010
0111
2x
2x
4x
2x
2x
2x
2x
2x
133
133
166
200
233
266
300
Part may not work
here because of VCO
limitation.
0
1
2
3
2x
Should work here
because VCO is 4x
the core frequency.
0
1
2
3
2.5x
3x
0
1
2
3
0
1
2
3
3.5x
4x
0
1
2
3
Check max processor
frequency
0
1
2
3
4.5x
Check max processor
frequency
MOTOROLA
Minimal PowerPC 603e Evaluation Board
13
Table 5. Excimer Frequency (PLL_CFG jumper ) Settings
Jumper
Position
CPU Frequency in MHz (VCO
Frequency in MHz)
(seen as
pin1 pin2 pin3)
Vdd CFG
PLL_CFG[0Ð3]
Comment
Bus-to-
Core
Multiplier Multiplier
Core-to
VCO
Bus
66.67
MHz
0
1
2
3
1011
1001
5x
2x
2x
333
Not recommended
Not recommended
0
1
2
3
5.5x
366
0
1
2
3
1101
0011
1111
6x
2x
400
66
Not recommended
Not recommended
Board will be inop
0
1
2
3
PLL bypass
0
1
2
3
Clock off
Part 7 Summary
The EXCIMER kit is a vehicle for exploring the PowerPC architecture and simple embedded software
development. The kit is meant to be a low-cost example of a PowerPC design suitable for learning, teaching,
or experimenting. Substantive applications that require large memory, PCI devices, or other advanced
features should explore the Yellowknife platform also available from Motorola or evaluation systems from
numerous third party vendors.
14
Minimal PowerPC 603e Evaluation Board
MOTOROLA
Appendix A Troubleshooting
Table 6 provides some failure conditions and probable causes.
Table 6. Failure Analysis
Problem
Symptom
All LEDs Off
Possible Cause
Nothing happens on the terminal
after powerup.
5V Supply
Error, Status, ROM LEDs on
ROM or RAM test failed
Corrupted or no code in ROM
PLL jumpers incorrect (too fast/slow)
PLL in bypass (no jumpers installed)
Power Supply Connection Faulty -
unplug and reconnect
Wiggler hardware interference -
disconnect Wiggler and try again
Error LED on, Status LED off
DINK prompt never returns
Duart test failed
dl command ÒhangsÓ forever
Corrupted s-records
Baud rate too fast?
S-Record downloads cause DINK
error 0xfb00..
Autotyping results in
Òunrecognized command or
symbol error.Ó
Bits lost in serial transmission. Add
delay between lines in Autotype
protocol settings on terminal emulator.
Nothing happens on the terminal
after go nnnnn command.
ROM access LED ßashing
Code has branched into ROM and is
looping there. Push reset.
SRAM access LED ßashing
Code is in an inÞnite loop in RAM.
Wiggler might halt the processor and
provide the location of the currently
executing instruction.
No access LEDs ßashing
Code is in an inÞnite loop in cache or
processor has taken a machine check.
Push reset.
Performance less than expected
Code runs ÒslowÓ or SRAM access
LED ßashes during cache-bound
program.
Caches disabled. Modify HID0 register
to 0x8000c000
Data accesses are slow
DCache marked Òcache inhibitedÓ for
user code. Modify dbat1l register to
0x00000012.
Heat sink area or processor is Òtoo
hotÓ to touch.
Physical contact with the board is
painful.
Processor is running Òtoo fastÓ for
ambient cooling conditions. Reduce
speed via PLL_CFG jumpers or cool
with moving air.
MOTOROLA
Minimal PowerPC 603e Evaluation Board
15
Mfax is a trademark of Motorola, Inc.
The PowerPC name, the PowerPC logotype, and PowerPC 603e are trademarks of International Business Machines Corporation used by Motorola
under license from International Business Machines Corporation.
Information in this document is provided solely to enable system and software implementers to use PowerPC microprocessors. There are no express or
implied copyright licenses granted hereunder to design or fabricate PowerPC integrated circuits or integrated circuits based on the information in this
document.
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee
regarding the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product
or circuit, and speciÞcally disclaims any and all liability, including without limitation consequential or incidental damages. ÒTypicalÓ parameters can and do
vary in different applications. All operating parameters, including ÒTypicalsÓ must be validated for each customer application by customerÕs technical
experts. Motorola does not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized
for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other
application in which the failure of the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use
Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its ofÞcers, employees, subsidiaries,
afÞliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent
regarding the design or manufacture of the part.
Motorola and
are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/AfÞrmative Action Employer.
Motorola Literature Distribution Centers:
USA/EUROPE: Motorola Literature Distribution; P.O. Box 5405; Denver, Colorado 80217; Tel.: 1-800-441-2447 or 1-303-675-2140;
World Wide Web Address: http://ldc.nmd.com/
JAPAN: Nippon Motorola Ltd SPD, Strategic Planning OfÞce 4-32-1, Nishi-Gotanda Shinagawa-ku, Tokyo 141, Japan Tel.: 81-3-5487-8488
ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd Silicon Harbour Centre 2, Dai King Street Tai Po Industrial Estate Tai Po, New Territories, Hong
Kong
Mfaxª: RMFAX0@email.sps.mot.com; TOUCHTONE 1-602-244-6609; US & Canada ONLY (800) 774-1848;
World Wide Web Address: http://sps.motorola.com/mfax
INTERNET: http://motorola.com/sps
Technical Information: Motorola Inc. SPS Customer Support Center 1-800-521-6274; electronic mail address: crc@wmkmail.sps.mot.com.
Document Comments: FAX (512) 895-2638, Attn: RISC Applications Engineering.
World Wide Web Addresses: http://www.motorola.com/PowerPC/
http://www.motorola.com/netcomm/
厂商 型号 描述 页数 下载

PANASONIC

 		EXC-14CE900U 要求批准产品规格[ PRODUCT SPECIFICATION FOR APPROVAL ] 12 页

PANASONIC

 		EXC-24CB102U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

 		EXC-24CE900U 共模噪声滤波器[ Common mode Noise Filters ] 2 页

PANASONIC

 		EXC-24CP221U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

 		EXC-28BB221U 片式磁珠阵列[ Chip Bead Array ] 4 页

PANASONIC

 		EXC-3BP121H [ Chip Bead Cores ] 7 页

PANASONIC

 		EXC-3BP600H 片式磁珠芯[ Chip Bead Cores ] 7 页

PANASONIC

 		EXC-CET103U 有效的噪声抑制电源线和高速信号线[ Effective noise suppression for power lines and high speed signal lines ] 8 页

PANASONIC

 		EXC-CET220U [ Chip EMI Filters ] 3 页

PANASONIC

 		EXC-ELDR35V EMI胎圈芯[ EMI Bead Cores ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.248935s
