AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
n
1,12 (9x)
( 5 : 1 )
SEALING
COMPOUND
D
D
0,3
39,4 +-
0
0,12
0,13
25 +-
Pos. 1
0,2
0,05
16,84 +-
Pos. 6
0,22
8,26 +- 0,03
RUBBER-GASKET
PLACED ON TOP
SURFACE OF MALE
INSULATOR
C
C
6STD09P
oM99B20X
CONEC ABC
O-RING
SEE NOTE 8
SEE NOTE 13
M3
M3
SW 4,75
NOTES:
B
B
1. RECOMMENDED SOLDER INSTRUCTION SEE SHEET 2
2. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
3. INSULATORS: PBT GF UL 94 V-0; BLACK
4. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):
b
o
o
o
PLEASE ADD A for GOLD FLASH over NICKEL
PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL
PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL
5. THREADED INSERTS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
7. HEXLOCKING SCREWS: STAINLESS STEEL
8. FRAME: ZINC DIE CAST; NICKEL PLATED
9. O-RING: SILICONE; BLUE
10. RUBBER GASKET: TPE; BLACK
11. RECOMMENDED PANEL CUT-OUT ON SHEET 2
12. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max. 40Ncm (3.5 in.LB)
13. CONNECTOR IS PART MARKED: 6STD09PoM99B20X CONEC ABC (see note 4)
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn 09.02.11 Henneboel

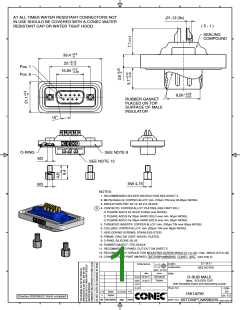

D-SUB MALE
appd.
norm
d-old
10.02.11
Fischer
9pos. SOLDER CUP
with threaded insert and hexlocking screw
dwg no:
DIN-
A3
1/2
1 x b
a
Ä5388
16.10.2014 K.H.
R
15K1A790
6STD09P M99B20X (see note 4)
Original
sh:
Directive 2002/95/EC RoHS compliant
