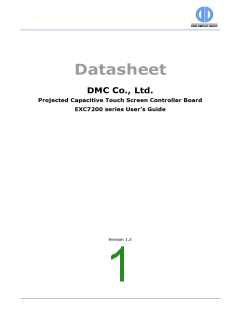

Datasheet
DMC Co., Ltd.
Projected Capacitive Touch Screen Controller Board
EXC7200 series User’s Guide
Version 1.2
Projected Capacitive Touch Screen Controller Board
EXC7200 series User’s Guide
Document No. DEC-S0002A
EXC7200 series Board User’s Guide
Table of Contents
1. Product Overview.................................................................................................................... 2
1-1. Products Applicable ...........................................................................................................................2
1-2. Overview ............................................................................................................................................2
2. Specifications.......................................................................................................................... 2
3. Drawings .................................................................................................................................. 3
3-1. Interface / Connection to the Host Computer .....................................................................................3
3-2. EXC7236............................................................................................................................................3
3-3. EXC7237............................................................................................................................................3
3-3. EXC7238............................................................................................................................................4
4. Connector................................................................................................................................. 5
4-1. Explanation of connectors..................................................................................................................5
5. Warranty................................................................................................................................... 6
5-1. Warranty Period .................................................................................................................................6
5-2. Warranty Target .................................................................................................................................6
5-3. Warranty Exceptions ..........................................................................................................................6
6. Precautions for Use ................................................................................................................ 7
6-1. General Handling ...............................................................................................................................7
6-2. Others ................................................................................................................................................7
7. Changes & Improvements...................................................................................................... 8
7-1. Version History...................................................................................................................................8
Document No. DEC-S0002A
1
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
1. Product Overview
1-1. Products Applicable
This specification is applicable to EXC7200 series.
1-2. Overview
EXC7200 series is a controller board that works as a coordinates-generator for projected capacitive touch
screen. This controller board supports both USB and RS232C.
EXC7200 series is lead-free and compliant with RoHS.
2. Specifications
Item
Rating
Remarks
No dew condensation
No dew condensation
Operating Temp.
Storage Temp.
-20°C to +80°C
-20°C to +85°C
50mV peak to peak maximum ripple
and noise
Supply Voltage
DC 5.0V +/-5%
50mA (typ)
Consumption Current
Format
Asynchronous Serial
Transfer Rate
57,600bps
8bit
Interface
/RS232C
Data Format
Stop Bit
1bit
Parity
None
USB Specification 1.1
Full Speed
Spec
Interface
/USB
HID Digitizer Device
Communicating to Windows®7
Device class
Vendor definition
200p/s Single touch
50set/s 2 point touch
(2point/set)
Communicating to other computers
Coordinate Output Rate (point/sec)
Dual touch is supported
Coordinate Resolution
The origin of theoretical coordinate
Max height of components
11bit (2048 x 2048)
Left side of the top
5.5 mm
“X=0,Y=0 “
Top side of the board
Channels of wire
Matrix
EXC7236
30 x 23
Dimension
80 x 28 mm
52 x 40
Matrix
EXC7237
Channels of wire
Dimension
125 x 28 mm
78 x 51
Matrix
EXC7238
Dimension
140 x 28 mm
Windows®7
HID Digitizer device / USB
USB/RS232C
Windows® 2000,Xp,Vista,7
CE,Embedded
Linux
Supported Operating System
USB/RS232C
USB
Mac
QNX
RS232C
Document No. DEC-S0002A
2
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
3. Drawings
3-1. Interface / Connection to the Host Computer
Fig.1
3-2. EXC7236
Fig.2
3-3. EXC7237
Fig.3
Document No. DEC-S0002A
3
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
3-3. EXC7238
Document No. DEC-S0002A
4
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
4. Connector
4-1. Explanation of connectors
CN
Terminal
Name
GND
Function
Remarks
For USB
1
3
Ground
V:5v
GND
D+
+5v Power or USB Vbus
5
Ground
7
USB D+
Connection to the
Host Computer
9
D-
USB D-
For
RS232C
2
GND
V:5v
GND
TX
Ground
PN : Compatible with
JST S10B-PHDSS
4
+5v Power
6
Ground
8
RS232C TXD (EXC72** > Computer)
RS232C RXD (EXC72** < Computer)
Connection to the Touch Screen
Connection to the Touch Screen
10
RX
J1
J2
EXC7200 series has both serial and USB interfaces and can support either communication port. USB
and serial interfaces cannot be used simultaneously.
Fig.4 Connection to the Host computer
Document No. DEC-S0002A
5
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
5. Warranty
5-1. Warranty Period
§ The warranty period is limited to 1 year from the date of shipping. The warranty for the initial defection
such as appearance defection is limited to 1 month.
§ Any defected parts under proper use will be examined by the supplier and replaced by the new parts if
the defection is considered to be caused by the supplier.
§ The replacement is subject to be included in the next lot.
5-2. Warranty Target
§ The warranty only covers the product itself and does not cover any damage to others caused by using
this product. Onsite repair or replacement is not supported.
§ We will do our best for delivery problem and product defections, but the warranty for the production line
is not covered.
5-3. Warranty Exceptions
Following conditions are not covered with the warranty and subject to charge.
§ Any malfunctions and damages during transportation and transfer by the user.
§ Any malfunctions and damages caused by a natural disaster or a fire.
§ Any malfunctions and damages caused by static electricity
§ Any malfunctions and damages caused by the failure of the associated equipment.
§ If the product is remodeled, disassembled or repaired by the user.
§ If the product is glued onto the equipment and uninstalled.
§ Any malfunctions and damages caused by an improper usage and handling against the specifications
and notes.
Document No. DEC-S0002A
6
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
6. Precautions for Use
6-1. General Handling
§ Keep the product away from any conductive objects while in use.
§ Do not touch the conductive part of the product to avoid being damaged by the electrostatic discharge.
Follow the proper procedure for handling.
§ Keep the product in the proper storing environment and avoid any load to the product.
§ Do not use or store the product in the severe condition like following:
Wet environment or a condition where the product is likely to get wet.
Where dew condensation is likely to occur.
Near solvent or acid.
§ Do not take apart or alter the product.
6-2. Others
§ The contents of this document are subject to change without notice.
§ The manufacturer or sales representatives will not be liable for any damages or loss arising from use of
this product.
§ This product is intended for use in standard applications (computers, office automation, and other office
equipment, industrial, communications, and measurement equipment, personal and household devices,
etc.) Please avoid using this product for special applications where failure or abnormal operation may
directly affect human lives, or cause physical injury or property damage, or where extremely high levels
of reliability are required (such as aerospace systems, vehicle operating control, atomic energy controls,
medical devices for life support, etc.).
§ Any semiconductor devices have inherently a certain rate of failure. The user must protect against injury,
damage, or loss from such failures by incorporating safety design measures into the user’s facility and
equipment.
Document No. DEC-S0002A
7
Rev.1.2 ©2010 DMC Co., Ltd.
EXC7200 series Board User’s Guide
7. Changes & Improvements
7-1. Version History
§
EXC7200 series
Ver 1.0 (June 1, 2010)
First release
Ver 1.1(July 29,2010)
a.“The origin of theoretical coordinate” is added.
b. The pin assignment numbering of the communication port on the connector was changed.
(Position of the pin assignment signals is left unchanged)
Æ
Ver 1.2(April 28,2011)
a. EXC7236 Number of electrodes (Matrix) changed: 31 x 23
b. New model EXC7238 was added
→
30 x 23
c. Explanations on the signal TxD and RxD were added.
RS232C TXD (EXC72** > Computer)
RS232C RXD (EXC72** < Computer)
EXC7200 series Board User’s Guide
Rev. 1.2, Aprl 28, 2011
©2010 DMC Co., Ltd.
This document can be freely distributed, but any alternation to this document is prohibited.
DMC Co., Ltd.
http://www.dmccoltd.com/english/
9th floor, Kanda Sento Building, 1-2-4 Yushima, Bunkyo-Ku, Tokyo 113-0034, Japan
Phone: +81-3-5209-7131 (Japanese), 7135 (English) Fax: +81-3-5209-7130
Document No. DEC-S0002A
8
Rev.1.2 ©2010 DMC Co., Ltd.
Our company network supports you worldwide with offices in Germany, Great Britain, Italy, Turkey and the
USA. For more information please contact:
Distec GmbH
Augsburger Str. 2b
82110 Germering
Germany
Display Technology Ltd.
5 The Oaks Business Village
Revenge Road, Lordswood
Chatham, Kent, ME5 8LF
United Kingdom
Phone:
Fax:
+49 (0)89 / 89 43 63-0
+49 (0)89 / 89 43 63-131
info@datadisplay-group.de
Phone:
Fax:
+44 (0)1634 / 67 27 55
E-Mail:
+44 (0)1634 / 67 27 54
Internet: www.datadisplay-group.de
E-Mail:
info@datadisplay-group.co.uk
Internet: www.datadisplay-group.co.uk
Data Display S.r.l.
Via Marco Polo, 9/D
I-35010 Trebaseleghe (PD)
Italy
Data Display Teknoloji Elektronik San Ve Diş Tic A.Ş.
Kustepe Leylak Sok.
Nursanlar Is Merkezi
Kat. 6 No: 21
Phone:
Fax:
+39 049 / 72 40 038
+39 049 / 72 40 039
info@datadisplay-group.it
Sisli / Istanbul
Turkey
E-Mail:
Phone:
Fax:
+90 (0)212 / 356 04 20
+90 (0)212 / 356 04 25
info@datadisplay-group.com.tr
Internet: www.datadisplay-group.it
E-Mail:
Internet: www.datadisplay-group.com.tr
Apollo Display Technologies, Corp.
87 Raynor Avenue, Unit 1
Ronkonkoma, NY 11779
United States of America
Phone:
Fax:
+1 631 / 580-43 60
+1 631 / 580-43 70
E-Mail:
info@datadisplay-group.com
Internet: www.datadisplay-group.com
厂商 型号 描述 页数 下载

PANASONIC

 		EXC-14CE900U 要求批准产品规格[ PRODUCT SPECIFICATION FOR APPROVAL ] 12 页

PANASONIC

 		EXC-24CB102U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

 		EXC-24CE900U 共模噪声滤波器[ Common mode Noise Filters ] 2 页

PANASONIC

 		EXC-24CP221U 2模式噪声滤波器[ 2 mode Noise Filters ] 4 页

PANASONIC

 		EXC-28BB221U 片式磁珠阵列[ Chip Bead Array ] 4 页

PANASONIC

 		EXC-3BP121H [ Chip Bead Cores ] 7 页

PANASONIC

 		EXC-3BP600H 片式磁珠芯[ Chip Bead Cores ] 7 页

PANASONIC

 		EXC-CET103U 有效的噪声抑制电源线和高速信号线[ Effective noise suppression for power lines and high speed signal lines ] 8 页

PANASONIC

 		EXC-CET220U [ Chip EMI Filters ] 3 页

PANASONIC

 		EXC-ELDR35V EMI胎圈芯[ EMI Bead Cores ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.171001s
