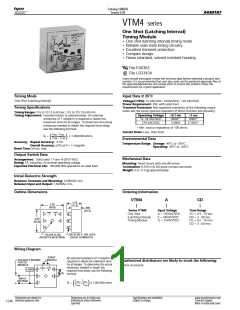

AGASTAT
VTM4 series
One Shot (Latching Interval)
Tim ing Module
• One shot (latching interval) timing mode
• Reliable solid state timing circuitry.
• Excellent transient protection.
• Compact design.
• Flame retardant, solvent resistant housing.
File E60363
File LR33434
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Tim ing Mode
Input Data @ 25°C
One Shot (Latching Interval).
Voltage:(±10%): 12 VAC/VDC, 24VAC/VDC, 120 VAC/VDC.
Pow er Requirem ent: 4W, with rated load.
Transient Protection: Non-repetitive transients of the following magni-
tudes will not cause spurious operation of affect function and accuracy.
Tim ing Specifications
Tim ing Ranges: 0.5 to 10 / 3 to 60 sec.; 0.5 to 10 / 3 to 60 min.
Tim ing Adjustm ent: External resistor or potentiometer. An external
resistance of 1 megohm is required to obtain the
maximum time for all ranges. To determine the actual
resistance needed to obtain the required time delay,
use the following formula:
Operating Voltage
12, 24 VAC/VDC
120 VAC/VDC
<0.1 m s
860V*
2,580V
<1 m s
208V*
2,150V*
* Min. source impedance of 100 ohms.
Current Drain: Less than 5mA.
Treq - Tmin
Rt =
x 1,000,000 ohms
(
Tmax - Tmin
Accuracy: Repeat Accuracy: ±1%
Overall Accuracy: ±2% at R = 1 megohm.
Reset Tim e: 50 ms, max.
)
Environm ental Data
Tem perature Range: Storage: -40°C to +85°C.
Operating: -40°C to +65°C.
Output Sw itch Data
Mechanical Data
Arrangem ent: Solid state 1 Form A (SPST-NO).
Rating: 1A, inductive, at nominal operating voltage.
Expected Electrical Life: 100,000,000 operations at rated load.
Mounting: Panel mount with one #8 screw.
Term ination: 0.250 in (6.35) quick connect terminals.
Weight: 4 oz. (112g) approximately.
Initial Dielectric Strength
Betw een Term inals and Mounting: 3,000VAC rms.
Betw een Input and Output: 1,500VAC rms.
Outline Dim ensions
Ordering Inform ation
VTM4
|
Series VTM4
One Shot
A
|
CD
|
1.25
(31.8)
2.00
(50.8)
.885
(22.5)
Input Voltage
Tim e Range
A = 120VAC/VDC
E = 24VAC/VDC
Q = 12VAC/VDC
CD = 0.5 - 10 sec.
DD = 3 - 60 sec.
FD = 0.5 - 10 min.
GD = 3 - 60 min.
(Latching Interval)
Timing Module
2.00
(50.8)
.250 (6.35) X .032 (.813)
QUICK CONNECTS
.170 DIA (4.32)
ACCEPTS #8 SCREW
Wiring Diagram
START
An external resistance of 1 megohm is
required to obtain the maximum time
for all ranges. To determine the actual
resistance needed to obtain the
required time delay, use the following
formula:
POLARITY SHOWN
FOR DC
SWITCH
Authorized distributors are likely to stock the follow ing:
None at present.
MODELS
5
4
1
2
3
LOAD
7
6
R
t
INPUT
VOLTAGE
Treq - Tmin
Rt =
x 1,000,000 ohms
(
)
Tmax - Tmin
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
