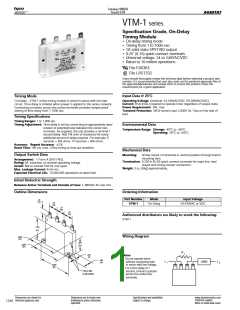

AGASTAT
VTM-1 series
Specification Grade, On-Delay
Tim ing Module
• On-delay timing mode
• Timing from 1 to 1000 sec.
• 1A solid state SPST-NO output
• 0.25" (6.35) quick connect terminals
• Universal voltage: 24 to 240VAC/VDC
• Rated to 10 million operations
File E60363
File LR51332
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Input Data @ 25°C
Tim ing Mode
Operating Voltage: Universal: 24-240VAC/VDC (19-288VAC/VDC).
Current: 2mA (max.) required to operate timer regardless of output state.
Pow er Requirem ent: 3W, max.
Transient Protection: MOV across input 2,000V for 11µs on line side of
load.
On-Delay – VTM-1 in-line timing module is wired in series with the load
circuit. Time delay is initiated when power is applied to the series network.
Connecting a resistor across the center terminals provides tamper-proof
setting of time delay from 1-1000 sec.
Tim ing Specifications
Tim ing Ranges: 1 to 1,000 sec.
Tim ing Adjustm ent: Time delay is set by connecting an appropriately rated
resistor or potentiometer between the center two
terminals. As supplied, the unit provides a nominal 1
second delay. Add 10k ohm of resistance for every
additional second of delay required. For example: 5
seconds = 40k ohms; 10 seconds = 90k ohms.
Accuracy: Repeat Accuracy: ±2%
Environm ental Data
Tem perature Range: Storage: -40°C to +85°C.
Operating: -30°C to +65°C.
Reset Tim e: 100 ms, max., in the timing or time-out condition.
Mechanical Data
Output Sw itch Data
Arrangem ent: 1 Form A (SPST-NO).
Rating: 5A, inductive, at nominal operating voltage.
Inrush: Not to exceed 10A for one cycle.
Mounting:
Screw mount in horizontal or vertical position through built-in
mounting ears.
Term ination: 0.250 in (6.35) quick connect terminals for input line, load
output and timing resistor connection.
Weight: 3 oz. (84g) approximately.
Max. Leakage Current: 4mA rms.
Expected Electrical Life: 10,000,000 operations at rated load.
Initial Dielectric Strength
Betw een Active Term inals and Outside of Case: 1,480VAC for one min.
Outline Dim ensions
Ordering Inform ation
Part Num ber
VTM-1
Mode
Input Voltage
On-Delay
24-240VAC or VDC
Authorized distributors are likely to stock the follow ing:
VTM-1
Wiring Diagram
Notes:
1. Do not operate timer
without connecting load
in series with line voltage.
2. For a time delay of 1
second, connect a jumper
across the center two
terminals.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
