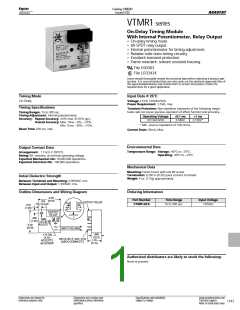

Catalog 1308242
Issued 3-03
AGASTAT
VTMR1 series
On-Delay Tim ing Module
With Internal Potentiom eter, Relay Output
• On-delay timing mode
• 8A SPDT relay output.
• Internal potentiometer for timing adjustment.
• Reliable solid state timing circuitry.
• Excellent transient protection.
• Flame retardant, solvent resistant housing.
File E60363
File LR33434
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Tim ing Mode
Input Data @ 25°C
On-Delay.
Voltage: ±10% 120VAC/VDC.
Pow er Requirem ent: 3.5VA, max.
Tim ing Specifications
Transient Protection: Non-repetitive transients of the following magni-
tudes will not cause spurious operation of affect function and accuracy.
Tim ing Ranges: 15 to 300 sec.
Tim ing Adjustm ent: Internal potentiometer.
Accuracy: Repeat Accuracy: ±5% max. (0.25% typ.)
Overall Accuracy: Max. Time: –0% , +10% .
Min. Time: –30% , +10% .
Operating Voltage
120 VAC/VDC
<0.1 m s
2,580V
<1 m s
2,150V*
* Min. source impedance of 100 ohms.
Current Drain: 30mA, Max.
Reset Tim e: 250 ms, max.
Environm ental Data
Output Contact Data
Tem perature Range: Storage: -40°C to +70°C.
Arrangem ent: 1 Form C (SPDT).
Operating: -40°C to +70°C.
Rating: 8A, resistive, at nominal operating voltage.
Expected Mechanical Life: 10,000,000 operations.
Expected Electrical Life: 100,000 operations.
Mechanical Data
Mounting: Panel mount with one #8 screw.
Term ination: 0.250 in (6.35) quick connect terminals.
Weight: 4 oz. (112g) approximately.
Initial Dielectric Strength
Betw een Term inals and Mounting: 3,000VAC rms.
Betw een Input and Output: 1,500VAC rms.
Outline Dim ensions and Wiring Diagram
Ordering Inform ation
2.00
(50.8)
Part Num ber
VTMR1AEA
Tim e Range
Input Voltage
.763
OUTPUT RELAY
(19.4)
15 to 300 sec.
120VAC
.278
(7.06)
OUTPUT
RELAY
.286
(7.26)
TIME
DELAY
ADJUST
2.00
(50.8)
INPUT VOLTAGE
.885
(22.5)
1.25
(31.8)
.170 DIA
(4.32)
ACCEPTS
#8 SCREW
.250 (6.35) X .032 (.813)
QUICK CONNECTS
Authorized distributors are likely to stock the follow ing:
None at present.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
1243
