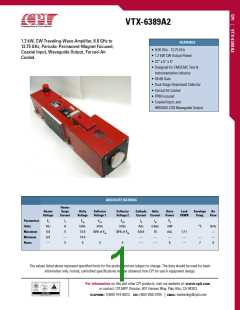

VTX-6389A2
1.2 kW, CW Traveling-Wave Amplifier, 8.0 GHz to
12.75 GHz, Periodic-Permanent-Magnet Focused,
Coaxial Input, Waveguide Output, Forced-Air
Cooled.
FEATURES
• 8.00 GHz - 12.75 GHz
• 1.2 kW CW Output Power
• 22” x 5” x 5”
• Designed for EMI/EMC Test &
Instrumentation Industry
• 48 dB Gain
• Dual Stage Depressed Collector
• Forced Air Cooled
• PPM Focused
• Coaxial Input, and
WRD650-D28 Waveguide Output
ABSOLUTE RATINGS
Heater
Surge
Current
Heater
Voltage
Helix
Voltage
Collector
Voltage 1
Collector
Voltage 2
Cathode
Current Current
Helix
Drive
Power
Load
VSWR
Envelope
Temp.
Air
Flow
Parameters
Units
Ef
Vdc
6.6
6.0
If
A
Ew
kVdc
13.5
14.5
5
Eb1
Eb2
kVdc
Ik
Adc
0.8 A
Iw
mAdc
15
Pd
mW
Adj.
---
kVdc
°C
Ib/hr
---
Maximum
Minimum
Notes
5
60% of Ew
30% of Ew
1.7:1
---
---
3
7
---
9
4
4
6
The values listed above represent specified limits for the product and are subject to change. The data should be used for basic
information only. Formal, controlled specifications may be obtained from CPI for use in equipment design.
For information on this and other CPI products, visit our website at: www.cpii.com
or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303
