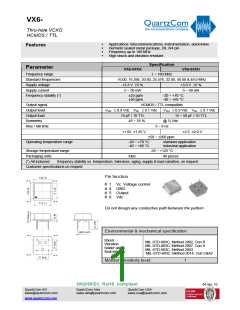

VX6-
Thru-hole VCXO
HCMOS / TTL
.
.
.
.
Applications: telecommunications, instrumentation, automotive
Hermetic sealed metal package, DIL 8/4 pin
Frequency up to 180 MHz
Features
High shock and vibration resistant
Specification
Parameter
VX6-3XXH
VX6-5XXH
Frequency range
Standard frequencies
Supply voltage
1 ~ 180 MHz
16.00, 16.384, 20.00, 24.576, 32.00, 40.00 & 48.0 MHz
+3.3 V 5 %
+5.0 V 5 %
Supply current
5 ~ 50 mA
5 ~ 40 mA
Frequency stability (*)
±25 ppm
±50 ppm
-20 ~ +70 °C
-40 ~ +85 °C
Output signal
Output level
Output load
Symmetry
HCMOS / TTL compatible
VOH 0.9 Vdc VOL 0.1 Vdc
VOH 0.9 Vdc VOL 0.1 Vdc
15 ~ 50 pF / 10 TTL
@ ½ Vdc
15 pF / 10 TTL
45 ~ 55 %
Rise / fall time
3 ~ 8 ns
+1.65 1.35 V
+2.5 2.0 V
50 ~ 200 ppm
standard application
industrial application
-55 ~ +125 °C
40 pieces
Operating temperature range
-20 ~ +70 °C
-40 ~ +85 °C
Storage temperature range
Packaging units
tube
(*) All inclusive:
frequency stability vs. temperature, tolerance, aging, supply & load variation, on request
Customer specifications on request
Pin function
# 1 Vc Voltage control
# 4 GND
# 5 Output
# 8 Vdc
Do not design any conductive path between the pattern
Environmental & mechanical specification
Shock
MIL-STD-883C, Method 2002, Con B
Vibration
MIL-STD-883C, Method 2007, Con A
Solder ability
MIL-STD-883C, Method 2003
Seal integrity
MIL-STD-883C, Method 2014, Con C&A2
Moister sensitivity level:
1
2002/95/EC RoHS compliant
04 Apr. 10
QuartzCom AG
sales@quartzcom.com
QuartzCom Asia
sales-asia@quartzcom.com
QuartzCom USA
sales-usa@quartzcom.com
www.quartzcom.com
