VX60M100PW-M3/P

型号：

VX60M100PW-M3/P

品牌：

VISHAY[ VISHAY ]

页数：

5 页

PDF大小：

125 K

下载PDF手册

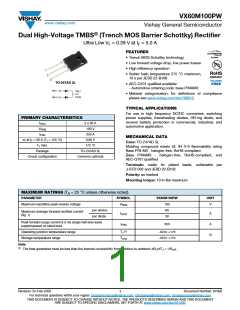

VX60M100PW
Vishay General Semiconductor
www.vishay.com
Dual High-Voltage TMBS® (Trench MOS Barrier Schottky) Rectifier
Ultra Low VF = 0.39 V at IF = 5.0 A
FEATURES
Available
• Trench MOS Schottky technology
• Low forward voltage drop, low power losses
• High efficiency operation
1
• Solder bath temperature 275 °C maximum,
2
10 s per JESD 22-B106
3
TO-247AD 3L
• AEC-Q101 qualified available:
- Automotive ordering code: base P/NHM3
PIN 1
PIN 3
PIN 2
CASE
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency DC/DC converters, switching
power supplies, freewheeling diodes, OR-ing diode, and
reverse battery protection in commercial, industrial, and
automotive application.
PRIMARY CHARACTERISTICS
IF(AV)
2 x 30 A
100 V
VRRM
IFSM
350 A
MECHANICAL DATA
Case: TO-247AD 3L
Molding compound meets UL 94 V-0 flammability rating
VF at IF = 30 A (TJ = 125 °C)
TJ max.
0.65 V
175 °C
Base P/N-M3 - halogen-free, RoHS-compliant
Package
TO-247AD 3L
Base P/NHM3
AEC-Q101 qualified
- halogen-free, RoHS-compliant, and
Circuit configuration
Common cathode
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
Polarity: as marked
Mounting torque: 10 in-lbs maximum
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
VX60M100PW
UNIT
Maximum repetitive peak reverse voltage
VRRM
100
60
V
per device
per diode
Maximum average forward rectified current
(fig. 1)
IF(AV)
A
A
30
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
IFSM
350
(1)
Operating junction temperature range
Storage temperature range
TJ
-40 to +175
-40 to +175
°C
TSTG
Note
(1)
The heat generated must be less than the thermal conductivity from junction-to-ambient: dPD/dTJ < 1/RθJA
Revision: 25-Feb-2020
Document Number: 87008
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VX60M100PW
Vishay General Semiconductor
www.vishay.com
ELECTRICAL CHARACTERISTICS (TJ = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
TYP.
MAX.
UNIT
IF = 5 A
0.49
0.61
0.75
0.39
0.54
0.65
0.0035
4
-
IF = 15 A
IF = 30 A
IF = 5 A
TJ = 25 °C
-
0.83
(1)
Instantaneous forward voltage per diode
VF
V
-
-
IF = 15 A
IF = 30 A
TJ = 125 °C
0.73
-
TJ = 25 °C
TJ = 125 °C
TJ = 25 °C
TJ = 125 °C
VR = 70 V
-
(2)
Reverse current at rated VR per diode
Typical junction capacitance
IR
mA
pF
-
0.5
20
-
VR = 100 V
7
4.0 V, 1 MHz
CJ
2600
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
Pulse test: Pulse width ≤ 5 ms
(2)
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
VX60M100PW
UNIT
Typical thermal resistance per device
RθJC
0.6
°C/W
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PACKAGE CODE
BASE QUANTITY
25/tube
DELIVERY MODE
VX60M100PW-M3/P
VX60M100PWHM3/P (1)
5.64
5.64
P
P
Tube
Tube
25/tube
Note
(1)
AEC-Q101 qualified
Revision: 25-Feb-2020
Document Number: 87008
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VX60M100PW
Vishay General Semiconductor
www.vishay.com
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C, unless otherwise noted)
Axis Title
Axis Title
70
60
50
40
30
20
10
0
10000
1000
100
100
10
10000
1000
100
TJ = 175 °C
TJ = 150 °C
TC = 149.8°C, RthJC = 0.6ƱC/W
TJ = 125 °C
TJ = 100 °C
1
0.1
0.01
TJ = 25 °C
0.001
0.0001
0.00001
TJ = -40 °C
10
10
0
25
50
75
100 125 150 175
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
Axis Title
Axis Title
Axis Title
10 000
10000
30.0
TJ = 25 °C
10000
D = 0.8
f = 1.0 MHz
Vsig = 50 mVp-p
25.0
20.0
15.0
10.0
5.0
D = 0.5
D = 0.3
1000
100
10
D = 1.0
1000
100
10
D = 0.2
D = 0.1
1000
100
T
D = tp/T
tp
0
0.1
1
10
100
0
5
10
15
20
25
30
35
40
Reverse Voltage (V)
Average Forward Current (A)
Fig. 2 - Average Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
Axis Title
Axis Title
1
100
10
1
10000
1000
100
10000
1000
100
Junction to case
TJ = 175°C
TJ = 150°C
TJ = 125°C
TJ = 100°C
TJ = 25°C
TJ = -40 °C
0.1
10
0.1
10
0.01
0.1
1
10
100
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 25-Feb-2020
Document Number: 87008
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VX60M100PW
Vishay General Semiconductor
www.vishay.com
PACKAGE OUTLINE DIMENSIONS in millimeters (inches) TO-247AD 3L
A
A
(3)
(6)
E
Φ P
(Datum B)
B
A2
A
S
M
M
Ø K D B
Φ P1
(2) R/2
D2
Q
2 x R
(2)
D1 (4)
D
4
D
1
2
3
Thermal pad
(5) L1
C
(4)
E1
L
A
M
M
0.01 D B
View A - A
See view B
2 x b2
3 x b
C
2 x e
b4
A1
M
M
0.10 C A
(b1, b3, b5)
Plating
Base metal
D D E
E
(c)
c1
C
C
(b, b2, b4)
(4)
Section C - C, D - D, E - E
View B
MILLIMETERS
INCHES
MIN.
MILLIMETERS
INCHES
SYMBOL
NOTES
SYMBOL
NOTES
MIN.
4.65
2.21
1.50
0.99
0.99
1.65
1.65
2.59
2.59
0.38
0.38
19.71
13.08
MAX.
5.31
2.59
2.49
1.40
1.35
2.39
2.34
3.43
3.38
0.89
0.84
20.70
-
MAX.
0.209
0.102
0.098
0.055
0.053
0.094
0.092
0.135
0.133
0.035
0.033
0.815
-
MIN.
0.51
MAX.
1.30
15.87
-
MIN.
0.020
0.602
0.53
MAX.
0.051
0.625
-
A
A1
A2
b
0.183
0.087
0.059
0.039
0.039
0.065
0.065
0.102
0.102
0.015
0.015
0.776
0.515
D2
E
15.29
13.46
3
E1
e
5.46 BSC
0.254
20.32
0.215 BSC
0.010
0.800
b1
b2
b3
b4
b5
c
Ø K
L
19.81
3.71
3.56
-
0.780
0.146
0.14
-
L1
Ø P
Ø P1
Q
4.29
3.66
6.98
5.69
5.49
0.169
0.144
0.275
0.224
0.216
5.31
4.52
0.209
0.178
c1
D
R
3
4
S
5.51 BSC
0.217 BSC
D1
Notes
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Dimensioning and tolerancing per ASME Y14.5M-1994
Contour of slot optional
Dimension D and E do not include mold flash. These dimensions are measured at the outermost extremes of the plastic body
Thermal pad contour optional with dimensions D1 and E1
Lead finish uncontrolled in L1
Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154")
Outline conforms to JEDEC® outline TO-247 with exception of dimension A min., D, E min., Q min., S, and note 4
Revision: 25-Feb-2020
Document Number: 87008
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 01-Jan-2019
Document Number: 91000
1
厂商 型号 描述 页数 下载

QUARTZCOM

 		VX6 通孔VCXO HCMOS / TTL高耐冲击和振动[ Thru-hole VCXO HCMOS / TTL High shock and vibration resistant ] 1 页

QUARTZCOM

 		VX6-3XXH 通孔VCXO HCMOS / TTL高耐冲击和振动[ Thru-hole VCXO HCMOS / TTL High shock and vibration resistant ] 1 页

QUARTZCOM

 		VX6-5XXH 通孔VCXO HCMOS / TTL高耐冲击和振动[ Thru-hole VCXO HCMOS / TTL High shock and vibration resistant ] 1 页

CONNOR-WINFIELD

 		VX64-200 14引脚DIP VCXO振荡器[ 14 PIN DIP VCXO OSCILLATOR ] 1 页

STMICROELECTRONICS

 		VX6852 QXGA EDOF相机模块[ QXGA EDOF camera module ] 4 页

STMICROELECTRONICS

 		VX6852Q038/T2 QXGA EDOF相机模块[ QXGA EDOF camera module ] 4 页

STMICROELECTRONICS

 		VX6854LC [ QXGA EDOF camera module ] 114 页

STMICROELECTRONICS

 		VX6854LCQ05I [ QXGA EDOF camera module ] 114 页

STMICROELECTRONICS

 		VX6854LCQ05I1 [ QXGA EDOF camera module ] 114 页

STMICROELECTRONICS

 		VX6953CB [ 5.1 megapixel EDOF camera module ] 107 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.207759s
