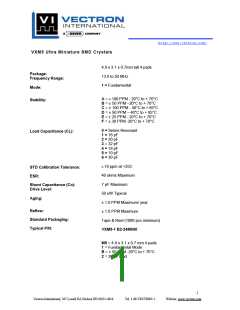

VXM5 Ultra Miniature SMD Crystals
4.9 x 3.1 x 0.7mm tall 4 pads
Package:
Frequency Range:
13.0 to 50 MHz
1 = Fundamental
Mode:
A = ± 100 PPM - 20°C to + 70°C
B = ± 50 PPM –20°C to + 70°C
C = ± 100 PPM - 40°C to + 85°C
D = ± 50 PPM – 40°C to + 85°C
E = ± 25 PPM - 20°C to + 70°C
F = ± 30 PPM -20°C to + 70°C
Stability:
0 = Series Resonant
1 = 16 pF
Load Capacitance (CL):
2 = 20 pF
3 = 32 pF
4 = 18 pF
5 = 10 pF
6 = 30 pF
± 10 ppm at +25C
STD Calibration Tolerance:
ESR:
40 ohms Maximum
7 pF Maximum
Shunt Capacitance (Co):
Drive Level:
50 uW Typical
Aging:
± 1.0 PPM Maximum/ year
± 1.0 PPM Maximum
Tape & Reel (1000 pcs minimum)
VXM5-1 B2-24M000
Reflow:
Standard Packaging:
Typical P/N:
M5 = 4.9 x 3.1 x 0.7 mm 4 pads
1 = Fundamental Mode
B = ± 50 PPM -20°C to + 70°C
2 = 20 pF load
1
