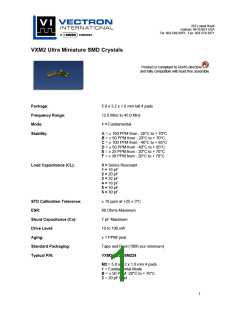

VXM2 Ultra Miniature SMD Crystals
Product is compliant to RoHS directive
and fully compatible with lead free assembly
Package:
5.0 x 3.2 x 1.0 mm tall 4 pads
Frequency Range:
Mode:
12.0 MHz to 45.0 MHz
1 = Fundamental
Stability:
A = ± 100 PPM from - 20°C to + 70°C
B = ± 50 PPM from - 20°C to + 70°C
C = ± 100 PPM from - 40°C to + 85°C
D = ± 50 PPM from - 40°C to + 85°C
E = ± 25 PPM from - 20°C to + 70°C
F = ± 30 PPM from - 20°C to + 70°C
Load Capacitance (CL):
0 = Series Resonant
1 = 16 pF
2 = 20 pF
3 = 32 pF
4 = 18 pF
5 = 10 pF
6 = 30 pF
STD Calibration Tolerance:
ESR:
± 10 ppm at +25 ± 3°C
60 Ohms Maximum
7 pF Maximum
Shunt Capacitance (Co):
Drive Level:
10 to 100 uW
Aging:
± 1 PPM/ year
Standard Packaging:
Typical P/N:
Tape and Reel (1000 pcs minimum)
VXM2-1B2-28M224
M2 = 5.0 x 3.2 x 1.0 mm 4 pads
1 = Fundamental Mode
B = ± 50 PPM -20°C to + 70°C
2 = 20 pF load
1
