2SK3322-S

型号：

2SK3322-S

描述：

切换N沟道功率MOSFET[ SWITCHING N-CHANNEL POWER MOSFET ]

品牌：

NEC[ NEC ]

页数：

8 页

PDF大小：

91 K

下载PDF手册

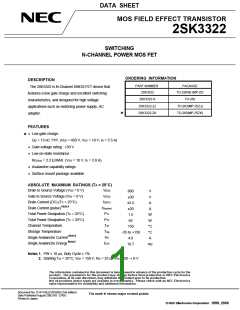

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK3322
SWITCHING
N-CHANNEL POWER MOS FET
ORDERING INFORMATION
DESCRIPTION
PART NUMBER
PACKAGE
The 2SK3322 is N-Channel DMOS FET device that
features a low gate charge and excellent switching
characteristics, and designed for high voltage
applications such as switching power supply, AC
adapter.
2SK3322
2SK3322-S
2SK3322-ZJ
2SK3322-ZK
TO-220AB (MP-25)
TO-262
TO-263(MP-25ZJ)
TO-263(MP-25ZK)
★
FEATURES
• Low gate charge :
★
QG = 15 nC TYP. (VDD = 450 V, VGS = 10 V, ID = 5.5 A)
• Gate voltage rating : ±30 V
• Low on-state resistance :
RDS(on) = 2.2 Ω MAX. (VGS = 10 V, ID = 2.8 A)
• Avalanche capability ratings
• Surface mount package available
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage (VGS = 0 V)
Gate to Source Voltage (VDS = 0 V)
Drain Current (DC) (TC = 25°C)
Drain Current (pulse) Note1
VDSS
VGSS
ID(DC)
ID(pulse)
PT1
600
±30
±5.5
±20
1.5
V
V
A
A
Total Power Dissipation (TA = 25°C)
Total Power Dissipation (TC = 25°C)
Channel Temperature
W
W
°C
PT2
65
Tch
150
Storage Temperature
Tstg
−55 to +150
4.0
°C
A
Single Avalanche Current Note2
Single Avalanche Energy Note2
IAS
EAS
10.7
mJ
Notes 1. PW ≤ 10 µs, Duty Cycle ≤ 1%
2. Starting Tch = 25°C, VDD = 150 V, RG = 25 Ω, VGS = 20 → 0 V
The information contained in this document is being issued in advance of the production cycle for the
product. The parameters for the product may change before final production or NEC Electronics
Corporation, at its own discretion, may withdraw the product prior to its production.
Not all products and/or types are availabe in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D14114EJ2V0DS00 (2nd edition)
Date Published August 2003 NS CP(K)
Printed in Japan
The mark ★ shows major revised points.
1999, 2000
2SK3322
★
ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
Zero Gate Voltage Drain Current
Gate Leakage Current
SYMBOL
IDSS
TEST CONDITIONS
VDS = 600 V, VGS = 0 V
MIN.
TYP.
MAX.
100
±10
3.5
UNIT
µA
µA
V
IGSS
VGS(off)
| yfs |
RDS(on)
Ciss
VGS = ±30 V, VDS = 0 V
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 2.8 A
VGS = 10 V, ID = 2.8 A
VDS = 10 V,
Gate Cut-off Voltage
2.5
1.0
Note
Forward Transfer Admittance
Drain to Source On-state Resistance
Input Capacitance
S
Note
1.7
550
115
13
2.2
Ω
pF
pF
pF
Ns
ns
ns
ns
nC
nC
nC
V
Output Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
Coss
Crss
VGS = 0 V,
f = 1 MHz
td(on)
tr
VDD = 150 V, ID = 2.8 A,
VGS = 10 V,
12
10
Turn-off Delay Time
Fall Time
td(off)
tf
RG = 10 Ω
35
12
Total Gate Charge
QG
VDD = 450 V,
15
Gate to Source Charge
Gate to Drain Charge
QGS
QGD
VF(S-D)
trr
VGS = 10 V,
4
ID = 5.5 A
4.4
1.0
1.6
5.3
Note
Body Diode Forward Voltage
IF = 5.5 A, VGS = 0 V
IF = 5.5 A, VGS = 0 V,
di/dt = 50 A/µs
Reverse Recovery Time
Reverse Recovery Charge
µs
µC
Qrr
Note Pulsed
TEST CIRCUIT 1 AVALANCHE CAPABILITY
TEST CIRCUIT 2 SWITCHING TIME
D.U.T.
D.U.T.
L
RG
= 25 Ω
V
GS
R
L
90%
PG.
GS = 20 → 0 V
V
GS
V
GS
10%
V
DD
50 Ω
Wave Form
0
RG
V
PG.
V
DD
90%
I
D
90%
10%
BVDSS
I
D
I
AS
V
0
GS
10%
I
D
0
V
DS
Wave Form
I
D
t
d(on)
t
r
t
d(off)
t
f
VDD
τ
t
on
t
off
τ = 1 s
µ
Starting Tch
Duty Cycle ≤ 1%
TEST CIRCUIT 3 GATE CHARGE
D.U.T.
I
G
= 2 mA
RL
PG.
V
DD
50 Ω
2
Data Sheet D14114EJ2V0DS
2SK3322
TYPICAL CHARACTERISTICS (TA = 25°C)
DRAIN CURRENT vs.
FORWARD TRANSFER CHARACTERISTICS
DRAIN TO SOURCE VOLTAGE
100
V
DS = 10 V
Pulsed
Pulsed
10
10
1
V
GS = 10 V
8.0 V
6.0 V
T
ch = 125˚C
75˚C
5
0
25˚C
0.1
−25˚C
0.01
0
5
10
15
10
20
30
40
50
0
VGS - Gate to Source Voltage - V
VDS - Drain to Source Voltage - V
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
GATE TO SOURCE CUT-OFF VOLTAGE
vs. CHANNEL TEMPERATURE
5
4
3
2
1
0
10
V
ID
DS = 10 V
= 1 mA
T
ch = −25˚C
25˚C
75˚C
125˚C
1
V
DS = 10 V
Pulsed
0.1
0.1
1
10
−50
0
50
100
150
I
D
- Drain Current - A
T
ch - Channel Temperature - ˚C
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
3
2
1
0
Pulsed
3
V
GS = 10 V
I = 4.0 A
D
20 V
2.8 A
2
1
0
Pulsed
100
0
5
10
15
0.1
1
10
- Drain Current - A
V
GS - Gate to Source Voltage - V
I
D
3
Data Sheet D14114EJ2V0DS
2SK3322
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
100
10
4
3
I
D
= 4.0 A
2.8 A
0
0.1
2
V
GS = 10 V
0 V
1
0
V
GS = 10 V
Pulsed
Pulsed
1.5
0.01
0
0.5
1
−50
0
50
100
150
V
SD - Source to Drain Voltage - V
T
ch - Channel Temperature - ˚C
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
100
10
1
10000
1000
V
GS = 0 V
f = 1 MH
Z
t
d(off)
t
f
td(on)
Ciss
t
r
100
10
Coss
Crss
V
V
R
DD = 150 V
GS = 10 V
G
= 10 Ω
0.1
1
0.1
0.1
1
10
1
10
100
ID - Drain Current - A
V
DS - Drain to Source Voltage - V
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
10000
1000
100
16
14
12
10
8
di/dt = 50 A/µ
S
I = 4.0 A
D
V
GS = 0 V
V
DD = 450 V
300 V
600
400
200
0
150 V
V
GS
6
4
V
DS
2
0
10
0
4
8
12
16
0.01
0.1
1
10
Q
G
- Gate Charge - nC
ID - Drain Current - A
4
Data Sheet D14114EJ2V0DS
2SK3322
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
20
0
70
60
50
40
30
20
10
0
0
20
40 60
80 100 120 140 160
0
20 40
60
80 100 120 140 160
T
ch - Channel Temperature - ˚C
T
C
- Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
100
10
T
C
= 25˚C
Single Pulse
I
D(pulse)
I
D(DC)
1
0.1
1
10
100
1000
VDS - Drain to Source Voltage - V
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1000
100
Rth(ch-A) = 83.3˚C/W
10
1
Rth(ch-C) = 1.93˚C/W
0.1
0.01
Single Pulse
100 1000
µ
10
1 m
10 m
100 m
1
10
100
µ
PW - Pulse Width - sec
5
Data Sheet D14114EJ2V0DS
2SK3322
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
SINGLE AVALANCHE ENERGY
DERATING FACTOR
100
10
V
R
V
DD =150 V
=25 Ω
GS =20 V → 0 V
G
100
80
60
40
20
0
I
AS ≤4.0A
I
AS = 4.0 A
1.0
0.1
R
G
= 25 Ω
DD = 150 V
GS = 20 V → 0 V
V
V
Starting Tch = 25˚C
100
1 m
L - Inductive Load - H
10 m
10
µ
µ
25
50
75
100
125
150
Starting Tch - Starting Channel Temperature - ˚C
6
Data Sheet D14114EJ2V0DS
2SK3322
★
PACKAGE DRAWINGS (Unit: mm)
1) TO-220AB (MP-25)
2) TO-262
4.8 MAX.
1.3±0.2
10.6 MAX.
4.8 MAX.
1.3±0.2
φ
3.6±0.2
10 TYP.
10.0 TYP.
4
1
2
3
4
1
2 3
1.3±0.2
1.3±0.2
2.8±0.2
0.5±0.2
1.Gate
0.75±0.3
2.54 TYP.
2.54 TYP.
0.75±0.1
2.54 TYP.
0.5±0.2
1.Gate
2.Drain
3.Source
4.Fin (Drain)
2.8±0.2
2.54 TYP.
2.Drain
3.Source
4.Fin (Drain)
3) TO-263 (MP-25ZJ)
4) TO-263 (MP-25ZK)
4.8 MAX.
10.0±0.3
4.45±0.2
10 TYP.
1.3±0.2
No plating
7.88 MIN.
1.3±0.2
4
4
0.025 to
0.25
1
2
3
1.4±0.2
0.7±0.2
0.5±0.2
0.75±0.2
2.54 TYP.
2.54 TYP.
2.54
0.25
1
2
3
1.Gate
2.Drain
3.Source
1.Gate
2.Drain
4.Fin (Drain)
3.Source
4.Fin (Drain)
EQUIVALENT CIRCUIT
Drain
Remark The diode connected between the gate and source of the transistor
serves as a protector against ESD. When this device actually used,
an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
Body
Diode
Gate
Gate
Protection
Diode
Source
7
Data Sheet D14114EJ2V0DS
2SK3322
•
The information in this document is current as of August, 2003. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC Electronics data
sheets or data books, etc., for the most up-to-date specifications of NEC Electronics products. Not
all products and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
• No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
•
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
•
• While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property or injury (including death) to persons arising from defects in NEC
Electronics products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment and anti-failure features.
• NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1)
"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2)
"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.253062s
