2SK2202

型号：

2SK2202

描述：

硅N沟道MOS FET[ Silicon N-Channel MOS FET ]

品牌：

HITACHI[ HITACHI SEMICONDUCTOR ]

页数：

10 页

PDF大小：

50 K

下载PDF手册

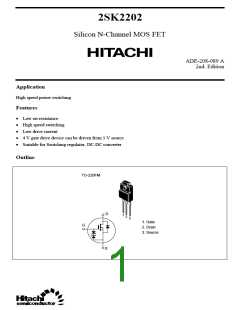

2SK2202
Silicon N-Channel MOS FET
ADE-208-089 A
2nd. Edition
Application
High speed power switching
Features
•
•
•
•
•
Low on-resistance
High speed switching
Low drive current
4 V gate drive device can be driven from 5 V source
Suitable for Switching regulator, DC-DC converter
Outline
TO-220FM
D
1
2
3
1. Gate
G
2. Drain
3. Source
S
2SK2202
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
120
VGSS
±20
V
ID
7
A
1
Drain peak current
ID(pulse)
*
14
A
Body to drain diode reverse drain current
Channel dissipation
Channel temperature
Storage temperature
IDR
7
A
Pch*2
Tch
20
W
°C
°C
150
Tstg
–55 to +150
Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 %
2. Value at Tc = 25 °C
2
2SK2202
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
Typ
Max
Unit
Test conditions
Drain to source breakdown
voltage
V(BR)DSS
V(BR)GSS
IGSS
120
—
—
V
ID = 10 mA, VGS = 0
Gate to source breakdown
voltage
±20
—
—
V
IG = ±100 µA, VDS = 0
Gate to source leak current
—
—
1.0
—
—
—
—
0.3
±10
250
2.0
0.4
µA
µA
V
VGS = ±16 V, VDS = 0
VDS = 100 V, VGS = 0
ID = 1 mA, VDS = 10 V
ID = 4 A
Zero gate voltage drain current IDSS
Gate to source cutoff voltage
VGS(off)
Static drain to source on state RDS(on)
resistance
Ω
V
GS = 10 V*1
ID = 4 A
GS = 4 V*1
ID = 4 A
DS = 10 V*1
—
0.35
5.0
0.55
—
Ω
V
Forward transfer admittance
|yfs|
3.0
S
V
Input capacitance
Output capacitance
Ciss
—
—
—
—
—
—
—
—
420
140
35
—
—
—
—
—
—
—
—
pF
pF
pF
ns
ns
ns
ns
V
VDS = 10 V
VGS = 0
Coss
Reverse transfer capacitance Crss
f = 1 MHz
ID = 4 A
Turn-on delay time
Rise time
td(on)
tr
td(off)
tf
9
50
VGS = 10 V
RL = 7.5 Ω
Turn-off delay time
Fall time
140
65
Body to drain diode forward
voltage
VDF
1.35
IF = 7 A, VGS = 0
Body to drain diode reverse
recovery time
trr
—
320
—
ns
IF = 7 A, VGS = 0,
diF / dt = 50 A / µs
Note 1. Pulse Test
3
2SK2202
Power vs. Temperature Derating
Maximum Safe Operation Area
10 µs
40
30
20
10
20
10
5
2
1
Operation in
this area is
limited by R
DS(on)
0.5
0.2
0.1
Ta = 25 °C
10
Drain to Source Voltage
0
50
100
150
200
2
5
20
50 100 200
(V)
V
DS
Case Temperature Tc (°C)
Typical Output Characteristics
Typical Transfer Characteristics
10
8
10
8
10 V
6 V
Pulse Test
4 V
V
= 10 V
DS
Pulse Test
3.5 V
6
6
3 V
4
4
Tc = –25 °C
25 °C
2
V
GS
= 2.5 V
2
75 °C
0
2
4
6
8
10
0
1
2
3
4
5
Drain to Source Voltage
V
(V)
DS
Gate to Source Voltage
V
(V)
GS
4
2SK2202
Static Drain to Source State Resistance
vs. Drain Current
Drain to Source Saturation Voltage vs.
Gate to Source Voltage
5
2.0
1.6
1.2
0.8
0.4
Pulse Test
Pulse Test
I
= 5 A
D
2
1
0.5
V
= 4 V
10 V
GS
2 A
1 A
0.2
0.1
0.1 0.2
0.5
1
2
5
10 20
0
4
8
12
16
20
Gate to Source Voltage
V
(V)
Drain Current
I
(A)
D
GS
Forward Transfer Admittance vs.
Drain Current
Static Drain to Source on State Resistance
vs. Temperature
10
5
1.0
V
= 10 V
DS
Pulse Test
Pulse Test
0.8
0.6
0.4
0.2
Tc = 75 °C
25 °C
I
= 5 A
D
2
1
2 A
1 A
–25 °C
5 A
1, 2 A
V
= 4 V
10 V
GS
0.5
0.2
0.1
0
–40
0.1 0.2
0.5
1
2
5
10
0
40
80
120
160
Drain Current I (A)
Case Temperature Tc (°C)
D
5
2SK2202
Typical Capacitance vs.
Drain to Source Voltage
Body–Drain Diode Reverse
Recovery Time
2000
1000
1000
500
V
GS
= 0
f = 1 MHz
500
Ciss
200
100
200
100
Coss
50
50
Crss
30
20
10
di / dt = 50 A / µs, V = 0
GS
Ta = 25 °C, Pulse Test
20
10
0
10
20
40
50
0.1 0.2
0.5
1
2
5
10
Reverse Drain Current
I
(A)
Drain to Source Voltage V
(V)
DR
DS
Switching Characteristics
Dynamic Input Characteristics
500
200
160
120
80
20
16
12
8
V
GS
200
100
t
d(off)
I
= 7 A
D
t
t
f
50
V
DS
V
= 100 V
50 V
DD
V
V
= 10 V
= 30 V
GS
DD
r
25 V
20
10
PW = 2 µs
duty < 1 %
V
= 100 V
50 V
DD
t
40
4
0
d(on)
2
5
3
25 V
0.1 0.2
0.5
1
5
10
0
8
16
24
32
40
Drain Current
I
(A)
Gate Charge Qg (nc)
D
6
2SK2202
Reverse Drain Current vs.
Source to Drain Voltage
10
8
Pulse Test
6
4
5 V
10 V
V
= 0, –5 V
1.6
GS
2
0
0.4
0.8
1.2
2.0
(V)
Source to Drain Voltage
V
SD
Normalized Transient Thermal Impedance vs. Pulse Width
3
1
Tc = 25°C
D = 1
0.5
0.3
0.1
θ
θ
γ
θ
ch – c(t) = s (t) • ch – c
ch – c = 6.25 °C/W, Tc = 25 °C
PW
T
P
DM
D =
0.03
0.01
PW
T
10 µ
100 µ
1 m
10 m
100 m
1
10
Pulse Width PW (S)
7
2SK2202
Switching Time Test Circuit
Waveform
Vout
Monitor
Vin Monitor
90%
D.U.T.
R
L
10%
10%
90%
Vin
V
DD
Vin
10 V
Vout
10%
50Ω
= 30 V
90%
td(off)
td(on)
t
f
tr
8
Unit: mm
10.0 ± 0.3
7.0 ± 0.3
2.8 ± 0.2
2.5 ± 0.2
φ 3.2 ± 0.2
1.2 ± 0.2
1.4 ± 0.2
4.45 ± 0.3
2.5
0.7 ± 0.1
2.54 ± 0.5
2.54 ± 0.5
0.5 ± 0.1
Hitachi Code
JEDEC
TO-220FM
—
EIAJ
Conforms
Weight (reference value) 1.8 g
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
: http:semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
Asia (Singapore)
Asia (Taiwan)
: http://www.has.hitachi.com.sg/grp3/sicd/index.htm
: http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
Hitachi Europe GmbH
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Electronic components Group
Dornacher Stra§e 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Telex: 40815 HITEC HX
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.208528s
