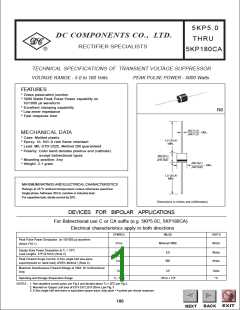

5KP5.0
THRU
DC COMPONENTS CO., LTD.
RECTIFIER SPECIALISTS
R
5KP180CA
TECHNICAL SPECIFICATIONS OF TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE RANGE - 5.0 to 180 Volts
PEAK PULSE POWER - 5000 Watts
FEATURES
* Glass passivated junction
* 5000 Watts Peak Pulse Power capability on
10/1000 µs waveform
* Excellent clamping capability
* Low zener impedance
R-6
* Fast response time
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes positive end (cathode)
except bidirectional types
* Mounting position: Any
* Weight: 2.1 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load,
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix (e.g. 5KP5.0C, 5KP180CA).
Electrical characteristics apply in both directions
SYMBOL
VALUE
UNITS
Peak Pulse Power Dissipation on 10/1000 µs waveform
(Note1,FIG.1)
P
PPM
Minimum 5000
Watts
Steady State Power Dissipation at T
Lead Lengths .375"(9.5mm) (Note 2)
L
= 75oC
P
M(AV)
8.0
Watts
Amps
Peak Forward Surge Current, 8.3ms single half sine-wave
superimposed on rated load( JEDEC Method ) (Note 3)
I
FSM
400
Maximum Instantaneous Forward Voltage at 100A for Unidirectional
Only
V
F
3.5
Volts
0 C
T
J
, TSTG
-55 to + 175
Operating and Storage Temperature Range
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25oC per Fig.2.
2. Mounted on Copper Leaf area of 0.8 X 0.8*( 20 X 20mm ) per Fig. 5
3. 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
180
