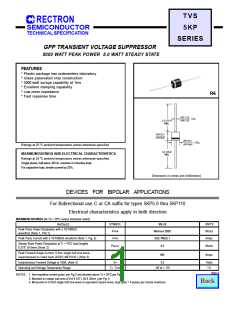

TVS
5KP
RECTRON
TECHNICALSPECIFICATION
SEMICONDUCTOR
SERIES
GPP TRANSIENT VOLTAGE SUPPRESSOR
5000 WATT PEAK POWER 5.0 WATT STEADY STATE
FEATURES
* Plastic package has underwriters laboratory
* Glass passivated chip construction
* 5000 watt surage capability at 1ms
* Excellent clamping capability
* Low zener impedance
R-6
* Fast response time
Ratings at 25 oC ambient temperature unless otherwise specified.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load,
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types 5KP5.0 thru 5KP110
Electrical characteristics apply in both direction
MAXIMUM RATINGS (At T
A
= 25oC unless otherwise noted)
SYMBOL
VALUE
UNITS
RATINGS
Peak Pulse Power Dissipation with a 10/1000uS
waveform (Note 1, FIG.1)
P
PPM
Minimum 5000
SEE TABLE 1
Watts
Amps
Peak Pulse Current with a 10/1000uS waveform (Note 1, Fig. 3)
IPPM
Steady State Power Dissipation at T
0.375” (9.5mm) (Note 2)
L
= 75oC lead lengths
P
M(AV)
8.0
Watts
Amps
Peak Forward Surge Current, 8.3ms single half sine wave-
superimposed on rated load( JEDEC METHOD ) (Note 3)
I
FSM
400
Instantaneous Forward Voltage at 100A, (Note 3)
Operating and Storage Temperature Range
V
F
3.5
Volts
0 C
T
J
, TSTG
-55 to + 175
1998-8
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25oC per Fig.2.
2. Mounted on copper pad area of 0.8 X 0.8” ( 20 X 20mm ) per Fig. 5
3. Measured on 8.3mS single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
