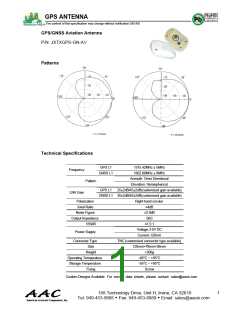

GPS ANTENNA
The content of this specification may change without notification 5/01/09
GPS/GNSS Aviation Antenna
P/N: JXTXGPS-GN-AV
Patterns
Technical Specifications
GPS L1
1575.42MHz ± 5MHz
Frequency
LNA Gain
GNSS L1
1602.00MHz ± 8MHz
Azimuth: Omni Directional
Pattern
Elevation: Hemispherical
GPS L1
25±2dB/45±2dB(customized gain available)
GNSS L1 35±2dB/45±2dB(customized gain available)
Polarization
Axial Ratio
Right-hand circular
≤4dB
Noise Figure
Output Impedance
VSWR
≤2.0dB
50Ω
≤1.5:1
Voltage:3-5V DC
Current: ≤20mA
Power Supply
Connector Type
Size
TNC (customized connector type available)
120mm×78mm×36mm
≈200g
Weight
Operating Temperature
Storage Temperature
Fixing
-40°C ~ +85°C
-55°C ~ +85°C
Screw
Custom Designs Available. For current data sheets, please contact: sales@aacix.com
