JXTXGPS-CZG-2701

型号:

JXTXGPS-CZG-2701

描述:

GPS / GSM车载天线[ GPS/GSM Vehicle Antenna ]

品牌:

AAC[ AMERICAN ACCURATE COMPONENTS, INC. ]

页数:

1 页

PDF大小:

104 K

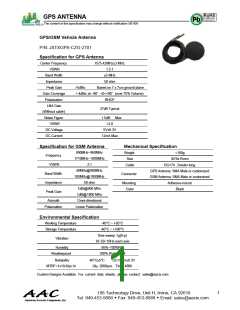

GPS ANTENNA
The content of this specification may change without notification 5/01/09
GPS/GSM Vehicle Antenna
P/N: JXTXGPS-CZG-2701
Specification for GPS Antenna
Center Frequency
1575.42MHz±3 MHz
VSWR
1.5:1
Band Width
Impedance
Peak Gain
±5 MHz
50 ohm
>5dBic
Based on 7 x 7cm ground plane
Gain Coverage
Polarization
LNA Gain
>-4dBic at –90°<0<+90°(over 75% Volume)
RHCP
27dB Typical
(Without cable)
Noise Figure
VSWR
1.5dB
<2.0
Max
DC Voltage
DC Current
5V±0.3V
12mA Max
Specification for GSM Antenna
Mechanical Specification
890MHz~960MHz
Frequency
Weight
<160g
1710MHz~1880MHz
Size
Φ78x15mm
RG174 , 5meter long
VSWR
2:1
Cable
40MHz@900MHz
100MHz@1800MHz
50 ohm
GPS Antenna: SMA Male or customized
GSM Antenna: SMA Male or customized
Adhesive-mount
Band Width
Impedance
Peak Gain
Connector
Mounting
Color
1dBi@900 MHz
1dBi@1800 MHz
Omni-directional
Linear Polarization
Black
Azimuth
Polarization
Environmental Specification
Working Temperature
-40°C ~ +85°C
Storage Temperature
-40°C ~ +100°C
Sine sweep 1g(0-p)
Vibration
10~50~10Hz each axis
95%~100%RH
Humidity
Weatherproof
100% Waterproof
Reliability
40°C±5°C
DC=5.0V±0.3V
MTBF=1x10-6/pc.hr
Qty: 2000pcs Time: 480h
Custom Designs Available. For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Š Fax: 949-453-8889 Š Email: sales@aacix.com
American Accurate Components, Inc.
