2SK2220

型号:

2SK2220

描述:

硅N沟道MOS FET[ Silicon N Channel MOS FET ]

品牌:

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数:

6 页

PDF大小:

72 K

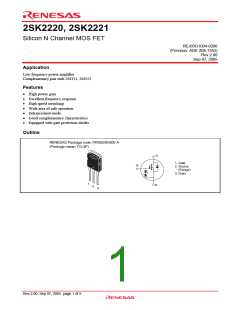

2SK2220, 2SK2221
Silicon N Channel MOS FET
REJ03G1004-0200
(Previous: ADE-208-1352)
Rev.2.00
Sep 07, 2005
Application
Low frequency power amplifier
Complementary pair with 2SJ351, 2SJ352
Features
High power gain
Excellent frequency response
High speed switching
Wide area of safe operation
Enhancement-mode
Good complementary characteristics
Equipped with gate protection diodes
Outline
RENESAS Package code: PRSS0004ZE-A
(Package name: TO-3P)
D
1. Gate
G
2. Source
(Flange)
3. Drain
1
2
3
S
Rev.2.00 Sep 07, 2005 page 1 of 5
2SK2220, 2SK2221
Absolute Maximum Ratings
(Ta = 25°C)
Item
Symbol
Ratings
Unit
Drain to source voltage
2SK2220
2SK2221
VDSX
180
V
200
Gate to source voltage
Drain current
VGSS
ID
±20
V
A
8
Body to drain diode reverse drain current
Channel dissipation
IDR
8
100
A
Pch*1
Tch
Tstg
W
°C
°C
Channel temperature
150
Storage temperature
–55 to +150
Note: 1. Value at Tc = 25°C
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
Min
180
200
±20
0.15
Typ
Max
Unit
Test conditions
Drain to source
breakdown voltage
2SK2220
2SK2221
V(BR)DSX
V
ID = 10 mA, VGS = –10 V
Gate to source breakdown voltage
Gate to source cutoff voltage
Drain to source saturation voltage
Forward transfer admittance
Input capacitance
V(BR)GSS
VGS(off)
VDS(sat)
|yfs|
V
V
IG = ±100 µA, VDS = 0
ID = 100 mA, VDS = 10 V
ID = 8 A, VGD = 0 V*2
ID = 3 A, VDS = 10 V*2
1.45
12
1.4
V
0.7
1.0
600
800
8
S
Ciss
Coss
Crss
ton
pF
pF
pF
ns
ns
VGS = –5 V, VDS = 10 V,
f = 1 MHz
Output capacitance
Reverse transfer capacitance
Turn-on time
250
90
VDD = 30 V, ID = 4 A
Turn-off time
toff
Note: 2. Pulse Test
Rev.2.00 Sep 07, 2005 page 2 of 5
2SK2220, 2SK2221
Main Characteristics
Power vs. Temperature Derating
Maximum Safe Operation Area
20
10
5
150
100
50
Ta = 25°C
2
1.0
0.5
2SK2220 2SK2221
0.2
0
50
100
150
5
10
20 50
100 200
500
Case Temperature TC (°C)
Drain to Source Voltage VDS (V)
Typical Output Characteristics
9
Typical Output Characteristics
VGS = 10 V
10
8
10
8
VGS =
10 V
TC = 25°C
TC = 25°C
8
8
9
7
7
6
6
Pch = 125 W
6
6
5
5
4
4
4
4
3
3
2
2
2
2
1
0
1
0
0
10
20
30
40
50
0
2
4
6
8
10
Drain to Source Voltage VDS (V)
Typical Transfer Characteristics
Drain to Source Voltage VDS (V)
Typical Transfer Characteristics
VDS = 10 V
10
8
1.0
0.8
0.6
0.4
0.2
VDS = 10 V
25
6
4
2
0
2
4
6
8
10
0
0.4
0.8
1.2
1.6
2.0
Gate to Source Voltage VGS (V)
Gate to Source Voltage VGS (V)
Rev.2.00 Sep 07, 2005 page 3 of 5
2SK2220, 2SK2221
Forward Transfer Admittance
vs. Frequency
Switching Time vs. Drain Current
5
500
ton
1.0
200
100
50
TC = 25°C
VDS = 10 V
ID = 2 A
0.1
toff
0.01
20
10
5
0.001
0.0005
2 k
10 k
100 k
1 M
10 M 20 M
0.1 0.2
0.5 1.0
2
5
10
Frequency f (Hz)
Drain Current ID (A)
Switching Time Test Circuit
Waveforms
Output
RL
90%
Input
10%
Input
ton
toff
30 V
PW = 50 µs
duty ratio
= 1%
10%
50 Ω
Output
90%
Rev.2.00 Sep 07, 2005 page 4 of 5
2SK2220, 2SK2221
Package Dimensions
JEITA Package Code
SC-65
RENESAS Code
Package Name
TO-3P / TO-3PV
MASS[Typ.]
5.0g
PRSS0004ZE-A
Unit: mm
4.8 0.2
15.6 0.3
3.2 0.2
φ
1.5
1.6
2.0
1.4 Max
2.8
1.0 0.2
0.6 0.2
0.9
1.0
3.6
5.45 0.5
5.45 0.5
Ordering Information
Part Name
Quantity
Shipping Container
2SK2220-E
2SK2221-E
360 pcs
360 pcs
Box (Tube)
Box (Tube)
Note: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of
production before ordering the product.
Rev.2.00 Sep 07, 2005 page 5 of 5
Sales Strategic Planning Div. Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products better and more reliable, but there is always the possibility that trouble
may occur with them. Trouble with semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive, auxiliary
circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corp. product best suited to the customer's
application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corp. or a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any third-party's rights, originating in the use of any product data,
diagrams, charts, programs, algorithms, or circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information on products at the time of
publication of these materials, and are subject to change by Renesas Technology Corp. without notice due to product improvements or other reasons. It is
therefore recommended that customers contact Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor for the latest product
information before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss rising from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corp. by various means, including the Renesas Technology Corp. Semiconductor
home page (http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and algorithms, please be sure to
evaluate all information as a total system before making a final decision on the applicability of the information and products. Renesas Technology Corp. assumes
no responsibility for any damage, liability or other loss resulting from the information contained herein.
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in a device or system that is used under circumstances in which human life
is potentially at stake. Please contact Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor when considering the use of a
product contained herein for any specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater
use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or reproduce in whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from the Japanese government and
cannot be imported into a country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these materials or the products contained therein.
RENESAS SALES OFFICES
http://www.renesas.com
Refer to "http://www.renesas.com/en/network" for the latest and detailed information.
Renesas Technology America, Inc.
450 Holger Way, San Jose, CA 95134-1368, U.S.A
Tel: <1> (408) 382-7500, Fax: <1> (408) 382-7501
Renesas Technology Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K.
Tel: <44> (1628) 585-100, Fax: <44> (1628) 585-900
Renesas Technology Hong Kong Ltd.
7th Floor, North Tower, World Finance Centre, Harbour City, 1 Canton Road, Tsimshatsui, Kowloon, Hong Kong
Tel: <852> 2265-6688, Fax: <852> 2730-6071
Renesas Technology Taiwan Co., Ltd.
10th Floor, No.99, Fushing North Road, Taipei, Taiwan
Tel: <886> (2) 2715-2888, Fax: <886> (2) 2713-2999
Renesas Technology (Shanghai) Co., Ltd.
Unit2607 Ruijing Building, No.205 Maoming Road (S), Shanghai 200020, China
Tel: <86> (21) 6472-1001, Fax: <86> (21) 6415-2952
Renesas Technology Singapore Pte. Ltd.
1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632
Tel: <65> 6213-0200, Fax: <65> 6278-8001
Renesas Technology Korea Co., Ltd.
Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, Korea
Tel: <82> 2-796-3115, Fax: <82> 2-796-2145
Renesas Technology Malaysia Sdn. Bhd.
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jalan Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: <603> 7955-9390, Fax: <603> 7955-9510
© 2005. Renesas Technology Corp., All rights reserved. Printed in Japan.
