2STW4466_08

型号：

2STW4466_08

描述：

高功率NPN外延平面型双极晶体管[ High power NPN epitaxial planar bipolar transistor ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

9 页

PDF大小：

165 K

下载PDF手册

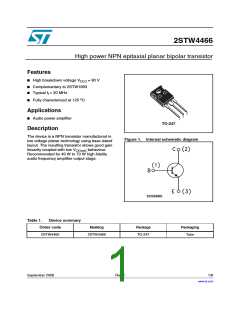

2STW4466
High power NPN epitaxial planar bipolar transistor
Features
■ High breakdown voltage V
= 80 V
CEO
■ Complementary to 2STW1693
■ Typical f = 20 MHz
t
o
■ Fully characterized at 125 C
Applications
3
2
■ Audio power amplifier
1
TO-247
Description
The device is a NPN transistor manufactured in
low voltage planar technology using base island
layout. The resulting transistor shows good gain
Figure 1. Internal schematic diagram
linearity coupled with low V
behaviour.
CE(sat)
Recommended for 40 W to 70 W high fidelity
audio frequency amplifier output stage.
Table 1.
Order code
2STW4466
Device summary
Marking
Package
Packaging
2STW4466
TO-247
Tube
September 2008
Rev 2
1/9
www.st.com
9
Electrical ratings
2STW4466
1
Electrical ratings
Table 2.
Symbol
Absolute maximum rating
Parameter
Value
Unit
V
V
V
Collector-base voltage (I = 0)
100
V
V
CBO
CEO
EBO
E
Collector-emitter voltage (I = 0)
80
B
Emitter-base voltage (I = 0)
6
V
C
I
Collector current
6
12
A
C
I
Collector peak current (t < 5 ms)
A
CM
P
P
Total dissipation at T = 25 °C
60
W
°C
°C
TOT
c
T
Storage temperature
-65 to 150
150
stg
T
Max. operating junction temperature
J
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
R
Thermal resistance junction-case ____max
2.08
°C/W
thj-case
2/9
2STW4466
Electrical characteristics
2
Electrical characteristics
(T
= 25°C; unless otherwise specified)
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
= 100 V
Min. Typ. Max. Unit
Collector cut-off current
I
V
V
0.1
0.1
µA
CBO
CB
EB
(I = 0)
E
Emitter cut-off current
I
= 6 V
µA
V
EBO
(I = 0)
C
Emitter-base breakdown
V
I = 1 mA
6
(BR)EBO
E
voltage (I = 0)
C
Collector-base breakdown
V
I = 100 µA
100
80
V
(BR)CBO
C
voltage (I = 0)
E
Collector-emitter breakdown
V
I = 50 mA
V
(BR)CEO
C
voltage (I = 0)
B
I = 2
I = 200 mA
B
0.6
1.5
V
V
C
Collector-emitter saturation
voltage
(1)
V
CE(sat)
I = 6 A
I = 600 mA
C
B
(1)
V
= 4 V
I = 6 A
Base-emitter voltage
1.5
V
V
CE
C
BE
h
I = 2 A
V
V
= 4 V
DC current gain
50
120
FE
C
CE
CE
f
I = 0.5 A
= 12 V
Transition frequency
Collector-base capacitance
20
50
MHz
pF
T
C
C
V
= 10 V
CB
f = 1 MHz
CBO
(I = 0)
E
Resistive load
Turn-on time
Storage time
Fall time
t
I = 3 A
V
= 30 V
CC
0.15
1.5
ns
ns
ns
on
C
t
I
= -I = 0.3 A
B2
stg
B1
t
f
0.1
Pulsed duration = 300 µs, duty cycle ≤ 1.5%
3/9
Electrical characteristics
2STW4466
2.1
Electrical characteristics (curves)
Figure 2.
Figure 4.
Figure 6.
DC current gain
Figure 3.
DC current gain
Collector-emitter saturation Figure 5.
voltage
Base-emitter saturation
voltage
Base emitter voltage
Figure 7.
Resistive load switching time
(on)
4/9
2STW4466
Electrical characteristics
Figure 8.
Resistive load switching time Figure 9.
(off)
Emitter-base and collector-
base capacitance
5/9
Package mechanical data
2STW4466
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect . The category of
second level interconnect is marked on the package and on the inner box label, in compliance
with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also
marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are
available at: www.st.com
6/9
2STW4466
Package mechanical data
TO-247 Mechanical data
mm.
Typ
Dim.
Min.
Max.
A
A1
b
4.85
5.15
2.20
1.0
2.60
1.40
2.40
3.40
b1
b2
c
2.0
3.0
0.40
19.85
15.45
0.80
D
20.15
15.75
E
e
5.45
18.50
5.50
L
14.20
14.80
4.30
L1
L2
øP
øR
S
3.70
3.55
3.65
4.50
5.50
7/9
Revision history
2STW4466
4
Revision history
Table 5.
Date
Document revision history
Revision
Changes
11-Oct-2007
25-Sep-2008
1
2
First release
Content reworked to improve readability, no technical changes.
8/9
2STW4466
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZE REPRESENTATIVE OF ST, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS, WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS “AUTOMOTIVE
GRADE” MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
9/9
