PXI-2570

型号:

PXI-2570

描述:

40个独立的SPDT继电器/锁存继电器/完全软件可编程[ 40 independent SPDT relays/Latching relays/Fully software programmable ]

品牌:

NI[ National Instruments ]

页数:

3 页

PDF大小:

417 K

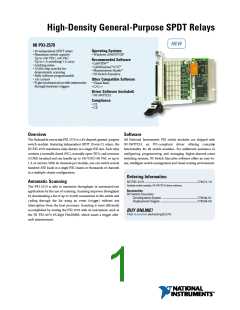

High-Density General-Purpose SPDT Relays
NEW
NI PXI-2570
• 40 independent SPDT relays
• Maximum switch capacity
Up to 100 VDC, 100 VAC
Up to 1 A switching/1 A carry
• Latching relays
• 32,000-step scan list for
deterministic scanning
• Fully software programmable
• 145 cycles/s
Operating Systems
• Windows 2000/NT/XP
Recommended Software
• LabVIEW™
• LabWindows/CVI™
• Measurement Studio™
• NI Switch Executive
Other Compatible Software
• Visual Basic
• C/C++
• Ti ght synchronizati on with instruments
through hardware triggers
Driver Software (included)
• NI-SWITCH
Compliance
• UL
• CE
Overview
Software
The National In s tru m ents PXI-2570 is a 40-channe l, genera l - p u rpose All National Instruments PXI switch modules are shipped with
switch module. Featuring independent SPDT (Form C) relays, the NI-SWITCH, an IVI-compliant driver of fering com p l ete
NI PXI-2570 maximizes relay density in a single PXI slot. Each relay functionality for all switch modules. For additional assistance in
contains a normally closed (NC), normally open (NO), and common configuri n g, programming, and managing high er-channel-count
(COM) terminal and can handle up to 100 VDC/100 VAC or up to switching systems, NI Switch Executive software offers an easy-to-
1 A of current. With 40 channels per module, you can switch several use, intelligent switch management and visual routing environment.
hundred ATE loads in a single PXI chassis or thousands of channels
in a multiple-chassis configuration.
Ordering Information
NI PXI-2570 ..................................................................778572-70
Automatic Scanning
The PXI-2570 is able to maximize throughput in automated test
Includes switch module, NI-SWITCH driver software.
Accessories
applications by the use of scanning. Scanning improves throughput
by downloading a list of up to 32,000 connections to the switch and
c ycling thro u gh the list using an event (tri gger) withou t any
interruption from the host processor. Scanning is most efficiently
accomplished by mating the PXI-2570 with an instrument, such as
NI Switch Executive
Development System ............................................778546-01
Deployment Engine ..............................................778548-00
BUY ONLINE!
the NI PXI-4070 61⁄
2
-digit FlexDMM, which issues a trigger after
Visit ni.com/info and en ter pxi 2 5 7 0 .
each measurement.
High-Density General-Purpose SPDT Relays
Specifications
Input Characteristics
Physical
Maximum switching voltage
Relay types....................................................... Electromechanical, latching
Contact material............................................... Palladium-ruthenium, gold-covered
I/O connectors.................................................. 200-pin LFH Matrix 50 receptacle
Dimensions....................................................... 10 by 17.4 cm (3.9 by 6.9 in.)
Channel-to-ground..................................... 100 V, CAT I
Channel-to-channel ................................... 100 V
Maximum current
(switching or carry, per channel)............... 1 A
Simultaneous channels at
maximum current ( 55˚C)......................... 40
Maximum switching power
(per channel, resistive).............................. 60 W, 62.5 VA
Typical DC path resistance (channel-to-common)
Initial.......................................................... <0.5
End of life .................................................. 1
Thermal EMF .................................................... 12 µV
Bandwidth (-3 dB, typical at 23 ˚C).................. 40 MHz
Environment
Operating temperature..................................... 0 to 55 ˚C
Storage temperature........................................ -40 to 70 ˚C
Relative humidity ............................................. 5 to 85% noncondensing
Pollution degree ...............................................
Indoor use only
2
Safety
This product is designed to meet the requirements of the following standards of safety for electrical
equipment for measurement, control, and laboratory use:
• IEC 61010-1, EN 61010-1
• UL 3111-1, UL 61010B-1
• CAN/CSA C22.2 No. 1010.1
Dynamic Characteristics
Maximum speed............................................... 145 cycles
Relay operate time
Typical........................................................ 1 ms
Maximum................................................... 3.4 ms
CE Compliance
This product meets the essential requirements of applicable European Directives, as amended for
CE marking, as follows:
Low-Voltage Directive (safety)......................... 73/23/EEC
Electromagnetic Compatibility
Expected Relay Life
Mechanical ................................................ 100,000,000 cycles
Electrical
Directive (EMC) ................................................ 89/336/EEC
10 VDC, 100 mADC, resistive ................. 2,500,000 cycles
10 VDC, 1 ADC, resistive ........................ 1,000,000 cycles
30 VDC, 1 ADC, resistive ........................ 500,000 cycles
60 VDC, 1 ADC, resistive ........................ 100,000 cycles
2
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
NI Services and Support
NI has the services and support to meet your
n eeds around the gl obe and throug h the
application life cycle – from planning
and devel opm ent throug h deploym en t
and on going maintenance. We of fer
s erv i ces and servi ce levels to meet
c u s tom er requ i rem ents in re s e a rch,
design, validation, and manu f actu ri n g.
Visit ni.com/services.
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you
access to engineers who speak your language. NI delivers industry-
leading technical support through online knowledge bases, our
a pp l i c a ti ons en gi n eers , and access to 14,000 measu rem ent and
automation professionals within NI Develope r Exchange forums.
Find immediate answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of
technical support. Visit ni.com/ssp.
Training and Certification
NI training is the fastest, most certain route to productivity with our Hardware Services
produ ct s . NI training can shorten your learning curve , s ave NI Factory Installation Services
devel opm ent time, and redu ce mainten a n ce costs over the NI Factory Installation Services (FIS) is the fastest and easiest way to
application life cycle. We schedule instructor-led courses in cities use your PXI or PXI/SCXI™ combination systems right out of the
worldwide, or we can hold a course at your facility. We also offer a box. Trained NI technicians install the software and hardware and
professional certification program that identifies individuals who configure the system to your specifications. NI extends the standard
have high levels of skill and knowledge on using NI products.
warranty by one year on hardware components (controllers, chassis,
modules) purchased with FIS. To use FIS, simply configure your
system online with ni.com/pxiadvisor.
Visit ni.com/training.
Professional Services
Our Profe s s i onal Services Team is comprised of NI applications Calibration Services
engineers, NI Con sulting Servi ces, and a worldwi de NI Alliance Partn er NI recognizes the need to maintain properly calibrated devices for
Program of more than 600 indepen dent con sultants and integrators. hig h - accuracy measu rem e nts. We provi de manual calibration
Servi ces
range
from procedures, services to recalibrate your products, and automated
start-up assistance to c a l i brat i on sof t w a re spec i f i c a lly de s i gn ed for use by metro l ogy
turnkey system integration. laboratories. Visit ni.com/calibration.
Visit ni.com/alliance.
Repair and Extended Warranty
OEM Support
NI provides complete repair services for our products. Express repair
We of fer design-in con su l ting and produ ct integra tion assistance and adva n ce rep l aceme nt services are also available. We of fer
if you want to use our produ cts for OEM app l i c a ti ons. For extended warranties to help you meet project life-cycle requirements.
i n formation abo ut special pricing and services for OEM custom ers , Visit ni.com/services.
visit ni.com/oem.
ni.com • (800) 433-3488
National Instruments • Tel: (512) 683-0100 • Fax: (512) 683-9300 • info@ni.com
© 2004 National Instruments Corporation. All rights re s e rved. Product and company names listed are trademarks or trade names of their respective companies.
