PXI-2530

型号:

PXI-2530

描述:

高密度多配置多路复用器/矩阵[ High-Density Multiconfiguration Multiplexer/Matrix ]

品牌:

NI[ National Instruments ]

页数:

4 页

PDF大小:

198 K

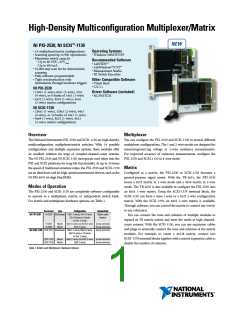

High-Density Multiconfiguration Multiplexer/Matrix
NEW
NI PXI-2530, NI SCXI-1130
• 14 multiplexer/matrix configurations
• Scanning speed up to 900 operations/s
• Maximum switch capacity
Up to 60 VDC, 30 Vrms
Up to 400 mA
• 32,000-step scan list for deterministic
scanning
Operating Systems
• Windows 2000/NT/XP
Recommended Software
• LabVIEW™
• LabWindows/CVI™
• Measurement Studio
• NI Switch Executive
• Fully software programmable
• Tight synchronization with
instruments through hardware triggers
Other Compatible Software
• Visual Basic
• C/C++
NI PXI-2530
• 128x1 (1-wire), 64x1 (2-wire), 32x1
(4-wire), or 8 banks of 16x1 (1-wire)
• 4x32 (1-wire), 8x16 (1-wire), 4x16
(2-wire) matrix configurations
Driver Software (included)
• NI-SWITCH
NI SCXI-1130
• 256x1 (1-wire), 128x1 (2-wire), 64x1
(4-wire), or 16 banks of 16x1 (1-wire)
• 4x64 (1-wire), 8x32 (1-wire), 4x32
(2-wire) matrix configurations
Overview
Multiplexer
The National Instruments PXI-2530 and SCXI-1130 are high-density, You can configure the PXI-2530 and SCXI-1130 in several different
multiconfiguration multiplexer/matrix switches. With 14 possible multiplexer configurations. The 1 and 2-wire modes are designed for
configurations and multiple expansion options, these modules offer measuring/sourcing voltage or 2-wire resistance measurements.
an excellent solution for large or complex-channel-count systems. For improved accuracy of resistance measurements, configure the
The NI PXI-2530 and NI SCXI-1130 incorporate reed relays into the PXI-2530 and SCXI-1130 in 4-wire mode.
PXI and SCXI platforms for long-life functionality. At up to 10 times
the speed of traditional armature relays, the PXI-2530 and SCXI-1130 Matrix
are an ideal front-end for high-speed measurement devices, such as the Configured as a matrix, the PXI-2530 or SCXI-1130 becomes a
NI PXI-4070 61⁄
2-digit FlexDMM.
general-purpose signal router. With the TB-2631, the PXI-2530
forms a 4x32 matrix in 1-wire mode and a 4x16 matrix in 2-wire
mode. The TB-2632 is also available to configure the PXI-2530 into
Modes of Operation
The PXI-2530 and SCXI-1130 are completely software configurable an 8x16 1-wire matrix. Using the SCXI-1378 terminal block, the
to operate as a multiplexer, matrix, or independent switch bank. SCXI-1130 can form a 4x64 1-wire or a 4x32 2-wire configuration
For matrix and multiplexer hardware options, see Table 1.
matrix. With the SCXI-1379, an 8x32 1-wire matrix is available.
Through software, you can control the matrix to connect any row(s)
to any column(s).
Accessory
Type
Configuration
Connectivity
Ribbon cable
headers
NI PXI-2530
TB-2630 Multiplexer 128x1 (1-wire), 64x1 (2-wire),
32x1 (4-wire) or 8 banks
You can connect the rows and columns of multiple modules to
expand an NI matrix system and meet the needs of high-channel-
count systems. With the SCXI-1130, you can use expansion cables
and plugs to externally connect the rows and columns of the matrix
modules. For example, to create a 4x128 matrix, connect two
SCXI-1378 terminal blocks together with a matrix expansion cable to
double the number of columns.
of 16x1 (1-wire)
TB-2631
TB-2632
Matrix
Matrix
4x32 (1-wire) and 4x16 (2-wire) Screw terminals
8x16 (1-wire) Screw terminals
NI SCXI-1130 SCXI-1377 Multiplexer 256x1 (1-wire),128x1 (2-wire), Spring terminals
64x1 (4-wire) or 16 banks
of 16x1 (1-wire)
SCXI-1378
SCXI-1379
Matrix
Matrix
4x64 (1-wire) and 4x32 (2-wire) Screw terminals
8x32 (1-wire) Screw terminals
Table 1. Matrix and Multiplexer Hardware Options
High-Density Multiconfiguration Multiplexer/Matrix
Independent
Signal Connections
When the PXI-2530 and SCXI-1130 are configured with software as Terminal blocks provide screw terminals, spring terminals, or ribbon
independent switch banks, you can control the state of any relay on cable terminals for easy connections. The terminal blocks for the
the module. Use this mode for custom applications, where the banks SCXI-1130 are twice as deep as traditional SCXI terminal blocks,
of 16x1 multiplexers can be combined to form other multiplexer such as the SCXI-1300 and SCXI-1303.
sizes or operate independently.
Software
Automatic Scanning
All National Instruments PXI and SCXI switch modules are shipped
The PXI-2530 and SCXI-1130 are able to maximize throughput in with NI-SWITCH, an IVI-compliant driver offering complete
automated test applications by the use of scanning. Scanning functionality for all switch modules. For additional assistance in
improves throughput by downloading a list of up to 32,000 configuring, programming, and managing higher-channel-count
connections to the switch modules and cycling through the list using switching systems, NI Switch Executive software offers an easy-to-
an event (trigger) without any interruption from the host processor. use, intelligent switch management and visual routing environment.
Scanning is most efficiently accomplished by mating the PXI-2530 or
SCXI-1130 with an instrument, such as the NI PXI-4070 FlexDMM,
that issues a trigger after each measurement.
Ordering Information
NI PXI-2530 ..................................................................778660-01
NI SCXI-1130................................................................778661-01
Includes NI-SWITCH driver software.
SCXI Module Control
Every SCXI switch system requires an external switch controller.
The switch controller uses the digital communications bus on the
SCXI chassis to control the switch circuitry. An NI 4021 Switch
Controller, available for both PCI and PXI, is the recommended
SCXI switch controller.
Accessories
NI TB-2630....................................................................778733-01
NI TB-2631....................................................................778734-01
NI TB-2632....................................................................778735-01
NI SCXI-1377................................................................778716-01
NI SCXI-1378................................................................778731-01
NI SCXI-1379................................................................778732-01
NI PCI-4021 ..................................................................778277-01
NI PXI-4021 ..................................................................778278-01
BUY ONLINE!
Visit ni.com/info and enter pxi2530 and/or scxi1130.
2
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
High-Density Multiconfiguration Multiplexer/Matrix
Specifications
PXI-2530
Physical
Multiplexer sizes ....................................... 128x1 (1-wire)
Relay types....................................................... reed
Contact material............................................... rhodium
I/O connectors.................................................. 176-pin docking station plug
Dimensions
PXI-2530..................................................... 2 x 10 x 16 cm (.8 x 3.9 x 6.4 in.)
SCXI-1130.................................................. 3.0 x 17.2 x 20.3 cm (1.2 x 6.9 x 8.0 in.)
64x1 (2-wire)
32x1 (4-wire)
16x1 (1-wire) (8)
Matrix sizes ............................................... 4x32 (1-wire)
8x16 (1-wire)
4x16 (2-wire)
Environment
SCXI-1130
Operating temperature..................................... 0 to 55 ˚C
Storage temperature........................................ -40 to 70 ˚C
Relative humidity ............................................. 5 to 85% noncondensing
Multiplexer sizes ....................................... 256x1 (1-wire)
128x1 (2-wire)
64x1 (4-wire)
Pollution degree ...............................................
Indoor use only
2
16x1 (1-wire) (16)
Matrix sizes ............................................... 4x64 (1-wire)
8x32 (1-wire)
Safety
4x32 (2-wire)
This product is designed to meet the requirements of the following standards of safety for electrical
equipment for measurement, control, and laboratory use:
• IEC 61010-1, EN 61010-1
Input Characteristics
Maximum switching voltage............................ 60 VDC, 30 Vrms, CAT I (channel-to-channel
and channel-to-ground)
Maximum current............................................. 0.4 A (per terminal or internal path)
Maximum switching power ............................. 10 W (per channel, resistive)
Typical DC path resistance
(channel-to-common)
Initial................................................... <2
End of life............................................ 3 Ω
• UL 3111-1, UL 61010B-1
• CAN/CSA C22.2 No. 1010.1
CE Compliance
This product meets the essential requirements of applicable European Directives,
as amended for CE marking, as follows:
Low-Voltage Directive (safety).................. 73/23/EEC
Electromagnetic Compatibility
Dynamic Characteristics
Directive (EMC)................................... 89/336/EEC
Maximum scan rate ......................................... 900 channels/s
Expected relay life
Mechanical................................................ 109 operations
Electrical.................................................... 108 operations (10 V, 100 mA, resistive)
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com 3
Global Services and Support
NI has the services and support to meet your needs around the globe Professional Services
and through the application life cycle – from planning and Our Professional Services team consists of National Instruments
development through deployment and ongoing maintenance – and Applications Engineers, NI Consulting Services, and the worldwide
tailored for customer requirements in research, design, validation, and National Instruments Alliance Partner Program (a network of 600
manufacturing. We have direct operations in more than 37 countries independent consultants and integrators). Our Professional Services
and distributors in another 12 locations. Our local sales and support team can offer services ranging from basic start-up assistance and
representatives are degreed engineers, ready to partner with you to find collaborative development with
solutions that best fit your needs.
your engineers, to turnkey
system integration and
maintenance of your system.
Local Sales and Technical Support
In offices around the globe, our staff is local to the country so that In addition to our NI Alliance Partners, we have developed global
you have access to field engineers who speak your language and are relationships with many industry partners that range from computer
available to consult on your unique needs. We also have a worldwide software and hardware companies, such as Microsoft, Dell, Siemens,
support organization staffed with Applications Engineers trained to and Tektronix. By collaborating with these companies, you receive a
quickly provide superior technical assistance. Use our online Request complete spectrum of solutions – from components to turnkey
Support interface (ni.com/support) to define your question, then systems. Find the Alliance Partner directory at ni.com/alliance
speak to or e-mail an Applications Engineer, or access more than
14,000 worldwide measurement and automation professionals Product Services
within NI Developer Exchange Discussion Forums. ni.com/support NI GPIB products are warranted against defects in workmanship and
also provides immediate answers to your questions through self-help material for one year from the date of shipment. To help you meet
troubleshooting, product reference, and application development project life-cycle requirements, NI offers extended warranties for an
resources. For advanced technical support and software maintenance additional charge. NI provides complete repair services for our
services, sign up for Premier Support, a program that provides products. Express repair and advanced replacement services are also
expanded hours of support availability and
expedited phone/e-mail response time
(typically four business hours).
available. Or, order your software and hardware installed in PXI and
PXI/SCXI™ systems with NI Factory Installation Services.
Ordering Made Easy
Training and
Visit ni.com/products to browse product specifications, make
comparisons, or access technical representatives via online chat or
telephone. Worldwide customers can use a purchase order or credit
card to buy in local currency and receive direct shipments from local
NI offices. Our North American Customer Service Representatives
are available Monday through Friday between 7 a.m. and 7 p.m.
Central Time. Outside North America, please contact the NI office in
CUSTOMER
NEEDS
Certification
NI recognizes that both initial
instruction and ongoing education
contribute to your success. NI provides a
variety of training alternatives, from self-
paced tutorials and interactive CDs, to worldwide
hands-on courses taught by experienced instructors – all designed so your country.
that you can choose how to learn about our products. Further, NI offers
certifications acknowledging individual expertise in working with NI Order Status and Service Requests
products and technologies. Visit ni.com/training for more information.
National Instruments brings you real-time status on current orders at
ni.com/status Similarly, find out the status of open technical support
incidents or hardware repair requests at ni.com/support/servicereq
ni.com (800) 433-3488
National Instruments • Tel: (512) 683-0100 • Fax: (512) 683-9300 • info@ni.com
© 2003 National Instruments Corporation. All rights reserved. Product and company names listed are trademarks or trade names of their respective companies.
厂商 型号 描述 页数 下载

NI

PXI-1033 PXI机箱,集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

PXI-1050 PXI机箱,集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

PXI-1052 PXI机箱,集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2020 8月16日,通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

PXI-2022 8月16日,通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.212113s
