PXI-2527

型号:

PXI-2527

描述:

32通道( 2线) , 300 V复用器开关[ 32-Channel (2-Wire), 300 V Multiplexer Switches ]

品牌:

NI[ National Instruments ]

页数:

4 页

PDF大小:

522 K

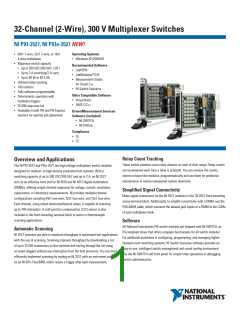

32-Channel (2-Wire), 300 V Multiplexer Switches
NI PXI-2527, NI PXIe-2527 NEW!
64x1 1-wire, 32x1 2-wire, or 16x1
4-wire multiplexer
Maximum switch capacity
Operating Systems
Windows XP/2000/NT
Recommended Software
Up to 300 VDC/300 VAC, CAT I
Up to 2 A switching/2 A carry
Up to 60 W or 62.5 VA
LabVIEW
LabWindows/CVI
Measurement Studio
Onboard relay counting
140 cycles/s
Fully software programmable
Deterministic operation with
hardware triggers
for Visual C++
NI Switch Executive
Other Compatible Software
Visual Basic
ANSI C/C++
32,000-step scan list
Available in both PXI and PXI Express
versions for optimal slot placement
Driver/Measurement Services
Software (included)
NI-SWITCH
NI-DAQmx
Compliance
UL
CE
Relay Count Tracking
Overview and Applications
These switch modules count relay closures on each of their relays. Relay counts
are incremented each time a relay is actuated. You can retrieve the counts,
stored on board the modules, programmatically and use them for predictive
maintenance to reduce unexpected system downtime.
The NI PXI-2527 and PXIe-2527 are high-voltage multiplexer switch modules
designed for medium- to high-density automated test systems. With a
switching capacity of up to 300 VDC/300 VAC and up to 2 A, an NI 2527
acts as an effective front end for NI 4070 and NI 4072 digital multimeters
(DMMs), offering simple channel expansion for voltage, current, resistance,
capacitance, or inductance measurements. NI provides multiple-channel
configurations including 64x1 one-wire, 32x1 two-wire, and 16x1 four-wire.
Each channel, using robust electromechanical relays, is capable of scanning
up to 140 channels/s. A cold-junction compensation (CJC) sensor is also
included in the front-mounting terminal block to assist in thermocouple
scanning applications.
Simplified Signal Connectivity
Make signal connections for the NI 2527 modules in the TB-2627 front-mounting
screw-terminal block. Additionally, to simplify connectivity with a DMM, use the
HV6-BAN4 cable, which connects the banana jack inputs of a DMM to the COMs
of each multiplexer bank.
Software
All National Instruments PXI switch modules are shipped with NI-SWITCH, an
IVI-compliant driver that offers complete functionality for all switch modules.
For additional assistance in configuring, programming, and managing higher-
channel-count switching systems, NI Switch Executive software provides an
easy-to-use, intelligent switch management and visual routing environment.
Use the NI-SWITCH soft front panel for simple relay operations or debugging
switch code/execution.
Automatic Scanning
NI 2527 switches are able to maximize throughput in automated test applications
with the use of scanning. Scanning improves throughput by downloading a list
of up to 32,000 connections to the switches and cycling through the list using
an event (trigger) without any interruption from the host processor. You can most
efficiently implement scanning by mating an NI 2527 with an instrument such
as an NI 407x FlexDMM, which issues a trigger after each measurement.
32-Channel (2-Wire), 300 V Multiplexer Switches
Ordering Information
NI PXI-2527 ...................................................................................778572-27
NI PXIe-2527 ..................................................................................780587-27
Includes NI-SWITCH driver software.
Accessories
TB-2627 terminal block .................................................................779358-01
HV6-BAN4 DMM connectivity cable ...........................................192795-0R2
NI Switch Executive
Development system......................................................................778546-01
Deployment engine........................................................................778548-00
BUY NOW
For complete product specifications, pricing, and accessory information,
call 800 813 3693 (U.S.) or go to ni.com/switches.
Safety Compliance
IEC 61010-1, EN 61010-1
UL 61010-01, CSA 61010-1
Electromagnetic Compatibility
This product meets the requirements of the following EMC standards for
electrical equipment for measurement, control, and laboratory use:
EN 61326 (IEC 61326): Class A emissions; Basic immunity
EN 55011 (CISPR 11): Group 1, Class A emissions
AS/NZS CISPR 11: Group 1, Class A emissions
FCC 47 CFR Part 15B: Class A emissions
ICES-001: Class A emissions
Note: For EMC compliance, operate this product according to the documentation.
CE Compliance
This product meets the essential requirements of applicable European Directives
as follows:
2006/95/EC; Low-Voltage Directive (safety)
2004/108/EC; Electromagnetic Compatibility Directive (EMC)
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
32-Channel (2-Wire), 300 V Multiplexer Switches
Dynamic Characteristics
Maximum speed.................................... 140 cycles/s
Relay operate time
Specifications
Specifications subject to change without notice. Visit ni.com/manuals for
the latest full specifications.
Typical............................................... 1 ms
Maximum.......................................... 3.4 ms
Expected relay life
Input Characteristics
Maximum switching voltage
Channel-to-ground............................ 300 V, CAT I
Channel-to-channel .......................... 300 V
Maximum switching/carry current... 2 A
Maximum switching power
Mechanical....................................... 1x108 cycles
Electrical
<30 mV, <10 mA, resistive................ 2.5x106 cycles
30 VDC, 2 ADC, resistive.................. 1x105 cycles
300 VDC, 60 mADC, resistive........... 5x105 cycles
AC systems....................................... 60 W, 62.5 VA
DC systems....................................... Refer to Figure 1
Physical
Relay types............................................ Electromechanical, latching
Contact material.................................... Palladium-ruthenium, gold-covered
I/O connectors....................................... 100 POS HDI right-angle, male
Dimensions............................................ 2 by 10 by 17.4 cm
(0.8 by 3.9 by 6.9 in.) single-slot, 3U
Environment
Operating temperature.......................... 0 to 55 °C
Note: If you are using an NI 2527 with an NI PXI-101x or the NI PXI-1000B chassis,
operating temperature for the NI 2527 modules is 0 to 45 °C.
Storage temperature............................. -20 to 70 °C
Relative humidity .................................. 5 to 85% noncondensing
Pollution degree....................................
Indoor use only.
2
Figure 1. Maximum Switching Power for DC Loads (per channel).
Typical DC path resistance
Initial................................................. <1½
End of life.......................................... >2½
Differential thermal EMF
Typical............................................... 2.5 μV
Maximum.......................................... <12 μV
Bandwidth (-3 dB)
1-wire................................................ >30 MHz
2-wire................................................ >25 MHz
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 14,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
ni.com 800 813 3693
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CompactRIO, CVI, FieldPoint, FlexDMM, LabVIEW, Measurement Studio, National Instruments, National Instruments Alliance Partner, NI, and ni.com are trademarks of
National Instruments. The mark LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other product and
company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership,
or joint-venture relationship with National Instruments. 2009-11120-101-D
厂商 型号 描述 页数 下载

NI

PXI-1033 PXI机箱,集成MXI- Express远程控制器[ PXI Chassis with Integrated MXI-Express Remote Controller ] 6 页

NI

PXI-1050 PXI机箱,集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

NI

PXI-1052 PXI机箱,集成了信号调理[ PXI Chassis with Integrated Signal Conditioning ] 5 页

ETC

PXI-2000 4 - CH十六分之十四位最多2 MS / s同步采样多功能数据采集卡[ 4-CH 14/16-Bit Up to 2 MS/s Simultaneous-Sampling Multi-Function DAQ Cards ] 2 页

ETC

PXI-2005 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2006 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2010 [ Supports a 32-bit 3.3 V or 5 V PCI bus (DAQ-2000 series) ] 3 页

ETC

PXI-2020 8月16日,通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

PXI-2022 8月16日,通道16位250 kS / s的同步采样数据采集卡[ 8/16-CH 16-Bit 250 KS/s Simultaneous Sampling DAQ Cards ] 2 页

ETC

PXI-2200 64通道12位/ 16位最多3个MS / s的多功能数据采集卡[ 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ Cards ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.174221s
