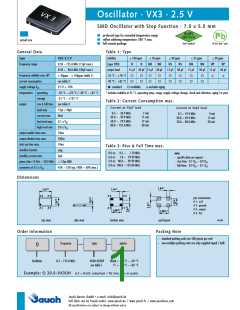

Oscillator · VX3 · 2.5 V
SMD Oscillator with Stop Function · 7.0 x 5.0 mm
RRooHHSS
■
■
■
preferred type for extended temperature range
reflow soldering temperature: 260 °C max.
full ceramic package
2002/95/EC
actual size
RoHS compliant
Pb free: pins / pads
General Data
Table 1: Type
type
VX3 2.5 V
stability
100 ppm
50 ppm
DH
15 pF 30 pF 15 pF 30 pF 15 pF 30 pF 15 pF 30 pF 15 pF 30 pF
30 ppm
25 ppm
20 ppm
frequency range
0.50 ~ 125.0 MHz (15pF max.)
0.50 ~ 80.0 MHz (30pF max.)
20ppm ~ 100ppm (table 1)
see table 2
type VX3
U
D
UH
US DS
UQ
DQ
UP
DP
output load
frequency stability over all*
current consumption
supply voltage VDC
temperature operating
storage
-10 °C ~ +70 °C
-40 °C ~ +85 °C
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Δ
Δ
2.5 V -10%
standard
O available
Δ excludes aging
•
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-55 °C ~ +125 °C
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
output
rise & fall time see table 3
Current at 15pF load
Current at 30pF load
load max
15pF / 30pF
8mA
0.5 ~ 33.9 MHz
34.0 ~ 49.9 MHz
50.0 ~ 79.9 MHz
80.0 ~ 125.0 MHz
7 mA
11 mA
17 mA
30 mA
0.5 ~ 19.9 MHz
20.0 ~ 49.9 MHz
50.0 ~ 80.0 MHz
9 mA
15 mA
20 mA
current max.
low level max. 0.1 x VDC
high level min. 0.9 x VDC
output enable time max.
output disable time max.
start-up time max.
10ms
100ns
10ms
stop
Table 3: Rise & Fall Time max.
standby function
8.0 ns: 0.5 ~ 1.79 MHz
6.0 ns: 1.8 ~ 79.99 MHz
5.0 ns: 80.0 ~ 99.99 MHz
3.0 ns: 100.0 ~ 125.00 MHz
note:
standby current max.
3µA
- specific data on request
- rise time: 0.1 VDC ~ 0.9 VDC
- fall time: 0.9 VDC ~ 0.1 VDC
phase jitter 12 kHz ~ 20.0 MHz < 1.0ps RMS
symmetry at 0.5 x VDC
45% ~ 55% typ. (40% ~ 60% max.)
Dimensions
±0.1
1.8
±0.2
±0.1
7.0
1.4
# 4 # 3
# 1 # 2
# 3
# 4
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: VDC
# 2
# 1
±0.1
5.08
±0.1
5.08
in mm
top view
side view
bottom view
pad layout
Order Information
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
frequency
type
option
O
Oscillator
0.5 ~ 125.0 MHz
VX3U-VX3DP
see table 1
blank = -10 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
Example: O 20.0-VX3UH (LF = RoHS compliant / Pb free pins or pads)
•
Jauch Quartz GmbH e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
