LY8210CL

型号：

LY8210CL

描述：

2.5 W / CH立体声D类音频功率放大器（ WCSP封装/ TSSOP ）[ 2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP) ]

品牌：

LYONTEK[ Lyontek Inc. ]

页数：

20 页

PDF大小：

1354 K

下载PDF手册
®

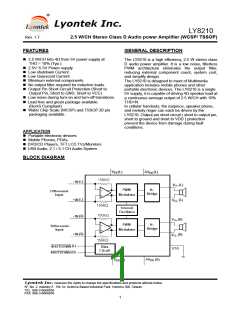

LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
FEATURES
GENERAL DESCRIPTION
„ 2.5 W/CH Into 4Ω from 5V power supply at
THD = 10% (Typ.).
„ 2.5V~5.5V Power supply.
„ Low shutdown Current.
„ Low Quiescent Current.
The LY8210 is a high efficiency, 2.5 W stereo class
D audio power amplifier. It is a low noise, filterless
PWM architecture eliminates the output filter,
reducing external component count, system cost,
and simplify design.
„ Minimum external components.
„ No output filter required for inductive loads.
„ Output Pin Short-Circuit Protection (Short to
Output Pin, Short to GND, Short to VCC)
„ Low noise during turn-on and turn-off transitions.
„ Lead free and green package available.
(RoHS Compliant)
„ Wafer Chip Scale (WCSP) and TSSOP 20 pin
packaging available.
The LY8210 is designed to meet of Multimedia
application includes mobile phones and other
portable electronic devices. The LY8210 is a single
5V supply, it is capable of driving 4Ω speaker load at
a continuous average output of 2.5 W/CH with 10%
THD+N.
In cellular handsets, the earpiece, speaker phone,
and melody ringer can each be driven by the
LY8210. Output pin short circuit ( short to output pin,
short to ground and short to VDD ) protection
prevent the device from damage during fault
conditions.
APPLICATION
„ Portable electronic devices
„ Mobile Phones, PDAs
„ DVD/CD Players, TFT LCD TVs/Monitors
„ USB Audio, 2.1 / 5.1 CH Audio System
BLOCK DIAGRAM
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
PIN CONFIGURATION
LY8210 WCSP 18 Ball Pin Configuration (Top View)
Rev. 1.7
LY8210 TSSOP20 Pin Configuration (Top View)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
PIN DESCRIPTION
Pin No.
SYMBOL
DESCRIPTION
WCSP
TSSOP
SDL
A2
C3
4
5
Shutdown pin of left channel. (when low level is active the pin).
Positive(+) input of left channel.
INPL(+)
INNL(-)
VOPL(+)
VONL(-)
AVDD
A3
17
19
1
Negative(-) input of left channel.
A1
Positive(+) BTL output of left channel.
Negative(-) BTL output of left channel.
Analog Power supply of left and right channel.
Power supply of left and right channel.
C1
B3/B4
B2/B5
6/16
3/13
VDD
Vss
C2/A5 B1/B6 8/11/18/20 Ground
SDR
C5
A4
C4
C6
A6
--
14
7
Shutdown pin of right channel. (when low level is active the pin).
Positive(+) input of right channel.
INPR(+)
INNR(-)
VOPR(+)
VONR(-)
NC
15
12
10
2/9
Negative(-) input of right channel.
Positive(+) BTL output of right channel.
Negative(-) BTL output of right channel.
No Connection.
ORDERING INFORMATION
LY 8 210 VV
V : Package Type
CL : WSCP Package
AL : 20-PIN TSSOP with Thermal Pad
IL : 20-PIN TSSOP without Thermal Pad
Product Name
A : Product Line
LY : Lyontek Product Number Prefix
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
3
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
PACKAGE MARKING FORMAT (For WCSP Package only)
AA B C
C : Lot Number
B : Date Code
Product Name
TYPICAL APPLICATION CIRCUIT
Figure 1. Typical Application Schematic With Differential Input
and AVDD Connect to VDD Configuration (WCSP package)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
4
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 2. Typical Application Schematic With Differential Input
and AVDD Increase Capacitors Configuration(WCSP package).
Note: In case of AVDD and VDD, the use of AVDD Increase Capacitors will optimize the THD+N.
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Supply Voltage
SYMBOL
VDD
RATING
6.0
UNIT
V
℃
Operating Temperature
Input Voltage
TA
-40 to 85 (I grade)
-0.3V to VDD +0.3V
-65 to 150
Internally Limited
2000
VI
V
℃
Storage Temperature
Power Dissipation
TSTG
PD
W
V
℃
℃
ESD Susceptibility
VESD
TJMAX
TSOLDER
Junction Temperature
Soldering Temperature (under 10 sec)
150
260
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
5
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
ELECTRICAL CHARACTERISTICS (TA = 25℃)
SYMBOL
TEST CONDITION
VI = 0 V, Av = 2 V/V,
VDD = 2.5 V to 5.5 V
VDD = 5.5 V, VI = 5.8 V
VDD = 5.5 V, VI = 0.3 V
VDD = 5.5V, No Load
VDD = 3.6V, No Load
VDD = 2.5V, No Load
VSHUTDOWN = 0.8V,
MIN.
TYP.
MAX. UNIT
PARAMETER
Output offset voltage
(measured differentially)
High-level input current
Low-level input current
-
-
50
mV
|VOS|
|IIH|
|IIL|
-
-
-
-
-
-
-
200
10
9.0
-
uA
uA
6.8
5.6
4.4
Quiescent Current
Shutdown Current
IQ
mA
6.4
ISD
-
0.6
4
A
µ
V
DD = 2.5V to 5.5V
„
OPERATING CHARACTERISTICS (1)(TA = 25℃, Gain = 2 V/V)
SYMBOL
TEST CONDITION
MIN.
TYP.
MAX. UNIT
PARAMETER
-
-
-
-
-
-
-
-
-
-
-
-
1.5
0.7
0.35
1.2
0.6
0.3
2.5
1.2
0.5
2.0
0.9
0.4
-
-
-
-
-
-
VDD=5.0V
THD+N= 10%, f = 1 kHz,
RL= 8Ω
VDD=3.6V
VDD=2.5V
VDD=5.0V
VDD=3.6V
VDD=2.5V
VDD=5.0V
VDD=3.6V
VDD=2.5V
VDD=5.0V
VDD=3.6V
VDD=2.5V
THD+N= 1%, f = 1 kHz,
RL= 8Ω
Out Power / Channel
PO
W
-
THD+N= 10%, f = 1 kHz,
RL= 4Ω
-
-
-
-
-
THD+N= 1%, f = 1 kHz,
RL= 4Ω
PO = 1.0 W, f = 1 kHz,
RL = 8Ω
PO = 2.0 W, f = 1 kHz,
RL = 4Ω
PO = 0.5 W, f = 1 kHz,
RL = 8Ω
PO = 0.8 W, f = 1 kHz,
RL = 4Ω
PO = 0.2 W, f = 1 kHz,
RL = 8Ω
PO = 0.2 W, f = 1 kHz,
RL = 4Ω
-
-
-
-
-
-
0.03
0.06
0.03
0.04
0.04
0.04
-
-
VDD=5.0V
VDD=3.6V
-
Total harmonic distortion
noise
+
THD+N
%
-
-
-
VDD=2.5V
VDD=3.6V
Power supply rejection ratio
Common mode rejection ratio
Signal-to-noise ratio
PSRR VDD = 2.5 V to 5.5 V
CMRR VIC = 1 Vpp , f = 217 Hz
SNR PO= 1.0 W, RL = 8Ω
VDD = 3.6 V,
-
-
-
-75
-63
91
-
-
-
dB
dB
dB
VDD=5.0V
No
-
-
50
36
-
-
f = 20 Hz to 20 kHz,
Inputs ac-grounded with
Ci = 2 μF
weighting
A
Output voltage noise
Vn
uVRMS
weighting
V/V
ms
Closed-loop Gain
Start-up time from shutdown
Gv
ZI
VDD = 2.5V to 5.5V
VDD = 2.5V to 5.5V
-
-
150kΩ/Ri
-
-
1
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
6
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
TYPICAL PERFORMANCE CHARACTERISTICS
Figure 3
Total Harmonic Distortion + Noise vs Output Power (RL = 4Ω, Stereo)
Figure 4
Total Harmonic Distortion + Noise vs Output Power (RL = 8Ω, Stereo)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
7
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 5
Total Harmonic Distortion + Noise vs Frequency (VDD=5.0V, 4Ω)
Figure 6
Total Harmonic Distortion + Noise vs Frequency (VDD=3.6V, 4Ω)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
8
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 7
Total Harmonic Distortion + Noise vs Frequency (VDD=2.5V, 4Ω)
Figure 8
Total Harmonic Distortion + Noise vs Frequency (VDD=5.0V, 8Ω)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
9
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 9
Total Harmonic Distortion + Noise vs Frequency (VDD=3.6V, 8Ω)
Figure 10
Total Harmonic Distortion + Noise vs Frequency (VDD=2.5V, 8Ω)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
10
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 11
Efficiency vs Output power ( RL=4Ω, 33μH)
LY8210 4 Ohm Rfficiency vs Output Power
100
90
80
70
60
50
40
30
20
10
3.6V
5.0V
0.2
0.3
0.4
0.5
0.6
0.8
1.0
1.2
1.4
1.6
2
2.5
Output Power (W)
Figure 12
Efficiency vs Output power ( RL=8Ω, 33μH)
LY8210 RL=8 Ohm Efficiency vs Output Power
100
90
80
70
60
50
40
30
20
10
3.6V
5.0V
0.1
0.2
0.3
0.4
0.5
0.6
0.8
1.0
1.2
1.4
Output Power (W)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
11
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
„
APPLICATION INFORMATION
Fully Differential Amplifier
The LY8210 is a fully differential amplifier with differential inputs and outputs. The fully differential amplifier
consists of a differential amplifier and a common-mode amplifier. The differential amplifier ensures that the
amplifier outputs a differential voltage on the output that is equal to the differential input times the gain. The
common-mode feedback ensures that the common-mode voltage at the output is biased around VDD/2
regardless of the common-mode voltage at the input. The fully differential LY8210 can still be used with a
single-ended input; however, the LY8210 should be used with differential inputs when in a noisy environment,
like a wireless handset, to ensure maximum noise rejection.
Figure 13. Application Schematic With Differential Input Configuration(WCSP Package)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
12
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 14. Application Schematic With Differential and Capacitors Input Configuration(WCSP Package)
Figure 15. Application Schematic With Single-Ended Input Configuration(WCSP Package)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
13
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Figure 16. Application Schematic With Differential and Capacitors Input Configuration(TSSOP Package)
Figure 17. Application Schematic With Single-Ended Input Configuration(TSSOP Package)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
14
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
Input Resistors (Ri) and Gain
The LY8210 has two internal amplifier stages. The pre-amplifier gain is externally configurable, while the total
gain is internally fixed. The closed-loop gain of the pre-amplifier gain is set by selecting the Rf to Ri while the
total gain is fixed at 2x. So the input resistors (Ri) set the gain of the amplifier according to the equation.
Pre-Amplifier Gain = Rf / Ri
Total Gain = (Rf / Ri ) x 2
AVD = 20 x log [2 x (Rf /Ri )]
The resistor matching is very important in the amplifiers. Balance of the output on the reference voltage
depends on matched ratio of the resistors. CMRR, PSRR, and cancellation of the second harmonic distortion
if resistor mismatch occurs. Therefore, it is recommended to use 1% tolerance resistors or better to keep the
performance optimized. Matching is more important than overall tolerance.
Resistor arrays with 1% matching can be used with a tolerance greater than 1%.Place the input resistors very
close to the LY8210 to limit noise injection on the high-impedance nodes. For optimal performance the gain
should be set to 2 V/V or lower. Lower gain allows the LY8210 to operate at its best,
For example
Table 1. Typical Total Gain and AVD Values
Rf (KΩ)
Ri (KΩ)
150
150
1
150
75
150
50
150
37.5
4
150
25
150
18.75
8
Pre AMP. Gain
Total Gain
AVD (db)
2
3
6
2
4
6
8
12
16
6.02
12.04
15.56
18.06
21.58
24.08
Input Capacitors (Ci)
The LY8210 using fully differential source, So the input coupling capacitors are required. The input capacitors
and input resistors form a high-pass filter with the corner frequency(fc), determined in the equation.
fc = 1 / ( 2πRi Ci )
The value of the input capacitor is important to consider as it directly affects the bass (low frequency)
performance of the circuit. Speakers in wireless phones cannot usually respond well to low frequencies, so
the corner frequency can be set to block low frequencies in this application. Equation is reconfigured to solve
for the input coupling capacitance.
Ci = 1 / ( 2πRi fc )
If the corner frequency is within the audio band, the capacitors should have a tolerance of ±10% or better,
because any mismatch in capacitance causes an impedance mismatch at the corner frequency and below.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
15
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
For example
In the table 2 shows the external components. Rin in connect with Cin to create a high-pass filter.
Table 2. Typical Component Values
Reference
Description
Note
Ri
Ci
150KΩ
0.22uF
1% tolerance resistors
80%/–20%
Ci = 1 / ( 2πRi fc)
Ci = 1 / ( 2π x 150KΩ x 4.8Hz)=0.221uF，Use 0.22uF
Decoupling Capacitor (CS)
The LY8210 is a high-performance class-D audio amplifier that requires adequate power supply decoupling to
ensure the efficiency is high and total harmonic distortion (THD) is low. For higher frequency transients,
spikes, or digital hash on the line, a good low equivalent-series-resistance (ESR) ceramic capacitor, typically
1.0uF, placed as close as possible to the device VDD lead works best. Placing this decoupling capacitor close
to the LY8210 is very important for the efficiency of the class-D amplifier, because any resistance or
inductance in the trace between the device and the capacitor can cause a loss in efficiency. For filtering
lower-frequency noise signals, a 10.0uF or greater capacitor placed near the audio power amplifier would also
help, but it is not required in most applications because of the high PSRR of this device.
PCB Layout
All the external components must place very close to the LY8210. The input resistors need to be very close to
the LY8210 input pins so noise does not couple on the high impedance nodes between the input resistors and
the input amplifier of the LY8210. Then place the decoupling capacitor Cs, close to the LY8210 is important
for the efficiency of the class-D amplifier. Any resistance or inductance in the trace between the device and
the capacitor can cause a loss in efficiency.
Making the high current traces going to VDD, GND, VO+ and VO- pins of the LY8210 should be as wide as
possible to minimize trace resistance. If these traces are too thin, the LY8210's performance and output
power will decrease. The input traces do not need to be wide, but do need to run side-by-side to enable
common-mode noise cancellation.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
16
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
LY8210CL Demo Board Artwork
Top Silkscreen
Top Layer
Composite view
Bottom Layer
LY8210 V1.1 BOM List
No.
1
Description
Reference
Note
Resistor, 150KΩ
Capacitor, 0.1uF
Capacitor, 0.22uF
Capacitor, 10.0uF
LY8210CL
R1,R2,R3,R4,R5,R6
2
C6,C7,C8
C1,C2,C3,C4
C5
3
4
5
U1
6
1*2 Pin Header
J1,J2
Close Æ Active
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
17
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
LY8210AL/IL Demo Board Artwork
Top Silkscreen
Top Layer
Composite view
Bottom Layer
LY8210 V1.1 BOM List
No.
1
Description
Reference
Note
Resistor, 150KΩ
Capacitor, 0.1uF
Capacitor, 0.22uF
Capacitor, 10.0uF
LY8210AL/IL
R1,R2,R3,R4,R5,R6
2
C6,C7,C8
C1,C2,C3,C4
C5
3
4
5
U1
6
1*2 Pin Header
J1,J2
Close Æ Active
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
18
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
PACKAGE OUTLINE DIMENSION
18 Ball WCSP Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
19
®
LY8210
2.5 W/CH Stereo Class D Audio power Amplifier (WCSP/ TSSOP)
Rev. 1.7
TSSOP 20 Pin Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
20
厂商 型号 描述 页数 下载

LYONTEK

 		LY8005 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8005UL 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8006 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006BL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006UL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8009VL [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8009_12 [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8010 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8010BL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8010CL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.248775s
