LY8010

型号：

LY8010

描述：

为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ]

品牌：

LYONTEK[ Lyontek Inc. ]

页数：

24 页

PDF大小：

2293 K

下载PDF手册
®

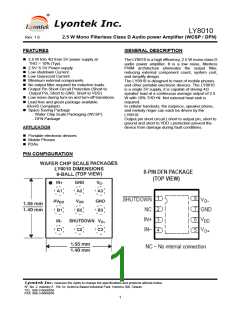

LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
FEATURES
GENERAL DESCRIPTION
„ 2.5 W Into 4Ω from 5V power supply at
THD = 10% (Typ).
„ 2.5V~5.5V Power supply.
„ Low shutdown Current.
„ Low Quiescent Current.
The LY8010 is a high efficiency, 2.5 W mono class D
audio power amplifier. It is a low noise, filterless
PWM architecture eliminates the output filter,
reducing external component count, system cost,
and simplify design.
„ Minimum external components.
„ No output filter required for inductive loads.
„ Output Pin Short-Circuit Protection (Short to
Output Pin, Short to GND, Short to VDD)
„ Low noise during turn-on and turn-off transitions.
„ Lead free and green package available.
(RoHS Compliant)
„ Space Saving Package
- Wafer Chip Scale Packaging (WCSP).
- DFN Package
The LY8010 is designed to meet of mobile phones
and other portable electronic devices. The LY8010
is a single 5V supply, it is capable of driving 4Ω
speaker load at a continuous average output of 2.5
W with 10% THD+N. Not external heat-sink is
required.
In cellular handsets, the earpiece, speaker phone,
and melody ringer can each be driven by the
LY8010.
Output pin short circuit ( short to output pin, short to
ground and short to VDD ) protection prevent the
device from damage during fault conditions.
APPLICATION
„ Portable electronic devices
„ Mobile Phones
„ PDAs
PIN CONFIGURATION
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
PIN DESCRIPTION
Pin No.
SYMBOL
DESCRIPTION
DFN
1
WCSP
C2
SHUTDOWN
Shutdown the device.(when low level is active the pin)
+IN
-IN
3
4
5
A1
C1
C3
Positive input
Negative input
Positive BTL output
Vo+
AVDD
VDD
--
6
7
8
B1
B2
Analog Power supply
Power supply
GND
Vo-
A2/B3 Ground
A3 Negative BTL output
ORDERING INFORMATION
LY 8 010 VV
V : Package Type
CL : 9-Ball WCSP
BL：8-Pin DFN
Product Name
A : Product Line
LY : Lyontek Product Number Prefix
PACKAGE MARKING FORMAT (For WCSP Package only)
AA B C
C : Lot Number
B : Date Code
Product Name
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
APPLICATION CIRCUIT
Figure 1. Application Schematic With Differential Input Configuration
Figure 2. Application Schematic With Differential and Capacitors Input Configuration
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
3
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 3. Application Schematic With Single-Ended Input
ABSOLUTE MAXIMUN RATINGS
PARAMETER
Supply Voltage
SYMBOL
VDD
RATING
6.0
UNIT
V
℃
Operating Temperature
Input Voltage
TA
-40 to 85 (I grade)
-0.3V to VDD +0.3V
-65 to 150
Internally Limited
2000
VI
V
℃
Storage Temperature
Power Dissipation
TSTG
PD
W
V
℃
℃
ESD Susceptibility
VESD
TJMAX
TSOLDER
Junction Temperature
Soldering Temperature (under 10 sec)
150
260
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
4
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
ELECTRICAL CHARACTERISTICS (TA = 25℃,Unless otherwise noted)
SYMBOL
TEST CONDITION
VI = 0 V, Av = 2 V/V,
VDD = 2.5 V to 5.5 V
VDD = 5.5 V, VI = 5.8 V
VDD = 5.5 V, VI = 0.3 V
MIN.
TYP.
MAX. UNIT
PARAMETER
Output offset voltage
(measured differentially)
High-level input current
Low-level input current
Power supply rejection ratio
-
-
25
mV
|VOS|
|IIH|
|IIL|
-
-
-
-
100
5
-55
uA
uA
dB
PSRR VDD = 2.5 V to 5.5 V
VDD=2.5V to 5.5V,
-75
Common mode rejection ratio
CMRR VIC= VDD/2 to 0.5 V,
VIC= VDD/2 to VDD-0.8 V,
VDD = 5.5V, No Load
-60
-48
dB
-
-
-
3.4
2.8
2.2
4.5
-
3.2
Quiescent Current
Shutdown Current
IQ
mA
VDD = 3.6V, No Load
VDD = 2.5V, No Load
VSHUTDOWN = 0.8V,
ISD
-
0.3
2
A
µ
VDD = 2.5V to 5.5V
OPERATUNG CHARACTERISTICS (TA = 25℃, Gain = 2V/V, RL = 8Ω, Unless otherwise noted)
SYMBOL
TEST CONDITION
MIN.
TYP.
2.5
1.3
0.5
1.7
0.9
0.45
1.5
0.75
0.35
1.2
0.65
0.3
MAX. UNIT
PARAMETER
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
VDD=5V
THD+N= 10%, f = 1 kHz,
RL= 4Ω
VDD=3.6V
VDD=2.5V
VDD=5V
THD+N= 1%, f = 1 kHz,
RL= 4Ω
VDD=3.6V
VDD=2.5V
VDD=5V
-
-
Out Power
PO
W
THD+N= 10%, f = 1 kHz,
RL= 8Ω
-
-
-
-
-
VDD=3.6V
VDD=2.5V
VDD=5V
THD+N= 1%, f = 1 kHz,
VDD=3.6V
VDD=2.5V
RL= 8Ω
PO = 1 W, f = 1 kHz,
RL = 8Ω
PO = 0.5 W, f = 1 kHz,
RL = 8Ω
PO = 0.2 W, f = 1 kHz,
RL = 8Ω
-
-
-
0.12
0.1
-
VDD=5V
VDD=3.6V
VDD=2.5V
Total harmonic distortion + noise THD+N
-
-
%
0.08
f = 217 Hz,
V(RIPPLE) = 200mVpp,
inputs ac-grounded
with Ci = 2uF
Supply ripple rejection ratio
Signal-to-noise ratio
KSVR
-
-71
-
dB
dB
VDD=3.6V
VDD=5V
SNR PO= 1 W, RL = 8Ω
-
-
97
48
-
-
-
VDD = 3.6 V,
f = 20 Hz to 20 kHz,
Inputs ac-grounded with
Ci = 2 μF
No
weighting
Output voltage noise
Vn
uVRMS
-
A
36
weighting
VDD=3.6V
Common mode rejection ratio
Start-up time from shutdown
CMRR VIC = 1 Vpp , f = 217 Hz
-
-
-63
1
-
-
dB
ms
ZI
VDD = 3.6 V
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
5
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
TYPICAL PERFORMANCE CHARACTERISTICS
Figure 4
Total Harmonic Distortion + Noise vs Output Power
Figure 5
Total Harmonic Distortion + Noise vs Output Power
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
6
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 6
Total Harmonic Distortion + Noise vs Frequency
Figure 7
Total Harmonic Distortion + Noise vs Frequency
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
7
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 8
Output Power vs Load Resistance (Po at 10 % THD with f = 1 kHz)
Figure 9
Output Power vs Load Resistance (Po at 1 % THD with f = 1 kHz)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
8
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 10
Efficiency vs Output power ( RL=8Ω, 33μH)
Figure 11
Power dissipation vs Output power ( RL=8Ω, 33μH)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
9
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 12
Supply Current vs Output Power ( RL=8Ω, 33μH)
Figure 13
THD+N & Output Power vs Temperature (VDD=3V, RL=8Ω)
100
10
1
0.1
25C
80C
85C
-20C
-40C
0.01
0.0001
0.001
0.01
0.1
1
Po-Output Power (W)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
10
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 14
THD+N & Output Power vs Temperature (VDD=4.5V, RL=8Ω)
100
10
1
0.1
25C
80C
85C
-20C
-40C
0.01
0.0001
0.001
0.01
0.1
1
10
Po-Output Power (W)
Figure 15
THD+N & Output Power vs Temperature (VDD=5.0V, RL=8Ω)
100
10
1
25C
80C
85C
-20C
-40C
0.1
0.01
0.0001
0.001
0.01
0.1
1
10
Po-Output Power (W)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
11
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 16
FCC Class-B (Vertical)
Figure 17
FCC Class-B (Horizontal)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
12
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 18
CISPR Class-B (Vertical)
Figure 19
CISPR Class-B (Horizontal)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
13
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
APPLICATION INFORMATION
Fully Differential Amplifier
The LY8010 is a fully differential amplifier with differential inputs and outputs. The fully differential amplifier
consists of a differential amplifier and a common-mode amplifier. The differential amplifier ensures that the
amplifier outputs a differential voltage on the output that is equal to the differential input times the gain. The
common-mode feedback ensures that the common-mode voltage at the output is biased around VDD/2
regardless of the common-mode voltage at the input. The fully differential LY8010 can still be used with a
single-ended input; however, the LY8010 should be used with differential inputs when in a noisy environment,
like a wireless handset, to ensure maximum noise rejection.
Advantages of Fully Differential Amplifiers
Input-coupling capacitors not required:
The fully differential amplifier allows the inputs to be biased at voltage other than mid-supply. For example,
if a codec has a midsupply lower than the midsupply of the LY8010, the common-mode feedback circuit will
adjust, and the LY8010 outputs will still be biased at midsupply of the LY8010. The inputs of the LY8010 can
be biased from 0.5 V to VDD - 0.8 V. If the inputs are biased outside of that range, input - coupling capacitors
are required.
Midsupply bypass capacitor, C(BYPASS), not required:
The fully differential amplifier does not require a bypass capacitor. This is because any shift in the midsupply
affects both positive and negative channels equally and cancels at the differential output.
Better RF-immunity:
GSM handsets save power by turning on and shutting off the RF transmitter at a rate of 217 Hz. The
transmitted signal is picked-up on input and output traces. The fully differential amplifier cancels the signal
much better than the typical audio amplifier.
Component Selection
Figure 1 shows the LY8010 typical schematic with differential inputs and Figure 2 shows the LY8010
with differential and capacitors inputs , and Figure 3 shows the LY8010 with single-ended inputs.
Differential inputs should be used whenever possible because the single-ended inputs are much more
susceptible to noise.
Table 1. Typical Component Values
Reference
Description
150KΩ
1.0uF
Note
1% tolerance resistors
+22%,-80%
Ri
Cs
Ci
3.3nF
(±10%)
(1) Ci is only needed for single-ended input or if VICM is not between 0.5 V and VDD - 0.8 V. Ci = 3.3 nF
(with Ri = 150KΩ) gives a high-pass corner frequency of 321 Hz.
For example
fc = 1 / ( 2πRiCi )
fc = 1 / ( 2π x 150KΩ x 3.3nF)=321.524 Hz
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
14
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Input Resistors (Ri)
The input resistors (RI) set the gain of the amplifier according to equation Equation 1.
150 kΩ
Pre-Amplifier Gain = -----------
Ri
150 kΩ
Total Gain = 2 x -------------- …………………………………………………………….(1)
RI
150 kΩ
AVD = 20 x log [2 x ( ----------- )]
Ri
Resistor matching is very important in fully differential amplifiers. The balance of the output on the
reference voltage depends on matched ratios of the resistors. CMRR, PSRR, and cancellation of the second
harmonic distortion diminish if resistor mismatch occurs. Therefore, it is recommended to use 1% tolerance
resistors or better to keep the performance optimized. Matching is more important than overall tolerance.
Resistor arrays with 1% matching can be used with a tolerance greater than 1%.
Place the input resistors very close to the LY8010 to limit noise injection on the high-impedance nodes.
For optimal performance the gain should be set to 2 V/V or lower. Lower gain allows the LY8010 to operate at
its best, and keeps a high voltage at the input making the inputs less susceptible to noise.
For example
Table 2. Typical Total Gain and AVD Values
Rf (KΩ)
Ri (KΩ)
150
150
1
150
75
150
50
150
37.5
4
150
25
150
18.75
8
Pre AMP. Gain
Total Gain
AVD (db)
2
3
6
2
4
6
8
12
16
6.02
12.04
15.56
18.06
21.58
24.08
Decoupling Capacitor (CS)
The LY8010 is a high-performance class-D audio amplifier that requires adequate power supply decoupling to
ensure the efficiency is high and total harmonic distortion (THD) is low. For higher frequency transients,
spikes, or digital hash on the line, a good low equivalent-series-resistance (ESR) ceramic capacitor, typically
1 μF, placed as close as possible to the device VDD lead works best. Placing this decoupling capacitor close to
the LY8010 is very important for the efficiency of the class-D amplifier, because any resistance or inductance
in the trace between the device and the capacitor can cause a loss in efficiency. For filtering lower-frequency
noise signals, a 10 μF or greater capacitor placed near the audio power amplifier would also help, but it is not
required in most applications because of the high PSRR of this device.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
15
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Input Capacitors (CI)
The LY8010 does not require input coupling capacitors if the design uses a differential source that is biased
from 0.5 V to VDD - 0.8 V (shown in Figure 1). If the input signal is not biased within the recommended
common-mode input range, if needing to use the input as a high pass filter (shown in Figure 2), or if using a
single-ended source (shown in Figure 3), input coupling capacitors are required.
The input capacitors and input resistors form a high-pass filter with the corner frequency, fc, determined in
equation Equation 2.
1
fc = ----------------………………………………………………………………(2)
2πRiCi
The value of the input capacitor is important to consider as it directly affects the bass (low frequency)
performance of the circuit. Speakers in wireless phones cannot usually respond well to low frequencies, so
the corner frequency can be set to block low frequencies in this application.
Equation Equation 3 is reconfigured to solve for the input coupling capacitance.
1
Ci = -----------------…………………………………………………………….(3)
2πRifc
For example
In the table 3 shows the external components. Rin in connect with Cin to create a high-pass filter.
Table 3. Typical Component Values
Reference
Description
Note
Ri
Ci
150KΩ
0.22uF
1% tolerance resistors
80%/–20%
Ci = 1 / ( 2πRi fc)
Ci = 1 / ( 2π x 150KΩ x 4.8Hz)=0.221uF，Use 0.22uF
Summing Input Signals With The LY8010
Most wireless phones or PDAs need to sum signals at the audio power amplifier or just have two signal
sources that need separate gain. The LY8010 makes it easy to sum signals or use separate signal sources
with different gains. Many phones now use the same speaker for the earpiece and ringer, where the wireless
phone would require a much lower gain for the phone earpiece than for the ringer. PDAs and phones that
have stereo headphones require summing of the right and left channels to output the stereo signal to the
mono speaker.
Summing Two Differential Input Signals
Two extra resistors are needed for summing differential signals (a total of 5 components). The gain for each
input source can be set independently (see equations Equation 4 and Equation 5, and Figure 20).
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
16
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
VO
150kΩ
Gain 1 = ---------- = 2 x -------------……………………………………………(4)
VI1
RI1
Vo
150kΩ
Gain 2 = ---------- = 2 x -------------…………………………………………….(5)
VI2 RI2
If summing left and right inputs with a gain of 1 V/V, use RI1= RI2= 300 kΩ
If summing a ring tone and a phone signal, set the ring-tone gain to Gain 2 = 2 V/V, and the phone gain to
gain 1 = 0.1 V/V. The resistor values would be. . .
RI1 = 3 MΩ, and = RI2 = 150 kΩ.
Figure 20. Application Schematic With LY8010 Summing Two Differential Input
Summing a Differential Input Signal and a Single-Ended Input Signal
Figure 21 shows how to sum a differential input signal and a single-ended input signal. Ground noise can
couple in through IN+ with this method. It is better to use differential inputs. The corner frequency of the
single-ended input is set by CI2, shown in equation Equation 8. To assure that each input is balanced, the
single-ended input must be driven by a low-impedance source even if the input is not in use.
VO
Gain 1 = ---------- = 2 X ---------------……………………………………………(6)
VI1 RI1
150kΩ
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
17
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
VO
150kΩ
Gain 2 = ---------- = 2 X -----------------………………………………………….(7)
VI2
RI2
1
CI2 = ------------------……………………………………………………………..(8)
2πRI2 fc2
If summing a ring tone and a phone signal, the phone signal should use a differential input signal while the
ring tone might be limited to a single-ended signal. Phone gain is set at gain 1 = 0.1 V/V, and the ring-tone
gain is set to gain 2 = 2 V/V, the resistor values would be …
RI1 = 3 MΩ, and = RI2 = 150 kΩ.
The high pass corner frequency of the single-ended input is set by CI2. If the desired corner frequency is less
than 20 Hz.
1
CI2 > --------------------------…………………………………………………..(9)
2π150kΩ 20Hz
CI2 > 53pF…………………………………………………………………..(10)
Figure 21. Application Schematic With LY8010 Summing Differential and Sing-Ended Input
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
18
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Summing Two Single-Ended Input Signals
Four resistors and three capacitors are needed for summing single-ended input signals. The gain and corner
frequencies (fc1 and fc2) for each input source can be set independently (see equations Equation 11 through
Equation 14, and Figure 22). Resistor, RP, and capacitor, CP, are needed on the IN+ terminal to match the
impedance on the IN- terminal. The single-ended inputs must be driven by low impedance sources even if
one of the inputs is not outputting an ac signal.
VO
150 kΩ
Gain 1 = -------- = 2 X -------------------…………………………………………(11)
VI1
Vo
RI1
150kΩ
Gain 2 = --------- = 2 X -------------------………………………………………..(12)
VI2
RI2
1
CI1 = -------------------…………………………………………………………...(13)
2πRI1fc1
1
CI2 = -------------------……………………………………………………..…....(14)
2πRI2fc2
CP = CI1 + CI2…………………………………………………………………..(15)
RI1 x RI2
RP = ------------------…………………………………………………………..…(16)
RI1 + RI2
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
19
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
Figure 22. Application Schematic With LY8010 Summing Two Single-ended Input
PCB Layout
All the external components must place very close to the LY8010. The input resistors need to be very close to
the LY8010 input pins so noise does not couple on the high impedance nodes between the input resistors and
the input amplifier of the LY8010. Then place the decoupling capacitor Cs, close to the LY8010 is important
for the efficiency of the class-D amplifier. Any resistance or inductance in the trace between the device and
the capacitor can cause a loss in efficiency.
Making the high current traces going to VDD, GND, VO+ and VO- pins of the LY8010 should be as wide as
possible to minimize trace resistance. If these traces are too thin, the LY8010's performance and output
power will decrease. The input traces do not need to be wide, but do need to run side-by-side to enable
common-mode noise cancellation.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
20
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
LY8010CL Demo Board Artwork
Top Silkscreen
Top Layer
Composite view
Bottom Layer
LY8010CL V1.1 BOM List
No.
1
Description
Reference
R1,R2,R3
C3,C5
C1,C2
C4
Note
Resistor, 150KΩ
Capacitor, 0.1uF
Capacitor, 0.22uF
Capacitor, 10.0uF
LY8010CL
2
3
4
5
U1
6
1*2 Pin Header
J1
Close Æ Active
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
21
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
LY8010BL Demo Board Artwork
Top Silkscreen
Top Layer
Composite view
Bottom Layer
LY8010BL V1.1 BOM List
No.
1
Description
Reference
R1,R2,R3
C3
Note
Resistor, 150KΩ
Capacitor, 0.1uF
Capacitor, 0.22uF
Capacitor, 10.0uF
LY8010BL
2
3
C1,C2
C4
4
5
U1
6
1*2 Pin Header
J1
Close Æ Active
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
22
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
PACKAGE OUTLINE DIMENSION
9 Ball WCSP Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
23
®
LY8010
2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN)
Rev. 1.6
8 Pin DFN Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
24
厂商 型号 描述 页数 下载

LYONTEK

 		LY8005 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8005UL 2.3 3W单声道无滤波器D类音频功率放大器（ MSOP ）[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

 		LY8006 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006BL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8006UL 1.4 3W单声道无滤波器D类音频功率放大器（ MSOP / DFN ） - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) －Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

 		LY8009VL [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8009_12 [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

 		LY8010BL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8010CL 为2.5W单声道无滤波器D类音频功率放大器（ WCSP封装/ DFN ）[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

 		LY8209U [ 3.3W/CH Stereo Class D Audio Power Amplifier ] 17 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.153447s
