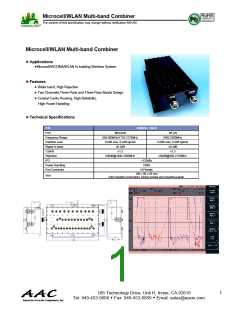

Microcell/WLAN Multi-band Combiner
The content of this specification may change without notification 9/01/09
Microcell/WLAN Multi-band Combiner
►Applications
●Microcell/WCDMA/WLAN In-building Wireless System
►Features
● Wider band, High Rejection
● Two Channels,Three Ports and Three Pass Bands Design
● Coaxial Cavity Housing, High Reliability,
High Power Handling
►Technical Specifications
P/N
JXMBHL-T-M-01
Port
Microcell
WLAN
2400-2500MHz
0.6dB max; 0.3dB typical
≤0.3dB
Frequency Range
Insertion Loss
Ripple in band
VSWR
800-960MHz/1710-2170MHz
0.6dB max; 0.3dB typical
≤0.3dB
≤1.3
≤1.3
Rejection
≥80dB@2400-2500MHz
≥80dB@800-2170MHz
IP3
>120dBc
100W
Power Handling
Port Connector
N-Female
190 x 96 x 58 mm
(Not including connectors, tuning screws and mounting panel)
Size
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
