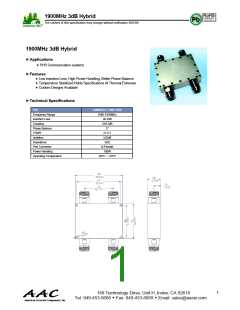

1900MHz 3dB Hybrid
The content of this specification may change without notification 9/01/09
1900MHz 3dB Hybrid
►Applications
● PHS Communication systems
►Features
● Low Insertion Loss, High Power Handling, Better Phase Balance
● Temperature Stabilized Holds Specifications At Thermal Extremes
● Custom Designs Available
►Technical Specifications
P/N
JXMBDQ-T-1880-1920
1880-1920MHz
≤0.2dB
Frequency Range
Insertion Loss
Coupling
3±0.3dB
Phase Balance
VSWR
5°
≤1.2:1
Isolation
≥25dB
Impedance
50Ω
Port Connector
Power Handling
Operating Temperature
N-Female
100W
-30°C ~ +70°C
1
