JXE42

型号:

JXE42

描述:

石英晶体[ Quartz Crystal ]

品牌:

JAUCH[ JAUCH QUARTZ GMBH ]

页数:

2 页

PDF大小:

66 K

J
X
E
4
2

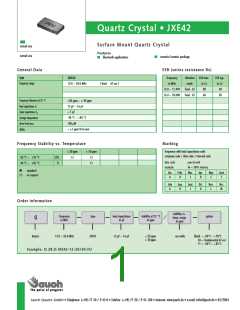

QuartzCrystalJXE42
Surface Mount Quartz Crystal
actual size
actual size
Features
ceramic/ceramic package
bluetooth applications
General Data
ESR (series resistance Rs)
type
JXE42
frequency
in MHz
vibration ESR max.
ESR typ.
in
40
frequency range
13.0 ~ 50.0 MHz
( fund. AT-cut )
mode
in Ω
80
13.0 ~ 15.999 fund.- AT
16.0 ~ 50.000 fund.- AT
60
30
frequency tolerance at 25 °C
load capacitance CL
shunt capacitance Co
storage temperature
drive level max.
20 ppm ~ 30 ppm
12 pF ~ 16 pF
< 7 pF
-40 °C ~ +90 °C
100 µW
<
5 ppm first year
aging
Marking
Frequency Stability vs. Temperature
frequency with load capacitance code
30 ppm
50 ppm
O
company code / date code / internal code
-20 °C ~ +70 °C
-40 °C ~ +85 °C
STD.
T1
O
date code:
example:
year/month
O
4A = 2004 January
standard
Jan.
A
Febr. Mar.
Apr.
D
May
E
June
F
O
on request
B
C
July
G
Aug.
H
Sept.
J
Oct.
K
Nov.
L
Dec.
M
Order Information
stability vs.
temp. range
in ppm
frequency
in MHz
type
load capacitance
in pF
stability at 25 °C
in ppm
option
Q
Quartz
13.0 ~ 50.0 MHz
JXE42
12 pF ~ 16 pF
20 ppm
30 ppm
see table
blank = -20°C ~ +70°C
FU = fundamental AT-cut
T1 = -40°C ~ +85°C
Example: Q 28.0-JXE42-12-20/30-FU
T h e p u l s e o f p r o g r e s s
T h e p u l s e o f p r o g r e s s
Jauch Quartz GmbH • Telephone: (+49) 77 20 / 9 45-0 • Telefax: (+49) 77 20 / 9 45-100 • Internet: www.jauch.de • e-mail: info@jauch.de • 02/2004
Quartz Crystal JXE42
Dimensions
1.4
0.2
4.0
2.0
# 4
# 4
# 1
# 3
# 2
# 3
# 2
# 3
# 2
# 4
# 1
# 1
top view
side view
bottom view
crystal connection
pad layout
in mm
Taping Specification
4.0
ø 1.5
12.4
120°
2.0
ø 21
2.9
1.1
8.0
Feeding
in mm
in mm
1000 pcs per reel
Reflow Soldering Profile
Load Capacitance Codes
temperature (°C)
7 pF: m
8 pF: k
13 pF: v
14 pF: x
15 pF: j
16 pF: b
17 pF: t
18 pF: f
20 pF: c
32 pF: e
series: s
10 1 s
250
200
150
100
50
235 5 ꢀ° ꢁ2ꢂ6ꢀ° ꢃmax
22 pF: g
24 pF: d
25 pF: r
27 pF: w
30 pF: .
9 pF: n
T: 3rd OT
150 5 °C
10 pF: h
11 pF: l
12 pF: a
90 30 s
30 10 s
time (seconds)
example 13.0 MHz / 12 pF: 13a00
note: temperatures are measured on PCB surface
T h e p u l s e o f p r o g r e s s
Jauch Quartz GmbH Telephone: (+49) 77 20 / 9 45-0 Telefax: (+49) 77 20 / 9 45-100 Internet: www.jauch.de e-mail: info@jauch.de 02/2004
