2SK2467_06

型号:

2SK2467_06

描述:

硅N沟道MOS型高功率放大器应用[ Silicon N Channel MOS Type High-Power Amplifier Application ]

品牌:

TOSHIBA[ TOSHIBA ]

页数:

3 页

PDF大小:

107 K

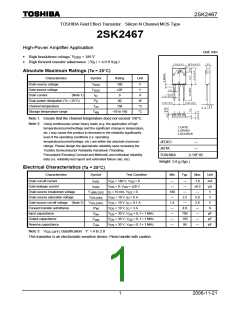

2SK2467
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type
2SK2467
High-Power Amplifier Application
Unit: mm
High breakdown voltage: V
= 180 V
DSS
High forward transfer admittance: |Y | = 4.0 S (typ.)
fs
Absolute Maximum Ratings (Ta = 25°C)
Characteristics
Drain-source voltage
Symbol
Rating
Unit
V
V
180
V
V
DSS
Gate-source voltage
Drain current
±20
GSS
(Note 1)
I
9
80
A
D
Drain power dissipation (Tc = 25°C)
Channel temperature
P
W
°C
°C
D
ch
stg
T
150
Storage temperature range
T
55 to 150
Note 1: Ensure that the channel temperature does not exceed 150°C.
Note 2: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature,
etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum
ratings. Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
JEDEC
JEITA
Precautions”/Derating Concept and Methods) and individual reliability
data (i.e. reliability test report and estimated failure rate, etc).
TOSHIBA
2-16F1B
Weight: 5.8 g (typ.)
Electrical Characteristics (Ta = 25°C)
Characteristics
Drain cut-off current
Symbol
Test Condition
Min
Typ.
Max
Unit
I
V
V
= 180 V, V
= 0
1.0
±0.5
mA
μA
V
DSS
DS
DS
GS
Gate leakage current
I
= 0, V
GS
= ±20 V
GSS
Drain-source breakdown voltage
Drain-source saturation voltage
Gate-source cut-off voltage (Note 3)
Forward transfer admittance
Input capacitance
V
V
I
= 10 mA, V
= 0
180
(BR) DSS
D
GS
V
V
V
V
V
V
V
= 10 V, I = 6 A
2.5
5.0
2.8
V
DS (ON)
GS
DS
DS
DS
DS
DS
D
= 10 V, I = 0.1 A
1.4
V
GS (OFF)
D
|Y |
fs
= 10 V, I = 3 A
4.0
700
150
90
S
D
C
= 30 V, V
= 30 V, V
= 30 V, V
= 0, f = 1 MHz
= 0, f = 1 MHz
= 0, f = 1 MHz
pF
pF
pF
iss
GS
GS
GS
Output capacitance
C
oss
Reverse capacitance
C
rss
Note 3:
V
classification Y: 1.4 to 2.8
GS (OFF)
This transistor is an electrostatic-sensitive device. Plese handle with caution.
1
2006-11-21
2SK2467
Marking
K2467
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
2
2006-11-21
2SK2467
RESTRICTIONS ON PRODUCT USE
20070701-EN
The information contained herein is subject to change without notice.
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc.
The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.).These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in his
document shall be made at the customer’s own risk.
The products described in this document shall not be used or embedded to any downstream products of which
manufacture, use and/or sale are prohibited under any applicable laws and regulations.
The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which
may result from its use. No license is granted by implication or otherwise under any patents or other rights of
TOSHIBA or the third parties.
Please contact your sales representative for product-by-product details in this document regarding RoHS
compatibility. Please use these products in this document in compliance with all applicable laws and regulations
that regulate the inclusion or use of controlled substances. Toshiba assumes no liability for damage or losses
occurring as a result of noncompliance with applicable laws and regulations.
3
2006-11-21
