QT300-D

型号：

QT300-D

描述：

电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ]

品牌：

QUANTUM[ QUANTUM RESEARCH GROUP ]

页数：

14 页

PDF大小：

381 K

下载PDF手册

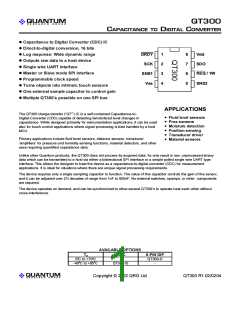

LQ
QT300
CAPACITANCE TO
DIGITAL
CONVERTER
ꢀ Capacitance to Digital Converter (CDC) IC
ꢀ Direct-to-digital conversion, 16 bits
ꢀ Log response: Wide dynamic range
ꢀ Outputs raw data to a host device
ꢀ Single wire UART interface
DRDY
SCK
1
2
3
4
8
7
6
5
Vdd
SDO
ꢀ Master or Slave mode SPI interface
ꢀ Programmable clock speed
REQ / 1W
SNS2
SNS1
Vss
ꢀ Turns objects into intrinsic touch sensors
ꢀ One external sample capacitor to control gain
ꢀ Multiple QT300’s possible on one SPI bus
APPLICATIONS
The QT300 charge-transfer (“QT’”) IC is a self-contained Capacitance-to-
Digital-Converter (CDC) capable of detecting femotofarad level changes in
capacitance. While designed primarily for instrumentation applications, it can be used
also for touch control applications where signal processing is best handled by a host
MCU.
ꢀ Fluid level sensors
ꢀ Prox sensors
ꢀ Moisture detection
ꢀ Position sensing
ꢀ Transducer driver
ꢀ Material sensors
Primary applications include fluid level sensors, distance sensors, transducer
‘amplifiers’ for pressure and humidity sensing functions, material detectors, and other
uses requiring quantified capacitance data.
Unlike other Quantum products, the QT300 does not process its acquired data. Its only result is raw, unprocessed binary
data which can be transmitted to a host via either a bidirectional SPI interface or a simple polled single wire UART type
interface. This allows the designer to treat the device as a capacitance-to-digital-converter (CDC) for measurement
applications. It is ideal for situations where there are unique signal processing requirements.
The device requires only a single sampling capacitor to function. The value of this capacitor controls the gain of the sensor,
and it can be adjusted over 2½ decades of range from 1nF to 500nF. No external switches, opamps, or other components
are required.
The device operates on demand, and can be synchronized to allow several QT300’s to operate near each other without
cross-interference.
AVAILABLE OPTIONS
TA
00C to +700C
-400C to +850C
SOIC
-
QT300-IS
8-PIN DIP
QT300-D
-
LQ
Copyright © 2002 QRG Ltd
QT300 R1.02/0204
Table 1-1 SPI Mode Pin Description
Vdd
100nF
Pin
Name
/DRDY
SCK
Function
HOST
MICRO
QT300
1
8
1
2
3
4
5
6
7
8
Data Ready
Serial data clock
Sense 1 line
Vdd
DRDY
DRDY
SNS1
VSS
3
5
SNS1
Negative supply (ground)
Sense 2 line
Request input
2
6
SCK
REQ
SCK
SNS2
/REQ
SDO
Rs
REQ
Cs
SNS2
Serial data out
7
SDI
SDO
ELECTRODE
Cx
VDD
Positive supply
Vss
4
Table 1-2 1W UART Mode Pin Description
Pin
Name
-
Function
Figure 1-1 Basic QT300 Circuit in SPI mode.
1
2
3
4
5
6
7
8
Connect to Vdd or Vss
Connect to Vdd or Vss
Sense 1 line
-
Vdd
SNS1
VSS
SNS2
1W
-
100nF
HOST
Negative supply (ground)
Sense 2 line
MICRO
QT300
1
8
Vdd
1W UART Line
Connect to Vdd or Vss
Positive supply
DRDY
3
5
SNS1
2
6
VDD
SCK
Rs
1W UART
1W
Cs
SNS2
7
SDO
ELECTRODE
Cx
Table 1-3 Alternate Cloning Pin Functions
Vss
Pin
Name
Function
4
2
6
7
SCK
SDI
Serial clone data clock
Serial clone data in
Serial clone data out
Figure 1-2 Basic QT300 Circuit in UART mode.
SDO
The type of serial port and its mode can be selected via the
cloning process using a QTM300CA programming adapter.
The QT300 operates only on request from a host device.
After initiation via a trigger signal, the QT300 generates an
acquisition burst and sends the resulting raw signal data
back via one of the serial modes.
1 - OVERVIEW
The QT300 is a digital burst mode charge-transfer (QT)
capacitance-to-digital converter (CDC) designed for
applications requiring raw signal information such as fluid
level sensing and distance gauging; it outputs raw digital
signal data over a serial interface. The output data is in a
16-bit format; signal levels depend on load (Cx) and the
sampling capacitor value (Cs).
1.2 Burst Length
The burst length (and hence the signal level and sensitivity)
is described by the following formula:
k$CS
Sensitivity is a function of electrode size, shape, orientation,
the composition and aspect of the object being sensed, the
thickness and composition of any dielectric overlaying the
electrode, and the degree of mutual coupling between the
electrode and the object being sensed, in addition to the
electrical parameters Cs and Cx as described in Section 1.2
below.
BL =
CX
where Cs is the reference capacitor, Cx is the unknown load
capacitance (including internal pin and wiring capacitance)
and ‘k’ is a constant, typically 0.51, which varies very slightly
from device to device.
The device has an internal Cx, Csns, which adds to the Cx in
the formula. This capacitance is about 11pF.
1.1 Basic Operation
The QT300 does no internal signal processing; data is simply
returned via one of two serial port types.
Each doubling of Cs increases the signal level and
differential sensitivity by a factor of two. Likewise, doubling
Cx reduces the signal level and differential sensitivity by a
factor of two (Figures 7-4, 7-5, 7-7, 7-7, page 11).
There are two basic types of serial interface: 4-wire SPI and
a simple single wire (‘1W’) UART. The SPI interface allows
multiple devices to be connected on one SPI bus, while
the1W UART requires that the controller have one dedicated
pin for each QT300. There are two types of SPI mode,
master and slave.
The response can be linearized over a particular Cx range to
a great extent by making the delta-Cx of interest a small part
of the background level of Cx. If the delta Cx is 10pF on top
of 20pF, the response will be linear to 10% of full scale. But if
the desired delta-Cx range is 10pF on top of 100pF, the
LQ
2
QT300 R1.02/0204
Signal Level
% Error
or 1W pin. The QT300 only acquires when requested. While
waiting for a new request the part stays in a low power mode.
Figure 1-3 Linearity vs Cx, Over Cx= 100pF...110pF
3%
2%
2%
1%
1%
0%
300
250
200
150
100
50
3 - SPI Port
3.1 SPI Specifications
The QT300 can operate in master or slave mode, and thus is
compatible with virtually all SPI-capable microcontrollers. The
SPI interface has the following specifications:
Max clock rate, Fckm 40KHz (master mode)
Max clock rate, Fcks 40KHz (slave mode)
Data length
Inter-byte delay
0
2 bytes (16 bits total)
≥8µs (master mode)*
≥12µs (slave mode)
100
101
102
103
104
105
106
107
108
109
110
Cx, pF
Clock idle logic level
Clock edge
Data sequence
Low or High*
Data out on rising or falling edge*
High byte first, MSB first
linearity decreases to under 3% (Figure 1-3). The largest
error occurs near the middle of the desired Cx span.
*Determined by Setups
The linearity error can be corrected using polynomials or a
piece-wise linear correction method in a microcontroller.
The host can clock the SPI at any rate up to and including
the maximum. The maximum clock rate of the part in Master
mode is determined in Setups via cloning.
2 - Timing
Figure 2-1 shows the basic QT300 acquisition timing
parameters. The basic timing parameters are:
3.2 Protocol Overview
The QT300 only transmits data on request, after an
acquisition burst. The host requests an acquire by setting the
/REQ line low for at least 30µs; the device then acquires.
When finished, the DRDY line is pulled low by the QT300 to
indicate it is ready to send data. (Figure 2-1). The transfer is
done as two bytes, with the highest byte transferred first.
Tbd
Tacq Acquire response time (2.2)
Tbs Burst Spacing (2.3)
Burst duration
(2.1)
2.1 Tbd - Burst duration
The burst duration depends on the values of Cs and Cx and
to a lesser extent, Vdd. The burst is composed of
charge-transfer cycles operating at about 240kHz.
In master mode, /DRDY goes high between bytes for the
period determined by Setup parameter MLS; this is a multiple
of 6µs.
The length of this burst is an important parameter as it is
directly related to the signal value. The burst duration also
affects the response time of the sensor; the
larger Cs is, the longer the burst, the slower the
possible acquisition rate.
2.2 Tacq - Acquire Response Time
The time from the /REQ or 1W line going low
until the completion of data transmission is
Tacq. Tacq depends on the acquisition burst
length as well as the serial transmission time.
SPI Mode: In SPI mode Tacq depends in part on
the serial clock speed and the space between
the returned high and low bytes. In SPI slave
mode the clock speed and the inter-byte spacing
time Tbdly is determine by the host. In SPI
Master mode these timings are set by Setup
parameters SCD and MLS.
1W mode: Tacq depends in part on the Baud
rate as well as the inter-byte spacing. The Baud
rate is auto-set by the trigger pulse width; the
inter-byte spacing is set by the MLS parameter.
See Section 4.
2.3 Tbs - Burst Spacing
Burst spacing is the time from the start of one
acquisition burst to the start of the next burst. It
depends on the host’s trigger rate on the /REQ
Figure 2-1 Signal Acquisition - Slave SPI Mode
LQ
3
QT300 R1.02/0204
Figure 3-1 Multiple QT300's on the same SPI port
/REQ should return high before the end of the burst. If
/REQ is still low at the end of the burst the part will go into
Setup mode. The minimum duration of /REQ is 30µs.
Vdd
Vdd
100nF
SDO - Serial Data Output; Output-only. This is the data
output to the host during an SPI transfer. When not in use,
this pin floats. This pin should be connected to the SDI
input pin of the host device.
HOST MICRO
DRDY
QT300
1
8
Vdd
DRDY
3
5
SNS1
2
6
SCK
REQ
SCK
SCK - SPI clock; Idle high or idle low; input-only SPI clock
from the host. The idle state is determined in Setups by
the serial mode (SM) parameter.
Rs
REQ
Cs
SNS2
7
SDI
SDO
ELECTRODE
Cx
Vss
If SM is set for idle-low SCK: Data is shifted out of the
QT300 on the rising edge of SCK and should be shifted
into the host on the falling edge of SCK.
4
Vdd
Vdd
100nF
QT300
1
8
Vdd
If SM is set for idle-high SCK: Data is shifted out of the
QT300 on the falling edge of SCK and should be shifted
into the host on the rising edge of SCK.
DRDY
3
5
SNS1
2
6
SCK
Rs
Cs
REQ
The maximum clock speed is 40kHz, and the timings
should obey the parameters Tskh and Tskl in Table 7-1.
SNS2
7
SDO
ELECTRODE
Cx
/DRDY - Data Ready; active low output only. This indicates to
the host that the device is ready to send data back to the
host. During idle times this pin floats and therefore must
be connected to a pullup resistor. The host must wait until
/DRDY goes low before starting an SPI transfer.
Vss
4
Vdd
100nF
QT300
1
8
Vdd
DRDY
Between the high and low byte clockings, the host should
observe a delay of ≥12µs.
3
5
SNS1
2
6
SCK
Rs
Cs
REQ
A typical SPI slave mode communication sequence is:
SNS2
7
SDO
ELECTRODE
Cx
1) Host pulses /REQ low for ≥30µs to initiate an acquire.
2) QT300 acquires a signal in response to /REQ.
3) QT300 pulls /DRDY low when ready to send data back.
4) Host detects /DRDY is low.
Vss
4
When not communicating, all SPI lines float to allow multiple
chips to connect over the same SPI lines. A pullup or
pulldown resistor is required on SCK depending on the
selected clock phase, determined by Setups. A pullup
resistor is required on /DRDY. /REQ may require a pullup if
the host ever allows this line to float.
5) Host clocks out the high byte of data from the QT300.
6) Host waits for ≥12µs.
7) Host clocks out the low byte of data from the QT300.
8) QT300 releases /DRDY to float high.
3.5 SPI Master Mode
Refer to Figure 7-2 and Table 7-2, page 7.
3.3 SPI Bus Sharing
All SPI float transfers making it possible to have several
QT300 devices (or other unrelated devices) share the SPI
control signals (Figure 3-1).
In master SPI mode the QT300 generates the clock signal
after an acquire initiated from the host via the /REQ line. The
clock speed and the spacing between the two bytes is set via
the Setup process (Section 6).
Each part needs an individual /REQ line, but /DRDY, SCK
and SDO can be connected together.
SCD setup parameter determines the master-mode clock
rate. The default value is 55 (resulting in a 2.55KHz rate).
The relationship is:
3.4 SPI Slave Mode
Refer to Figure 7-1 and Table 7-1, page 7.
Fscd = 1200/(30+ (SCD x 8)) in Khz
Where SCD = 0..255
In SPI Slave mode, /DRDY is used to let the host know when
data is ready for collection in response to a request so that
the host can clock over the data.
MLS setup parameter determines the spacing between the
two return bytes; this can be important to allow a slow host
device to recover from receiving the first byte to prevent an
SPI Slave mode uses 4 signals:
/REQ - Request Acquisition Input; Active low input-only.
When /REQ is pulled low, the QT300 wakes and starts an
acquire. The IC will transmit the resulting data only when
the acquire has finished.
LQ
4
QT300 R1.02/0204
If SM is set for idle-low SCK: Data is shifted out
of the QT300 on the rising edge of SCK and should
be shifted into the host on the falling edge of SCK.
If SM is set for idle-high SCK: Data is shifted out
of the QT300 on the falling edge of SCK and
should be shifted into the host on the rising edge of
SCK.
The maximum clock speed is 40kHz, and the
timings should obey the parameters Tskh and Tskl
in Table 7-2.
/DRDY - Data Ready (Optional); active low output
only. This indicates to the host that the device is
ready to send data back to the host. During idle
times this pin floats and therefore must be
connected to a pullup resistor.
The DRDY line can be used as a Slave Select line
(SS). The host does not need this line to operate in
many cases. DRDY can be used to 'frame' byte
transmissions.
Between bytes /DRDY will go high for a period
determined by the MLS setup parameter; the
minimum period is 8.3µs.
A typical Master mode SPI sequence is:
1) Host pulses /REQ low for ≥30µs.
2) QT300 acquires a signal in response to /REQ.
3) QT300 pulls /DRDY low when ready to send data.
4) Host detects /DRDY low and prepares to receive
data.
5) QT300 clocks out first byte of data (MSB).
6) QT300 sets /DRDY high for a duration determined
by Setup parameter MLS.
7) QT300 pulls /DRDY low.
8) QT300 clocks out the low byte (LSB).
9) QT300 releases /DRDY to float high.
Figure 4-1 UART and Trigger Pulse Signal.
overrun. The default value is 148 (resulting in a 500µs gap).
The relationship is:
4 Serial 1W UART Interface
The single wire ('1W') UART interface allows all
communications to take place over a single bidirectional line
with a 10K pullup resistor. The host device triggers the
QT300 to acquire by means of a pulse sent to the QT300
over the wire. The Baud rate is established by the width of
this pulse; the pulse width establishes the bit rate of the
UART transmission to follow. The QT300 then acquires, and
responds by sending two bytes of data back over the 1W line
with a delay between the bytes as determined by parameter
MLS.
Tmls (in µs) = (10 + MLS x 4) / 1.2
Where MLS = 0..255 (from user setup MLS)
Master SPI mode requires at least 3 signals to operate:
/REQ - Request Acquisition Input; Active low input-only.
When /REQ is pulled low, the QT300 wakes and starts an
acquire. The IC will transmit the resulting data only when
the acquire has finished.
/REQ must return high before the end of the burst. If
/REQ is still low at the end of the burst the part goes into
Setup mode. The minimum duration of /REQ is 30µs.
1W operation permits a device to be controlled from a single
pin on a host controller, using either a hardware or software
UART. Several QT300’s can coexist on a single host pin,
provided there is some logic steering.
SDO - Serial Data Output; Idle low output-only. This is the
data output to the host during an SPI transfer. When not in
use, this pin floats. This pin should be connected to the
SDI input pin of the host device.
This mode is set via the cloning process using parameter SM
(see Section 6).
SCK - SPI clock; Idle high or idle low, output-only. The idle
state is determined in Setups by the serial mode (SM)
parameter.
LQ
5
QT300 R1.02/0204
Vdd; Vdd fluctuations often happen when additional loads
are switched on or off such as LEDs etc.
4.1 1W UART Specifications
The QT300 operates in 1W UART mode with the following
specifications:
If the power supply is shared with another electronic system,
care should be taken to assure that the supply is free of
spikes, sags, and surges. It is best practice to use a
regulator just for the QT300 (or one for a set of QT300's).
Baud rate range
Data length
Stop bit
Parity
Idle state
4,800 to 9,600 bits/sec
2 bytes (16 bits total)
1 (each byte)
None
5.2.2 SUPPLY
R
EQUIREMENTS
High
Vdd can range from 2 to 5 volts nominal. Current drain will
vary depending on Vdd. During writing of the internal
EEPROM, Vdd must be at least 2.2 volts.
The 1W line must have a pullup resistor on it (i.e. 10K), or
1W communications will not function.
If desired, the supply can be regulated using a conventional
regulator, for example CMOS LDO regulators, or standard
78Lxx-series 3-terminal devices.
4.2 UART 1W Protocol
The QT300 acquires and transmits only on request. The
sequence is:
For proper operation a 100nF (0.1uF) ceramic bypass
capacitor must be used between Vdd and Vss; the bypass
cap should be placed very close to the Vdd and Vss pins.
1) Host generates pulse on 1W pin; pulse width must
match Baud rate (bit width) of desired return rate. This
actually sets the Baud rate, so it can vary from one
acquire to another. See Section 4.3 and Figure 4-1.
5.3 PCB LAYOUT
2) The 1W pulse width is measured by the QT300 to
determine the Baud rate.
5.3.1 GROUND
P
LANES
The use of ground planes around the device is encouraged
for noise reasons, but ground or power should not be
coupled too close to the sense pins in order to reduce Cx
load. Likewise, the traces leading from the sense pins to the
electrode should not be placed directly over a ground plane;
rather, the ground plane should be relieved by at least 3
times the width of the sense traces directly under it, with
periodic thin bridges over the gap to provide ground
continuity.
3) The host floats 1W high.
4) The QT300 acquires the signal to completion.
5) QT300 returns data in the following UART format:
start bit (low)
8 bits, high byte
stop bit (high)
delay (determined by MLS setup)
start bit (low)
8 bits, low byte
stop bit (high)
5.3.2 NOISE
S
YNCHRONIZATION
External fields can cause interference leading to a noisy and
unstable signal. The most common external fields usually are
from AC mains power.
6) The QT300 floats the 1W line and enters idle mode.
4.3 Trigger pulse description
The /REQ line of the QT300 can be used to synchronize the
acquisition to a repetitive external source of interference
such as the power line frequency in order to dramatically
reduce signal noise.
The part wakes from low power mode when the first negative
edge is detected on the 1W pin (Figure 4-1, bottom). The
negative pulse must be at least 30µs wide.
The host then generates the positive pulse that actually sets
the Baud rate. The QT300 measure this pulse and uses its
length to set the Baud bit (shift out) rate. 30µs (or more) of
logic-low must follow this pulse.
If line frequency is present near the sensors, this feature
should be used.
The host must then float the 1W line to allow the QT300 to
start the signal acquisition.
Figure 6-1 Clone interface wiring
CLONING SIGNAL
5 Circuit Guidelines
Vdd
Vdd
5.1 Sample capacitors
100nF
QT300
1
8
Cs capacitors can be virtually any plastic film or low to
medium-K ceramic capacitor. The normal usable Cs range is
from 1nF ~ 500nF depending on the sensitivity required;
larger values of Cs require higher stability to ensure low drift.
Acceptable capacitor types include NP0 or C0G ceramic,
PPS film, and Y5E and X7R ceramics in that order.
Vdd
DRDY
DRDY
3
5
SNS1
2
6
SCK
REQ
SCK
Rs
REQ
Cs
SNS2
7
5.2 Power Supply
SDI
SDO
ELECTRODE
Cx
Vss
5.2.1 STABILITY
4
The QT300 makes use of the power supply as a reference
voltage. The acquired signal will shift slightly with changes in
LQ
6
QT300 R1.02/0204
The connections required for cloning are shown in Figure
6-1. Further information on the cloning process can be found
in the QTM300CA instruction guide. The parameters which
can be altered are shown in Table 7-4.
6 Parameter Setups Cloning
A special interface is provided to allow user-defined Setups
to be loaded into internal eeprom or read back out for
development and production purposes.
The internal eeprom has a life expectancy of 100,000
erase/write cycles and the minimum voltage for a write cycle
is 2.2 Volts.
The QTM300CA cloning board in conjunction with QT3View
software simplifies the Setups cloning process greatly. The
E3A eval board has been designed with a connector to
facilitate direct connection with the QTM300CA. The
QTM300CA in turn connects to any PC with a serial port
which can run QT3View software (included with the
QTM300CA and available free on Quantum’s web site).
A serial interface specification for the device can be obtained
by contacting Quantum.
LQ
7
QT300 R1.02/0204
7 Electrical specifications
7.1 ABSOLUTE MAXIMUM SPECIFICATIONS
Operating temp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . as designated by suffix
Storage temp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65OC to +125OC
VDD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 to +6V
Max continuous pin current, any control or drive pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Short circuit duration to ground, any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . infinite
Short circuit duration to VDD, any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . infinite
Voltage forced onto any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1V to (Vdd + 0.5) Volts
7.2 RECOMMENDED OPERATING CONDITIONS
V
DD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +2 to 5V
DD min required to reprogram eeprom Setups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +2.2V
V
Short-term supply ripple+noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mV
Long-term supply stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mV
Cs value. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 500nF
Cx value. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 100pF
7.3 AC SPECIFICATIONS
Vdd = 3.0, Ta = recommended operating range, Cs=100nF unless noted
Parameter
Description
Min
Typ
Max
Units
Notes
T
PC
Charge/transfer duration
Burst length
830
ns
T
BL
0.5
30
25
ms
Cs = 4.7nF to 200nF; Cx = 0
TRQP
Request pulse
Burst constant
µs
K
0.51
7.4 DC specifications
Vdd = 3.0V, Cs = 10nF, Cx = 5pF, Ta = recommended range, unless otherwise noted
Parameter
Description
Supply voltage
Min
2
Typ
Max
5.5
Units
Notes
V
DD
DD
IL
IH
OL
OH
V
µA
V
I
Supply current
60
1,500
0.3 Vdd
Dependent on duty cycle
Vdd = 2.5 to 5.0V
V
Input low voltage
Input high voltage
Low output voltage
High output voltage
Acquisition resolution
Resolution per bit
V
0.6 Vdd
Vdd-0.6
1,000
V
Vdd = 2.5 to 5.0V
V
0.4
V
V
V
A
R
16
7
bits
fF
S
Figs 7-4, 7-5
CSNS
Internal pin capacitance
11
pF
Combined for both SNS pins
LQ
8
QT300 R1.02/0204
Figure 7-1 SPI Slave Mode
Tskd
Tskh
Tskl
DRDY
{from QT300}
SCK
{from host}
D15 D14 D13 D12 D11 D10 D9 D8
D7 D6 D5 D4 D3 D2 D1 D0
SDO
{from QT300}
Thso
Tds
Tmls
Tsosh
Figure 7-2 SPI Master Mode
Tmls
Tskd
Tskh
Tskl
DRDY
{from QT300}
SCK
{from QT300}
D15 D14 D13 D12 D11 D10 D9 D8
D7 D6 D5 D4 D3 D2 D1 D0
SDO
{from QT300}
Thso
Tds
Tsosh
Table 7-1 Slave SPI Timing
Table 7-2 Master SPI Timing
Symbol
TSKD
Parameter
min
25
max Units Symbol
Parameter
min
25
max Units
Clock Duration
SCK High Duration
SCK Low Duration
-
-
-
TSKD
TSKH
TSKL
Clock Duration
1,725
862.5
862.5
µs
µs
µs
µs
µs
µs
TSKH
13
SCK High Duration
SCK Low Duration
12.5
12.5
TSKL
12
SCK High To SDO Ready
Setup Time
SCK High To SDO Ready
Setup Time
TSOSH
-
10
TSOSH
4
7
µs
µs
THSO
TMLS
SDO Hold Time
7
-
THSO
TMLS
SDO Hold Time
12.5
8.3
-
-
µs
µs
MSB-LSB Spacing
12
1,000
MSB-LSB Spacing
1,708
µs
DRDY Low To SCK High
Delay
DRDY Low To SCK High
Delay
TDS
12
1,000
TDS
12.5
-
-
µs
LQ
9
QT300 R1.02/0204
Figure 7-3 1W UART Mode
1W UART
Tmls
Tacq
8bits MSB
8bits LSB
Twu
Tbr
Tsb
Tstop
Tstar t
Table 7-3 1W UART Timing
Symbol
Parameter
Wake level
min
30
max
5,000
210
Notes
Units
µs
Twu
Tbr
-
-
-
-
-
Baud set pulse
Baud end level
Baud rate range
104
30
µs
Tsb
5,000
9,600
2
µs
4,800
Baud rate match accuracy
Acquisition time
%
ms
Tacq
-
400
Depends on Cs and Cx
-
Tstart
Start pulse
Stop pulse
Tbr
Tbr
Tstop
-
-
Tmls
MSB
MSB-LSB spacing
-
8
850
µs
µs
8 x Tbr
8 x Tbr
8 bits data, LSB first
LSB
Description
Mode
-
µs
Table 7-4 Setups summary chart
Symbol
Valid Values
Default
Calculation / Notes
Unit
0
1
1W UART
Master Clock
Idle Low
3
Master Clock
Idle High
2
3
4
SM
Slave Clock
Idle Low
-
-
Slave Clock
Idle Low
Slave Clock
Idle High
Clock Speed
SCD
MLS
0 - 255
0 - 255
55
Tscd = (30 + (SCD x 8))/1.2
Tmls = (10 + (MLS x 4))/1.2
µs
µs
MSB-LSB
Spacing
148
LQ
10
QT300 R1.02/0204
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
1000
900
800
700
600
500
400
300
200
100
0
22nF
10nF
4.7nF
200nF
120nF
80nF
40nF
0
10
20
30
40
50
0
10
20
30
40
50
Cx Load, pF
Cx Load, pF
Figure 7-4 Typical Burst Length versus Cx & Cs;
VDD = 5.0 Volts
Figure 7-5 Typical Burst Length versus Cx & Cs;
VDD= 5.0 Volts
150
500
Cs
125
100
75
50
25
0
43nF
Cs
400
9nF
74nF
19nF
124nF
200nF
43nF
300
74nF
124nF
200
100
0
200nF
0
11
21
34
48
0
11
21
Cx Load, pF
34
48
Cx Load, pF
Figure 7-7 Typical resolution vs Cx & Cs;
Vdd = 3.0 Volts
Figure 7-6 Typical resolution vs Cx & Cs;
Vdd = 3.0 Volts
LQ
11
QT300 R1.02/0204
5.00%
4.00%
3.00%
2.00%
1.00%
0.00%
-1.00%
-2.00%
-3.00%
-4.00%
-5.00%
-10 -5
0
5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Temperature, C
Figure 7-8 Typical Signal Deviation vs. Temperature
Vdd = 5.0 Volts, Cx = 10pF, Cs = 5~200nF PPS Film
6000
5000
4000
3000
2000
1000
0
200nF PPS
100nF PPS
4.7nF PPS
-10
0
10
20
30
40
50
60
70
80
Temperature, °C
Figure 7-9 Typical Signal Vs. Cs & Temp
Vdd = 5.0 Volts, Cx = 10pF, PPS film capacitors
LQ
12
QT300 R1.02/0204
M
A
F
S1
S
a
A
r
L2
Pin 1
x
m
L1
L
Q
Package type: 8-pin Dual-In-Line
Millimeters
Inches
SYMBOL
Min
Max
7.11
8.26
10.16
-
Notes
Min
0.24
0.3
Max
0.28
0.325
0.4
Notes
a
A
6.1
7.62
9.02
7.62
0.69
0.356
1.14
0.203
2.54
0.38
2.92
-
M
m
Q
L
0.355
0.3
Typical
-
Typical
0.94
0.559
1.78
0.305
-
0.027
0.014
0.045
0.008
0.1
0.037
0.022
0.07
0.012
-
L1
L2
F
BSC
BSC
r
-
0.015
0.115
-
-
S
3.81
5.33
10.9
0.15
0.21
0.43
S1
x
M
M
a
H
A
φ
e
h
Pin 1
E
F
L
Package type: 8-pin Wide SOIC
Millimeters
Inches
SYMBOL
Min
5.21
7.62
Max
5.41
8.38
Notes
Min
0.205
0.3
Max
0.213
0.33
Notes
a
A
M
F
L
5.16
1.27
5.38
0.203
0.05
0.212
BSC
BSC
0.305
0.102
1.78
0.508
0.33
2.03
0.012
0.004
0.07
0.02
0.013
0.08
h
H
e
0.178
0.508
o
0.254
0.889
o
0.007
0.02
o
0.01
0.035
o
E
φ
0
8
0
8
LQ
13
QT300 R1.02/0204
lQ
Copyright © 2002 QRG Ltd. All rights reserved.
Patented and patents pending
Corporate Headquarters
1 Mitchell Point
Ensign Way, Hamble SO31 4RF
Great Britain
Tel: +44 (0)23 8056 5600 Fax: +44 (0)23 8045 3939
admin@qprox.com
www.qprox.com
North America
651 Holiday Drive Bldg. 5 / 300
Pittsburgh, PA 15220 USA
Tel: 412-391-7367 Fax: 412-291-1015
The specifications set out in this document are subject to change without notice. All products sold and services supplied by QRG are subject
to our Terms and Conditions of sale and supply of services which are available online at www.qprox.com and are supplied with every order
acknowledgement. QProx, QTouch, QMatrix, QLevel, and QSlide are trademarks of QRG. QRG products are not suitable for medical
(including life-saving equipment), safety or mission critical applications or other similar purposes. Except as expressly set out in QRG's
Terms and Conditions, no licenses to patents or other intellectual property of QRG (express or implied) are granted by QRG in connection
with the sale of QRG products or provision of QRG services. QRG will not be liable for customer product design and customers are entirely
responsible for their products and applications which incorporate QRG's products.
厂商 型号 描述 页数 下载

QUANTUM

 		QT300 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 14 页

QUANTUM

 		QT300-IS 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 14 页

QUANTUM

 		QT300_03 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 12 页

QUANTUM

 		QT301 电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ] 11 页

QUANTUM

 		QT301-D 电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ] 11 页

QUANTUM

 		QT301-IS 电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ] 11 页

QUANTUM

 		QT310 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT310-D 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT310-IS 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT320 2通道PROGAMMABLE先进的传感器IC[ 2 CHANNEL PROGAMMABLE ADVANCED SENSOR IC ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.228805s
