2STX1360

型号：

2STX1360

描述：

低压快速开关NPN功率双极晶体管[ Low voltage fast-switching NPN power bipolar transistors ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

10 页

PDF大小：

282 K

下载PDF手册

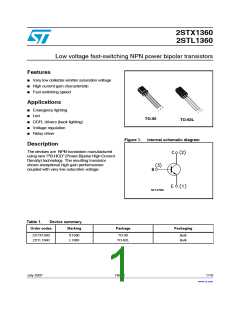

2STX1360
2STL1360
Low voltage fast-switching NPN power bipolar transistors
Features
■ Very low collector-emitter saturation voltage
■ High current gain characteristic
■ Fast-switching speed
Applications
■ Emergency lighting
■ Led
TO-92
TO-92L
■ CCFL drivers (back lighting)
■ Voltage regulation
■ Relay driver
Figure 1.
Internal schematic diagram
Description
The devices are NPN transistors manufactured
using new “PB-HCD” (Power Bipolar High Current
Density) technology. The resulting transistor
shows exceptional high gain performances
coupled with very low saturation voltage.
Table 1.
Order codes
2STX1360
2STL1360
Device summary
Marking
Package
Packaging
X1360
L1360
TO-92
Bulk
Bulk
TO-92L
July 2007
Rev 2
1/10
www.st.com
10
Electrical ratings
2STX1360 2STL1360
1
Electrical ratings
Table 2.
Symbol
Absolute maximum rating
Parameter
Value
Unit
2STX1360 2STL1360 Unit
V
Collector-base voltage (I = 0)
80
60
6
V
V
CBO
E
V
Collector-emitter voltage (I = 0)
CEO
B
V
Emitter-base voltage (I = 0)
V
EBO
C
I
Collector current
3
A
C
I
Collector peak current (t < 5ms)
5
A
CM
P
P
Total dissipation at T
Storage temperature
= 25°C
1
1.2
W
°C
°C
tot
amb
T
-65 to 150
150
stg
T
Max. operating junction temperature
J
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
Unit
TO-92
TO-92L
R
Thermal resistance junction-ambient
__max
125
104.2
°C/W
thj-amb
2/10
2STX1360 2STL1360
Electrical characteristics
2
Electrical characteristics
(T
= 25°C unless otherwise specified)
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test Conditions
Min. Typ. Max. Unit
Collector cut-off current
V
I
= 80V
CB
100
nA
CBO
(I =0)
E
Emitter cut-off current
I
V
V
= 6V
100
730
nA
EBO
EB
CE
(I =0)
C
V
= 2V
I = 100mA
Base-emitter voltage
630
670
mV
BE
C
(1)
I = 2A
I = 100mA
300
500
mV
mV
150
210
C
B
V
V
Collector-emitter
saturation voltage
CE(sat)
I = 3A
I = 150mA
C
B
Base-emitter saturation
voltage
(1)
I = 2A
I = 100mA
0.89
1.2
V
C
B
BE(sat)
I = 0.1A
V
V
= 2V
= 2V
80
C
CE
CE
(1)
DC current gain
h
FE
I = 1A
160
280
400
C
RESISTIVE LOAD
Delay time
t
V
I
= 10V
I = 3A
C
d
ns
ns
ns
ns
17
81
20
100
720
65
CC
t
Rise time
= -I = 300mA
B2
r
B1
t
f
Storage time
Fall time
620
54
s
(see figure 9)
t
f
I = 0.1A
V
= 10V
CE
Transition frequency
130
MHz
T
C
Note (1) Pulsed duration = 300 µs, duty cycle ≤1.5%
2.1
Electrical characteristics (curves)
Figure 2.
DC current gain
Figure 3.
DC current gain
3/10
Electrical characteristics
Figure 4.
2STX1360 2STL1360
Collector-emitter saturation Figure 5.
voltage
Base-emitter saturation
voltage
Figure 6.
Resistive load switching time Figure 7.
Resistive load switching time
Figure 8.
Reverse biased safe
operating area
4/10
2STX1360 2STL1360
Electrical characteristics
2.2
Test circuit
Figure 9.
Resistive load switching test circuit
1) Fast electronic switch
2) Non-inductive resistor
5/10
Package mechanical data
2STX1360 2STL1360
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
6/10
2STX1360 2STL1360
Package mechanical data
TO-92 BULK SHIPMENT MECHANICAL DATA
mm.
TYP
DIM.
MIN.
4.32
0.36
4.45
3.30
2.41
1.14
12.70
2.16
0.92
0.41
MAX.
4.95
0.51
4.95
3.94
2.67
1.40
15.49
2.41
1.52
0.56
A
b
D
E
e
e1
L
R
S1
W
V
5 O
0102782 C
7/10
Package mechanical data
2STX1360 2STL1360
TO-92L MECHANICAL DATA
mm.
TYP
DIM.
MIN.
7.80
0.35
4.70
MAX.
8.20
0.45
5.10
A
b
D
D1
E
4
3.70
2.44
4.10
2.64
e
e1
L
1.27
13.30
1.28
0.35
14.30
1.58
0.55
S1
W
7854933 A
8/10
2STX1360 2STL1360
Revision history
4
Revision history
Table 5.
Date
Revision history
Revision
Changes
20-Oct-2006
16-Jul-2007
1
2
Initial release
Figure 2, 3,4,5,6,7 and figure 8 added.
9/10
2STX1360 2STL1360
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZE REPRESENTATIVE OF ST, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS, WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS “AUTOMOTIVE
GRADE” MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2007 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
10/10
