2STR2160

型号：

2STR2160

描述：

低压快速开关PNP功率晶体管[ Low voltage fast-switching PNP power transistor ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

9 页

PDF大小：

123 K

下载PDF手册

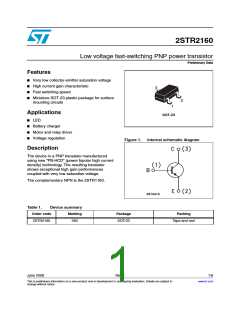

2STR2160
Low voltage fast-switching PNP power transistor
Preliminary Data
Features
■ Very low collector-emitter saturation voltage
■ High current gain characteristic
■ Fast switching speed
■ Miniature SOT-23 plastic package for surface
mounting circuits
Applications
SOT-23
■ LED
■ Battery charger
■ Motor and relay driver
■ Voltage regulation
Figure 1.
Internal schematic diagram
Description
The device in a PNP transistor manufactured
using new “PB-HCD” (power bipolar high current
density) technology. The resulting transistor
shows exceptional high gain performances
coupled with very low saturation voltage.
The complementary NPN is the 2STR1160.
Table 1.
Order code
2STR2160
Device summary
Marking
Package
SOT-23
Packing
260
Tape and reel
June 2008
Rev 1
1/9
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.
www.st.com
9
Content
2STR2160
Content
1
2
3
4
Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2/9
2STR2160
Electrical ratings
1
Electrical ratings
Table 2.
Symbol
Absolute maximum rating
Parameter
Collector-base voltage (IE = 0)
Value
Unit
VCBO
VCEO
VEBO
IC
-60
V
V
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
-60
-5
-1
V
A
ICM
Collector peak current (tP < 5ms)
Total dissipation at Tamb = 25°C
Storage temperature
-2
A
Ptot
0.5
W
°C
°C
Tstg
TJ
-65 to 150
150
Max. operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
(1)
Thermal resistance junction-amb max
250
°C/W
Rthj-amb
1. Device mounted on PCB area of 1 cm2
3/9
Electrical characteristics
2STR2160
2
Electrical characteristics
(T
= 25°C unless otherwise specified)
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
VCB = -60 V
Min. Typ. Max. Unit
Collector cut-off current
ICBO
-0.1
-0.1
µA
µA
(IE =0)
Emitter cut-off current
(IC =0)
VEB = -5 V
IEBO
Collector-base
breakdown voltage
IC = -100 µA
V(BR)CBO
-60
V
(IE = 0)
Collector-emitter
breakdown voltage
(1)
IC = -10 mA
V(BR)CEO
-60
-5
V
V
(IB = 0)
Emitter-base breakdown
voltage (IC = 0)
IE = -100 µA
V(BR)EBO
IC = -0.5 A
IC = -1 A
IB = -50 mA
260
480
mV
mV
Collector-emitter
saturation voltage
(1)
VCE(sat)
IB = -100 mA
Base-emitter saturation
voltage
(1)
IC = -1 A
IB = -100 mA
VBE(sat)
1.3
V
IC = -0.5 A
IC = -1 A
IC = -2 A
VCE = -2V
VCE = -2 V
VCE = -2 V
180
45
560
(1)
hFE
DC current gain
30
IC = -1.5 A
VCC = -10 V
Resistive load
Turn-on time
Turn-off time
ton
toff
220
500
ns
ns
IB1 = -IB2 = -150 mA
VBB(off)= 5 V
1. Pulsed duration = 300 µs, duty cycle ≤1.5%
4/9
2STR2160
Package mechanical data
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
5/9
Package mechanical data
2STR2160
SOT-23 mechanical data
mm.
typ
DIM.
min.
0.89
0
max.
1.4
A
A1
B
0.1
0.3
0.51
0.18
3.04
1.05
2.1
C
D
e
0.085
2.75
0.85
1.7
e1
E
1.2
1.6
H
L
2.1
2.75
0.6
S
0.35
0.65
0053390_G
6/9
2STR2160
Package mechanical data
Figure 2.
SOT-23 footprint
7/9
Revision history
2STR2160
4
Revision history
Table 5.
Date
18-Jun-2008
Document revision history
Revision
Changes
1
Initial release
8/9
2STR2160
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
9/9
