2STN1550

型号：

2STN1550

描述：

低压快速开关NPN功率双极晶体管[ Low voltage fast-switching NPN power bipolar transistors ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

8 页

PDF大小：

133 K

下载PDF手册
2STF1550
2STN1550

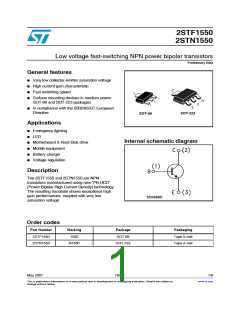

Low voltage fast-switching NPN power bipolar transistors
Preliminary Data
General features
■ Very low collector-emitter saturation voltage
■ High current gain characteristic
■ Fast switching speed
2
■ Surface mounting devices in medium power
3
SOT-89 and SOT-223 packages
2
1
■ In compliance with the 2002/93/EC European
Directive
SOT-223
SOT-89
Applications
■ Emergency lighting
■ LED
Internal schematic diagram
■ Motherboard & Hard Disk drive
■ Mobile equipment
■ Battery charger
■ Voltage regulation
Description
The 2STF1550 and 2STN1550 are NPN
transistors manufactured using new “PB-HCD”
(Power Bipolar High Current Density) technology.
The resulting transistor shows exceptional high
gain performances coupled with very low
saturation voltage.
Order codes
Part Number
Marking
Package
Packaging
2STF1550
2STN1550
1550
SOT-89
Tape & reel
Tape & reel
N1550
SOT-223
May 2007
Rev 1
1/8
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.
www.st.com
8
Electrical ratings
2STF1550 2STN1550
1
Electrical ratings
Table 1.
Symbol
Absolute maximum rating
Parameter
Value
2STF1550
Unit
2STN1550
SOT-223
SOT-89
V
Collector-emitter voltage (V = 0)
50
50
5
V
V
CES
CE
V
Collector-emitter voltage (I = 0)
CEO
B
V
Emitter-base voltage (I = 0)
V
EBO
C
I
Collector current
5
A
C
I
Collector peak current (t < 5ms)
10
1
A
CM
P
I
Base current
A
B
P
Total dissipation at T
Storage temperature
= 25°C
1.4
1.6
W
°C
°C
tot
amb
T
-65 to 150
150
stg
T
Max. operating junction temperature
J
Table 2.
Symbol
Thermal data
Parameter
SOT-89
89
SOT-223
Unit
(1)
Thermal resistance junction-amb
__max
78
°C/W
R
thj-amb
2
(1) Device mounted on PCB area of 1cm
2/8
2STF1550 2STN1550
Electrical characteristics
2
Electrical characteristics
(T
= 25°C unless otherwise specified)
case
Table 3.
Symbol
Electrical characteristics
Parameter
Test Conditions
Min. Typ. Max. Unit
Collector cut-off current
V
I
= 50V
CB
0.1
0.1
µA
µA
CBO
(I =0)
E
Emitter cut-off current
I
V
= 4V
EB
EBO
(I =0)
C
Collector-emitter
breakdown voltage
V
I = 100µA
50
V
(BR)CBO
C
(I = 0)
E
Collector-emitter
breakdown voltage
(2)
V
(BR)CEO
I = 10mA
50
5
V
V
C
(I = 0)
B
Emitter-base breakdown
V
I = 100µA
(BR)EBO
(2)
E
voltage (I = 0)
C
I = 3A
I = 60mA
V
V
0.3
V
C
B
Collector-emitter
saturation voltage
CE(sat)
I = 3A
I = 300mA
0.25
C
B
Base-emitter saturation
voltage
(2)
I = 3A
I = 300mA
1
V
V
C
B
BE(sat)
I = 0.5A
V
V
V
V
= 2V
= 2V
= 2V
= 2V
280
190
120
90
C
CE
CE
CE
CE
I = 2A
C
(2)
DC current gain
h
FE
I = 3A
C
I = 5A
C
I = 0
V
= 10V
Collector-base
capacitance
E
CB
C
tbd
pF
CBO
f = 1MHz
RESISTIVE LOAD
Turn-on time
I = 1.5A
V
CC
= 10V
C
t
t
tbd
tbd
ns
ns
on
off
I
= -I = 150mA
B2
B1
Turn-off time
Note (2) Pulsed duration = 300 µs, duty cycle ≤1.5%
3/8
Package mechanical data
2STF1550 2STN1550
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
4/8
2STF1550 2STN1550
Package mechanical data
SOT-89 MECHANICAL DATA
mm
mils
DIM.
MIN.
1.4
TYP.
MAX.
1.6
MIN.
55.1
17.3
14.2
13.8
13.8
173.2
63.8
90.2
55.9
115.0
155.1
35.0
TYP.
MAX.
63.0
A
B
0.44
0.36
0.35
0.35
4.4
0.56
0.48
0.44
0.44
4.6
22.0
B1
C
18.9
17.3
C1
D
17.3
181.1
72.0
D1
E
1.62
2.29
1.42
2.92
3.94
0.89
1.83
2.6
102.4
61.8
e
1.57
3.07
4.25
1.2
e1
H
120.9
167.3
47.2
L
P025H
5/8
Package mechanical data
2STF1550 2STN1550
SOT-223 MECHANICAL DATA
mm
inch
DIM.
MIN.
TYP.
MAX.
1.80
0.80
3.10
0.32
6.70
MIN.
TYP.
MAX.
0.071
0.031
0.122
0.013
0.264
A
B
0.60
2.90
0.24
6.30
0.70
3.00
0.26
6.50
2.30
4.60
3.50
7.00
0.024
0.114
0.009
0.248
0.027
0.118
0.010
0.256
0.090
0.181
0.138
0.276
B1
c
D
e
e1
E
3.30
6.70
3.70
7.30
10o
0.130
0.264
0.146
0.287
10o
H
V
A1
0.02
P008B
6/8
2STF1550 2STN1550
Revision history
4
Revision history
Table 4.
Date
08-May-2007
Revision history
Revision
Changes
1
Initial release
7/8
2STF1550 2STN1550
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZE REPRESENTATIVE OF ST, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS, WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS “AUTOMOTIVE
GRADE” MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2007 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
8/8
