2SK615

型号:

2SK615

描述:

硅N沟道MOS FET[ SILICON N-CHANNEL MOS FET ]

品牌:

PANASONIC[ PANASONIC ]

页数:

4 页

PDF大小:

88 K

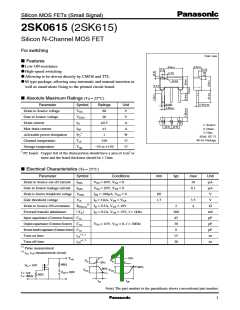

Silicon MOS FETs (Small Signal)
2SK0615 (2SK615)
Silicon N-Channel MOS FET
For switching
Unit: mm
I Features
G Low ON-resistance
G High-speed switching
2.5 0.1
6.9 0.1
(1.5)
(1.0)
(1.5)
G Allowing to be driven directly by CMOS and TTL
G M type package, allowing easy automatic and manual insertion as
well as stand-alone fixing to the printed circuit board.
R 0.9
R 0.7
I Absolute Maximum Ratings (Ta = 25°C)
(0.85)
0.55 0.1
0.45 0.05
Parameter
Drain to Source voltage
Gate to Source voltage
Drain current
Symbol
VDS
Ratings
Unit
V
80
VGSO
ID
20
V
±0.5
A
1
2
3
1: Source
2: Drain
3: Gate
(2.5) (2.5)
Max drain current
IDP
±1
A
*
Allowable power dissipation
Channel temperature
Storage temperature
PD
1
W
°C
°C
EIAJ: SC-71
M-A1 Package
Tch
150
Tstg
55 to +150
* PC board: Copper foil of the drain portion should have a area of 1cm2 or
more and the board thickness should be 1.7mm.
I Electrical Characteristics (Ta = 25°C)
Parameter
Symbol
IDSS
Conditions
VDS = 60V, VGS = 0
min
typ
max
10
Unit
µA
µA
V
Drain to Source cut-off current
Gate to Source leakage current
IGSS
VGS = 20V, VDS = 0
IDS = 100µA, VGS = 0
ID = 1mA, VDS = VGS
ID = 0.5A, VGS = 10V
0.1
Drain to Source breakdown voltage VDSS
80
Gate threshold voltage
Vth
1.5
3.5
4
V
1
*
Drain to Source ON-resistance
Forward transfer admittance
RDS(on)
| Yfs |
2
300
45
30
8
ID = 0.2A, VDS = 15V, f = 1kHz
mS
pF
pF
pF
ns
Input capacitance (Common Source) Ciss
Output capacitance (Common Source) Coss
Reverse transfer capacitance (Common Source) Crss
VDS = 10V, VGS = 0, f = 1MHz
1, 2
*
Turn-on time
Turn-off time
ton
15
20
1, 2
*
toff
ns
1 Pulse measurement
2 ton, toff measurement circuit
*
*
10%
Vout
Vin
Vin
10%
68
Vin = 10V
90%
90%
Vout
Vout
VDD = 30V
t = 1µS
f = 1MHZ
50Ω
ton
toff
Note) The part number in the parenthesis shows conventional part number.
1
Silicon MOS FETs (Small Signal)
2SK0615
PD Ta
ID VDS
ID VGS
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
1.2
1.0
0.8
0.6
0.4
0.2
0
1.2
1.0
0.8
0.6
0.4
0.2
0
Ta=25˚C
Copper foil of the drain portion
should have a area of 1cm2
or more and the board
VDS=10V
Ta=25˚C
VGS=5.5V
thickness should be 1.7mm.
5V
4.5V
4V
3.5V
3V
0
20 40 60 80 100 120 140 160
0
2
4
6
8
10
0
2
4
6
8
10
(
)
( )
V
( )
Gate to source voltage VGS V
Ambient temperature Ta ˚C
Drain to source voltage VDS
| Yfs | VGS
Ciss, Coss, Crss VDS
RDS(on) VGS
600
500
400
300
200
100
0
120
100
80
60
40
20
0
6
5
4
3
2
1
0
VDS=15V
f=1kHz
Ta=25˚C
VGS=0
f=1MHz
Ta=25˚C
ID=500mA
Ta=75˚C
25˚C
Ciss
25˚C
Coss
Crss
0
1
2
3
4
5
6
1
3
10
30
100 300 1000
0
4
8
12
16
20
( )
V
( )
V
( )
Gate to source voltage VGS V
Gate to source voltage VGS
Drain to source voltage VDS
RDS(on) Ta
6
5
4
3
2
1
0
ID=500mA
VGS=5V
10V
50
25
0
25
50
75
(
)
Ambient temperature Ta ˚C
2
Request for your special attention and precautions in using the technical information
and semiconductors described in this material
(1) An export permit needs to be obtained from the competent authorities of the Japanese Government
if any of the products or technologies described in this material and controlled under the "Foreign
Exchange and Foreign Trade Law" is to be exported or taken out of Japan.
(2) The technical information described in this material is limited to showing representative characteris-
tics and applied circuits examples of the products. It neither warrants non-infringement of intellec-
tual property right or any other rights owned by our company or a third party, nor grants any license.
(3) We are not liable for the infringement of rights owned by a third party arising out of the use of the
product or technologies as described in this material.
(4) The products described in this material are intended to be used for standard applications or general
electronic equipment (such as office equipment, communications equipment, measuring instru-
ments and household appliances).
Consult our sales staff in advance for information on the following applications:
Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment,
combustion equipment, life support systems and safety devices) in which exceptional quality and
reliability are required, or if the failure or malfunction of the products may directly jeopardize life or
harm the human body.
Any applications other than the standard applications intended.
(5) The products and product specifications described in this material are subject to change without
notice for modification and/or improvement. At the final stage of your design, purchasing, or use of
the products, therefore, ask for the most up-to-date Product Standards in advance to make sure that
the latest specifications satisfy your requirements.
(6) When designing your equipment, comply with the guaranteed values, in particular those of maxi-
mum rating, the range of operating power supply voltage, and heat radiation characteristics. Other-
wise, we will not be liable for any defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, take into the consideration of
incidence of break down and failure mode, possible to occur to semiconductor products. Measures
on the systems such as redundant design, arresting the spread of fire or preventing glitch are
recommended in order to prevent physical injury, fire, social damages, for example, by using the
products.
(7) When using products for which damp-proof packing is required, observe the conditions (including
shelf life and amount of time let standing of unsealed items) agreed upon when specification sheets
are individually exchanged.
(8) This material may be not reprinted or reproduced whether wholly or partially, without the prior written
permission of Matsushita Electric Industrial Co., Ltd.
2002 JUL
