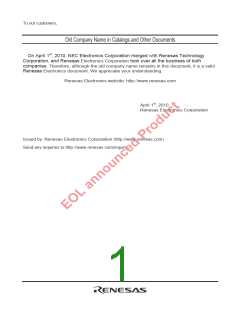

To our customers,
Old Company Name in Catalogs and Other Documents
On April 1st, 2010, NEC Electronics Corporation merged with Renesas Technology
Corporation, and Renesas Electronics Corporation took over all the business of both
companies. Therefore, although the old company name remains in this document, it is a valid
Renesas Electronics document. We appreciate your understanding.
Renesas Electronics website: http://www.renesas.com
April 1st, 2010
Renesas Elnics Corporation
Issued by: Renesas Electronics Corporation (http://wwesas.com)
Send any inquiries to http://www.renesas.com/inqu
Notice
1.
2.
All information included in this document is current as of the date this document is issued. Such information, however, is
subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please
confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to
additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.
Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights
of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.
No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights
of Renesas Electronics or others.
3.
4.
You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.
Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of
semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software,
and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by
you or third parties arising from the use of these circuits, software, or information.
5.
When exporting the products or technology described in this document, you should comply with the applicable export control
laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas
Electronics products or the technology described in this document for any purpose relating to military applications or use by
the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and
technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited
under any applicable domestic or foreign laws or regulations.
6.
7.
Renesas Electronics has used reasonable care in preparing the information included in this do, but Renesas Electronics
does not warrant that such information is error free. Renesas Electronics assumes no liabitsoever for any damages
incurred by you resulting from errors in or omissions from the information included he
Renesas Electronics products are classified according to the following three quality “Standard”, “High Quality”, and
“Specific”. The recommended applications for each Renesas Electronics producs on the product’s quality grade, as
indicated below. You must check the quality grade of each Renesas Electronict before using it in a particular
application. You may not use any Renesas Electronics product for any appcategorized as “Specific” without the prior
written consent of Renesas Electronics. Further, you may not use any Rlectronics product for any application for
which it is not intended without the prior written consent of Renesas ics. Renesas Electronics shall not be in any way
liable for any damages or losses incurred by you or third parties arm the use of any Renesas Electronics product for an
application categorized as “Specific” or for which the product iended where you have failed to obtain the prior written
consent of Renesas Electronics. The quality grade of each Rlectronics product is “Standard” unless otherwise
expressly specified in a Renesas Electronics data sheets ooks, etc.
“Standard”:
Computers; office equipment; comons equipment; test and measurement equipment; audio and visual
equipment; home electronic applmachine tools; personal electronic equipment; and industrial robots.
“High Quality”: Transportation equipment (aues, trains, ships, etc.); traffic control systems; anti-disaster systems; anti-
crime systems; safety equind medical equipment not specifically designed for life support.
“Specific”:
Aircraft; aerospace eqsubmersible repeaters; nuclear reactor control systems; medical equipment or
systems for life sup. artificial life support devices or systems), surgical implantations, or healthcare
intervention (e.gn, etc.), and any other applications or purposes that pose a direct threat to human life.
8.
9.
You should use the Renesas Els products described in this document within the range specified by Renesas Electronics,
especially with respect to thum rating, operating supply voltage range, movement power voltage range, heat radiation
characteristics, installatither product characteristics. Renesas Electronics shall have no liability for malfunctions or
damages arising out oof Renesas Electronics products beyond such specified ranges.
Although Renesas Elenics endeavors to improve the quality and reliability of its products, semiconductor products have
specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,
Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to
guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a
Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire
control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because
the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system
manufactured by you.
10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental
compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable
laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS
Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with
applicable laws and regulations.
11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas
Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this
document or Renesas Electronics products, or if you have any other inquiries.
(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majority-
owned subsidiaries.
(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.
DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK2858
N-CHANNEL MOS FIELD EFFECT TRANSISTOR
FOR SWITCHING
<R>
DESCRIPTION
PACKAGE DRAWING (Unit : mm)
The 2SK2858 is a switching device which can be driven directly by a
2.5 V power source.
2.1 0.1
1.25 0.1
The 2SK2858 has excellent switching characteristics, and is suitable for
use as a high-speed switching device in digital circuits.
2
FEATURES
3
1
Can be driven by a 2.5 V power source
Low gate cut-off voltage
Marking
ORDERING INFORMATION
PART NUMBER
2SK2858
PACKAGE
SC-70 (SSP)
1. Source
2. Gate
3. Drain
Marking: G24
ABSOLUTE MAXIMUM RATINGS (°C)
Drain to Source Voltage
Gate to Source Voltage
Drain Current (DC)
Drain Current (pulse) Note
Total Power Dissipatio
Channel Temperature
Storage Temperature
VDSS
VGSS
ID(DC)
ID(pulse)
PT
30
±20
V
V
<R>
EQUIVALENT CIRCUIT
±0.1
A
Drain
±0.4
A
Body
150
mW
°C
°C
Diode
Gate
Tch
150
Tstg
–55 to +150
Gate
Protection
Diode
Source
Note PW 10 μs, Duty Cycle 1%
Remark The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding
the rated voltage may be applied to this device.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D11706EJ4V0DS00 (4th edition)
Date Published February 2006 NS CP(K)
Printed in Japan
1996, 2006
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
2SK2858
ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
Zero Gate Voltage Drain Current
Gate Leakage Current
SYMBOL
IDSS
TEST CONDITIONS
VDS = 30 V, VGS = 0 V
MIN. TYP. MAX. UNIT
1
μA
μA
V
IGSS
VGS = ±20 V, VDS = 0 V
VDS = 3 V, ID = 10 μA
VDS = 3 V, ID = 10 m A
VGS = 2.5 V, ID = 1 m A
VGS = 4 V, ID = 10 mA
VGS = 10 V, ID = 10 mA
VDS = 3 V
±10
1.8
Gate Cut-off Voltage
VGS(off)
| yfs |
RDS(on)1
RDS(on)2
RDS(on)3
Ciss
1.0
20
1.4
Note
Forward Transfer Admittance
mS
Note
Drain to Source On-state Resistance
8
4
15
8
Ω
Ω
3
5
Ω
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
9
pF
pF
pF
ns
ns
ns
ns
Coss
VGS = 0 V
12
2.1
40
55
68
64
Crss
f = 1 MHz
td(on)
VDD = 3 V, ID = 10 mA
VGS = 4 V
tr
Turn-off Delay Time
Fall Time
td(off)
RG = 10 Ω
tf
<R>
Note Pulsed
TEST CIRCUIT SWITCHING TIME
D.U.T.
R
L
90%
V
GS
V
GS
%
Wave
RG
PG.
V
DD
90%
I
D
90%
10%
I
D
V
0
GS
10%
D
0
Wave Form
t
d(on)
t
r
t
d(off)
t
f
τ
t
on
t
off
μ
τ = 1
s
Duty Cycle 1%
2
Data Sheet D11706EJ4V0DS
2SK2858
TYPICAL CHARACTERISTICS (TA = 25°C)
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
180
400
300
150
120
90
VGS = 4 V
3.5 V
200
100
60
3 V
30
2.5 V
0
2
6
8
10
0
30
60
90
120
150
180
T
A
- Ambient Temperature - ˚C
VDS - ource Voltage - V
FORWANSFER ADMMITTANCE Vs.
DRAINT
TRANSFER CHARACTERISTICS
VDS = 3 V
1
1000
0
0.1
0.01
0.001
TA
= 125˚C
75˚C
25˚C
TA
= 25˚C
25˚C
25˚C
10
1
0.0001
75˚C
125˚C
0.00001
0.000001
0.0001
0.001
0.01
0.1
1
0
5.0
2.0
3.0
1.0
I
D - Drain Current - A
VGS - Gate to oltage - V
DRAIN TCE ON-STATE
DRAIN TO SOURCE ON-STATE
RESISs. DRAIN CURRENT
RESISTANCE vs. DRAIN CURRENT
15
10
20
15
10
VGS = 4 V
V
GS = 2.5 V
TA = 125˚C
75˚C
25˚C
25˚C
TA
= 125˚C
75˚C
25˚C
5
0
5
25˚C
10
0.0001
0.001
0.1
0.001
0.01
- Drain Current - A
0.01
0.0001
0.1
1
I
D
- Drain Current - A
ID
3
Data Sheet D11706EJ4V0DS
2SK2858
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
30
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
10
8
V
GS = 10 V
ID = 1 mA
10 mA
100 mA
20
10
6
TA
= 125˚C
75˚C
4
25˚C
25˚C
2
0
0
2
16
4
20
0.1
1
0.0001
0.001
0.01
ID - Drain Current - A
VGS - Grce Voltage - V
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
<R>
NG CHARACTERISTICS
100
1000
f = 1 MHz
GS = 0 V
V
10
1
C
Coissss
t
r
100
t
tdf(on)
C
rs
td(off)
V
DD = 3 V
V
GS(on) = 4V
R
G
= 10 Ω
0.1
0.01
10
0.01
1
0.1
100
0.1
- Drain Current - A
1
V
DS - Drain to SourcV
I
D
SOURCE TO DRAIN FORWARD VOLTAGE
1
0.1
0.01
0.001
0.0001
0.8
F(S-D) - Source to Drain Voltage - V
1.2
1.0
0.4
0.6
V
4
Data Sheet D11706EJ4V0DS
2SK2858
The information in this document is current as of February, 2006. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC Electronics data
sheets or data books, etc., for the most up-to-date specifications of NEC Electronics products. Not
all products and/or types are available in every country. Please check with an NElectronics sales
representative for availability and additional information.
No part of this document may be copied or reproduced in any form or by ans without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsr any errors that may
appear in this document.
NEC Electronics does not assume any liability for infringement of patpyrights or other intellectual
property rights of third parties by or arising from the use of NEC Elecroducts listed in this document
or any other liability arising from the use of such products. No , express, implied or otherwise, is
granted under any patents, copyrights or other intellectual propertof NEC Electronics or others.
Descriptions of circuits, software and other related informatis document are provided for illustrative
purposes in semiconductor product operation and apexamples. The incorporation of these
circuits, software and information in the design of a er's equipment shall be done under the full
responsibility of the customer. NEC Electronics ano responsibility for any losses incurred by
customers or third parties arising from the use of tcuits, software and information.
While NEC Electronics endeavors to enhance ity, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the pty of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property o(including death) to persons arising from defects in NEC
Electronics products, customers musporate sufficient safety measures in their design, such as
redundancy, fire-containment and ae features.
NEC Electronics products are cinto the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grades only to NEC Electronics products developed based on a customer-
designated "quality assuogram" for a specific application. The recommended applications of an NEC
Electronics product deits quality grade, as indicated below. Customers must check the quality grade of
each NEC Electroniuct before using it in a particular application.
"Standard": Com, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1)
"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2)
"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
厂商 型号 描述 页数 下载

PANASONIC

2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス - 小信号FET - 接合形FET ] 3 页

ETC

2SK0065P 晶体管| JFET | N沟道| 12V V( BR ) DSS | 40uA的我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

2SK0065Q 晶体管| JFET | N沟道| 12V V( BR ) DSS | 150UA我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

2SK0198(2SK198) 2SK0198 ( 2SK198 ) - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.181403s
