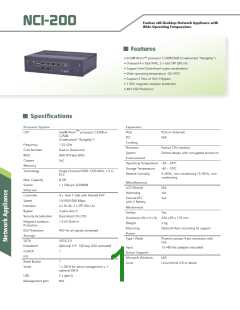

Fanless x86 Desktop Network Appliance with
Wide Operating Temperature
NCI-200
Features
• Intel® Atom™ processor C2308/2508 (Codenamed “Rangeley”)
• Onboard 4 x GbE RJ45, 2 x GbE SFP (SKU A)
• Support Intel QuickAssist crypto acceleration
• Wide operating temperature -20~55ºC
• Support 2 Pairs of Gen.3 Bypass
• 1.5KV magnetic isolation protection
• 4KV ESD Protection
Specifications
Processor System
Expansion
™
CPU
Intel® Atom processor C2308 or
C2508
PCIe
PCIe x1 (Internal)
N/A
PCI
(Codenamed “Rangeley”)
Cooling
Processor
System
Frequency
Core Number
BIOS
1.25 GHz
Passive CPU heatsink
Dual or Quad-core
AMI SPI Flash BIOS
SoC
Fanless design with corrugated aluminum
Environment
Chipset
Operating Temperature -20 ~ 55ºC
Memory
Technology
Storage Temperature
Relative Humidity
-40 ~ 70ºC
Single Channel DDR3 1333 MHz, 1.5 V,
ECC
5~90%, non-condensing / 5~95%, non-
condensing
Max. Capacity
Socket
8 GB
Miscellaneous
LCD Module
Watchdog
1 x 204-pin SODIMM
N/A
Yes
Yes
Ethernet
Controller
Speed
4 x Intel 1 GbE with Marvell PHY
10/100/1000 Mbps
4 x RJ-45, 2 x SFP (SKU A)
2 pairs Gen.3
Internal RTC
with Li Battery
Interface
Mechanical
Bypass
Fanless
Yes
Security Acceleration
QuickAssist On CPU
1.5 KV Built-in
Dimension (W x H x D) 230 x 65 x 170 mm
Magnetic Isolation
Protection
Weight
2 kg
Mounting
Power
Optional Rack mounting kit support
ESD Protection
Storage
SATA
4KV for all signals contacted
Type / Watts
Phoenix contact 4-pin connector with
lock
SATA 2.0
Installation
mSATA
Optional 2.5” SSD bay (SSD excluded)
1
Input
12~48 Vdc (adaptor excluded)
Driver Support
Microsoft Windows
Linux
I/O
N/A
Reset Button
Serial
1
Linux Kernel 2.6 or above
1 x DB-9 for serial management + 1
optional DB-9
USB
2 x type A
N/A
Management port
