THE REVISION STATUS OF ALL SHEETS OF THIS DRAWING IS THE SAME AS SHEET 1
LTR
-
DESCRIPTION
DATE
BY
Released
6/14/99
JCL
I. MATERIALS & FINISHES
center contact: Gold Plated Beryllium Copper – female pin
outer contact: Alballoy Plated Brass
body: Alballoy Plated Brass
coupling nut: Alballoy Plated Brass
crimp sleeve: Alballoy Plated Copper
dielectric: Teflon PTFE
gasket: Silicone Rubber
shrink sleeve: Adhesive Lined Polyolefin
crimp size: .213” hex (M22520/5-19)
II. ELECTRICAL PROPERTIES
impedance: 50 ohms
working voltage: 500 vrms (max)
vswr: 1.25:1 (max) up to 3 GHz
insertion loss: 0.1 x √Fghz
Unless otherwise spec-
ified, dimensions are in
inches. Tolerances are
applicable when spec-
ified.
Approvals
TIMES MICROWAVE SYSTEMS
Wallingford, CT 06492
(203) 949-8400; (203) 949-8423.Fax
www.timesmicrowave.com
Drawn
Check
JCL 6/14/99
These drawings and
specifications contain
proprietary information
which is the property of
Times Microwave
Systems.

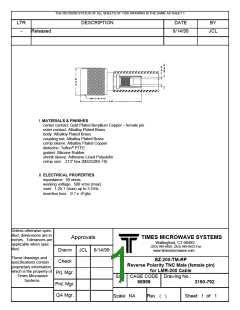

EZ-200-TM-RP
Reverse Polarity TNC Male (female pin)
for LMR-200 Cable
Prj. Mgr.
Prd. Mgr.
QA Mgr.
Size CAGE CODE Drawing No.:
A
68999
3190-792
Scale: NA
Rev. ( )
Sheet: 1 of 1
