5PSI-D-HGRADE-MV

型号：

5PSI-D-HGRADE-MV

品牌：

ASC[ All Sensors ]

页数：

5 页

PDF大小：

234 K

下载PDF手册

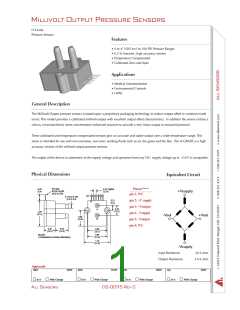

Millivolt Output Pressure Sensors
H-Grade
Pressure Sensors
Features
• 0 to 4” H2O to 0 to 100 PSI Pressure Ranges
• 0.5 % linearity...high accuracy version
• Temperature Compensated
• Calibrated Zero and Span
Applications
• Medical Instrumentation
• Environmental Controls
• HVAC
General Description
The Millivolt Output pressure sensors is based upon a proprietary packaging technology to reduce output offset or common mode
errors. This model provides a calibrated millivolt output with excellent output offset characteristics. In addition the sensor utilizes a
silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This
series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The H-GRADE is a high
accuracy version of the millivolt output pressure sensors.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage up to +16 V is acceptable.
Physical Dimensions
Equivalent Circuit
Pin Size
0.25
0.10 Typical
(2.54)
Pinout (note 1)
pin 1: N/C
0.010 x 0.020
(6.4)
+Vsupply
(0.25 x 0.50)
Pin 1
2
3
4
5 6
0.174 to 0.190
(4.4 to 4.8)
0.21
(5.3)
pin 2: +V supply
pin 3: +Voutput
pin 4: -Vsupply
pin 5: -Voutput
pin 6: N/C
1
0.42
(10.5)
A
B
1.08
(27.4)
-Vout
+Vout
0.66
(16.0)
0.48
0.55
0.80
(12.2)
(14.0)
(20.3)
NOTES:
0.85
1) Dimensions in inches (millimeters)
(21.6)
1.10
(27.9)
-Vsupply
Input Resittance
Output Resistance
20 k ohm
3.0 k ohm
Approvals
MKT
DATE
MFG
DATE
ENG
DATE
QA
DATE
As Is
With Change
As Is
With Change
As Is
With Change
As Is
With Change
All Sensors
DS-0095 Rev C
Pressure Sensor Characteristics Maximum Ratings
Environmental Specifications
16 Vdc
50 psig
250°C
Supply Voltage, Vs
Temperature Ranges
Compensated
Operating
Common-mode pressure
0 to 70° C
-25 to 85° C
-40 to 125° C
0 to 95% RH
Lead Temperature
(soldering 2-4 sec.)
Storage
Humidity Limits
(non condensing)
Standard Pressure Ranges
Part Number
Operating Pressure
Nominal Span
Proof Pressure
3 PSI
Burst Pressure
15 PSI
4 INCH-D-HGRADE-MV
0.3 PSI-D-HGRADE-MV
1 PSI-D-HGRADE-MV
5 PSI-D-HGRADE-MV
15 PSI-D-HGRADE-MV
30 PSI-D-HGRADE-MV
100 PSI-D-HGRADE-MV
150 PSI-D-HGRADE-MV
15 PSI-A-HGRADE-MV
30 PSI-A-HGRADE-MV
100 PSI-A-HGRADE-MV
0 - 4” H2O
0 - 0.3 PSI
0 - 1 PSI
40 mV
20 mV
18 mV
60 mV
90 mV
90 mV
100 mV
90 mV
90 mV
90 mV
100 mV
5 PSI
15 PSI
5 PSI
15 PSI
0 - 5 PSI
10 PSI
30 PSI
0 - 15 PSI
0 - 30 PSI
0 - 100 PSI
0 - 150 PSI
0 - 15 PSIA
0 - 30 PSIA
0 - 100 PSIA
60 PSI
120 PSI
150 PSI
250 PSI
250 PSI
120 PSIA
150 PSIA
250 PSIA
90 PSI
200 PSI
200 PSI
60 PSIA
90 PSIA
200 PSIA
Performance Characteristics for 4 INCH-D-HGRADE-MV
Parameter, note 1
Minimum
Nominal
Maximum
Units
“H2O
mV
Operating Range, differential pressure
Output Span, note 5
--
39.5
--
4
40.0
--
--
40.5
0.5
500
0.5
1
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
mV
--
--
uV
--
0.25
--
%fs
--
%fs
Performance Characteristics for 0.3 PSI-D-HGRADE-MV
Nominal
Parameter, note 1
Minimum
Maximum
Units
PSI
0.3
20.0
--
Operating Range, differential pressure
Output Span, note 5
--
19.8
--
--
20.2
0.3
500
0.5
1
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
0.25
--
--
%fs
%fs
--
Millivolt H-Grade Pressure Sensors
Performance Characteristics for 1 PSI-D-HGRADE-MV
Minimum
Nominal
Maximum
Units
PSI
Parameter, note 1
--
17.82
--
1.0
18.0
--
--
18.18
0.3
500
0.5
1
Operating Range, differential pressure
Output Span, note 5
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 5 PSI-D-HGRADE-MV
Minimum
Nominal
Maximum
Units
PSI
Parameter, note 1
--
59.4
--
5.0
60.0
--
--
60.6
0.3
500
0.5
1
Operating Range, differential pressure
Output Span, note 5
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 15 PSI-D-HGRADE-MV
Minimum
Nominal
15.0
90.0
--
Maximum
Units
PSI
Parameter, note 1
--
89.1
--
--
90.9
0.3
500
0.5
1
Operating Range, differential pressure
Output Span, note 5
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 30 PSI-D-HGRADE-MV
Minimum
Nominal
30.0
90.0
--
Maximum
Units
PSI
Parameter, note 1
--
89.1
--
--
90.9
0.3
500
0.5
1
Operating Range, differential pressure
Output Span, note 5
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
All Sensors
DS-0095 Rev C
Performance Characteristics for 100 PSI-D-HGRADE-MV
Minimum
Nominal
100.0
100
--
Maximum
Units
PSI
Parameter, note 1
--
99
--
--
Operating Range, differential pressure
Output Span, note 5
101
0.3
500
0.5
1
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 150 PSI-D-HGRADE-MV
Minimum
Nominal
Maximum
Units
PSI
Parameter, note 1
--
89
--
150.0
90
--
Operating Range, differential pressure
Output Span, note 5
91
0.3
500
0.5
1
mV
mV
uV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 15 PSI-A-HGRADE-MV
Minimum
Nominal
Maximum
Units
Parameter, note 1
--
89.1
--
15.0
90.0
--
--
90.9
0.5
500
0.5
1
PSIA
mV
mV
uV
Operating Range, absolute pressure
Output Span, note 5
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
--
--
--
0.25
--
%fs
%fs
--
Performance Characteristics for 30 PSI-A-HGRADE-MV
Minimum
Nominal
30.0
90.0
--
Maximum
Units
PSIA
mV
Parameter, note 1
--
89.1
--
--
90.9
0.5
500
0.5
1
Operating Range, absolute pressure
Output Span, note 5
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
mV
--
--
uV
--
0.25
--
%fs
%fs
--
Millivolt H-Grade Pressure Sensors
Performance Characteristics for 100 PSI-A-HGRADE-MV
Minimum
Nominal
100.0
100.0
--
Maximum
Units
PSIA
mV
Parameter, note 1
--
99.0
--
--
101.0
0.5
500
0.5
1
Operating Range, absolute pressure
Output Span, note 5
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 4
Span Shift (0°C-70°C), note 2
mV
--
--
uV
--
0.25
--
%fs
%fs
--
Specification Notes
n o t e 1: Al l p A r A m e t e r s A r e m e A s u r e d A t 12.0 v o l t excitAtion, f o r t h e n o m in A l f u l l s c A l e p r e s s u r e A n d r o o m t e m p e r At u r e u n l e s s o t h e r w i s e s p e c i f i e d . pr e s s u r e
m e A s u r e m e n t s A r e w it h p o s i t i v e p r e s s u r e A p p l i e d t o po r t B. fo r ABsolute d e v ic e s p r e s s u r e is A p p l i e d t o po r t A, A n d t h e o u t p u t p o l A r i t y is r e v e r s e d .
n o t e 2: sh if t is r e l At i v e t o 25°c.
n o t e 3: sh if t is within t h e f i r s t h o u r o f excitAtion A p p l i e d t o t h e d e v ic e .
n o t e 4: me A s u r e d A t o n e -h A l f f u l l s c A l e r A t e d p r e s s u r e u s in g B e s t s t r A ig h t l in e c u r v e f i t .
n o t e 5: th e v o l t A g e A d d e d t o t h e o f f s e t v o l t A g e A t f u l l s c A l e p r e s s u r e .
All Sensors reserves the right to make changes to any products herein. All Sensors does not assume any liability arising out of the application or use of any product or circuit
described herein, neither does it convey any license under its patent rights nor the rights of others.
All Sensors
DS-0095 Rev C
