5PSI-D-PRIME-MV

型号：

5PSI-D-PRIME-MV

品牌：

AMPHENOL[ Amphenol ]

页数：

5 页

PDF大小：

201 K

下载PDF手册

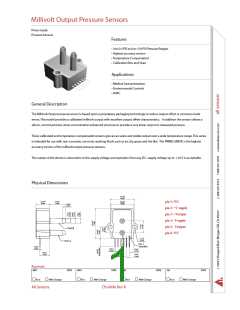

Millivolt Output Pressure Sensors
Prime Grade
Pressure Sensors
Features
• 0 to 0.3 PSI to 0 to 150 PSI Pressure Ranges
• Highest accuracy version
• Temperature Compensated
• Calibrated Zero and Span
Applications
• Medical Instrumentation
• Environmental Controls
• HVAC
General Description
The Millivolt Output pressure sensor is based upon a proprietary packaging technology to reduce output offset or common mode
errors. This model provides a calibrated millivolt output with excellent output offset characteristics. In addition the sensor utilizes a
silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series
is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The PRIME GRADE is the highest
accuracy version of the millivolt output pressure sensors.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage up to +16 V is acceptable.
Physical Dimensions
21.59
0.850
12.19
0.480
13.97
0.550
20.32
0.800
pin 1: N/C
2.40
0.094
pin 2: +V supply
pin 3: +Voutput
pin 4: -Vsupply
pin 5: -Voutput
pin 6: N/C
Port B
3.56
0.140
Port A
Pin 1
Identifier
0.25
0.010
0.51
0.020
3.81
0.150
8.74
0.344
1.27
0.050
2.54
0.100
Approvals
MKT
DATE
MFG
DATE
ENG
DATE
QA
DATE
As Is
With Change
As Is
With Change
As Is
With Change
As Is
With Change
All Sensors
DS-0096 Rev B
Pressure Sensor Characteristics Maximum Ratings
Environmental Specifications
16 Vdc
Supply Supply Voltage VS
Common-mode pressure
Temperature Ranges
Compensated
Operating
50 psig
270°C
0 to 70° C
-25 to 85° C
Lead Temperature
(soldering 2-4 sec.)
Storage
-40 to 125° C
Humidity Limits
0 to 95% RH
(non condensing)
Standard Pressure Ranges
Part Number
Operating Pressure
Nominal Span
Proof Pressure
5 PSI
Burst Pressure
15 PSI
0.3 PSI-D-PRIME-MV
1 PSI-D-PRIME-MV
5 PSI-D-PRIME-MV
15 PSI-D-PRIME-MV
15 PSI-A-PRIME-MV
30 PSI-D-PRIME-MV
30 PSI-A-PRIME-MV
100 PSI-D-PRIME-MV
100 PSI-A-PRIME-MV
150 PSI-D-PRIME-MV
0 - 0.3 PSI
0 - 1 PSI
20 mV
18 mV
60 mV
90 mV
90 mV
90 mV
90 mV
100 mV
100 mV
90 mV
5 PSI
15 PSI
0 - 5 PSI
10 PSI
30 PSI
0 - 15 PSI
0 - 15 PSIA
0 - 30 PSI
0 - 30 PSIA
0 - 100 PSI
0 - 100 PSIA
0 - 150 PSI
60 PSI
120 PSI
120 PSIA
150 PSI
150 PSIA
250 PSI
250 PSIA
250 PSI
60 PSIA
90 PSI
90 PSIA
200 PSI
200 PSIA
200 PSI
Performance Characteristics for 0.3 PSI-D-PRIME-MV
Parameter, note 1
Minimum
Nominal
Maximum
20.2
Units
mV
Output Span, note 4
19.8
20.0
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
-
-
-
-
-
0.3
mV
250
uV
0.1
-
0.25
%FSS
%FSS
1.0
Performance Characteristics for 1 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
18.18
0.3
Units
mV
Parameter, note 1
17.82
18.0
Output Span, note 4
-
-
-
-
-
-
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
250
uV
0.1
-
0.25
%FSS
%FSS
1.0
millivolt output prime grade pressure sensors
Performance Characteristics for 5 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
60.6
Units
mV
Parameter, note 1
59.4
60.0
Output Span, note 4
-
-
-
-
-
-
0.3
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
250
uV
0.1
-
0.25
%FSS
%FSS
1.0
Performance Characteristics for 15 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
90.9
Units
mV
Parameter, note 1
89.1
90.0
Output Span, note 4
-
-
-
-
-
0.3
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
%FSS
%FSS
1.0
Performance Characteristics for 15 PSI-A-PRIME-MV
Minimum
Nominal
Maximum
90.9
Units
mV
Parameter, note 1
89.1
90.0
Output Span, note 4
-
-
-
-
-
0.5
mV
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
%FSS
%FSS
1.0
Performance Characteristics for 30 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
90.9
Units
mV
Parameter, note 1
89.1
90.0
Output Span, note 4
-
-
-
-
-
0.3
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
%FSS
%FSS
1.0
All Sensors
DS-0096 Rev B
Performance Characteristics for 30 PSI-A-PRIME-MV
Minimum
Nominal
Maximum
90.9
Units
mV
Parameter, note 1
89.1
90.0
Output Span, note 4
-
-
-
-
-
0.5
mV
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
%FSS
%FSS
1.0
Performance Characteristics for 100 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
101
Units
mV
Parameter, note 1
99.0
100
Output Span, note 4
-
-
-
-
-
0.3
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
1.0
%FSS
%FSS
Performance Characteristics for 100 PSI-A-PRIME-MV
Minimum
Nominal
Maximum
101
Units
mV
Parameter, note 1
99.0
100
Output Span, note 4
-
-
-
-
-
0.5
mV
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
1.0
%FSS
%FSS
Performance Characteristics for 150 PSI-D-PRIME-MV
Minimum
Nominal
Maximum
90.1
Units
mV
Parameter, note 1
89.1
90.0
Output Span, note 4
-
-
-
-
-
0.3
mV
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
-
0.15
-
250
uV
0.30
%FSS
%FSS
1.0
millivolt output prime grade pressure sensors
Specification Notes
note 1: All pArAmeters Are meAsured At 12.0 volt excitAtion, for the nominAl full scAle pressure And room temperAture unless otherwise specified. pressure meAsurements Are with
positive pressure Applied to port B.
note 2: shift is relAtive to 25°c.
note 3: meAsured At one-hAlf full scAle rAted pressure using Best strAight line curve fit.
note 4: the spAn is the AlgerBrAic difference Between full scAle output voltAge And the offset voltAge.
Pressure Response: for any pressure applied the response time to get to 90% of pressure applied is typically less than 100 useconds.
Equivalent Circuit
+Vsupply
-Vout
+Vout
Input Resistance
5.0 k ohm
3.0 k ohm
Output Resistance
-Vsupply
All Sensors reserves the right to make changes to any products herein. All Sensors does not assume any liability arising out of the application or use of any product or circuit described
herein, neither does it convey any license under its patent rights nor the rights of others.
All Sensors
DS-0096 Rev B
