17.75 in
451 mm
25.84 in
656 mm
20.65 in
525 mm
7.26 in
6.13 in
184 mm
156 mm
TYP
TYP
3.62 in
92 mm
2.48 in
63 mm
TYP

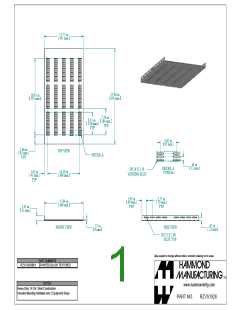

TOP VIEW
DETAIL A
.44 in
11 mm
DETAIL A
TYPICAL
O0.24 X 1.50
VENTING SLOT
1.62 in
41 mm
TYP
14.50 in
368 mm
1.93 in
49 mm
TYP
2.75 in
17.64 in
448 mm
70 mm
TYP
1.31 in
33 mm
.87 in
22 mm
.37 in
9 mm
FRONT VIEW
SIDE VIEW
O0.25 X 2.00
SLOT, TYP
Data subject to change without notice. Isometric drawing not to scale.
PART NUMBERS
RZVS1926BK1
PAINTED BLACK TEXTURED
NOTES
www.hammondmfg.com
Heavy Duty, 14 GA. Steel Construction
Includes Mounting Hardware and 2 Equipment Stops
PART NO.
RZVS1926
