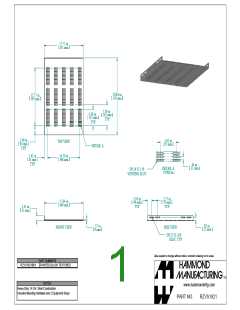

17.75 in
451 mm
20.84 in
529 mm
15.57 in
395 mm
5.59 in
4.38 in
142 mm
111 mm
TYP
TYP
2.48 in
63 mm
TYP
3.62 in
92 mm
TOP VIEW
DETAIL A
1.62 in
41 mm
TYP
14.50 in
368 mm
.44 in
11 mm
DETAIL A
TYPICAL
O0.24 X 1.50
VENTING SLOT
1.93 in
49 mm
TYP
2.75 in
70 mm
TYP
17.64 in
448 mm
1.31 in
33 mm
.87 in
22 mm
.37 in
9 mm
FRONT VIEW
SIDE VIEW
O0.25 X 2.00
SLOT, TYP
Data subject to change without notice. Isometric drawing not to scale.
PART NUMBERS
RZVS1921BK1
PAINTED BLACK TEXTURED
NOTES
www.hammondmfg.com
Heavy Duty, 14 GA. Steel Construction
Includes Mounting Hardware and 2 Equipment Stops
PART NO.
RZVS1921
