Applications

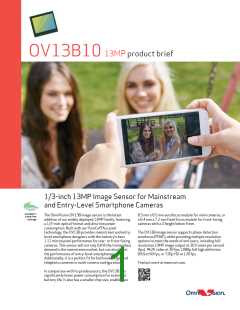

OV13B10
¬
Smart Phones and Feature Phones
¬
¬
Tablets
¬
PC multimedia
Wearables
Ordering Information
¬ OV13B10-GA5A-Z
(color, chip probing, 150 µm backgrinding, reconstructed wafer with good die)
Product Features
¬
¬
¬
¬
1.12 µm x 1.12 µm pixel
optical size of 1/3.06"
33.25° CRA
¬
¬
support for output formats:
- 10-bit RAW RGB
total embedded one-time
programmable (OTP) memory:
512 bytes
Product Specifications
support for phase detection auto
focus (PDAF)
¬
¬
two-wire serial bus control (SCCB)
¬ active array size: 4208 x 3120
¬ lens chief ray angle: 33.25° non-linear
¬
¬
13MP at 30 fps
MIPI serial output interface
(1-lane, 2-lane, or 4-lane)
¬ power supply:
¬ maximum image transfer rate:
- 13MP (4208x3120): 30 fps
- 10MP (4208x2368): 30 fps
- 3MP (2104x1560): 60 fps
- 1080p (1920x1080): 60 fps
- analog: 2.7 to 2.9V (2.8V nominal)
- core: 1.14 to 1.26V (1.2V nominal)
- I/O: 1.7 to 1.9V (1.8V nominal)
programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing
¬
¬
¬
two on-chip phase lock loops (PLLs)
2x binning support
¬ temperature range:
- operating: -30°C to +85°C junction
temperature
- stable image: 0°C to +60°C junction
temperature
¬ minimum exposure: 4-row
image quality controls:
- defect pixel correction (DPC)
- automatic black level calibration (ABLC)
¬
supports images sizes:
- 13MP (4208x3120)
- 10MP (4208x2368)
- 3MP (2104x1560)
- 1080p, and more
¬ maximum exposure: VTS-8
¬ pixel size: 1.12 µm x 1.12 µm
¬ image area: 4713.984 µm x 3499.776 µm
¬
suitable for module size of
8.5 x 8.5 x <5 mm
¬ output interface: 4-lane MIPI serial
output
¬ output format: 10-bit RGB RAW
¬ lens size: 1/3.06"
¬ die dimensions:
- COB: 5412.6 µm x 4741.2 µm
- RW: 5462.6 µm x 4791.2 µm
¬ input clock frequency: 6 ~ 64 MHz
Functional Block Diagram
OV13B10
image sensor core
sensor
processor
interface
column
sample/hold
MCP
10-bit
ADC
AMP
MCN
array
MDP[3:0]
MDN[3:0]
gain
control
control register bank
PLLs
PLL
timing generator and system control logic
SCCB interface
OmniVision reserves the right to make changes to their products or to discontinue any product or
service without further notice. OmniVision, the OmniVision logo and PureCel are registered
trademarks of OmniVision Technologies, Inc. All other trademarks are the property of their
respective owners.
4275 Burton Drive
Santa Clara, CA 95054
USA
Tel: + 1 408 567 3000
Fax: + 1 408 567 3001
www.ovt.com
Version 1.0, January 2019
