LY8897_13

型号:

LY8897_13

品牌:

LYONTEK[ Lyontek Inc. ]

页数:

17 页

PDF大小:

1235 K

®

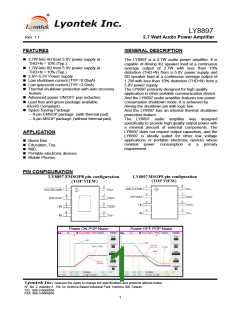

LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
FEATURES
GENERAL DESCRIPTION
„ 2.7W Into 4from 5.0V power supply at
THD+N = 10% (Typ.).
„ 1.7W Into 8from 5.0V power supply at
THD+N = 10% (Typ.)
The LY8897 is a 2.7W audio power amplifier. It is
capable of driving 4speaker load at a continuous
average output of 2.7W with less than 10%
distortion (THD+N) from a 5.0V power supply and
8speaker load at a continuous average output of
1.7W with less than 10% distortion (THD+N) from a
5.0V power supply.
The LY8897 primarily designed for high quality
application in other portable communication device.
And the LY8897 audio amplifier features low power
consumption shutdown mode. It is achieved by
driving the shutdown pin with logic low.
„ 2.0V~5.5V Power supply.
„ Low shutdown current.(TYP.=0.05uA)
„ Low quiescent current.(TYP.=3.0mA)
„ Thermal shutdown protection with auto recovery
feature.
„ Advanced power ON/OFF pop reduction.
„ Lead free and green package available.
(RoHS Compliant)
„ Space Saving Package
And the LY8897 has an internal thermal shutdown
protection feature.
-- 8-pin EMSOP package. (with thermal pad)
-- 8-pin MSOP package. (without thermal pad)
The LY8897 audio amplifier was designed
specifically to provide high quality output power with
a minimal amount of external components. The
LY8897 does not require output capacitors, and the
LY8897 is ideally suited for other low voltage
applications or portable electronic devices where
APPLICATION
„ Boom Box.
„ Education, Toy.
„ MID,
minimal power consumption is
requirement.
a
primary
„ Portable electronic devices.
„ Mobile Phones.
PIN CONFIGURATION
Power ON POP Noise
Power OFF POP Noise
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
PIN DESCRIPTION
Pin No.
EMSOP8
SYMBOL
DESCRIPTION
MSOP8
SHUTDOWN
BYPASS
+IN
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Shutdown the device. (when LOW level is shutdown mode)
Bypass pin
Positive Input
Negative Input
Negative output
Power Supply
Ground
-IN
Vo1(-)
VDD
GND
Vo2(+)
Positive Output
ORDERING INFORMATION
Speaker
Pin/
Package
Output Power
(THD+N=10%)
Input
Type
Output
Type
Ordering Code
Channels
EMSOP8
(with thermal pad)
2.7W/4@5.0V_BTL
1.7W/8@5.0V_BTL
SE/
DF
LY8897X
LY8897U
Mono
Mono
BTL
BTL
MSOP8
(without thermal pad)
2.7W/4@5.0V_BTL
1.7W/8@5.0V_BTL
SE/
DF
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
APPLICATION CIRCUIT
Figure 1. LY8897 application schematic with Single –Ended input
Figure 2. LY8897 application schematic with Differential input
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
3
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply Voltage
SYMBOL
VDD
RATING
6.0
UNIT
V
Operating Temperature
Input Voltage
TA
-40 to 85 (I grade)
-0.3V to VDD +0.3V
-65 to 150
Internally Limited
2000
VI
V
Storage Temperature
Power Dissipation
TSTG
PD
W
V
ESD Susceptibility
VESD
TJMAX
TSOLDER
Junction Temperature
Soldering Temperature (under 10 sec)
150
260
DC ELECTRICAL CHARACTERISTICS (TA=25℃)
SYMBOL
TEST CONDITION
MIN.
TYP. *2
MAX. UNIT
PARAMETER
Power supply voltage
Quiescent Current
Shutdown Current
Shutdown Voltage Input High
Shutdown Voltage Input Low
Output Offset Voltage
VDD
IQ
ISD
VSDIH
VSDIL
VOS
--
2.0
-
-
1.2
-
-
3.0
0.05
-
5.5
9.0
2.0
-
0.4
50.0
V
mA
A
µ
VDD=5.0V, Load=4.
VDD=5.0V, VSD=0V
VDD=5.0V, VSD Mode = VDD
VDD=5.0V, VSD Mode = GND
VDD=5.0V, Load=4.
V
-
-
7.0
mV
(*2) Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VCC = VCC(TYP.) and TA = 25℃
OPERATING CHARACTERISTICS(1) (TA=25)
SYMBOL
TEST CONDITION
Vripple = 200mV
MIN.
TYP. *2
MAX. UNIT
PARAMETER
1KHz
-
68.77
-
sine p-p, VDD=5.0V,
RL=4, Av=2.
Input=GND.
217Hz
1KHz
-
-
-
55.60
68.31
67.73
-
Power Supply Rejection Ratio
PSRR
dB
Vripple = 200mV
sine p-p, VDD=5.0V,
RL=4, Av=2.
-
-
-
217Hz
Input=Floating.
A-weight
VDD=5.0V,RL=8, ing
-
-
-
-
94.26
91.78
38.7
Signal-to-noise ratio
SNR Input=GND, Av=2,
1W=0dB,
dB
None
A-weight
ing
-
A-weight
ing
None
A-weight
ing
VDD=5.0V,Av=2,
f=20Hz~20KHz,
Input=GND,
RL=4SPK,
-
Output voltage noise
Vn
uV
51.5
-
Shutdown temp.
TSD
-
-
160
130
-
-
Thermal shutdown temperature
Restore temp.
(*2) Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VCC = VCC(TYP.) and TA = 25℃
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
4
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
OPERATING CHARACTERISTICS(2) (TA=25)
SYMBOL
TEST CONDITION
MIN.
TYP. *2
3.3
2.7
1.5
0.6
0.37
2.5
2.0
1.1
MAX. UNIT
PARAMETER
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
VDD=2.0V
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
RL=4*3
THD=10%,f=1 kHz
RL=4*3
THD=1%,f=1 kHz
0.5
-
0.24
-
VDD=2.0V
Output Power
Po
W
-
-
-
-
-
-
-
-
-
-
2.0
1.7
1.0
0.4
0.25
1.6
1.3
0.7
0.3
0.2
-
-
-
-
-
-
-
-
-
-
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
VDD=2.0V
VDD=5.5V
VDD=5.0V
VDD=3.7V
VDD=2.5V
VDD=2.5V
RL=8ꢀ
THD=10%,f=1 kHz
RL=8ꢀ
THD=1%,f=1 kHz
(*2) Typical values are included for reference only and are not guaranteed or tested.
Typical values are measured at VCC = VCC(TYP.) and TA = 25℃
(*3) When driving 4loads from 4.2V~5V power supply, the device must be mounted to a circuit board.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
5
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
TYPICAL PERFORMANCE CHARACTERISTICS
Figure 3
THD+N vs. Output Power (@ RL=4, f=1kHz, AV=10)
Figure 4
THD+N vs. Output Power (@ RL=8, f=1kHz, AV=10)
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
6
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Figure 5
Power Supply Rejection Ratio (PSRR)
Figure 6
Frequency response
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
7
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Figure 7
SNR vs. Noise Level
SD Current vs. SD Voltage
SHUTDOWN CURRENT vs SHUTDOWN VOLTAGE
Quiescent Current vs. Supply voltage
QUIESCENT CURRENT vs SUPPLY VOLTAGE
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
5
4
3
2
1
2.5V
3.7V
5.0V
No Load
8
4ꢀ
0
0
2.0
2.5
3.0
3.7
4.2
5.0
5.5
6.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
VDD - Supply Voltage - V
Shutdown Voltage - V
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
8
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
VDD Current vs. Output Power (RL=4)
VDD Current vs. Output Power (RL=8)
SUPPLY CURRENT vs OUTPUT POWER(RL=8)
SUPPLY CURRENT vs OUTPUT POWER(RL=4)
1000
900
800
700
600
500
400
300
200
100
0
500
450
400
350
300
250
200
150
100
50
2.0V
2.5V
3.7V
5.0V
2.0V
2.5V
3.7V
5.0V
0
0
0.2
0.4
0.8
1
1.2
1.8
0
0.2 0.4 0.8
1
1.2 1.8 2.2 2.4 2.6 2.8
3
3.2 3.4
Po-Output Power-W(RL=4)
Po - Output Power - W(RL=8)
Load Resistance vs. Output Power (THD+N=10%)
Load Resistance vs. Output Power (THD+N=1%)
Output Power vs Load Resistance (THD+N=10)
Output Power vs Load Resistance (THD+N=1%)
3.50
3.00
2.5V
3.7V
2.5V
3.7V
3.00
2.50
5V
5V
2.50
4.2V
5.5V
2.00
4.2V
2.00
5.5V
1.50
1.50
1.00
0.50
0.00
1.00
0.50
0.00
4
8ꢀ
12ꢀ
16ꢀ
20ꢀ
24ꢀ
28ꢀ
32ꢀ
4
8ꢀ
12ꢀ
16ꢀ
20ꢀ
24ꢀ
28ꢀ
32ꢀ
Load Resistance
Load Resistance
VDD vs. Output Power (RL=4)
VDD vs. Output Power (RL=8)
OUTPUT POWER vs. SUPPLY VOLTAGE(4)
OUTPUT POWER vs. SUPPLY VOLTAGE((8)
2.5
2
3.5
3
THD+N=10%
THD+N=1%
THD+N=10%
THD+N=1%
2.5
2
1.5
1
1.5
1
0.5
0.5
0
0
2.0V
2.5V
3.7V
4.2V
5V
5.5V
2.0V
2.5V
3.7V
4.2V
5V
5.5V
VDD-Supply Voltage-V
VDD-Supply Voltage-V
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
9
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Output Power vs. Temperature
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
10
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
APPLICATION INFORMATION
Bridged configuration explanation
As shown in Figure 1 and 2, the LY8897 has two operational amplifiers internally, allowing for a few different
amplifier configurations. The first amplifier’s gain is externally configurable, while the second amplifier is
internally fixed in a unity-gain, inverting configuration. The closed-loop gain of the first amplifier is set by
selecting the ratio of Rf to RIN while the second amplifier’s gain is fixed by the two internal 20kresistors.
Figure 1 and 2 shows that the output of amplifier one serves as the input to amplifier two which results in both
amplifiers producing signals identical in magnitude, but out of phase by 180°. Consequently, the differential
gain for the IC is
AVD= 2 X ( Rf / RIN ) ………………………………………………………………(1)
By driving the load differentially through outputs Vo1 and Vo2, an amplifier configuration commonly referred to
as “bridged mode” is established. Bridged mode operation is different from the classical single-ended
amplifier configuration where one side of the load is connected to ground.
A bridge amplifier design has a few distinct advantages over the single-ended configuration, as it provides
differential drive to the load, thus doubling output swing for a specified supply voltage. Four times the output
power is possible as compared to a single-ended amplifier under the same conditions.
This increase in attainable output power assumes that the amplifier is not current limited or clipped. In order to
choose an amplifier’s closed-loop gain without causing excessive clipping, please refer to the Audio Power
Amplifier Design section.
A bridge configuration, such as the one used in the LY8897, also creates a second advantage over single
-ended amplifiers. Since the differential outputs, Vo1 and Vo2, are biased at half-supply, no net DC voltage
exists across the load. This eliminates the need for an output coupling capacitor which is required in a single
supply, single-ended amplifier configuration. Without an output coupling capacitor, the half-supply bias across
the load would result in both increased internal IC power dissipation and also possible loudspeaker damage.
Input Capacitors (Ci)
The LY8897 input capacitors and input resistors form a high-pass filter with the corner frequency, fc,
determined in equation Equation 2.
1
fc = ----------------………………………………………………………………(2)
2πRiCi
Equation 3 is reconfigured to solve for the input coupling capacitance.
1
Ci = -----------------…………………………………………………………….(3)
2πRifc
For example
In the table 1 shows the external components. Rin in connect with Cin to create a high-pass filter.
Table 1. Typical Component Values
Reference
Description
Note
Ri
Ci
20Kꢀ
1% tolerance resistors
0.47uF 80%/–20% non polarized
0.1uF
0.22uF
0.33uF
corner frequency 79.57Hz 36.17Hz 20.4Hz 16.93Hz
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
11
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Ci = 1 / ( 2πRifc)
Ci = 1 / ( 2π x20Kx20Hz)=0.1uFOne would likely choose a value of 0.1uF as this value is commonly used.
Note that it is important to Ci must be 10 times smaller than the bypass capacitor to reduce clicking and
popping noise from power on/off and entering and leaving shutdown. After sizing Ci for a given cutoff
frequency, size the bypass capacitor to 10 times that of the input capacitor.
Ci Cbypass / 10
Bypass Capacitor Value Selection
Besides minimizing the input capacitor size, careful consideration should be paid to value of Cbypass, the
capacitor connected to the BYPASS pin. Since Cbypass determines how fast the LY8897 settles to quiescent
operation, its value is critical when minimizing turn-on pops. The slower the LY8897’s outputs ramp to their
quiescent DC voltage (nominally 1/2 VDD), the smaller the turn-on pop. Choosing Cbypass value equal 1.0 to
10 uF along with a small value of Ci (in the range of 1 nF to 0.39 μF), produces a click-less and pop-less
shutdown function. As discussed above, choosing Ci no larger than necessary for the desired bandwith helps
minimize clicks and pops. Therefore, increasing the bypass capacitor reduces clicking and popping noise
from power on/off and entering and leaving shutdown. To have minimal pop, Cbypass should be 10 times
larger than Ci.
Cbypass Ci x 10
Table 2. CBYPASS Reference Component Values
SYMBOL
TEST CONDITION
MIN.
TYP.
940
550
190
158
780
480
180
126
MAX. UNIT
PARAMETER
VDD=5.0V,
Cbypass = 10μf
Cbypass = 4.7μf
Cbypass = 2.2μf
-
-
-
-
-
-
-
-
-
-
-
Ci=0.1uF,
Ri=20K,
Av=10
Start-up time
from shutdown
C
bypass = 1.0μf
-
ZI
ms
VDD=3.7V,
Ci=0.1uF,
Ri=20K,
Av=10
Cbypass = 10μf
Cbypass = 4.7μf
Cbypass = 2.2μf
Cbypass = 1.0μf
-
-
-
-
Power Supply Bypassing Capacitor
As with any amplifier, proper supply bypassing is critical for low noise performance and high power supply
rejection. The capacitor location on both the bypass and power supply pins should be as close to the device
as possible.
The LY8897 is a mono class AB audio amplifier that requires adequate power supply decoupling to ensure
the efficiency is high and total harmonic distortion (THD) is low. For higher frequency transients, spikes, or
digital hash on the line, a good low equivalent-series-resistance ceramic capacitor or electrolytic capacitors,
typically 10~220uF, placed as close as possible to the device VDD lead works best. Placing 0.1uF decoupling
capacitor close to the LY8897 is very important for the efficiency of the class AB amplifier, because any
resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency and
protect device damage. For filtering lower-frequency noise signals, a 10.0uF or greater capacitor placed near
the audio power amplifier would also help, but it is not required in most applications because of the high
PSRR of this device.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
12
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Shutdown Function
When the LY8897 not in use. The device will be to turn off the amplifier to reduce power consumption. When
logic low is applied to the shutdown pin, this shutdown feature will turns the amplifier off. By switching the
shutdown pin connected to GND, the device supply current draw will be minimized in idle mode. The pin
cannot be left floating due to the internal did not pull-up.
Over-Heat Protection
The LY8897 has a built-in over-heat protection circuit , it will turn off all power output when the chip
temperature over 160, the chip will return to normal operation automatically after the temperature cool down
to 130.
PCB LAYOUT
All the external components must place very close to the LY8897. The input resistors need to be very close to
the LY8897 input pins so noise does not couple on the high impedance nodes between the input resistors and
the input amplifier of the LY8897. Then place the decoupling capacitor Cs, close to the LY8897 is important
for the efficiency of the class AB amplifier. Any resistance or inductance in the trace between the device and
the capacitor can cause a loss in efficiency.
Making the high current traces going to VDD, GND, VO+ and VO- pins of the LY8897 should be as wide as
possible to minimize trace resistance. If these traces are too thin, the LY8897's performance and output
power will decrease. The input traces do not need to be wide, but do need to run side-by-side to enable
common-mode noise cancellation.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
13
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
„
DEMO BOARD INFORMATION
Demo Board Application Circuit :
Figure 8. LY8897 Demo Board Application Circuit
Demo Board BOM List :
LY8897 V2.0 BOM List (Stereo Mode)
No.
Description
Reference
R1, R4A
(R2,R3 DF input only)
R5
C1, C4
Note
1
2
3
Resistor, 20Kꢀ
Resistor, 100Kꢀ
Capacitor, 0.1uF
1/16W,1%
1/16W,1%
80%/20%, non polarized
(C2 DF input only)
4
Capacitor, 1.0uF
C3
80%/20%, non polarized
25V,105,8x11,EC Cap.
LY8897X or LY8897U
Pitch 2.54 mm
5
6
7
Capacitor, 10.0uF
IC
1*2 Pin Header
C5
U1
J1
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
14
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
Demo Board Artwork :
Top Silkscreen
Top Layer
Composite view
Bottom Layer
(*3) When driving 4loads from 4.2V~5V power supply, the device must be mounted to a circuit board.
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
15
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
PACKAGE OUTLINE DIMENSION
8 Pin EMSOP Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
16
®
LY8897
2.7 Watt Audio Power Amplifier
Rev. 1.1
8 pin 25.6 mil MSOP Package Outline Dimension
Lyontek Inc. reserves the rights to change the specifications and products without notice.
5F, No. 2, lndustry E . Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan
TEL: 886-3-6668838
FAX: 886-3-6668836
17
厂商 型号 描述 页数 下载

LYONTEK

LY8005 2.3 3W单声道无滤波器D类音频功率放大器( MSOP )[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

LY8005UL 2.3 3W单声道无滤波器D类音频功率放大器( MSOP )[ 2.3 W Mono Filterless Class D Audio power Amplifier (MSOP) ] 22 页

LYONTEK

LY8006 1.4 3W单声道无滤波器D类音频功率放大器( MSOP / DFN ) - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) -Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

LY8006BL 1.4 3W单声道无滤波器D类音频功率放大器( MSOP / DFN ) - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) -Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

LY8006UL 1.4 3W单声道无滤波器D类音频功率放大器( MSOP / DFN ) - 兼容LY8890 / 8891 / 8891B单端输入[ 1.4 W Mono Filterless Class D Audio power Amplifier (MSOP / DFN) -Compatible with LY8890/8891/8891B Single-Ended Input ] 16 页

LYONTEK

LY8009VL [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

LY8009_12 [ 5.5W Mono Filterless Class D Audio power Amplifier ] 17 页

LYONTEK

LY8010 为2.5W单声道无滤波器D类音频功率放大器( WCSP封装/ DFN )[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

LY8010BL 为2.5W单声道无滤波器D类音频功率放大器( WCSP封装/ DFN )[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

LYONTEK

LY8010CL 为2.5W单声道无滤波器D类音频功率放大器( WCSP封装/ DFN )[ 2.5 W Mono Filterless Class D Audio power Amplifier (WCSP / DFN) ] 24 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.179399s
