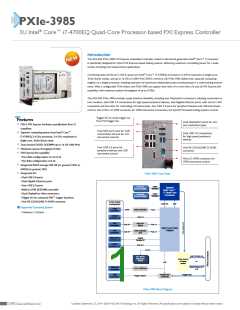

PXIe-3985
3U Intel® Core™ i7-4700EQ Quad-Core Processor-based PXI Express Controller
Introduction
The ADLINK PXIe-3985 PXI Express embedded controller, based on the fourth generation Intel® Core™ i7 processor
is specifically designed for hybrid PXI Express-based testing systems, delivering maximum computing power for a wide
variety of testing and measurement applications.
Combining state-of-the-art 2.4GHz quad-core Intel® Core™ i7-4700EQ processors (3.4GHz maximum in single-core,
Turbo Boost mode), and up to 16 GB of 1600 MHz DDR3L memory, the PXIe-3985 utilizes four separate computing
engines on a single processor, enabling execution of numerous independent tasks simultaneously in a multi-tasking environ-
ment. With a configurable PCIe switch, the PXIe-3985 can support four links x4 or two links x16 and x8 PXI Express link
capability, with maximum system throughput of up to 8 GB/s.
The ADLINK PXIe-3985 provides ample interface flexibility, including two DisplayPort connectors, allowing connection to
two monitors, dual USB 3.0 connections for high speed peripheral devices, dual Gigabit Ethernet ports, with one for LAN
connection and the other for controlling LXI instruments, four USB 2.0 ports for peripheral devices and USB instrument
control, and a Micro-D GPIB connector for GPIB instrument connection, for hybrid PXI-based testing systems control.
Trigger I/O to route trigger to/
from PXI trigger bus
Features
Dual DisplayPort ports for vari-
■
PXI-5 PXI Express hardware specification Rev.1.0
ous connection types
compliant
Dual GbE ports (one for LAN
connectivity and one for LXI
instrument control)
Superior computing power from Intel® Core™
■
Dual USB 3.0 connections
for high speed peripheral
devices
i7-4700EQ 2.4 GHz processor, 3.4 GHz maximum in
single-core, Turbo Boost mode
■
■
■
Dual channel DDR3L SODIMM up to 16 GB 1600 MHz
Maximum system throughput 8 GB/s
PXI Express link capability
Four USB 2.0 ports for
peripheral devices and USB
instrument control
One RS-232/422/485 D-SUB9
connector
•Four links configuration: x4 x4 x4 x4
•Two links configuration: x16 x8
Integrated SATA storage: 500 GB (or greater) HDD or
240GB (or greater) SSD
Micro-D GPIB connector for
GPIB instrument control
■
■
Integrated I/O
PXIe-3985 Front Panel
•Dual USB 3.0 ports
•Dual Gigabit Ethernet ports
•Four USB 2.0 ports
Channel A
204 pin SODIMM
DDR3
1600MHz
Haswell
Intel® Core™
i7 Quad Core
Processor
•Built-in GPIB (IEEE488) controller
•Dual DisplayPort video connectors
•Trigger I/O for advanced PXI™ trigger functions
•One RS-232/422/485 D-SUB9 connector
Channel B
204 pin SODIMM
DDR3
1600MHz
Front Panel
Connectors
Intel FDI
DMI
■ꢀSupported Operating System
•ꢀWindows 7 x32/x64
GPIB
GPIB
GPIB controller
USB 2.0
PCIe
connector
ꢀ
USB2,0
connector x4
GbE
connector
GbE PHY
82579
GbE I/F
PCIe x1
PCIe x1
Intel® Lynx Point
Chipset
GbE
connector
GbE controller
I210
GbE I/F
DisplayPort
Digital
connector x2
Display I/F
USB3.0
connector x2
USB 3.0
SATA
Gen2 4Links x4
2.5" SATA
Interposer
Board
PCIe Gen2.0
48 lanes
swtich
or
LPC
Gen2 2Links x8 +
x16
COM Port
connector
LPC- COM Port
Trigger Signal
Trigger Bus
SMB
Connector
Trigger Bus
Controller
PXIe-3985 Block Diagram
1-5
