9ZXL1950BKLFT

型号：

9ZXL1950BKLFT

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

18 页

PDF大小：

296 K

下载PDF手册

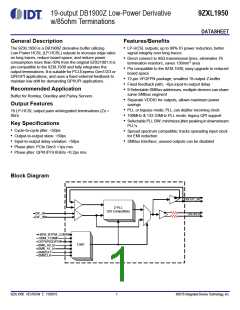

19-output DB1900Z Low-Power Derivative
w/85ohm Terminations
9ZXL1950
DATASHEET
General Description
Features/Benefits
The 9ZXL1950 is a DB1900Z derivative buffer utilizing
Low-Power HCSL (LP-HCSL) outputs to increase edge rates
on long traces, reduce board space, and reduce power
consumption more than 50% from the original 9ZX21901.It is
pin-compatible to the 9ZXL1930 and fully integrates the
output terminations. It is suitable for PCI-Express Gen1/2/3 or
QPI/UPI applications, and uses a fixed external feedback to
maintain low drift for demanding QPI/UPI applications.
• LP-HCSL outputs; up to 90% IO power reduction, better
signal integrity over long traces
• Direct connect to 85Ω transmission lines; eliminates 76
2
termination resistors, saves 130mm area
• Pin compatible to the 9ZXL1930; easy upgrade to reduced
board space
• 72-pin VFQFPN package; smallest 19-output Z-buffer
• Fixed feedback path; ~0ps input-to-output delay
Recommended Application
Buffer for Romley, Grantley and Purley Servers
• 9 Selectable SMBus addresses; multiple devices can share
same SMBus segment
• Separate VDDIO for outputs; allows maximum power
savings
Output Features
• PLL or bypass mode; PLL can dejitter incoming clock
• 100MHz & 133.33MHz PLL mode; legacy QPI support
19 LP-HCSL output pairs w/integrated terminations (Zo =
85
• Selectable PLL BW; minimizes jitter peaking in downstream
PLL's
Key Specifications
• Cycle-to-cycle jitter: <50ps
• Output-to-output skew: <50ps
• Spread spectrum compatible; tracks spreading input clock
for EMI reduction
• Input-to-output delay variation: <50ps
• Phase jitter: PCIe Gen3 <1ps rms
• Phase jitter: QPI/UPI 9.6GB/s <0.2ps rms
• SMBus Interface; unused outputs can be disabled
Block Diagram
FBOUT_NC
Z-PLL
(SS Compatible)
DIF_IN
DIF_IN#
DIF(18:0)
HIBW_BYPM_LOBW#
100M_133M#
CKPWRGD/PD#
SMB_A0_tri
SMB_A1_tri
SMBDAT
Logic
SMBCLK
9ZXL1950 REVISION E 11/20/15
1
©2015 Integrated Device Technology, Inc.
9ZXL1950 DATASHEET
Pin Configuration
72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55
DIF12#
DIF12
VDDIO
GND
VDDA
GNDA
1
2
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
^100M_133M# 3
^vHIBW_BYPM_LOBW# 4
CKPWRGD_PD# 5
GND 6
DIF11#
DIF11
DIF10#
DIF10
GND
VDDR 7
DIF_IN 8
9ZXL1950
(epad should be connected to GND and is
pin 73)
DIF_IN# 9
VDD
^SADR0_tri 10
SMBDAT 11
SMBCLK 12
DIF9#
DIF9
DIF8#
DIF8
^SADR1_tri 13
FBOUT_NC# 14
FBOUT_NC 15
GND 16
VDDIO
GND
DIF7#
DIF7
DIF0 17
N/A 1530
DIF0# 18
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
Note: Pins with ^ prefix have internal 120K pullup
Pins with v prefix have internal 120K pulldowm
Pins with ^v prefix have internal 120K pullup/pulldown (biased to VDD/2)
Power Management Table
Inputs
Outputs
Control Bits
PLL State
DIF_IN/
SMBus
DIFx/
FBOUT_NC/
CKPWRGD_PD#
DIF_IN#
EN bit
DIFx# FB_OUT_NC#
0
X
X
0
Low/Low
Low/Low
Low/Low
Running
OFF
ON
1
Running
1
Running
Running
ON
Power Connections
PLL Operating Mode
Pin Number
VDDIO
HiBW_BypM_LoBW# Byte0, bit (7:6)
Description
VDD
1
7
GND
2
6
Low ( PLL Low BW)
Mid (Bypass)
00
01
11
Analog PLL
Analog Input
High (PLL High BW)
16, 22, 27, 34,
39, 46, 51, 58,
63, 70, 73
NOTE: PLL is off in Bypass mode
21, 33, 40,
52, 57, 69
28, 45, 64
DIF clocks
Tri-level Input Thresholds
Level
Low
Mid
Voltage
<0.8V
1.2<Vin<1.8V
Vin > 2.2V
Functionality at Power-up (PLL mode)
DIF_IN
(MHz)
100.00
133.33
DIFx
(MHz)
DIF_IN
DIF_IN
100M_133M#
High
1
0
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
2
REVISION E 11/20/15
9ZXL1950 DATASHEET
Pin Descriptions
PIN #
1
2
PIN NAME
VDDA
GNDA
PIN TYPE
PWR
GND
DESCRIPTION
Power for the PLL core.
Ground pin for the PLL core.
3.3V Input to select operating frequency. This pin has an internal pull-up resistor.
See Functionality Table for Definition
3
4
^100M_133M#
IN
LATCHE
D IN
Trilevel input to select High BW, Bypass or Low BW mode.
See PLL Operating Mode Table for Details.
3.3V Input notifies device to sample latched inputs and start up on first high
assertion, or exit Power Down Mode on subsequent assertions. Low enters
Power Down Mode.
^vHIBW_BYPM_LOBW#
5
CKPWRGD_PD#
IN
6
7
GND
GND
PWR
Ground pin.
3.3V power for differential input clock (receiver). This VDD should be treated as
an analog power rail and filtered appropriately.
HCSL True input
VDDR
8
9
DIF_IN
DIF_IN#
IN
IN
HCSL Complementary Input
SMBus address bit. This is a tri-level input that works in conjunction with the
SADR1 to decode 1 of 9 SMBus Addresses. It has an internal 120Kohm pull up
resistor.
10
^SADR0_tri
IN
11
12
SMBDAT
SMBCLK
I/O
IN
Data pin of SMBUS circuitry, 5V tolerant
Clock pin of SMBUS circuitry, 5V tolerant
SMBus address bit. This is a tri-level input that works in conjunction with the
SADR0 to decode 1 of 9 SMBus Addresses. It has an internal 120Kohm pull up
resistor.
Complementary half of differential feedback output. This pin should NOT be
connected to anything outside the chip. It exists to provide delay path matching to
get 0 propagation delay.
13
14
15
^SADR1_tri
FBOUT_NC#
FBOUT_NC
IN
OUT
OUT
True half of differential feedback output. This pin should NOT be connected to
anything outside the chip. It exists to provide delay path matching to get 0
propagation delay.
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
GND
DIF0
GND
OUT
OUT
OUT
OUT
PWR
GND
OUT
OUT
OUT
OUT
GND
PWR
OUT
OUT
OUT
OUT
PWR
GND
OUT
OUT
Ground pin.
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Power supply for differential outputs
Ground pin.
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Ground pin.
Power supply, nominal 3.3V
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Power supply for differential outputs
Ground pin.
Differential true clock output
Differential Complementary clock output
DIF0#
DIF1
DIF1#
VDDIO
GND
DIF2
DIF2#
DIF3
DIF3#
GND
VDD
DIF4
DIF4#
DIF5
DIF5#
VDDIO
GND
DIF6
DIF6#
REVISION E 11/20/15
3
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
Pin Descriptions (cont.)
PIN #
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
PIN NAME
PIN TYPE
OUT
OUT
GND
PWR
OUT
OUT
OUT
OUT
PWR
GND
OUT
OUT
OUT
OUT
GND
PWR
OUT
OUT
OUT
OUT
PWR
GND
OUT
OUT
OUT
OUT
GND
PWR
OUT
OUT
OUT
OUT
PWR
GND
OUT
OUT
GND
DESCRIPTION
DIF7
DIF7#
GND
Differential true clock output
Differential Complementary clock output
Ground pin.
VDDIO
DIF8
Power supply for differential outputs
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Power supply, nominal 3.3V
Ground pin.
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Ground pin.
Power supply for differential outputs
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Power supply for differential outputs
Ground pin.
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Ground pin.
Power supply, nominal 3.3V
Differential true clock output
Differential Complementary clock output
Differential true clock output
Differential Complementary clock output
Power supply for differential outputs
Ground pin.
Differential true clock output
Differential Complementary clock output
Connect EPAD to ground.
DIF8#
DIF9
DIF9#
VDD
GND
DIF10
DIF10#
DIF11
DIF11#
GND
VDDIO
DIF12
DIF12#
DIF13
DIF13#
VDDIO
GND
DIF14
DIF14#
DIF15
DIF15#
GND
VDD
DIF16
DIF16#
DIF17
DIF17#
VDDIO
GND
DIF18
DIF18#
epad
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
4
REVISION E 11/20/15
9ZXL1950 DATASHEET
Electrical Characteristics–Absolute Maximum Ratings
PARAMETER
SYMBOL
CONDITIONS
UNITS NOTES
MIN
TYP
MAX
3.3V Core Supply Voltage VDDA, R
4.6
4.6
4.6
V
V
V
V
1,2
1,2
1,2
1
3.3V Logic Supply Voltage
I/O Supply Voltage
VDD
VDDIO
VIL
Input Low Voltage
GND-0.5
Input High Voltage
Input High Voltage
VIH
Except for SMBus interface
SMBus clock and data pins
VDD+0.5V
5.5V
V
V
°C
°C
V
1
1
VIHSMB
1
1
1
Storage Temperature
Junction Temperature
Input ESD protection
Ts
Tj
ESD prot
-65
150
125
Human Body Model
2000
1Guaranteed by design and characterization, not 100% tested in production.
2 Operation under these conditions is neither implied nor guaranteed.
Electrical Characteristics–DIF_IN Clock Input Parameters
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS NOTES
Input Crossover Voltage -
DIF_IN
VCROSS
Cross Over Voltage
150
900
mV
1
Input Swing - DIF_IN
Input Slew Rate - DIF_IN
Input Leakage Current
Input Duty Cycle
VSWING
dv/dt
IIN
Differential value
Measured differentially
300
0.4
-5
mV
V/ns
uA
1
8
5
1,2
VIN = VDD , VIN = GND
dtin
Measurement from differential wavefrom
45
0
55
125
%
1
1
Input Jitter - Cycle to Cycle
JDIFIn
Differential Measurement
ps
1 Guaranteed by design and characterization, not 100% tested in production.
2Slew rate measured through +/-75mV window centered around differential zero
Electrical Characteristics–Current Consumption
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS NOTES
Ω
Ω
Ω
mA
mA
mA
mA
mA
mA
IDDVDD
IDDVDDA/R
IDDVDDIO
All outputs 100MHz, CL = 2pF; Zo = 85
All outputs 100MHz, CL = 2pF; Zo = 85
All outputs 100MHz, CL = 2pF; Zo = 85
All differential pairs low-low
20
15
35
20
185
6
Operating Supply Current
142
2.2
4.5
0.1
IDDVDDPD
IDDVDDA/RPD
IDDVDDIOPD
Powerdown Current
All differential pairs low-low
9
All differential pairs low-low
1
REVISION E 11/20/15
5
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
Electrical Characteristics–Input/Supply/Common Output Parameters
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS NOTES
°C
Ambient Operating
Temperature
TCOM
Commmercial range
0
35
70
Single-ended inputs, except SMBus, low
threshold and tri-level inputs
Single-ended inputs, except SMBus, low
threshold and tri-level inputs
Input High Voltage
Input Low Voltage
VIH
2
V
DD + 0.3
V
VIL
IIN
GND - 0.3
-5
0.8
5
V
Single-ended inputs, VIN = GND, VIN = VDD
uA
Single-ended inputs
IN = 0 V; Inputs with internal pull-up resistors
Input Current
V
IINP
-200
200
uA
VIN = VDD; Inputs with internal pull-down resistors
Fibyp
Fipll
VDD = 3.3 V, Bypass mode
VDD = 3.3 V, 100MHz PLL mode
VDD = 3.3 V, 133.33MHz PLL mode
33
90
150
110
147
7
MHz
MHz
MHz
nH
2
2
Input Frequency
Pin Inductance
Capacitance
100.00
133.33
Fipll
120
2
Lpin
1
CIN
Logic Inputs, except DIF_IN
DIF_IN differential clock inputs
1.5
1.5
5
pF
1
CINDIF_IN
2.7
pF
1,4
COUT
Output pin capacitance
6
pF
1
From VDD Power-Up and after input clock
stabilization or de-assertion of PD# to 1st clock
Clk Stabilization
TSTAB
0.65
1
ms
2
Input SS Modulation
Frequency
Allowable Frequency
(Triangular Modulation)
fMODIN
30
31.5
25
33
kHz
us
DIF output enable after
PD# de-assertion
Tdrive_PD#
tDRVPD
300
1,3
Tfall
tF
Fall time of control inputs
5
5
ns
ns
V
1,2
1,2
Trise
tR
Rise time of control inputs
SMBus Input Low Voltage
SMBus Input High Voltage
VILSMB
VIHSMB
0.8
2.1
VDDSMB
0.4
V
SMBus Output Low Voltage VOLSMB
@ IPULLUP
@ VOL
V
SMBus Sink Current
Nominal Bus Voltage
SCLK/SDATA Rise Time
IPULLUP
VDDSMB
tRSMB
4
mA
V
3V to 5V +/- 10%
2.7
5.5
1000
300
(Max VIL - 0.15) to (Min VIH + 0.15)
(Min VIH + 0.15) to (Max VIL - 0.15)
ns
ns
1
1
SCLK/SDATA Fall Time
SMBus Operating
Frequency
tFSMB
fSMB
SMBus operating frequency
100
kHz
5
1Guaranteed by design and characterization, not 100% tested in production.
2Control input must be monotonic from 20% to 80% of input swing.
3Time from deassertion until outputs are >200 mV
4DIF_IN input
5The differential input clock must be running for the SMBus to be active
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
6
REVISION E 11/20/15
9ZXL1950 DATASHEET
Electrical Characteristics–DIF 0.7V Low Power Differential Outputs
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
Trf
CONDITIONS
MIN
1.5
TYP MAX UNITS NOTES
V/ns
%
Slew rate
Slew rate matching
Scope averaging on
Slew rate matching.
2.7
8.8
4
20
1, 2, 3
1, 2, 4
∆
Trf
Statistical measurement on single-ended signal
using oscilloscope math function. (Scope
averaging on)
Voltage High
Voltage Low
VHigh
VLow
660
787
33
850
mV
-150
150
Max Voltage
Min Voltage
Crossing Voltage (abs)
Crossing Voltage (var)
Vmax
Vmin
Vcross_abs
Single ended signal using absolute value.
Includes 300mV of over/undershoot. (Scope
845
9
471
14
1150
mV
-300
250
Scope averaging off
Scope averaging off
550
140
mV
mV
1, 5
1, 6
∆
-Vcross
1
Ω
Guaranteed by design and characterization, not 100% tested in production. CL = 2pF with Zo = 85 differential trace impedance.
2 Measured from differential waveform
3 Slew rate is measured through the Vswing voltage range centered around differential 0V. This results in a +/-150mV window around
differential 0V.
4 Matching applies to rising edge rate for Clock and falling edge rate for Clock#. It is measured using a +/-75mV window centered on
the average cross point where Clock rising meets Clock# falling. The median cross point is used to calculate the voltage thresholds the
oscilloscope is to use for the edge rate calculations.
5 Vcross is defined as voltage where Clock = Clock# measured on a component test board and only applies to the differential rising
edge (i.e. Clock rising and Clock# falling).
6 The total variation of all Vcross measurements in any particular system. Note that this is a subset of Vcross_min/max (Vcross
∆
absolute) allowed. The intent is to limit Vcross induced modulation by setting -Vcross to be smaller than Vcross absolute.
Clock Periods–Differential Outputs with Spread Spectrum Disabled
Measurement Window
1 Clock
1us
-SSC
0.1s
- ppm
0.1s
0.1s
+ ppm
Long-Term
Average
Max
1us
+SSC
Short-Term
Average
Max
1 Clock
Center
Freq.
MHz
SSC OFF
-c2c jitter
AbsPer
Min
0 ppm
Period
Nominal
+c2c jitter Units Notes
AbsPer
Max
Short-Term Long-Term
Average
Min
Average
Min
100.00
133.33
9.94900
7.44925
9.99900
7.49925
10.00000
7.50000
10.00100
7.50075
10.05100
7.55075
ns
ns
1,2,3
1,2,4
DIF
Clock Periods–Differential Outputs with Spread Spectrum Enabled
Measurement Window
1 Clock
1us
-SSC
0.1s
- ppm
0.1s
0.1s
+ ppm
Long-Term
Average
Max
1us
+SSC
Short-Term
Average
Max
1 Clock
Center
Freq.
MHz
SSC ON
-c2c jitter
AbsPer
Min
0 ppm
Period
Nominal
+c2c jitter Units Notes
AbsPer
Max
Short-Term Long-Term
Average
Min
Average
Min
99.75
133.00
9.94906
7.44930
9.99906
7.49930
10.02406
7.51805
10.02506
7.51880
10.02607
7.51955
10.05107
7.53830
10.10107
7.58830
ns
ns
1,2,3
1,2,4
DIF
Notes:
1 Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy specifications are guaranteed with the assumption that the input clock complies with CK420BQ/CK410B+
accuracy requirements (+/-100ppm). The 9ZXL1950 itself does not contribute to ppm error.
3
Driven by SRC output of main clock, 100 MHz PLL Mode or Bypass mode
4
Driven by CPU output of main clock, 133 MHz PLL Mode or Bypass mode
REVISION E 11/20/15
7
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
Electrical Characteristics–Skew and Differential Jitter Parameters
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
tSPO_PLL
CONDITIONS
MIN
-150
TYP
-117
MAX
-50
UNITS NOTES
Input-to-Output Skew in PLL mode
nominal value @ 35°C, 3.3V, 100MHz
Input-to-Output Skew in Bypass mode
nominal value @ 35°C, 3.3V
CLK_IN, DIF[x:0]
ps
ns
ps
1,2,4,5,8
1,2,3,5,8
1,2,3,5,8
CLK_IN, DIF[x:0]
CLK_IN, DIF[x:0]
tPD_BYP
2.5
-50
3.6
0
4.5
50
Input-to-Output Skew Varation in PLL mode
across voltage and temperature
tDSPO_PLL
Input-to-Output Skew Varation in Bypass mode
across temperature for a given voltage
CLK_IN, DIF[x:0]
CLK_IN, DIF[x:0]
CLK_IN, DIF[x:0]
DIF[x:0]
tDSPO_BYP
-250
0
1
250
5
ps
1,2,3,5,8
1,2,3,5,8
1,2,3,5,8
1,2,3,8
Random Differential Tracking error beween two
9ZX devices in Hi BW Mode
ps
(rms)
tDTE
Random Differential Spread Spectrum Tracking
error beween two 9ZX devices in Hi BW Mode
tDSSTE
5
75
50
ps
Output-to-Output Skew across all outputs
(Common to Bypass and PLL mode). 100MHz
LOBW#_BYPASS_HIBW = 1
tSKEW_ALL
37
ps
PLL Jitter Peaking
PLL Jitter Peaking
PLL Bandwidth
PLL Bandwidth
Duty Cycle
jpeak-hibw
jpeak-lobw
pllHIBW
pllLOBW
tDC
0
0
1.8
0.7
3.3
1.2
50
2.5
2
dB
dB
7,8
7,8
8,9
8,9
1
LOBW#_BYPASS_HIBW = 0
LOBW#_BYPASS_HIBW = 1
LOBW#_BYPASS_HIBW = 0
2
4
MHz
MHz
%
0.7
45
1.4
55
Measured differentially, PLL Mode
Measured differentially, Bypass Mode
@100MHz
Duty Cycle Distortion
Jitter, Cycle to cycle
tDCD
0
0.7
1.5
%
1,10
PLL mode
12
0
50
10
ps
ps
1,11
1,11
tjcyc-cyc
Additive Jitter in Bypass Mode
Notes for preceding table:
1
Measured into fixed 2 pF load cap. Input to output skew is measured at the first output edge following the corresponding input.
Measured from differential cross-point to differential cross-point. This parameter can be tuned with external feedback path, if present.
All Bypass Mode Input-to-Output specs refer to the timing between an input edge and the specific output edge created by it.
2
3
4 This parameter is deterministic for a given device
5
Measured with scope averaging on to find mean value.
6. t is the period of the input clock
7 Measured as maximum pass band gain. At frequencies within the loop BW, highest point of magnification is called PLL jitter peaking.
8.
Guaranteed by design and characterization, not 100% tested in production.
9
Measured at 3 db down or half power point.
10 Duty cycle distortion is the difference in duty cycle between the output and the input clock when the device is operated in bypass mode.
11 Measured from differential waveform
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
8
REVISION E 11/20/15
9ZXL1950 DATASHEET
Electrical Characteristics–Phase Jitter Parameters
TA = TCOM; Supply Voltage VDD/VDDA = 3.3 V +/-5%, VDDIO = 1.05 to 3.3V +/-5%. See Test Loads for Loading Conditions
PARAMETER
SYMBOL
tjphPCIeG1
CONDITIONS
PCIe Gen 1
PCIe Gen 2 Lo Band
10kHz < f < 1.5MHz
MIN
TYP
34
MAX
86
UNITS
ps (p-p)
ps
(rms)
ps
(rms)
ps
(rms)
ps
(rms)
ps
(rms)
ps
Notes
1,2,3
1.2
2.1
0.5
0.2
0.1
3
3.1
1
1,2
1,2
tjphPCIeG2
PCIe Gen 2 High Band
1.5MHz < f < Nyquist (50MHz)
PCIe Gen 3
tjphPCIeG3
1,2,4
1,5
Phase Jitter, PLL Mode
(PLL BW of 2-4MHz, CDR = 10MHz)
QPI & SMI
(100MHz or 133MHz, 4.8Gb/s, 6.4Gb/s 12UI)
QPI & SMI
0.5
0.3
tjphQPI_SMI
1,5
(100MHz, 8.0Gb/s, 12UI)
QPI & SMI
(100MHz, 9.6Gb/s, 12UI)
0.1
0.1
0.1
0.2
10
1,5
(rms)
tjphPCIeG1
PCIe Gen 1
PCIe Gen 2 Lo Band
10kHz < f < 1.5MHz
ps (p-p)
ps
(rms)
ps
(rms)
ps
(rms)
ps
(rms)
ps
(rms)
ps
1,2,3
1,2,6
0.3
tjphPCIeG2
PCIe Gen 2 High Band
1.5MHz < f < Nyquist (50MHz)
PCIe Gen 3
0.1
0.0
0.0
0.0
0.0
0.7
1,2,6
1,2,4,6
1,5,6
0.3
AdditivePhase Jitter,
tjphPCIeG3
(PLL BW of 2-4MHz, CDR = 10MHz)
QPI & SMI
(100MHz or 133MHz, 4.8Gb/s, 6.4Gb/s 12UI)
QPI & SMI
Bypass mode
0.3
0.1
0.1
tjphQPI_SMI
1,5,6
(100MHz, 8.0Gb/s, 12UI)
QPI & SMI
(100MHz, 9.6Gb/s, 12UI)
1,5,6
(rms)
1 Applies to all outputs.
2 See http://www.pcisig.com for complete specs
3 Sample size of at least 100K cycles. This figures extrapolates to 108ps pk-pk @ 1M cycles for a BER of 1-12.
4 Subject to final ratification by PCI SIG.
5 Calculated from Intel-supplied Clock Jitter Tool v 1.6.4
6 For RMS figures, additive jitter is calculated by solving the following equation: (Additive jitter)^2 = (total jittter)^2 - (input jitter)^2
Test Loads
Differential Output Terminations
Ω
Ω
Rs ( )
DIF Zo ( )
85
Internal
7.5
(External)
100
9ZXL Differential Test Loads
Zo = 85Dif.,
10 inches
Rs
Rs
2pF
2pF
LP-HCSL
Differential
Output
REVISION E 11/20/15
9
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
General SMBus Serial Interface Information
How to Write
How to Read
• Controller (host) sends a start bit
• Controller (host) sends the write address
• IDT clock will acknowledge
• Controller (host) will send a start bit
• Controller (host) sends the write address
• IDT clock will acknowledge
• Controller (host) sends the beginning byte location = N
• IDT clock will acknowledge
• Controller (host) sends the beginning byte location = N
• IDT clock will acknowledge
• Controller (host) sends the byte count = X
• IDT clock will acknowledge
• Controller (host) starts sending Byte N through Byte
N+X-1
• Controller (host) will send a separate start bit
• Controller (host) sends the read address
• IDT clock will acknowledge
• IDT clock will send the data byte count = X
• IDT clock sends Byte N+X-1
• IDT clock will acknowledge each byte one at a time
• Controller (host) sends a Stop bit
• IDT clock sends Byte 0 through Byte X (if X was
written to Byte 8)
(H)
• Controller (host) will need to acknowledge each byte
• Controller (host) will send a not acknowledge bit
• Controller (host) will send a stop bit
Index Block Write Operation
Index Block Read Operation
Controller (Host)
IDT (Slave/Receiver)
Controller (Host)
starT bit
IDT (Slave/Receiver)
T
starT bit
T
Slave Address
Slave Address
WRite
WR
WRite
WR
ACK
ACK
ACK
ACK
ACK
ACK
Beginning Byte = N
Data Byte Count = X
Beginning Byte N
Beginning Byte = N
RT
Repeat starT
Slave Address
ReaD
RD
ACK
O
O
O
O
O
O
Data Byte Count=X
Beginning Byte N
ACK
ACK
Byte N + X - 1
ACK
O
O
O
P
stoP bit
O
O
O
Byte N + X - 1
N
P
Not acknowledge
stoP bit
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS 10
REVISION E 11/20/15
9ZXL1950 DATASHEET
9ZXL1950 SMBus Addressing
SADR(1:0)_tri
SMBus Address (Rd/Wrt bit = 0)
00
0M
01
M0
MM
M1
10
D8
DA
DE
C2
C4
C6
CA
CC
CE
1M
11
SMBusTable: PLL Mode, and Frequency Select Register
Byte 0
Bit 7
Pin #
4
4
72/71
68/67
66/65
Name
Control Function
PLL Operating Mode Rd back 1
PLL Operating Mode Rd back 0
Output Control
Output Control
Output Control
Reserved
Reserved
Frequency Select Readback
Type
R
R
RW
RW
RW
0
1
Default
Latch
Latch
1
PLL Mode 1
PLL Mode 0
DIF_18_En
DIF_17_En
DIF_16_En
See PLL Operating Mode
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Readback Table
Low/Low
Low/Low
Low/Low
Enable
Enable
Enable
1
1
0
0
133MHz
100MHz
3
100M_133M#
Latch
R
SMBusTable: Output Control Register
Byte 1
Bit 7
Pin #
38/37
Name
Control Function
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
Default
DIF_7_En
DIF_6_En
DIF_5_En
DIF_4_En
DIF_3_En
DIF_2_En
DIF_1_En
DIF_0_En
1
1
1
1
1
1
1
1
35/36
31/32
29/30
25/26
23/24
19/20
17/18
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Low/Low
Enable
SMBusTable: Output Control Register
Byte 2
Bit 7
Pin #
62/61
Name
Control Function
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Output Control
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
Default
DIF_15_En
DIF_14_En
DIF_13_En
DIF_12_En
DIF_11_En
DIF_10_En
DIF_9_En
DIF_8_En
1
1
1
1
1
1
1
1
60/59
56/55
54/53
50/49
48/47
44/43
42/41
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Low/Low
Enable
SMBusTable: PLL SW Override Control Register
Byte 3
Bit 7
Pin #
Name
Control Function
Reserved
Type
0
1
Default
0
0
0
0
0
1
1
0
Reserved
Reserved
Reserved
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Note:
PLL_SW_EN
PLL Mode 1
PLL Mode 0
Enable S/W control of PLL BW
PLL Operating Mode 1
PLL Operating Mode 1
Reserved
RW
RW
RW
HW Latch
See PLL Operating Mode
SMBus Control
Readback Table
Setting bit 3 to '1' allows the user to overide the Latch value from pin 4 via use of bits 2 and 1. Use the values from the PLL Operating
Mode Readback Table. Note that Byte 0, Bits 7:6 will keep the value originally latched on pin 4. A warm reset of the system will have to
accomplished if the user changes these bits.
REVISION E 11/20/15
11
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
SMBusTable: Reserved Register
Byte 4
Bit 7
Pin #
Name
Control Function
Reserved
Type
0
1
Default
0
0
0
0
0
0
0
0
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
SMBusTable: Vendor & Revision ID Register
Byte 5
Bit 7
Pin #
-
Name
RID3
RID2
RID1
RID0
VID3
VID2
VID1
VID0
Control Function
Type
R
R
R
R
R
R
R
R
0
1
Default
X
X
X
X
0
0
0
1
A rev = 0000
B rev = 0001
etc.
-
-
-
-
-
-
-
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
REVISION ID
-
-
-
-
-
-
-
-
VENDOR ID
SMBusTable: DEVICE ID
Byte 6 Pin #
Bit 7
Name
Control Function
Device ID 7 (MSB)
Type
R
R
R
R
R
R
R
R
0
1
Default
-
1
1
0
0
0
0
1
1
-
-
-
-
-
-
-
Device ID 6
Device ID 5
Device ID 4
Device ID 3
Device ID 2
Device ID 1
Device ID 0
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
1950 is 195 Decimal
or C3 Hex
1550 is 155 Decimal
or 9B Hex
SMBusTable: Byte Count Register
Byte 7
Bit 7
Pin #
Name
Control Function
Reserved
Type
0
1
Default
0
0
0
0
1
0
0
0
Reserved
Reserved
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
-
BC4
BC3
BC2
BC1
BC0
RW
RW
RW
RW
RW
Default value is 8 hex, so 9
bytes (0 to 8) will be read back
by default.
-
-
-
-
Writing to this register configures how
many bytes will be read back.
SMBusTable: Reserved Register
Byte 8 Pin # Name
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Control Function
Reserved
Type
0
1
Default
0
0
0
0
0
0
0
0
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS 12
REVISION E 11/20/15
9ZXL1950 DATASHEET
Alternate Terminations
The 9ZXL1950 can be terminated to other logic families. See “AN-891 Driving LVPECL, LVDS, and CML Logic with IDT's
"Universal" Low-Power HCSL Outputs” for details.
Marking Diagram
ICS
9ZXL1950BKLF
LOT
YYWW
Notes:
1. “LOT” denotes the lot number.
2. “YYWW” is the last two digits of the year and week that the part was assembled.
3. “LF” denotes RoHS compliant package.
4. Bottom marking: country of origin if not USA.
REVISION E 11/20/15
13
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
Package Outline and Package Dimensions (NLG72)
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS 14
REVISION E 11/20/15
9ZXL1950 DATASHEET
Package Outline and Package Dimensions (NLG72), cont. Use EPAD Option P1.
REVISION E 11/20/15
15
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
9ZXL1950 DATASHEET
Package Outline and Package Dimensions (NLG72), cont. Use P1 EPAD 5.9mm SAWN pattern.
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS 16
REVISION E 11/20/15
9ZXL1950 DATASHEET
Ordering Information
Part / Order Number Shipping Package
Package
72-pin VFQFPN
72-pin VFQFPN
Temperature
0 to +70°C
0 to +70°C
9ZXL1950BKLF
9ZXL1950BKLFT
Trays
Tape and Reel
“LF” suffix to the part number are the Pb-Free configuration and are RoHS compliant.
“B” is the device revision designator (will not correlate with the datasheet revision).
Revision History
Rev. Issuer Issue Date Description
Page #
A
B
C
RDW
RDW
RDW
3/11/2014 Moved to final.
1. Cleaned up output pin names to be DIFxx instead of DIF_xx
2. Updated electrical tables to new format
3/7/2015 3. Updated ordering info to B rev along with Rev ID.
4. Updated termination schemes for driving LVDS.
5. Minor cleanup/reformatting of DS, including front page text.
6/16/2015 Added landing pattern from POD
Various
17
1,8
2
1. Tightened O2O spec from 75 to 50ps
2. Added epad (pin 73) to power connections table
3. Updated pin 73 pin name from "GND" to "epad"
4
4. Clarified SMBus operating frequency by removing the word "Maximum"
and updated the symbol from fMINSMB to fSMB
5. Tightened duty cycle distortion and additive cycle to cycle jitter specs
6. Updated Rs from 7 to 7.5 ohms in Test Loads Table
7. Replaced LVDS termination info with reference to AN891.
6
D
E
RDW
RDW
7/30/2015
8
9
13
1. Updated QPI references to QPI/UPI
11/20/2015
1,5
2. Updated DIF_IN table to match PCI SIG specification, no silicon change
REVISION E 11/20/15
17
19-OUTPUT DB1900Z LOW-POWER DERIVATIVE W/85OHM TERMINATIONS
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Support
www.idt.com/go/support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2015 Integrated Device Technology, Inc.. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		9ZX21201 12 ，输出差分Z缓冲的第二代PCIe / 3和QPI[ 12-OUTPUT DIFFERENTIAL Z-BUFFER FOR PCIE GEN2/3 AND QPI ] 16 页

IDT

 		9ZX21201AKLF 12 ，输出差分Z缓冲的第二代PCIe / 3和QPI[ 12-OUTPUT DIFFERENTIAL Z-BUFFER FOR PCIE GEN2/3 AND QPI ] 16 页

IDT

 		9ZX21201AKLFT 12 ，输出差分Z缓冲的第二代PCIe / 3和QPI[ 12-OUTPUT DIFFERENTIAL Z-BUFFER FOR PCIE GEN2/3 AND QPI ] 16 页

IDT

 		9ZX21201BKLF 12 ，输出差分Z缓冲的第二代PCIe / 3和QPI[ 12-OUTPUT DIFFERENTIAL Z-BUFFER FOR PCIE GEN2/3 AND QPI ] 16 页

IDT

 		9ZX21201BKLFT 12 ，输出差分Z缓冲的第二代PCIe / 3和QPI[ 12-OUTPUT DIFFERENTIAL Z-BUFFER FOR PCIE GEN2/3 AND QPI ] 16 页

IDT

 		9ZX21501B 15输出差分Zbuffer的第二代PCIe / 3和QPI[ 15-Output Differential Zbuffer for PCIe Gen2/3 and QPI ] 16 页

IDT

 		9ZX21501BKLF 15输出差分Zbuffer的第二代PCIe / 3和QPI[ 15-Output Differential Zbuffer for PCIe Gen2/3 and QPI ] 16 页

IDT

 		9ZX21501BKLFT 15输出差分Zbuffer的第二代PCIe / 3和QPI[ 15-Output Differential Zbuffer for PCIe Gen2/3 and QPI ] 16 页

IDT

 		9ZX21901B 19 ，输出差分Zbuffer的第二代PCIe / 3和QPI[ 19-Output Differential Zbuffer for PCIe Gen2/3 and QPI ] 16 页

IDT

 		9ZX21901BKLF 19 ，输出差分Zbuffer的第二代PCIe / 3和QPI[ 19-Output Differential Zbuffer for PCIe Gen2/3 and QPI ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.192621s
