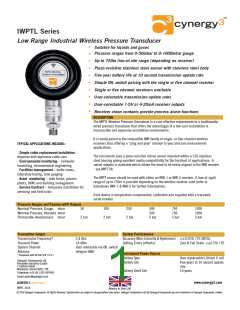

IWPTL Series
Low Range Industrial Wireless Pressure Transducer
Suitable for liquids and gases
Pressure ranges from 0-50mbar to 0-1000mbar gauge
Up to 750m line-of-site range (depending on receiver)
Piezo-resistive stainless steel sensor with stainless steel body
Five year battery life at 10 second transmission update rate
Simple DIL switch pairing with the single or five channel receiver
Single or five channel receivers available
User-selectable transmission update rates
User-selectable 1-5V or 4-20mA receiver outputs
Receiver clean contacts provide process alarm functions
DESCRIPTION
The IWPTL Wireless Pressure Transducer is a cost effective replacement to a traditionally
wired pressure transducer that offers the advantages of a low-cost installation in
inaccessible and expensive installation environments.
It is easily paired to the compatible IWR family of single- or five-channel wireless
receivers thus offering a “plug and play” solution to your pressure measurement
applications.
TYPICAL APPLICATIONS INCLUDE:-
- Simple cable replacement installation –
dispense with expensive cable runs
- Environmental monitoring – rainwater
harvesting, environmental engineering
- Facilities management – boiler rooms,
laboratory testing, tank gauging
- Asset monitoring – tank farms, process
plants, HVAC and building management
- Service Contract – temporary installation for
servicing and field trials
The instrument uses a piezo-resistive silicon sensor mounted within a 316 stainless
steel housing giving excellent media compatibility for the harshest of applications. A
swivel adaptor is available which allows the head to be easily aligned to the IWR receiver
- see IWPT-SA
The IWPT sensor should be used with either an IWR-1 or IWR-5 receiver. A line-of-sight
range of up to 750m is possible depending on the wireless receiver used (refer to
datasheets IWR-1 & IWR-5 for further information).
Each device is temperature compensated, calibrated and supplied with a traceable
serial number.
Pressure Ranges and Passive mV/V Outputs
Nominal Pressure, Gauge, mbar
Nominal Pressure, Absolute mbar
Permissible Overpressure mbar
50
100
250
500
500
5 bar
750
750
5 bar
1000
1000
5 bar
2 bar
2 bar
2 bar
Transmitter Output
Transmission Frequency*
Transmit Power
System Performance
Accuracy (Non-Linearity & Hysteresis) < 0.25% / FS (BFSL)
2.4 Ghz
18 dBm
User selectable via DIL switch
Setting Errors (offsets)
Zero & Full Scale, < 0.5% / FS
System Channel
Antenna
Integral 0dBi
Instrument Power Source
Battery Type
Battery Life
*Compliant with EN 300 328, V1.8.1
User replaceable Lithium C cell
Five years at 10 second update
rate
10 years
