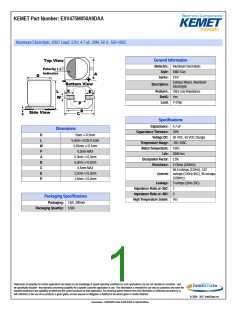

KEMET Part Number: EXV475M050A9DAA
Aluminum Electrolytic, 105C LowZ, EXV, 4.7 uF, 20%, 50 V, -55/+105C
General Information
Dielectric: Aluminum Electrolytic
Style: SMD Can
Series: EXV
Surface Mount, Aluminum
Description:
Electrolytic
Features: Ultra Low Impedance
RoHS: Yes
Lead: V-Chip
F
Specifications
Capacitance: 4.7 uF
Dimensions
Capacitance Tolerance: 20%
Voltage DC: 50 VDC, 63 VDC (Surge)
Temperature Range: -55/+105C
D
L
5mm +/-0.5mm
5.4mm +0.25/-0.1mm
0.65mm +/-0.1mm
0.3mm MAX
W
F
Rated Temperature: 105C
Life: 3000 Hrs
A
B
C
E
P
5.3mm +/-0.2mm
5.3mm +/-0.2mm
6.5mm MAX
Dissipation Factor: 12%
Resistance: 4 Ohms (100kHz)
66.5 mAmps (120Hz), 133
2.2mm +/-0.2mm
1.5mm +/-0.2mm
Current: mAmps (120Hz 85C), 95 mAmps
(100kHz)
Leakage: 3 uAmps (2min 20C)
Impedance Ratio at -25C:
Impedance Ratio at -40C:
2
3
Packaging Specifications
High Temperature Solder: Yes
Packaging: T&R, 380mm
Packaging Quantity: 1000
