EXV108M6R3A9PAA

型号：

EXV108M6R3A9PAA

品牌：

KEMET[ KEMET CORPORATION ]

页数：

19 页

PDF大小：

4191 K

下载PDF手册

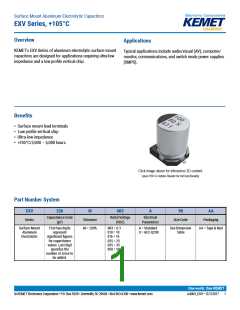

Surface Mount Aluminum Electrolytic Capacitors
EXV Series, +105°C
Overview
Applications
KEMET's EXV Series of aluminum electrolytic surface mount
capacitors are designed for applications requiring ultra-low
impedanceꢀandꢀaꢀlowꢀprofileꢀverticalꢀchip.
Typical applications include audio/visual (AV), computer/
monitor,ꢀcommunications,ꢀandꢀswitchꢀmodeꢀpowerꢀsuppliesꢀ
(SMPS).
Benefits
• Surface mount lead terminals
•ꢀ Lowꢀprofileꢀverticalꢀchip
• Ultra-low impedance
•ꢀ +105°C/3,000ꢀ–ꢀ5,000ꢀhours
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
EXV
226
M
6R3
A
9B
AA
Capacitance Code
(pF)
Rated Voltage
(VDC)
Electrical
Parameters
Series
Tolerance
M = ±20%
Size Code
Packaging
Surface Mount
Aluminum
Electrolytic
First two digits
represent
significantꢀfiguresꢀ
for capacitance
values. Last digit
specifiesꢀtheꢀ
6R3 = 6.3
010 = 10
016 = 16
025 = 25
035 = 35
050 = 50
A = Standard
S = AEC-Q200
See Dimension
Table
AA = Tape & Reel
number of zeros to
be added.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
1
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Dimensions – Millimeters
C
D
P
G
B
L
W
A
F
E
E
D
L
A/B
C
E
Size Code
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
9B
9D
9G
9H
9M
9P
4
5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
5.4
5.4
+0.25/−0.1
+0.25/−0.1
+0.25/−0.1
±0.3
4.3
5.3
6.6
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
5.5
6.5
7.8
7.8
10
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
1.8
2.2
2.6
2.6
3.4
3.5
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
6.3
6.3
8
5.4
7.7
6.6
10.2
10.2
±0.3
8.3
10.3
10
±0.3
13
F
G
P
W
Size Code
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
9B
9D
9G
9H
9M
9P
0.3
0.3
0.3
0.3
0.3
0.3
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
0.35
0.35
0.35
0.35
0.70
0.70
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
±0.2
1.0
1.5
1.8
1.8
3.1
4.6
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
0.65
0.65
0.65
0.65
0.9
±0.1
±0.1
±0.1
±0.1
±0.2
±0.2
±0.2
0.9
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
2
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Environmental Compliance
Asꢀanꢀenvironmentallyꢀconsciousꢀcompany,ꢀKEMETꢀisꢀworkingꢀcontinuouslyꢀwithꢀimprovementsꢀconcerningꢀtheꢀenvironmentalꢀ
effectsꢀofꢀbothꢀourꢀcapacitorsꢀandꢀtheirꢀproduction.ꢀInꢀEuropeꢀ(RoHSꢀDirective)ꢀandꢀinꢀsomeꢀotherꢀgeographicalꢀareasꢀlikeꢀ
China,ꢀlegislationꢀhasꢀbeenꢀputꢀinꢀplaceꢀtoꢀpreventꢀtheꢀuseꢀofꢀsomeꢀhazardousꢀmaterials,ꢀsuchꢀasꢀleadꢀ(Pb),ꢀinꢀelectronicꢀ
equipment.ꢀAllꢀproductsꢀinꢀthisꢀcatalogꢀareꢀproducedꢀtoꢀhelpꢀourꢀcustomers’ꢀobligationsꢀtoꢀguaranteeꢀtheirꢀproductsꢀandꢀfulfillꢀ
theseꢀlegislativeꢀrequirements.ꢀTheꢀonlyꢀmaterialꢀofꢀconcernꢀinꢀourꢀproductsꢀhasꢀbeenꢀleadꢀ(Pb),ꢀwhichꢀhasꢀbeenꢀremovedꢀ
fromꢀallꢀdesignsꢀtoꢀfulfillꢀtheꢀrequirementꢀofꢀcontainingꢀlessꢀthanꢀ0.1%ꢀofꢀleadꢀinꢀanyꢀhomogeneousꢀmaterial.ꢀKEMETꢀwillꢀ
closelyꢀfollowꢀanyꢀchangesꢀinꢀlegislationꢀworldꢀwideꢀandꢀmakesꢀanyꢀnecessaryꢀchangesꢀinꢀitsꢀproducts,ꢀwheneverꢀneeded.
Someꢀcustomerꢀsegmentsꢀsuchꢀasꢀmedical,ꢀmilitaryꢀandꢀautomotiveꢀelectronicsꢀmayꢀstillꢀrequireꢀtheꢀuseꢀofꢀleadꢀinꢀelectrodeꢀ
coatings.ꢀToꢀclarifyꢀtheꢀsituationꢀandꢀdistinguishꢀproductsꢀfromꢀeachꢀother,ꢀaꢀspecialꢀsymbolꢀisꢀusedꢀonꢀtheꢀpackagingꢀlabelsꢀ
for RoHS compatible capacitors.
Becauseꢀofꢀcustomerꢀrequirements,ꢀthereꢀmayꢀappearꢀadditionalꢀmarkingsꢀsuchꢀasꢀLFꢀ=ꢀLeadꢀFreeꢀorꢀLFWꢀ=ꢀLeadꢀFreeꢀWiresꢀonꢀ
theꢀlabel.
Performance Characteristics
Item
Performance Characteristics
Capacitance Range
Capacitance Tolerance
Rated Voltage
1 – 1,000 µF
±20% at 120 Hz/20°C
6.3 – 50 VDC
Life Test
3,000ꢀ–ꢀ5,000ꢀhoursꢀ(seeꢀconditionsꢀinꢀTestꢀMethodꢀ&ꢀPerformance)
Operating Temperature
−55°Cꢀtoꢀ+105°C
Iꢀ≤ꢀ0.01ꢀCVꢀorꢀ3ꢀµA
Leakage Current
C = rated capacitance (µF), V = rated voltage (VDC). Voltage
applied for 2 minutes at 20°C.
Impedance Z Characteristics at 120 Hz
Rated Voltage (VDC)
Zꢀ(−25°C)/Zꢀ(20°C)
Zꢀ(−40°C)/Zꢀ(20°C)
6
2
3
10
2
16
2
25
2
35
2
50
2
3
3
3
3
3
Compensation Factor of Ripple Current (RC) vs. Frequency
Frequency
120 Hz
0.70
1 kHz
0.80
10 kHz
0.90
100 kHz
1.00
Coefficient
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
3
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Test Method & Performance
Conditions
Load Life Test
Shelf Life Test
Temperature
105°C
105°C
Can Ø = 4, 5, 6.3 mm
Can Ø = 8, 10 mm
3,000ꢀhours
5,000ꢀhours
Test Duration
1,000ꢀhours
Ripple Current
Voltage
Maximumꢀrippleꢀcurrentꢀspecifiedꢀatꢀ120ꢀHzꢀ105°Cꢀ
No ripple current applied
No voltage applied
TheꢀsumꢀofꢀDCꢀvoltageꢀandꢀtheꢀpeakꢀACꢀvoltageꢀmustꢀnotꢀ
exceedꢀtheꢀratedꢀvoltageꢀofꢀtheꢀcapacitor.
Performance
The following specifications will be satisfied when the capacitor is restored to 20°C:
Withinꢀ±30%ꢀofꢀtheꢀinitialꢀvalue
CapacitanceꢀChange
Dissipation Factor
Leakage Current
Doesꢀnotꢀexceedꢀ200%ꢀofꢀtheꢀspecifiedꢀvalue
Doesꢀnotꢀexceedꢀspecifiedꢀvalue
Shelf Life
Theꢀcapacitance,ꢀESRꢀandꢀimpedanceꢀofꢀaꢀcapacitorꢀwillꢀnotꢀchangeꢀsignificantlyꢀafterꢀextendedꢀstorageꢀperiods,ꢀhoweverꢀtheꢀ
leakage current will very slowly increase.
KEMET'sꢀE-seriesꢀaluminumꢀelectrolyticꢀcapacitorsꢀshouldꢀnotꢀbeꢀstoredꢀinꢀhighꢀtemperaturesꢀorꢀwhereꢀthereꢀisꢀaꢀhighꢀlevelꢀofꢀ
humidity.ꢀ
TheꢀsuitableꢀstorageꢀconditionꢀforꢀKEMET'sꢀE-seriesꢀaluminumꢀelectrolyticꢀcapacitorsꢀisꢀ+5ꢀtoꢀ+35°Cꢀandꢀlessꢀthanꢀ75%ꢀinꢀ
relativeꢀhumidity.
KEMET'sꢀE-seriesꢀaluminumꢀelectrolyticꢀcapacitorsꢀshouldꢀnotꢀbeꢀstoredꢀinꢀdampꢀconditionsꢀsuchꢀasꢀwater,ꢀsaltwaterꢀsprayꢀorꢀ
oil spray.
KEMET'sꢀE-seriesꢀaluminumꢀelectrolyticꢀcapacitorsꢀshouldꢀnotꢀbeꢀstoredꢀinꢀanꢀenvironmentꢀfullꢀofꢀhazardousꢀgasꢀ(hydrogenꢀ
sulphideꢀ,ꢀsulphurousꢀacidꢀgas,ꢀnitrousꢀacid,ꢀchlorineꢀgas,ꢀammonium,ꢀetc.)
KEMET'sꢀE-seriesꢀaluminumꢀelectrolyticꢀcapacitorsꢀshouldꢀnotꢀbeꢀstoredꢀunderꢀexposureꢀtoꢀozone,ꢀultravioletꢀraysꢀorꢀ
radiation.
If a capacitor has been stored for more than 18 months under these conditions and it shows increased leakage current,
then a treatment by voltage application is recommended.
Re-age (Reforming) Procedure
Applyꢀtheꢀratedꢀvoltageꢀtoꢀtheꢀcapacitorꢀatꢀroomꢀtemperatureꢀforꢀaꢀperiodꢀofꢀoneꢀhour,ꢀorꢀuntilꢀtheꢀleakageꢀcurrentꢀhasꢀfallenꢀ
toꢀaꢀsteadyꢀvalueꢀbelowꢀtheꢀspecifiedꢀlimit.ꢀDuringꢀre-agingꢀaꢀmaximumꢀchargingꢀcurrentꢀofꢀtwiceꢀtheꢀspecifiedꢀleakageꢀ
currentꢀorꢀ5ꢀmAꢀ(whicheverꢀisꢀgreater)ꢀisꢀsuggested.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
4
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Table 1 – Ratings & Part Number Reference
Rated
DF
RC
Z
LC
20°C
2 Minutes
(µA)
VDC Surge
Voltage
Capacitance
120 Hz 20°C
(µF)
Case Size
D x L (mm)
120 Hz
20°C
(tan δ %)
100 kHz 100 kHz
VDC
Part Number
105°C
(mA)
90
90
20°C
(Ω)
1.93
1.93
1.00
0.52
0.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
16
25
25
25
25
25
25
25
25
25
25
35
35
35
35
35
35
35
35
35
35
50
50
8
8
22
33
4 x 5.4
4 x 5.4
26
26
26
26
26
26
26
26
26
26
19
19
19
19
19
19
19
19
19
19
16
16
16
16
16
16
16
16
16
16
16
16
16
16
14
14
14
14
14
14
14
14
14
14
12
12
12
12
12
12
12
12
12
12
12
12
3.0
3.0
3.0
6.3
9.5
13.9
20.8
29.6
42.8
63.0
3.0
EXV226M6R3(1)9BAA
EXV336M6R3(1)9BAA
EXV476M6R3(1)9DAA
EXV107M6R3(1)9GAA
EXV157M6R3(1)9HAA
EXV227M6R3(1)9HAA
EXV337M6R3(1)9MAA
EXV477M6R3(1)9MAA
EXV687M6R3(1)9PAA
EXV108M6R3(1)9PAA
EXV226M010(1)9BAA
EXV336M010(1)9DAA
EXV476M010(1)9GAA
EXV107M010(1)9GAA
EXV157M010(1)9HAA
EXV227M010(1)9MAA
EXV337M010(1)9MAA
EXV477M010(1)9PAA
EXV687M010(1)9PAA
EXV108M010(1)9PAA
EXV106M016(1)9BAA
EXV226M016(1)9BAA
EXV226M016(1)9DAA
EXV336M016(1)9GAA
EXV476M016(1)9GAA
EXV107M016(1)9GAA
EXV107M016(1)9HAA
EXV157M016(1)9MAA
EXV227M016(1)9HAA
EXV227M016(1)9MAA
EXV337M016(1)9MAA
EXV477M016(1)9MAA
EXV477M016(1)9PAA
EXV687M016(1)9PAA
EXV106M025(1)9BAA
EXV226M025(1)9DAA
EXV336M025(1)9GAA
EXV476M025(1)9GAA
EXV686M025(1)9HAA
EXV107M025(1)9HAA
EXV157M025(1)9MAA
EXV227M025(1)9MAA
EXV337M025(1)9PAA
EXV477M025(1)9PAA
EXV475M035(1)9BAA
EXV106M035(1)9DAA
EXV226M035(1)9DAA
EXV336M035(1)9GAA
EXV476M035(1)9HAA
EXV686M035(1)9HAA
EXV107M035(1)9MAA
EXV157M035(1)9PAA
EXV227M035(1)9PAA
EXV337M035(1)9PAA
EXV105M050(1)9BAA
EXV225M050(1)9BAA
8
8
8
8
8
8
8
8
47
5 x 5.4
160
240
240
240
600
600
850
850
90
160
190
190
240
600
600
850
850
850
90
160
160
240
240
240
280
370
280
370
600
600
850
850
90
160
240
240
280
300
600
600
850
850
90
100
150
220
330
470
680
1000
22
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
0.3
0.16
0.16
0.12
0.12
1.93
1.00
0.52
0.52
0.34
0.16
0.16
0.12
0.12
0.12
1.93
1.00
1.00
0.52
0.52
0.52
0.34
0.22
0.34
0.22
0.16
0.16
0.12
0.12
1.93
1.00
0.52
0.52
0.34
0.34
0.16
0.16
0.12
0.12
1.93
1.00
1.00
0.52
0.34
0.34
0.16
0.12
0.12
0.12
5.00
5.00
13
13
13
13
13
13
13
13
13
13
20
20
20
20
20
20
20
20
20
20
20
20
20
20
32
32
32
32
32
32
32
32
32
32
44
44
44
44
44
44
44
44
44
44
63
63
33
47
5 x 5.4
3.3
4.7
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
100
150
220
330
470
680
1000
10
22
22
33
47
100
100
150
220
220
330
470
470
680
10
22
33
47
68
100
150
220
330
470
4.7
10
22
33
47
68
100
150
220
330
1
10.0
15.0
22.0
33.0
47.0
68.0
100.0
3.0
3.5
3.5
5.3
7.5
16.0
16.0
24.0
35.2
35.2
52.8
75.2
75.2
108.8
3.0
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
8 x 10.2
6.3 x 7.7
8 x 10.2
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
5 x 5.4
5.5
8.3
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
11.8
17.0
25.0
37.5
55.0
82.5
117.5
3.0
5 x 5.4
5 x 5.4
160
160
240
280
280
600
850
850
850
60
3.5
7.7
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
11.6
16.5
23.8
35.0
52.5
77.0
115.5
3.0
2.2
4 x 5.4
60
3.0
VDC
VDC Surge
Rated Capacitance
Case Size
DF
RC
Z
LC
Part Number
(1) Insert Electrical Parameters code. See Part Number System for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
5
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Table 1 – Ratings & Part Number Reference cont'd
Rated
Capacitance
120 Hz 20°C
(µF)
DF
120 Hz
20°C
RC
Z
LC
20°C
2 Minutes
(µA)
VDC Surge
Voltage
Case Size
D x L (mm)
100 kHz 100 kHz
VDC
Part Number
105°C
(mA)
60
95
140
230
350
670
670
670
670
670
20°C
(Ω)
(tan δ %)
50
50
50
50
50
50
50
50
50
50
63
63
63
63
63
63
63
63
63
63
3.3
4.7
10
22
33
47
68
100
150
220
4 x 5.4
5 x 5.4
12
12
12
12
12
12
12
12
12
12
5.00
4.00
2.60
1.30
0.50
0.34
0.34
0.34
0.34
0.34
3.0
3.0
5.0
11.0
16.5
23.5
34.0
50.0
75.0
110.0
EXV335M050(1)9BAA
EXV475M050(1)9DAA
EXV106M050(1)9GAA
EXV226M050(1)9HAA
EXV336M050(1)9MAA
EXV476M050(1)9PAA
EXV686M050(1)9PAA
EXV107M050(1)9PAA
EXV157M050(1)9PAA
EXV227M050(1)9PAA
6.3 x 5.4
6.3 x 7.7
8 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
10 x 10.2
VDC
VDC Surge
Rated Capacitance
Case Size
DF
RC
Z
LC
Part Number
(1) Insert Electrical Parameters code. See Part Number System for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
6
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Mounting Positions (Safety Vent)
Inꢀoperation,ꢀelectrolyticꢀcapacitorsꢀwillꢀalwaysꢀconductꢀaꢀleakageꢀcurrentꢀwhichꢀcausesꢀelectrolysis.ꢀTheꢀoxygenꢀproducedꢀbyꢀ
electrolysisꢀwillꢀregenerateꢀtheꢀdielectricꢀlayerꢀbut,ꢀatꢀtheꢀsameꢀtime,ꢀtheꢀhydrogenꢀreleasedꢀmayꢀcauseꢀtheꢀinternalꢀpressureꢀ
ofꢀtheꢀcapacitorꢀtoꢀincrease.ꢀTheꢀoverpressureꢀventꢀ(safetyꢀvent)ꢀensuresꢀthatꢀtheꢀgasꢀcanꢀescapeꢀwhenꢀtheꢀpressureꢀreachesꢀ
aꢀcertainꢀvalue.ꢀAllꢀmountingꢀpositionsꢀmustꢀallowꢀtheꢀsafetyꢀventꢀtoꢀworkꢀproperly.
Installing
•ꢀ Aꢀgeneralꢀprincipleꢀisꢀthatꢀlower-useꢀtemperaturesꢀresultꢀinꢀaꢀlonger,ꢀusefulꢀlifeꢀofꢀtheꢀcapacitor.ꢀForꢀthisꢀreason,ꢀitꢀshouldꢀ
beꢀensuredꢀthatꢀelectrolyticꢀcapacitorsꢀareꢀplacedꢀawayꢀfromꢀheat-emittingꢀcomponents.ꢀAdequateꢀspaceꢀshouldꢀbeꢀ
allowedꢀbetweenꢀcomponentsꢀforꢀcoolingꢀairꢀtoꢀcirculate,ꢀparticularlyꢀwhenꢀhighꢀrippleꢀcurrentꢀloadsꢀareꢀapplied.ꢀInꢀanyꢀ
case,ꢀtheꢀmaximumꢀcategoryꢀtemperatureꢀmustꢀnotꢀbeꢀexceeded.
•ꢀ Doꢀnotꢀdeformꢀtheꢀcaseꢀofꢀcapacitorsꢀorꢀuseꢀcapacitorsꢀwithꢀaꢀdeformedꢀcase.
•ꢀ Verifyꢀthatꢀtheꢀconnectionsꢀofꢀtheꢀcapacitorsꢀareꢀableꢀtoꢀinsertꢀonꢀtheꢀboardꢀwithoutꢀexcessiveꢀmechanicalꢀforce.
•ꢀ Ifꢀtheꢀcapacitorsꢀrequireꢀmountingꢀthroughꢀadditionalꢀmeans,ꢀtheꢀrecommendedꢀmountingꢀaccessoriesꢀshallꢀbeꢀused.
•ꢀ Verifyꢀtheꢀcorrectꢀpolarizationꢀofꢀtheꢀcapacitorꢀonꢀtheꢀboard.
•ꢀ Verifyꢀthatꢀtheꢀspaceꢀaroundꢀtheꢀpressureꢀreliefꢀdeviceꢀisꢀaccordingꢀtoꢀtheꢀfollowingꢀguideline:
Case Diameter
Space Around Safety Vent
≤ꢀ16ꢀmmꢀ
> 2 mm
>ꢀ16ꢀtoꢀ≤ꢀ40ꢀmm
> 3 mm
> 5 mm
> 40 mm
Itꢀisꢀrecommendedꢀthatꢀcapacitorsꢀalwaysꢀbeꢀmountedꢀwithꢀtheꢀsafetyꢀdeviceꢀuppermostꢀorꢀinꢀtheꢀupperꢀpartꢀofꢀtheꢀcapacitor.ꢀ
•ꢀ Ifꢀtheꢀcapacitorsꢀareꢀstoredꢀforꢀaꢀlongꢀtime,ꢀtheꢀleakageꢀcurrentꢀmustꢀbeꢀveri ꢀed.ꢀIfꢀtheꢀleakageꢀcurrentꢀisꢀsuperiorꢀtoꢀtheꢀ
valueꢀlistedꢀinꢀthisꢀcatalog,ꢀtheꢀcapacitorsꢀmustꢀbeꢀreformed.ꢀInꢀthisꢀcase,ꢀtheyꢀcanꢀbeꢀreformedꢀbyꢀapplicationꢀofꢀtheꢀratedꢀ
voltageꢀthroughꢀaꢀseriesꢀresistorꢀapproximatelyꢀ1ꢀkΩꢀforꢀcapacitorsꢀwithꢀVRꢀ≤ꢀ160ꢀVꢀ(5ꢀWꢀresistor)ꢀandꢀ10ꢀkΩꢀforꢀtheꢀotherꢀ
rated voltages.
•ꢀ Inꢀtheꢀcaseꢀofꢀcapacitorsꢀconnectedꢀinꢀseries,ꢀaꢀsuitableꢀvoltageꢀsharingꢀmustꢀbeꢀused.
Inꢀtheꢀcaseꢀofꢀbalancingꢀresistors,ꢀtheꢀapproximateꢀresistanceꢀvalueꢀcanꢀbeꢀcalculatedꢀas:ꢀRꢀ=ꢀ60/C
KEMETꢀrecommends,ꢀnevertheless,ꢀtoꢀensureꢀthatꢀtheꢀvoltageꢀacrossꢀeachꢀcapacitorꢀdoesꢀnotꢀexceedꢀitsꢀratedꢀvoltage.ꢀ
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
7
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Application and Operation Guidelines
Electrical Ratings:
Capacitance (ESC)
Simplified equivalent circuit diagram of an electrolytic capacitor
Theꢀcapacitiveꢀcomponentꢀofꢀtheꢀequivalentꢀseriesꢀcircuitꢀ(EquivalentꢀSeriesꢀCapacitanceꢀESC)ꢀisꢀdeterminedꢀbyꢀapplyingꢀanꢀ
alternateꢀvoltageꢀofꢀ≤ꢀ0.5ꢀVꢀatꢀaꢀfrequencyꢀofꢀ120ꢀorꢀ100ꢀHzꢀandꢀ20°Cꢀ(IECꢀ384-1,ꢀ384-4).
Temperature Dependence of the Capacitance
Capacitance of an electrolytic capacitor depends upon
temperature:ꢀwithꢀdecreasingꢀtemperatureꢀtheꢀviscosityꢀ
Capacitance Change vs. Temperature
(typical value)
ofꢀtheꢀelectrolyteꢀincreases,ꢀtherebyꢀreducingꢀitsꢀ
conductivity.
Capacitance will decrease if temperature decreases.
Furthermore,ꢀtemperatureꢀdriftsꢀcauseꢀarmatureꢀ
dilatationꢀand,ꢀtherefore,ꢀcapacitanceꢀchangesꢀ(upꢀtoꢀ20%ꢀ
dependingꢀonꢀtheꢀseriesꢀconsidered,ꢀfromꢀ0ꢀtoꢀ80°C).ꢀThisꢀ
phenomenonꢀisꢀmoreꢀevidentꢀforꢀelectrolyticꢀcapacitorsꢀ
thanꢀforꢀotherꢀtypes.
Temperature (°C)
Frequency Dependence of the Capacitance
Effectiveꢀcapacitanceꢀvalueꢀisꢀderivedꢀfromꢀtheꢀimpedanceꢀ
curve,ꢀasꢀlongꢀasꢀimpedanceꢀisꢀstillꢀinꢀtheꢀrangeꢀwhereꢀtheꢀ
Capacitance Change vs. Frequency
(typical value)
capacitance component is dominant.
1
C = Capacitance (F)
f = Frequency (Hz)
Zꢀ=ꢀImpedanceꢀ(Ω)
C =
2πꢀfZ
Frequency (kHz)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
8
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Dissipation Factor tan δ (DF)
DissipationꢀFactorꢀtanꢀδꢀisꢀtheꢀratioꢀbetweenꢀtheꢀactiveꢀandꢀreactiveꢀpowerꢀforꢀaꢀsinusoidalꢀwaveformꢀvoltage.ꢀItꢀcanꢀbeꢀ
thoughtꢀofꢀasꢀaꢀmeasurementꢀofꢀtheꢀgapꢀbetweenꢀanꢀactualꢀandꢀidealꢀcapacitor.
reactive
δ
ideal
actual
active
Tanꢀδꢀisꢀmeasuredꢀwithꢀtheꢀsameꢀset-upꢀusedꢀforꢀtheꢀseriesꢀcapacitanceꢀESC.
tanꢀδꢀ=ꢀωꢀxꢀESCꢀxꢀESRꢀwhere:
ESC = Equivalent Series Capacitance
ESR = Equivalent Series Resistance
Dissipation Factor vs. Frequency
(typical value)
Frequency (kHz)
Dissipation Factor vs. Temperature
(typical value)
Temperature (°C)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017
9
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Equivalent Series Inductance (ESL)
EquivalentꢀSeriesꢀInductanceꢀorꢀSelfꢀInductanceꢀresultsꢀfromꢀtheꢀterminalꢀcon ꢀgurationꢀandꢀinternalꢀdesignꢀofꢀtheꢀcapacitor.ꢀ
Capacitor Equivalent Internal Circuit
Equivalent
Series
Equivalent
Series
Equivalent
Series
Capacitance
(ESC)
Resistance
(ESR)
Inductance
(ESL)
Equivalent Series Resistance (ESR)
EquivalentꢀSeriesꢀResistanceꢀisꢀtheꢀresistiveꢀcomponentꢀofꢀtheꢀequivalentꢀseriesꢀcircuit.ꢀESRꢀvalueꢀdependsꢀonꢀfrequencyꢀandꢀ
temperatureꢀandꢀisꢀrelatedꢀtoꢀtheꢀtanꢀδꢀbyꢀtheꢀfollowingꢀequation:
ESRꢀ=ꢀEquivalentꢀSeriesꢀResistanceꢀ(Ω)
tanꢀδ
tanꢀδꢀ=ꢀDissipationꢀFactor
ESR =
2πfꢀESC ESC = Equivalent Series Capacitance (F)
f = Frequency (Hz)
Toleranceꢀlimitsꢀofꢀtheꢀratedꢀcapacitanceꢀmustꢀbeꢀtakenꢀintoꢀaccountꢀwhenꢀcalculatingꢀthisꢀvalue.
ESR Change vs. Frequency
(typical value)
Frequency (kHz)
ESR Change vs. Temperature
(typical value)
Temperature (°C)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 10
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Impedance (Z)
Impedanceꢀofꢀanꢀelectrolyticꢀcapacitorꢀresultsꢀfromꢀaꢀcircuitꢀformedꢀbyꢀtheꢀfollowingꢀindividualꢀequivalentꢀseriesꢀ
components:
Re
L
Co
Ce
Coꢀ=ꢀAluminumꢀoxideꢀcapacitanceꢀ(surfaceꢀandꢀthicknessꢀofꢀtheꢀdielectric)
Reꢀ=ꢀResistanceꢀofꢀelectrolyteꢀandꢀpaperꢀmixtureꢀ(otherꢀresistancesꢀnotꢀdependingꢀonꢀtheꢀfrequencyꢀareꢀnotꢀconsidered:ꢀtabs,ꢀ
plates, etc.)
Ce = Electrolyte soaked paper capacitance
Lꢀ=ꢀInductiveꢀreactanceꢀofꢀtheꢀcapacitorꢀwindingꢀandꢀterminalsꢀ
Impedanceꢀofꢀanꢀelectrolyticꢀcapacitorꢀisꢀnotꢀaꢀconstantꢀquantityꢀthatꢀretainsꢀitsꢀvalueꢀunderꢀallꢀconditions;ꢀitꢀchangesꢀ
depending on frequency and temperature.
Impedanceꢀasꢀaꢀfunctionꢀofꢀfrequencyꢀ(sinusoidalꢀwaveform)ꢀforꢀaꢀcertainꢀtemperatureꢀcanꢀbeꢀrepresentedꢀasꢀfollows:ꢀ
Z [ohm]
1,000
100
C e
1/
ωω
ωω
10
R e
B
ωL
A
1
1/ωω C o
ωω
C
0.1
0.1
1
10
100
1,000
10,000
F [KHz]
• Capacitive reactance predominates at low frequencies
•ꢀ Withꢀincreasingꢀfrequency,ꢀcapacitiveꢀreactanceꢀXcꢀ=ꢀ1/ωCoꢀdecreasesꢀuntilꢀitꢀreachesꢀtheꢀorderꢀofꢀmagnitudeꢀofꢀ
electrolyte resistance Re(A)
•ꢀ Atꢀevenꢀhigherꢀfrequencies,ꢀresistanceꢀofꢀtheꢀelectrolyteꢀpredominates:ꢀZꢀ=ꢀRe (A - B)
•ꢀ Whenꢀtheꢀcapacitor’sꢀresonanceꢀfrequencyꢀisꢀreachedꢀ(ω0),ꢀcapacitiveꢀandꢀinductiveꢀreactanceꢀmutuallyꢀcancelꢀeachꢀotherꢀ
1/ωCeꢀ=ꢀωL,ꢀω0 = 1/SQR(LCe)
•ꢀ Aboveꢀthisꢀfrequency,ꢀinductiveꢀreactanceꢀofꢀtheꢀwindingꢀandꢀitsꢀterminalsꢀ(XLꢀ=ꢀZꢀ=ꢀωL)ꢀbecomesꢀeffectiveꢀandꢀleadsꢀtoꢀ
an increase in impedance
Generallyꢀspeaking,ꢀitꢀcanꢀbeꢀestimatedꢀthatꢀCeꢀ≈ꢀ0.01ꢀCo.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 11
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Impedance (Z) cont’d
Impedanceꢀasꢀaꢀfunctionꢀofꢀfrequencyꢀ(sinusoidalꢀwaveform)ꢀforꢀdifferentꢀtemperatureꢀvaluesꢀcanꢀbeꢀrepresentedꢀasꢀfollowsꢀ
(typicalꢀvalues):
Z (ohm)
10 µF
1,000
100
-40°C
10
1
20°C
85°C
0.1
0.1
1
10
100
1,000
10,000
F (KHz)
Reꢀisꢀtheꢀmostꢀtemperature-dependentꢀcomponentꢀofꢀanꢀelectrolyticꢀcapacitorꢀequivalentꢀcircuit.ꢀElectrolyteꢀresistivityꢀwillꢀ
decrease if temperature rises.
Inꢀorderꢀtoꢀobtainꢀaꢀlowꢀimpedanceꢀvalueꢀthroughoutꢀtheꢀtemperatureꢀrange,ꢀRe must be as little as possible. However, Re
valuesꢀthatꢀareꢀtooꢀlowꢀindicateꢀaꢀveryꢀaggressiveꢀelectrolyte,ꢀresultingꢀinꢀaꢀshorterꢀlifeꢀofꢀtheꢀelectrolyticꢀcapacitorꢀatꢀhighꢀ
temperatures.ꢀAꢀcompromiseꢀmustꢀbeꢀreached.
Leakage Current (LC)
Dueꢀtoꢀtheꢀaluminumꢀoxideꢀlayerꢀthatꢀservesꢀasꢀaꢀdielectric,ꢀaꢀsmallꢀcurrentꢀwillꢀcontinueꢀtoꢀ ꢀowꢀevenꢀafterꢀaꢀDCꢀvoltageꢀhasꢀ
beenꢀappliedꢀforꢀlongꢀperiods.ꢀThisꢀcurrentꢀisꢀcalledꢀleakageꢀcurrent.ꢀ
Aꢀhighꢀleakageꢀcurrentꢀ ꢀowsꢀafterꢀapplyingꢀvoltageꢀtoꢀtheꢀcapacitorꢀthenꢀdecreasesꢀinꢀaꢀfewꢀminutes,ꢀe.g.,ꢀafterꢀprolongedꢀ
storageꢀwithoutꢀanyꢀappliedꢀvoltage.ꢀInꢀtheꢀcourseꢀofꢀcontinuousꢀoperation,ꢀtheꢀleakageꢀcurrentꢀwillꢀdecreaseꢀandꢀreachꢀanꢀ
almost constant value.
Afterꢀaꢀvoltage-freeꢀstorageꢀtheꢀoxideꢀlayerꢀmayꢀdeteriorate,ꢀespeciallyꢀatꢀhighꢀtemperature.ꢀSinceꢀthereꢀareꢀnoꢀleakageꢀ
currentsꢀtoꢀtransportꢀoxygenꢀionsꢀtoꢀtheꢀanode,ꢀtheꢀoxideꢀlayerꢀisꢀnotꢀregenerated.ꢀTheꢀresultꢀisꢀthatꢀaꢀhigherꢀthanꢀnormalꢀ
leakageꢀcurrentꢀwillꢀ ꢀowꢀwhenꢀvoltageꢀisꢀappliedꢀafterꢀprolongedꢀstorage.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 12
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Leakage Current (LC) cont’d
Asꢀtheꢀoxideꢀlayerꢀisꢀregeneratedꢀinꢀuse,ꢀtheꢀleakageꢀcurrentꢀwillꢀ
gradually decrease to its normal level.
I
Theꢀrelationshipꢀbetweenꢀtheꢀleakageꢀcurrentꢀandꢀvoltageꢀappliedꢀ
atꢀconstantꢀtemperatureꢀcanꢀbeꢀshownꢀschematicallyꢀasꢀfollows:
Where:
VF = Forming voltage
Ifꢀthisꢀlevelꢀisꢀexceeded,ꢀaꢀlargeꢀquantityꢀofꢀheatꢀandꢀgasꢀwillꢀbeꢀ
generatedꢀandꢀtheꢀcapacitorꢀcouldꢀbeꢀdamaged.
VR = Rated Voltage
VR
VS
VF
V
Thisꢀlevelꢀrepresentsꢀtheꢀtopꢀofꢀtheꢀlinearꢀpartꢀofꢀtheꢀcurve.
VS = Surge voltage
ThisꢀliesꢀbetweenꢀVR and VF.ꢀTheꢀcapacitorꢀcanꢀbeꢀsubjectedꢀtoꢀVSꢀforꢀshortꢀperiodsꢀonly.
Electrolyticꢀcapacitorsꢀareꢀsubjectedꢀtoꢀaꢀreformingꢀprocessꢀbeforeꢀacceptanceꢀtesting.ꢀTheꢀpurposeꢀofꢀthisꢀpreconditioningꢀ
isꢀtoꢀensureꢀthatꢀtheꢀsameꢀinitialꢀconditionsꢀareꢀmaintainedꢀwhenꢀcomparingꢀdifferentꢀproducts.
Ripple Current (RC)
Theꢀmaximumꢀrippleꢀcurrentꢀvalueꢀdependsꢀon:
• Ambient temperature
ꢀ •ꢀSurfaceꢀareaꢀofꢀtheꢀcapacitorꢀ(heatꢀdissipationꢀarea)
tanꢀδꢀorꢀESR
• Frequency
Theꢀcapacitor’sꢀlifeꢀdependsꢀonꢀtheꢀthermalꢀstress.
Frequency Dependence of the Ripple Current
ESRꢀand,ꢀthus,ꢀtheꢀtanꢀδꢀdependꢀonꢀtheꢀfrequencyꢀofꢀtheꢀappliedꢀvoltage.ꢀThisꢀindicatesꢀthatꢀtheꢀallowedꢀrippleꢀcurrentꢀisꢀalsoꢀ
aꢀfunctionꢀofꢀtheꢀfrequency.
Temperature Dependence of the Ripple Current
Theꢀdataꢀsheetꢀspeci ꢀesꢀmaximumꢀrippleꢀcurrentꢀatꢀtheꢀupperꢀcategoryꢀtemperatureꢀforꢀeachꢀcapacitor.
Expected Life Calculation
Expected life depends on operating temperature according
Expected Life Calculation Chart
toꢀtheꢀfollowingꢀformula:ꢀLꢀ=ꢀLoꢀxꢀ2ꢀ(To-T)/10
Where:
L:ꢀ
Expectedꢀlife
Lo:ꢀ
Loadꢀlifeꢀatꢀmaximumꢀpermissibleꢀoperatingꢀ
temperature
T:ꢀ
To:ꢀ
Actualꢀoperatingꢀtemperature
Maximumꢀpermissibleꢀoperatingꢀtemperature
Thisꢀformulaꢀisꢀapplicableꢀbetweenꢀ40°CꢀandꢀTo.
Expected life (h)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 13
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Packaging Quantities
Box Quantity
(4 Reels per box)
Size Code
Diameter (mm) Length (mm) Reel Quantity
9B
9D
9G
9H
9M
9P
4
5
5.4
5.4
2,000
1,000
1,000
1,000
500
10,000
10,000
10,000
10,000
4,000
6.3
6.3
8
5.4
7.7
10.2
10.2
10
500
4,000
Standard Marking for Surface Mount Types
Negative Polarity
Black Row
Capacitance (µF)
Rated Voltage (VDC)
Series Identification
Date Code (YMM)
Note: 6.3 V rated voltage shall be marked as 6 V, but 6.3 V shall be assured.
*Y = Year
Code
0
1
2
3
4
5
6
7
8
9
Year
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
Mꢀ=ꢀMonth
Code
1
1
2
3
3
4
4
5
6
6
7
7
8
9
9
A
B
C
Monthꢀ
2
5
8
10
11
12
M = Manufacturing internal code
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 14
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Construction
Aluminum Can
Detailed Cross Section
Lead
Terminal Tab
Margin
Rubber Seal
Terminal Tabs
Rubber Seal
Aluminum Can
Paper Spacer Impregnated
with Electrolyte
(First Layer)
Lead (+)
Paper Spacer Impreg-
nated with Electrolyte
(Third Layer)
Anode Aluminum Foil,
Cathode Alumi-
Etched, Covered with
num Foil, Etched
Aluminum Oxide
(Fourth Layer)
Lead (−)
(Second Layer)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 15
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Soldering Process
Theꢀsolderingꢀconditionsꢀshouldꢀbeꢀwithinꢀtheꢀspecifiedꢀconditionsꢀbelow:ꢀ
Do not dip the capacitors body into the melted solder. Flux should only be applied to the capacitors terminals
T3
T23
Pre-heat
T1
T0
Time (seconds)
Vapour heat transfer systems are not recommended.
The system should be thermal, such as infra-red radiation or hot blast
Observe the soldering conditions as shown below.
Do not exceed these limits and avoid repeated reflowing
Reflow Soldering
Lead Free Reflow Soldering cont'd.
Temperature Maximum Time
Maximum Time
Temperature (°C)
Size
(°C)
250
260
250
250
(Seconds)
(Seconds)
10
T0
Pre-heat
T1
20 to 140
140 to 180
180 to 140
> 200
60
150
100
60
T3
Φ4ꢀ~ꢀΦ5ꢀ(4ꢀ–ꢀ50ꢀV)
5
Φ6.3ꢀ~ꢀΦ10ꢀ(4ꢀ–ꢀ50ꢀV)
Φ4ꢀ~ꢀΦ10ꢀ(63ꢀ–ꢀ100ꢀV)
5
5
T2
T3
230
20
Temperature Maximum Time
Size
(°C)
250
260
(Seconds)
Lead Free Reflow Soldering
10
Φ4ꢀ~ꢀΦ5
(4 – 50 V)
5
Maximum Time
T3
Temperature (°C)
Φ6.3ꢀ~ꢀΦ10
(4 – 50 V)
250
5
(Seconds)
T0
Pre-heat
T1
20 to 160
160 to 190
190 to 180
> 220
60
120
90
Φ4ꢀ~ꢀΦ10
(63 – 100 V)
250
250
5
5
≥ꢀΦ12.5
T2
60
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 16
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Lead Taping & Packaging
Reel
Case Size (mm)
D
±0.2
H
±0.8
21
W
±1.0
14
4 x 5.4
5 x 5.4
21
14
D
H
6.3 x 5.4
6.3 x 7.7
8 x 6.2
21
18
380
21
18
21
18
8 x 10.2
10 x 10.2
21
26
26
21
W
Taping for Automatic Insertion Machines
Feeding hole
Chip pocket
ØD0
t1
P0
P2
A
t2
P1
Tape running direction
Chip component
Dimensions (mm)
W
A
B
P0
P1
P2
F
D0
E
t1
t2
Tolerance
Nominal Nominal Nominal
±0.1
±0.1
±0.1
Nominal
±0.1
Nominal Nominal Nominal
4 x 5.4
5 x 5.4
12
12
16
16
16
24
24
32
32
44
4.7
5.7
7
4.7
5.7
7
4
4
4
4
4
4
4
4
4
4
8
2
2
2
2
2
2
2
2
2
2
5.5
5.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.5
5.8
5.8
5.8
5.8
6.8
11
12
12
12
12
16
16
24
24
28
6.3 x 5.4
6.3 x 7.7
8 x 6.2
7.5
7
7
7.5
8.7
8.7
10.7
13.4
13.4
17.5
8.7
8.7
10.7
13.4
13.4
17.5
7.5
8 x 10.2
10 x 10.2
12.5 x 13.5
12.5 x 16
16 x 16.5
11.5
11.5
14.2
14.2
20.2
11
14
17.5
17.5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 17
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
Construction Data
Theꢀmanufacturingꢀprocessꢀbeginsꢀwithꢀtheꢀanodeꢀfoilꢀbeingꢀ
electrochemicallyꢀetchedꢀtoꢀincreaseꢀtheꢀsurfaceꢀareaꢀandꢀthenꢀ
“formed”ꢀtoꢀproduceꢀtheꢀaluminumꢀoxideꢀlayer.ꢀBothꢀtheꢀanodeꢀandꢀ
cathodeꢀfoilsꢀareꢀthenꢀinterleavedꢀwithꢀabsorbentꢀpaperꢀandꢀwoundꢀ
intoꢀaꢀcylinder.ꢀDuringꢀtheꢀwindingꢀprocess,ꢀaluminumꢀtabsꢀareꢀ
attachedꢀtoꢀeachꢀfoilꢀtoꢀprovideꢀtheꢀelectricalꢀcontact.
Extended cathode
Anode foil
Foil tabs
Theꢀdeck,ꢀcompleteꢀwithꢀterminals,ꢀisꢀattachedꢀtoꢀtheꢀtabsꢀandꢀthenꢀ
foldedꢀdownꢀtoꢀrestꢀonꢀtopꢀofꢀtheꢀwinding.ꢀTheꢀcompleteꢀwindingꢀ
isꢀimpregnatedꢀwithꢀelectrolyteꢀbeforeꢀbeingꢀhousedꢀinꢀaꢀsuitableꢀ
container,ꢀusuallyꢀanꢀaluminumꢀcan,ꢀandꢀsealed.ꢀThroughoutꢀtheꢀ
process,ꢀallꢀmaterialsꢀinsideꢀtheꢀhousingꢀmustꢀbeꢀmaintainedꢀatꢀtheꢀ
highestꢀpurityꢀandꢀbeꢀcompatibleꢀwithꢀtheꢀelectrolyte.
Tissues
Cathode foil
Eachꢀcapacitorꢀisꢀagedꢀandꢀtestedꢀbeforeꢀbeingꢀsleevedꢀandꢀpacked.ꢀ
Theꢀpurposeꢀofꢀagingꢀisꢀtoꢀrepairꢀanyꢀdamageꢀinꢀtheꢀoxideꢀlayerꢀ
andꢀthusꢀreduceꢀtheꢀleakageꢀcurrentꢀtoꢀaꢀveryꢀlowꢀlevel.ꢀAgingꢀisꢀ
normallyꢀcarriedꢀoutꢀatꢀtheꢀratedꢀtemperatureꢀofꢀtheꢀcapacitorꢀandꢀ
isꢀaccomplishedꢀbyꢀapplyingꢀvoltageꢀtoꢀtheꢀdeviceꢀwhileꢀcarefullyꢀ
controllingꢀtheꢀsupplyꢀcurrent.ꢀTheꢀprocessꢀmayꢀtakeꢀseveralꢀhoursꢀtoꢀ
complete.
Etching
Forming
Winding
Decking
Impregnation
Assembly
Aging
Damageꢀtoꢀtheꢀoxideꢀlayerꢀcanꢀoccurꢀdueꢀtoꢀvarietyꢀofꢀreasons:
ꢀ •ꢀSlittingꢀofꢀtheꢀanodeꢀfoilꢀafterꢀforming
ꢀ •ꢀAttachingꢀtheꢀtabsꢀtoꢀtheꢀanodeꢀfoil
ꢀ •ꢀMinorꢀmechanicalꢀdamageꢀcausedꢀduringꢀwinding
Aꢀsampleꢀfromꢀeachꢀbatchꢀisꢀtakenꢀbyꢀtheꢀqualityꢀdepartmentꢀafterꢀ
completionꢀofꢀtheꢀproductionꢀprocess.ꢀThisꢀsampleꢀsizeꢀisꢀcontrolledꢀ
byꢀtheꢀuseꢀofꢀrecognizedꢀsamplingꢀtablesꢀde ꢀnedꢀinꢀBSꢀ6001.
Theꢀfollowingꢀtestsꢀareꢀappliedꢀandꢀmayꢀbeꢀvariedꢀatꢀtheꢀrequestꢀ
ofꢀtheꢀcustomer.ꢀInꢀthisꢀcaseꢀtheꢀbatch,ꢀorꢀspecialꢀprocedure,ꢀwillꢀ
determineꢀtheꢀcourseꢀofꢀaction.
Testing
Electrical:
• Leakage current
• Capacitance
• ESR
ꢀ •ꢀImpedance
• Tan Delta
Mechanical/Visual:
• Overall dimensions
• Torque test of mounting stud
• Print detail
• Box labels
• Packaging, including packed
quantity
Sleeving
Packing
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 18
Surface Mount Aluminum Electrolytic Capacitors – EXV Series, +105°C
KEMET Electronics Corporation Sales Offices
Forꢀaꢀcompleteꢀlistꢀofꢀourꢀglobalꢀsalesꢀo ꢀꢀces,ꢀpleaseꢀvisitꢀwww.kemet.com/sales.
Disclaimer
Allꢀproductꢀspeci ꢀcations,ꢀstatements,ꢀinformationꢀandꢀdataꢀ(collectively,ꢀtheꢀ“Information”)ꢀinꢀthisꢀdatasheetꢀareꢀsubjectꢀtoꢀchange.ꢀTheꢀcustomerꢀisꢀresponsibleꢀforꢀ
checkingꢀandꢀverifyingꢀtheꢀextentꢀtoꢀwhichꢀtheꢀInformationꢀcontainedꢀinꢀthisꢀpublicationꢀisꢀapplicableꢀtoꢀanꢀorderꢀatꢀtheꢀtimeꢀtheꢀorderꢀisꢀplaced.
AllꢀInformationꢀgivenꢀhereinꢀisꢀbelievedꢀtoꢀbeꢀaccurateꢀandꢀreliable,ꢀbutꢀitꢀisꢀpresentedꢀwithoutꢀguarantee,ꢀwarranty,ꢀorꢀresponsibilityꢀofꢀanyꢀkind,ꢀexpressedꢀorꢀimplied.
StatementsꢀofꢀsuitabilityꢀforꢀcertainꢀapplicationsꢀareꢀbasedꢀonꢀKEMETꢀElectronicsꢀCorporation’sꢀ(“KEMET”)ꢀknowledgeꢀofꢀtypicalꢀoperatingꢀconditionsꢀforꢀsuchꢀ
applications,ꢀbutꢀareꢀnotꢀintendedꢀtoꢀconstituteꢀ–ꢀandꢀKEMETꢀspeci ꢀcallyꢀdisclaimsꢀ–ꢀanyꢀwarrantyꢀconcerningꢀsuitabilityꢀforꢀaꢀspeci ꢀcꢀcustomerꢀapplicationꢀorꢀuse.ꢀ
TheꢀInformationꢀisꢀintendedꢀforꢀuseꢀonlyꢀbyꢀcustomersꢀwhoꢀhaveꢀtheꢀrequisiteꢀexperienceꢀandꢀcapabilityꢀtoꢀdetermineꢀtheꢀcorrectꢀproductsꢀforꢀtheirꢀapplication.ꢀAnyꢀ
technicalꢀadviceꢀinferredꢀfromꢀthisꢀInformationꢀorꢀotherwiseꢀprovidedꢀbyꢀKEMETꢀwithꢀreferenceꢀtoꢀtheꢀuseꢀofꢀKEMET’sꢀproductsꢀisꢀgivenꢀgratis,ꢀandꢀKEMETꢀassumesꢀnoꢀ
obligationꢀorꢀliabilityꢀforꢀtheꢀadviceꢀgivenꢀorꢀresultsꢀobtained.
AlthoughꢀKEMETꢀdesignsꢀandꢀmanufacturesꢀitsꢀproductsꢀtoꢀtheꢀmostꢀstringentꢀqualityꢀandꢀsafetyꢀstandards,ꢀgivenꢀtheꢀcurrentꢀstateꢀofꢀtheꢀart,ꢀisolatedꢀcomponentꢀ
failuresꢀmayꢀstillꢀoccur.ꢀAccordingly,ꢀcustomerꢀapplicationsꢀwhichꢀrequireꢀaꢀhighꢀdegreeꢀofꢀreliabilityꢀorꢀsafetyꢀshouldꢀemployꢀsuitableꢀdesignsꢀorꢀotherꢀsafeguardsꢀ
(suchꢀasꢀinstallationꢀofꢀprotectiveꢀcircuitryꢀorꢀredundancies)ꢀinꢀorderꢀtoꢀensureꢀthatꢀtheꢀfailureꢀofꢀanꢀelectricalꢀcomponentꢀdoesꢀnotꢀresultꢀinꢀaꢀriskꢀofꢀpersonalꢀinjuryꢀorꢀ
property damage.
Althoughꢀallꢀproduct–relatedꢀwarnings,ꢀcautionsꢀandꢀnotesꢀmustꢀbeꢀobserved,ꢀtheꢀcustomerꢀshouldꢀnotꢀassumeꢀthatꢀallꢀsafetyꢀmeasuresꢀareꢀindictedꢀorꢀthatꢀotherꢀ
measures may not be required.
KEMET is a registered trademark of KEMET Electronics Corporation.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4003_EXV • 12/7/2017 19
厂商 型号 描述 页数 下载

KEMET

 		EXV 铝电解电容器[ Aluminum Electrolytic Capacitors ] 66 页

KEMET

 		EXV106M016A9BAA [ Aluminum Electrolytic, 105C LowZ, EXV, 10 uF, 20%, 16 V, -55/105C ] 1 页

KEMET

 		EXV106M025A9BAA [ Aluminum Electrolytic, 105C LowZ, EXV, 10 uF, 20%, 25 V, -55/105C ] 1 页

KEMET

 		EXV106M035A9DAA [ Aluminum Electrolytic, 105C LowZ, EXV, 10 uF, 20%, 35 V, -55/105C ] 1 页

KEMET

 		EXV106M050A9GAA [ Aluminum Electrolytic, 105C LowZ, EXV, 10 uF, 20%, 50 V, -55/105C ] 1 页

KEMET

 		EXV226M010A9BAA [ Surface Mount Aluminum Electrolytic Capacitors ] 18 页

KEMET

 		EXV226M010S9BAA [ Surface Mount Aluminum Electrolytic Capacitors ] 18 页

KEMET

 		EXV226M016A9BAA [ Surface Mount Aluminum Electrolytic Capacitors ] 18 页

KEMET

 		EXV226M016S9BAA [ Surface Mount Aluminum Electrolytic Capacitors ] 18 页

KEMET

 		EXV226M025A9BAA [ Surface Mount Aluminum Electrolytic Capacitors ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.204856s
