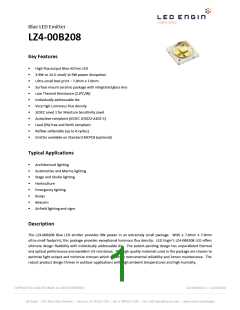

Blue LED Emitter
LZ4-00B208
Key Features
.
.
.
.
.
.
.
.
.
.
.
.
High flux output Blue 457nm LED
3.9W or 14.5 umol/ at 9W power dissipation
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (2.8°C/W)
Individually addressable die
Very high Luminous Flux density
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard MCPCB (optional)
Typical Applications
.
.
.
.
.
.
.
.
Architectural lighting
Automotive and Marine lighting
Stage and Studio lighting
Horticulture
Emergency lighting
Buoys
Beacons
Airfield lighting and signs
Description
The LZ4-00B208 Blue LED emitter provides 9W power in an extremely small package. With a 7.0mm x 7.0mm
ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s LZ4-00B208 LED offers
ultimate design flexibility with individually addressable die. The patent-pending design has unparalleled thermal
and optical performance and excellent UV resistance. The high quality materials used in the package are chosen to
optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The
robust product design thrives in outdoor applications with high ambient temperatures and high humidity.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Part number options
Base part number
Part number
Description
LZ4-00B208-xxxx
LZ4-40B208-xxxx
LZ4 emitter
LZ4 emitter on Standard Star 1 channel MCPCB
Bin kit option codes
B2, Blue (460nm)
Min
Kit number
flux
Color Bin Range
Description
suffix
Bin
full distribution flux; full distribution
wavelength
0000
L
B3 – B4
Notes:
1.
Default bin kit option is -0000
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
2
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Luminous Flux Bins
Table 1:
Minimum
Maximum
Luminous Flux (ΦV)
@ IF = 700mA[1]
(lm)
Luminous Flux (ΦV)
@ IF = 700mA[1]
(lm)
Bin Code
L
93
117
146
182
228
M
117
146
182
N
P
Notes for Table 1:
1.
Luminous flux performance is measured at 10ms pulse, TC = 25°C. LED Engin maintains a tolerance of ± 10% on flux measurements.
Dominant Wavelength Bins
Table 2:
Minimum
Maximum
Dominant Wavelength (λD)
@ IF = 700mA[1,2]
(nm)
Dominant Wavelength (λD)
@ IF = 700mA[1,2]
(nm)
Bin Code
B3
B4
450
455
455
460
Notes for Table 2:
1.
2.
Dominant wavelength is measured at 10ms pulse, TC = 25oC. LED Engin maintains a tolerance of ± 1.0nm on peak wavelength measurements.
Dominant wavelength is derived from the CIE 1931 Chromaticity Diagram and represents the perceived hue.
Forward Voltage Bins
Table 3:
Minimum
Maximum
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Bin Code
0
11.2
15.2
Notes for Table 3:
1.
2.
Forward Voltage is binned with all four LED dice connected in series.
Forward voltage is measured at 10ms pulse, TC = 25oC. LED Engin maintains a tolerance of ± 0.16V for forward voltage measurements for the four LEDs.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
3
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Absolute Maximum Ratings
Table 4:
Parameter
Symbol
Value
Unit
mA
mA
V
°C
°C
DC Forward Current [1]
Peak Pulsed Forward Current[2]
Reverse Voltage
IF
IFP
VR
Tstg
TJ
1000
1500
See Note 3
-40 ~ +150
150
Storage Temperature
Junction Temperature
Soldering Temperature[4]
Allowable Reflow Cycles
Tsol
260
6
°C
121°C at 2 ATM,
100% RH for 168 hours
Autoclave Conditions[5]
Notes for Table 4:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature. Follow the curves in Figure 10 for current
de-rating.
2:
3.
4.
5.
6.
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
LEDs are not designed to be reverse biased.
Solder conditions per JEDEC 020c. See Reflow Soldering Profile Figure 3.
Autoclave Conditions per JEDEC JESD22-A102-C.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ4-00B208 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ TC = 25°C
Table 5:
Parameter
Symbol
Typical
Unit
Luminous Flux (@ IF = 700mA/ 1000mA)[1]
Radiant Flux (@ IF = 700mA/ 1000mA)[1]
PPF[2] 400-700nm (@ IF = 700mA/ 1000mA)
Wall Plug Efficiency (@ IF = 350mA)
Dominant Wavelength[3]
ΦV
Φ
145/195
3.9/ 5.3
14.5/ 19.5
52
lm
W
umol/s
%
Ƞ
λD
457
nm
Peak Wavelength
λP
453
100
120
nm
Degrees
Degrees
Viewing Angle[4]
2Θ
½
Total Included Angle[5]
Θ0.9
Notes for Table 5:
1.
2.
3.
4.
5.
Luminous flux typical value is for all four LED dice operating concurrently at rated current.
PPF is Photosynthetic Photon Flux
Observe IEC 60825-1 class 2 rating for eye safety. Do not stare into the beam.
Viewing Angle is the off axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
Total Included Angle is the total angle that includes 90% of the total luminous flux.
Electrical Characteristics @ TC = 25°C
Table 6:
Parameter
Symbol
Typical
Unit
Forward Voltage (@ IF = 700mA) [1]
Forward Voltage (@ IF = 1000mA) [1]
VF
VF
12.8
13.2
V
V
Temperature Coefficient
of Forward Voltage [1]
ΔVF/ΔTJ
RΘJ-C
-9.6
2.8
mV/°C
°C/W
Thermal Resistance
(Junction to Case)
Notes for Table 6:
1.
Forward Voltage typical value is for all four LED dice connected in series.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
4
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
IPC/JEDEC Moisture Sensitivity Level
Table 7 - IPC/JEDEC J-STD-20 MSL Classification:
Soak Requirements
Floor Life
Conditions
Standard
Conditions
Accelerated
Level
1
Time
Time (hrs)
Time (hrs)
Conditions
≤ 30°C/
168
+5/-0
85°C/
85% RH
Unlimited
n/a
n/a
85% RH
Notes for Table 7:
1.
The standard soak time is the sum of the default value of 24 hours for the semiconductor manufacturer’s exposure time (MET) between bake and bag
and the floor life of maximum time allowed out of the bag at the end user of distributor’s facility.
Average Lumen Maintenance Projections
Lumen maintenance generally describes the ability of a lamp to retain its output over time. The useful lifetime for
solid state lighting devices (Power LEDs) is also defined as Lumen Maintenance, with the percentage of the original
light output remaining at a defined time period.
Based on long-term WHTOL testing, LED Engin projects that the LZ Series will deliver, on average, 70% Lumen
Maintenance at 65,000 hours of operation at a forward current of 700 mA per die. This projection is based on
constant current operation with junction temperature maintained at or below 125°C.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
5
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Mechanical Dimensions (mm)
Pin Out
Pad
1
Die
Function
A
Anode
Cathode
Anode
2
A
3
B
4
B
Cathode
Anode
5
C
6
C
Cathode
Anode
7
D
8
9[2]
D
Cathode
Thermal
n/a
2
3
1
8
4
Figure 1: Package outline drawing.
Notes for Figure 1:
7
5
6
1.
2.
Unless otherwise noted, the tolerance = ± 0.20 mm.
Thermal contact, Pad 9, is electrically neutral.
Recommended Solder Pad Layout (mm)
Non-pedestal MCPCB Design
Pedestal MCPCB Design
Figure 2a: Recommended solder pad layout for anode, cathode, and thermal pad for non-pedestal and pedestal design
Note for Figure 2a:
1.
2.
Unless otherwise noted, the tolerance = ± 0.20 mm.
Pedestal MCPCB allows the emitter thermal slug to be soldered directly to the metal core of the MCPCB. Such MCPCB eliminate the high thermal
resistance dielectric layer that standard MCPCB technologies use in between the emitter thermal slug and the metal core of the MCPCB, thus lowering
the overall system thermal resistance.
3.
LED Engin recommends x-ray sample monitoring for solder voids underneath the emitter thermal slug. The total area covered by solder voids should be
less than 20% of the total emitter thermal slug area. Excessive solder voids will increase the emitter to MCPCB thermal resistance and may lead to
higher failure rates due to thermal over stress.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
6
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Recommended Solder Mask Layout (mm)
Non-pedestal MCPCB Design
Pedestal MCPCB Design
Figure 2b: Recommended solder mask opening for anode, cathode, and thermal pad for non-pedestal and pedestal design
Note for Figure 2b:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
Recommended 8 mil Stencil Apertures Layout (mm)
Non-pedestal MCPCB Design
Pedestal MCPCB Design
Figure 2c: Recommended 8mil stencil apertures for anode, cathode, and thermal pad for non-pedestal and pedestal design
Note for Figure 2c:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
7
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Reflow Soldering Profile
Figure 3: Reflow soldering profile for lead free soldering.
Typical Radiation Pattern
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
-90 -80 -70 -60 -50 -40 -30 -20 -10
0
10 20 30 40 50 60 70 80 90
Angular Displacement (Degrees)
Figure 4: Typical representative spatial radiation pattern @ TC = 25°C.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
8
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Relative Spectral Power Distribution
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
400
450
500
550
600
650
700
Wavelength (nm)
Figure 5: Typical relative spectral power vs. wavelength @ TC = 25°C.
Typical Forward Current Characteristics
1,200
1,000
800
600
400
200
0
10.0
11.0
12.0
13.0
14.0
15.0
VF - Forward Voltage (V)
Figure 6: Typical forward current vs. forward voltage @ TC = 25°C.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
9
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Relative Light Output over Current
160
140
120
100
80
60
40
20
0
0
200
400
600
800
1000
1200
IF - Forward Current (mA)
Figure 7: Typical relative light output vs. forward current @ TC = 25°C.
Typical Relative Light Output over Temperature
140%
120%
100%
80%
60%
40%
20%
0%
0
20
40
60
80
100
120
TC - Case Temperature (oC)
Figure 8: Typical relative light output vs. case temperature.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
10
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Typical Dominant Wavelength Shift over Current
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
0
200
400
600
800
1000
1200
IF - Forward Current (mA)
Figure 9: Typical dominant wavelength shift vs. forward current @ TC = 25°C.
Typical Dominant Wavelength Shift over Temperature
8.0
6.0
4.0
2.0
0.0
-2.0
-4.0
-6.0
-8.0
0
20
40
60
80
100
120
TC - Case Temperature (°C)
Figure 10: Typical dominant wavelength shift vs. case temperature.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
11
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Current De-rating
1200
1000
800
700
(Rated)
600
RΘJA = 4°C/W
RΘJA = 5°C/W
RΘJA = 6°C/W
400
200
0
0
25
50
75
100
125
150
TA - Ambient Temperature (°C)
Figure 11: Maximum forward current vs. ambient temperature.
Notes for Figure 11:
1.
2.
3.
Maximum current assumes that all four LED dice are operating concurrently at the same current.
RΘJ-C [Junction to Case Thermal Resistance] for the LZ4-00B208 is typically 2.8°C/W.
RΘJ-A [Junction to Ambient Thermal Resistance] = RΘJ-C + RΘC-A [Case to Ambient Thermal Resistance].
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
12
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
Emitter Tape and Reel Specifications (mm)
Figure 12: Emitter carrier tape specifications (mm).
Figure 13: Emitter Reel specifications (mm).
Notes for Figure 13:
1.
2.
3.
Small reel quantity: up to 250 emitters
Large reel quantity: 250-1200 emitters
Single flux bin and single wavelength per reel.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
13
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
LZ4 MCPCB Family
Emitter + MCPCB
Thermal Resistance
(oC/W)
Diameter
Typical Vf Typical If
Part number Type of MCPCB
(mm)
(V)
(mA)
LZ4-4xxxxx 1-channel
19.9
2.8 + 1.1 = 3.9
14.0
700
Mechanical Mounting of MCPCB
.
MCPCB bending should be avoided as it will cause mechanical stress on the emitter, which could lead to
substrate cracking and subsequently LED dies cracking.
.
To avoid MCPCB bending:
o
o
Special attention needs to be paid to the flatness of the heat sink surface and the torque on the screws.
Care must be taken when securing the board to the heat sink. This can be done by tightening three M3
screws (or #4-40) in steps and not all the way through at once. Using fewer than three screws will
increase the likelihood of board bending.
o
o
It is recommended to always use plastics washers in combinations with the three screws.
If non-taped holes are used with self-tapping screws, it is advised to back out the screws slightly after
tightening (with controlled torque) and then re-tighten the screws again.
Thermal interface material
.
.
.
To properly transfer heat from LED emitter to heat sink, a thermally conductive material is required when
mounting the MCPCB on to the heat sink.
There are several varieties of such material: thermal paste, thermal pads, phase change materials and thermal
epoxies. An example of such material is Electrolube EHTC.
It is critical to verify the material’s thermal resistance to be sufficient for the selected emitter and its operating
conditions.
Wire soldering
.
To ease soldering wire to MCPCB process, it is advised to preheat the MCPCB on a hot plate of 125-150oC.
Subsequently, apply the solder and additional heat from the solder iron will initiate a good solder reflow. It is
recommended to use a solder iron of more than 60W.
.
It is advised to use lead-free, no-clean solder. For example: SN-96.5 AG-3.0 CU 0.5 #58/275 from Kester (pn:
24-7068-7601)
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
14
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
LZ4-4xxxxx
1 channel, Standard Star MCPCB (1x4) Dimensions (mm)
Notes:
Unless otherwise noted, the tolerance = ± 0.2 mm.
Slots in MCPCB are for M3 or #4-40 mounting screws.
LED Engin recommends plastic washers to electrically insulate screws from solder pads and electrical traces.
LED Engin recommends thermal interface material when attaching the MCPCB to a heatsink
The thermal resistance of the MCPCB is: RΘC-B 1.1°C/W
Components used
MCPCB:
ESD chips:
HT04503
BZX585-C30
(Bergquist)
(NXP, for 4 LED dies in series)
Pad layout
MCPCB
Pad
Ch.
String/die Function
1, 2, 3
4, 5
Cathode -
Anode +
1
1/ABCD
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
15
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
About LED Engin
LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED
emitters, optics and light engines to create uncompromised lighting experiences for a wide range of
entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and
secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a
target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented
compact ceramic package. Our LuxiTuneTM series of tunable white lighting modules leverage our LuxiGen emitters
and lenses to deliver quality, control, freedom and high density tunable white light solutions for a broad range of
new recessed and downlighting applications. The small size, yet remarkably powerful beam output and superior in-
source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional
light is required. LED Engin is committed to providing products that conserve natural resources and reduce
greenhouse emissions; and reserves the right to make changes to improve performance without notice.
For more information, please contact LEDE-Sales@osram.com or +1 408 922-7200.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00B208 (1.5 - 11/19/2018)
16
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | em LEDE-Sales@osram.com | www.osram.us/ledengin
厂商 型号 描述 页数 下载

ETC

 		LZ4-00R308-0000 [ LED EMITTER RED 740NM SMD ] 15 页

ETC

 		LZ4-00UA00-0000 [ EMITTER UV 395NM 1A ] 15 页

ETC

 		LZ4-00UA00-00U4 [ EMITTER UV 390NM 1A ] 15 页

ETC

 		LZ4-00UA00-00U5 [ EMITTER UV 395NM 1A ] 15 页

ETC

 		LZ4-00UA00-00U7 [ EMITTER UV 405NM 1A ] 15 页

ETC

 		LZ4-00UA00-00U8 [ EMITTER UV 410NM 1A ] 15 页

ETC

 		LZ4-00WW08-0030 [ LED WARM WHITE 3000K 80CRI 8SMD ] 18 页

ETC

 		LZ4-00WW08-0035 [ LED WARM WHITE 3500K 80CRI 8SMD ] 18 页

ETC

 		LZ4-00WW08-0230 [ LED WARM WHITE 3000K 80CRI 8SMD ] 18 页

ETC

 		LZ4-00WW08-0427 [ LED WARM WHITE 2700K 80CRI 8SMD ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.189458s
