VTM48ET040M050B0R

型号：

VTM48ET040M050B0R

品牌：

VICOR[ VICOR CORPORATION ]

页数：

21 页

PDF大小：

1855 K

下载PDF手册

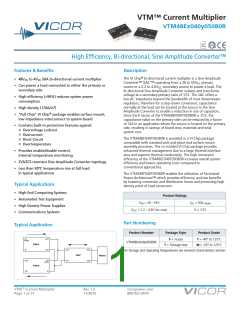

VTM™ Current Multiplier
VTM48Ex040y050B0R
S
C
NRTL US
High Efficiency, Bi-directional, Sine Amplitude Converter™
Features & Benefits
Description
The VI Chip® bi-directional current multiplier is a Sine Amplitude
• 48VDC to 4VDC 50A bi-directional current multiplier
Converter™ (SAC™) operating from a 26 to 55VDC primary
source or a 2.2 to 4.6VDC secondary source to power a load. The
bi-directional Sine Amplitude Converter isolates and transforms
voltage at a secondary:primary ratio of 1/12. The SAC offers a
low AC impedance beyond the bandwidth of most downstream
regulators; therefore for a step-down conversion; capacitance
normally at the load can be located at the source to the Sine
Amplitude Converter to enable a reduction in size of capacitors.
Since the K factor of the VTM48EF040T050B0R is 1/12, the
capacitance value on the primary side can be reduced by a factor
of 144 in an application where the source is located on the primary
side, resulting in savings of board area, materials and total
system cost.
• Can power a load connected to either the primary or
secondary side
• High efficiency (>94%) reduces system power
consumption
• High density (170A/in3)
• “Full Chip” VI Chip® package enables surface mount,
low impedance interconnect to system board
• Contains built-in protection features against:
nꢀOvervoltage Lockout
nꢀOvercurrent
The VTM48EF040T050B0R is provided in a VI Chip package
compatible with standard pick-and-place and surface mount
assembly processes. The co-molded VI Chip package provides
enhanced thermal management due to a large thermal interface
area and superior thermal conductivity. The high conversion
efficiency of the VTM48EF040T050B0R increases overall system
efficiency and lowers operating costs compared to
nꢀShort Circuit
nꢀOvertemperature
• Provides enable/disable control,
internal temperature monitoring
• ZVS/ZCS resonant Sine Amplitude Converter topology
conventional approaches.
• Less than 50ºC temperature rise at full load
in typical applications
The VTM48EF040T050B0R enables the utilization of Factorized
Power Architecture™ which provides efficiency and size benefits
by lowering conversion and distribution losses and promoting high
density point of load conversion.
Typical Applications
• High End Computing Systems
• Automated Test Equipment
• High Density Power Supplies
• Communications Systems
Product Ratings
VPRI = 26 – 55V
ISEC = 50A (NOM)
K = 1/12
VSEC = 2.2 – 4.6V (no load)
Part Numbering
Typical Application
Product Number
Package Style
Product Grade
+IN
+OUT
F = J-Lead
T = -40° to 125°C
M = -55° to 125°C
Enable
VTM48Ex040y050B0R
PRM A
T = Through hole
-IN
-OUT
+PRI
-PRI
+SEC
-SEC
For Storage and Operating Temperatures see General Characteristics Section
VTM®
Battery
+IN
+OUT
-OUT
Enable
PRM B
-IN
VTM™ Current Multiplier
Page 1 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Parameter
Comments
Min
Max
Unit
+PRI to –PRI
-1.0
60
VDC
PC to –PRI
TM to –PRI
-0.3
20
7
VDC
VDC
-0.3
-0.3
VC to –PRI
20
2250
40
VDC
VDC
VDC
+PRI / –PRI to +SEC / –SEC (hipot)
+SEC to –SEC
-0.5
Primary Source Electrical Specifications
Specifications apply over all line and load conditions when power is sourced from the primary side, unless otherwise noted; Boldface specifications apply over
the temperature range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
Attribute
Symbol
Conditions / Notes
No external VC applied
Min
26
0
Typ
Max
55
55
1
Unit
Primary voltage range
VPRI
VDC
VC applied
VPRI slew rate
dVPRI/dt
VPRI_UV
V/µs
V
Module latched shutdown,
No external VC applied, IOUT = 50A
VPRI UV turn off
24
26
VPRI = 48V
1.5
10
12
6.3
8
VPRI = 26V to 55V
No Load power dissipation
Inrush current peak
PNL
W
A
VPRI = 48V, TC = 25ºC
VPRI = 26V to 55V, TC = 25ºC
4.7
10
VC enable, VPRI = 48V, CSEC = 9100µF,
RLOAD = 78mΩ
IINRP
20
DC input current
IPRI_DC
K
4.5
A
V / V
V
Transfer ratio
K = VSEC/ VPRI, ISEC = 0A
1/12
Secondary voltage
VSEC
VSEC = VPRI • K –ISEC • RSEC, See Page 13
Secondary current (average)
Secondary current (peak)
Secondary power (average)
ISEC_AVG
ISEC_PK
POUT_AVG
54
75
A
tPEAK < 10ms, IOUT_AVG ≤ 50A
ISEC_AVG ≤ 50A
A
248
W
VPRI = 48V, ISEC = 50A
VPRI = 26V to 55V, ISEC = 50A
VPRI = 48V, ISEC = 25A
93.1
90.2
92.4
94.0
93.5
Efficiency (ambient)
hAMB
%
VTM™ Current Multiplier
Page 2 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Primary Source Electrical Specifications (Cont.)
Specifications apply over all line and load conditions when power is sourced from the primary side, unless otherwise noted; Boldface specifications apply over
the temperature range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
Attribute
Efficiency (hot)
Symbol
hHOT
Conditions / Notes
VIN = 48V, TC = 100°C, ISEC = 50A
10A < ISEC < 50A
Min
93.0
80.0
Typ
Max
Unit
%
94.0
Efficiency (over load range)
h20%
%
Secondary resistance (cold)
Secondary resistance (ambient)
Secondary resistance (hot)
Switching frequency
RSEC_COLD
RSEC_AMB
RSEC_HOT
FSW
TC = -40°C, ISEC = 50A
TC = 25°C, ISEC = 50A
TC = 100°C, ISEC = 50A
1.5
1.8
2.0
2.5
2.6
3.0
mΩ
mΩ
2.0
2.7
3.3
mΩ
1.36
2.72
1.43
2.86
1.50
3.00
MHz
MHz
Secondary ripple frequency
FSW_RP
COUT = 0F, ISEC = 50A, VPRI = 48V,
20MHz BW
Secondary voltage ripple
VSEC_PP
216
350
mV
Secondary inductance (parasitic)
Secondary capacitance (internal)
LSEC_PAR
CSEC_INT
Frequency up to 30MHz, Simulated J-lead model
Effective Value at 4VSEC
600
200
pH
µF
VTM Standalone Operation.
VPRI pre-applied, VC enable
Secondary capacitance (external)
CSEC_EXT
9100
µF
Protection
Primary Overvoltage lockout
VPRI_OVLO+
tOVLO
IOCP_SEC
ISCP_SEC
Module latched shutdown
55.1
58.5
8
60.0
100
V
µs
A
Primary Overvoltage lockout
response time constant
Effective internal RC filter
Secondary overcurrent trip
53
78
Secondary Short circuit protection
trip current
100
A
Secondary overcurrent
response time constant
tOCP_SEC
Effective internal RC filter (Integrative)
6.2
ms
Secondary Short circuit
protection response time
From detection to cessation
of switching (Instantaneous)
tSCP_SEC
TJ_OTP
1
µs
ºC
Thermal shutdown setpoint
125
130
135
Reverse inrush current protection
Reverse Inrush protection is enabled for this product
VTM™ Current Multiplier
Page 3 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Secondary Source Electrical Specifications
Specifications apply over all line and load conditions when power is sourced from the secondary side, unless otherwise noted; Boldface specifications apply
over the temperature range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
Attribute
Symbol
Conditions / Notes
No external VC applied
Min
2.17
0
Typ
Max
4.58
5
Unit
Secondary voltage range
VSEC
VDC
VC applied
VSEC slew rate
dVSEC/dt
VSEC_UV
1
V/µs
V
Module latched shutdown,
No external VC applied, IPRI = 4.2A
VSEC UV turn off
2.0
2.2
VSEC = 4V
1.5
10.0
12.0
6.3
VSEC = 2.17V to 4.58V
VSEC = 4V, TC = 25ºC
VSEC = 2.17V to 4.58V, TC = 25ºC
No Load power dissipation
PNL_SEC
W
4.7
8.0
VC enable, VSEC = 4V, CPRI = 63µF,
RLOAD = 11Ω
Inrush current peak
IIN_SEC_P
120
240
A
DC secondary current
Primary voltage
ISEC_DC
VPRI
IPRI_AVG
IPRI_PK
54.0
A
V
VPRI = VSEC /K –IPRI • RPRI, See Page 13
Primary current (average)
Primary current (peak)
Primary power (average)
4.2
6.3
230
A
tPEAK < 10ms, IPRI_AVG ≤ 4.2A
IPRI_AVG ≤ 4.2A
A
PPRI_AVG
W
VSEC = 4V, IPRI = 4.2A
93.1
90.2
92.4
93.0
80.0
380
94.0
Efficiency (ambient)
hAMB
VSEC = 2.17V to 4.58V, IPRI = 4.2A
VSEC = 4V, IPRI = 2.1A
%
93.5
94.0
Efficiency (hot)
hHOT
h20%
VSEC = 4V, TC = 100°C, IPRI = 4.2A
0.8A < IPRI < 4.2A
%
%
Efficiency (over load range)
Primary resistance (cold)
Primary resistance (ambient)
Primary resistance (hot)
RPRI_COLD
RPRI_AMB
RPRI_HOT
TC = -40°C, IPRI = 4.2A
TC = 25°C,IPRI = 4.2A
420
473
521
460
545
560
mΩ
mΩ
mΩ
430
TC = 100°C, IPRI = 4.2A
480
CPRI = 0F, IPRI = 4.2A, VSEC = 4V,
2.2MHz BW
Primary voltage ripple
VPRI_PP
600
mV
µF
VTM Standalone Operation.
VSEC pre-applied, VC enable
Primary capacitance (external)
CPRI_EXT
63
Protection
Secondary OVLO
VSEC_OVLO+
tOVLO_SEC
IOCP_PRI
Module latched shutdown
4.6
4.9
8
5.0
V
µs
A
Secondary Overvoltage lockout
response time constant
Effective internal RC filter
Primary overcurrent trip
4
6
8
Primary Short circuit protection
trip current
ISCP_PRI
8
A
Primary overcurrent
response time constant
tOCP_PRI
tSCP_PRI
Effective internal RC filter (Integrative)
6.2
1
ms
µs
Primary Short circuit protection
response time
From detection to cessation
of switching (Instantaneous)
VTM™ Current Multiplier
Page 4 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Signal Characteristics
Specifications apply over all line and load conditions when power is sourced from the primary side, unless otherwise noted; Boldface specifications apply over
the temperature range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
VTM CONTROL : VC
•
•
•
•
•
•
•
Referenced to -PRI.
Used to wake up powertrain circuit.
A minimum of 11.5V must be applied indefinitely for VPRI < 26V to ensure normal operation.
VC slew rate must be within range for a succesful start.
PRM™ VC can be used as valid wake-up signal source.
Internal Resistance used in “Adaptive Loop” compensation.
VC voltage may be continuously applied.
SIGNAL TYPE
STATE
ATTRIBUTE
SYMBOL
CONDITIONS / NOTES
MIN
11.5
TYP MAX UNIT
Required for start up, and operation
below 26V.
External VC voltage
VVC_EXT
16.5
150
V
VC = 11.5V, VPRI = 0V
VC = 11.5V, VPRI > 26V
VC = 16.5V, VPRI > 26V
Fault mode. VC > 11.5V
66
15
83
75
100
1
VC current draw
IVC
mA
Steady
VC internal diode rating
VC internal resistor
DVC_INT
RVC-INT
V
kΩ
ANALOG
INPUT
VC internal resistor
temperature coefficient
TVC_COEFF
900 ppm/°C
VC start up pulse
VC slew rate
VVC_SP
dVC/dt
IINR_VC
tPEAK <18ms
20
0.25
1
V
V/µs
A
Start Up
Required for proper start up
VC = 16.5V, dVC/dt = 0.25V/µs
0.02
VC inrush current
VPRI pre-applied, PC floating,
VC enable, CPC = 0µF
VC to VSEC turn-on delay
tON
500
µs
VC = 11.5V to PC high, VPRI = 0V,
dVC/dt = 0.25V/µs
Transitional
VC to PC delay
tVC_PC
75
125
µs
µF
Internal VC capacitance
CVC_INT
VC = 0V
3.2
VTM™ Current Multiplier
Page 5 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Signal Characteristics (Cont.)
Specifications apply over all line and load conditions when power is sourced from the primary side, unless otherwise noted; Boldface specifications apply over
the temperature range of -40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
PRIMARY CONTROL : PC
•
•
•
•
•
•
•
Referenced to -PRI.
The PC pin enables and disables the VTM. When held below 2V, the VTM will be disabled.
PC pin outputs 5V during normal operation. PC pin is equal to 2.5V during fault mode given VPRI > 26V or VC > 11.5V.
After successful start up and under no fault condition, PC can be used as a 5 V regulated voltage source with a 2mA maximum current.
Module will shutdown when pulled low with an impedance less than 400Ω.
In an array of VTMs, connect PC pin to synchronize start up.
PC pin cannot sink current and will not disable other modules during fault mode.
SIGNAL TYPE
STATE
ATTRIBUTE
PC voltage
SYMBOL
CONDITIONS / NOTES
MIN TYP MAX UNIT
VPC
IPC_OP
RPC_OP
IPC_EN
4.7
5.0
5.3
2
V
Steady
PC source current
mA
kΩ
µA
pF
kΩ
V
PC resistance (internal)
PC source current
Internal pull down resistor
50
50
150
100
400
300
1000
ANALOG
OUTPUT
Start Up
PC capacitance (internal)
PC resistance (external)
PC voltage
CPC_INT
RPC_S
60
2
Enable
Disable
VPC_EN
VPC_DIS
IPC_PD
2.5
3
2
PC voltage (disable)
PC pull down current
PC disable time
V
DIGITAL
INPUT/
OUTPUT
5.1
mA
µs
tPC_DIS_T
tFR_PC
5
Transitional
PC fault response time
From fault to PC = 2V
100
µs
Temperature Monitor : TM
•
•
•
•
•
Referenced to -PRI.
The TM pin monitors the internal temperature of the VTM controller IC within an accuracy of 5°C.
Can be used as a “Power Good” flag to verify that the VTM is operating.
The TM pin has a room temperature setpoint of 3V and approximate gain of 10mV/°C.
Output drives Temperature Shutdown comparator.
SIGNAL TYPE
STATE
ATTRIBUTE
TM voltage
SYMBOL
CONDITIONS / NOTES
TJ controller = 27°C
MIN TYP MAX UNIT
VTM_aMB
ITM
2.95 3.00 3.05
V
µA
mV/ºC
mV
V
TM source current
TM gain
100
ANALOG
OUTPUT
Steady
Disable
ATM
10
TM voltage ripple
TM voltage
VTM_PP
VTM_DIS
RTM_INT
CTM_EXT
tFR_TM
CTM = 0F, VPRI = 48V, ISEC = 50A
Internal pull down resistor
From fault to TM = 1.5V
120
0
200
DIGITAL
OUTPUT
(FAULT FLAG)
TM resistance (internal)
25
40
50
50
kΩ
pF
Transitional TM capacitance (external)
TM fault response time
10
µs
VTM™ Current Multiplier
Page 6 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Timing Diagram (Power sourced from the primary side)
6
7
ISEC
ISEC
ISEC
8
d
1
2
3
4
5
VC
b
VVC-EXT
a
VOVLO
VPRI
NL
≥ 26V
c
e
f
VSEC
TM
VTM-AMB
PC
g
5V
3V
a: VC slew rate (dVC/dt)
b: Minimum VC pulse rate
c: tOVLO_PIN
1. Initiated VC pulse
2. Controller start
3. VPRI ramp up
Notes:
– Timing and voltage is not to scale
– Error pulse width is load dependent
d: tOCP_SEC
e: Secondary turn on delay (tON
f: PC disable time (tPC_DIS_T
g: VC to PC delay (tVC_PC
4. VPRI = VOVLO
)
5. VPRI ramp down no VC pulse
6. Overcurrent, Secondary
7. Start up on short circuit
8. PC driven low
)
)
VTM™ Current Multiplier
Page 7 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Application Characteristics
The following values, typical of an application environment, are collected at TC = 25ºC with power sourced from the primary side unless otherwise noted.
See associated figures for general trend data.
ATTRIBUTE
SYMBOL
CONDITIONS / NOTES
VPRI = 48V, PC enabled
TYP
UNIT
No load power dissipation
Efficiency (ambient)
PNL
4.7
94.3
94.2
2.4
W
%
hAMB
VPRI = 48V, ISEC = 50A
Efficiency (hot)
hHOT
VPRI = 48V, ISEC = 50A, TC = 100ºC
VPRI = 48V, ISEC = 50A, TC = -40ºC
VPRI = 48V, ISEC = 50A
%
Secondary resistance (cold)
Secondary resistance (ambient)
Secondary resistance (hot)
Secondary voltage ripple
VOUT transient (positive)
VOUT transient (negative)
RSEC_COLD
RSEC_AMB
RSEC_HOT
VSEC_PP
mΩ
mΩ
mΩ
mV
mV
mV
2.8
VPRI = 48V, ISEC = 50A, TC = 100ºC
3.2
CSEC = 0F,
= 50A,
= 48V, 20MHz BW
ISEC
VPRI
320
750
750
VSEC_TRAN+
VSEC_TRAN-
ISEC_STEP = 0A to 50A, VPRI = 48V, ISLEW = 17A/µs
ISEC_STEP = 50A to 0A,
= 48V, ISLEW =
0A/µs
VPRI
11
10
9
98
96
94
8
7
6
5
4
3
2
92
1
26
29
32
35
Primary Voltage (V)
-40°C 25°C
38
41
43
46
49
52
55
-40
-20
0
20
Case Temperature (C)
26V 48V
40
60
80
100
VPRI
:
55V
TCASE
:
100°C
Figure 1 — No load power dissipation vs. VPRI
Figure 2 — Full secondary load efficiency vs. temperature
35
30
25
20
15
10
5
92
87
82
77
72
67
62
57
52
0
0
5
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
Secondary Load Current (A)
Secondary Load Current (A)
26V
48V
55V
VPRI
:
26V
48V
55V
VPRI
:
Figure 3 — Efficiency at –40°C
Figure 4 — Power dissipation at –40°C
VTM™ Current Multiplier
Page 8 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
98
94
90
86
82
78
24
20
16
12
8
4
0
74
70
0
5
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
Secondary Load Current (A)
Secondary Load Current (A)
26V
48V
55V
VPRI
:
26V
48V
55V
VPRI
:
Figure 5 — Efficiency at 25°C
Figure 6 — Power dissipation at 25°C
28
24
20
16
12
8
96
92
88
84
80
76
72
4
0
0
5
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
Secondary Load Current (A)
Secondary Load Current (A)
26V
48V
55V
VPRI
:
26V
48V
55V
VPRI
:
Figure 7 — Efficiency at 100°C
Figure 8 — Power dissipation at 100°C
4.0
3.0
2.0
1.0
0.0
350
300
250
200
150
100
50
-40
-20
0
20
40
60
80
100
0
5
10
15
20
25
30
35
40
45
50
Case Temperature (C)
Secondary Load Current (A)
VPRI
:
Full Load
26V
48V
55V
Figure 9 — RSEC vs. temperature
Figure 10 — VRIPPLE vs. ISEC ; No external CSEC Board mounted
.
module, scope setting: 20MHz analog BW
VTM™ Current Multiplier
Page 9 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
10ms Max
80
70
60
50
40
30
20
10
0
Continuous
0
1
2
3
4
5
Secondary Voltage (V)
Figure 11 — Safe operating area
Figure 12 — Full load ripple, 100µF CPRI; No external CSEC Board
.
mounted module, scope setting: 20MHz analog BW
Figure 13 — Start up from application of VPRI
;
Figure 14 — Start up from application of VC;
VC pre-applied CSEC = 9100µF
VPRI pre-applied CSEC = 9100µF
Figure 15 — 0A – Full load transient response:
Figure 16 — Full load – 0A transient response:
CPRI = 100µF, no external CSEC
CPRI = 100µF, no external CSEC
VTM™ Current Multiplier
Page 10 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
General Characteristics
Specifications apply over all line and load conditions with power sourced from primary side unless otherwise noted; Boldface specifications apply over the
temperature range of -40ºC < TJ < 125ºC (T-Grade); All Other specifications are at TJ = 25°C unless otherwise noted.
Attribute
Symbol
Conditions / Notes
Mechanical
Min
Typ
Max
Unit
Length
Width
L
W
H
32.25 / [1.270] 32.5 / [1.280] 32.75 / [1.289]
21.75 / [0.856] 22.0 / [0.866] 22.25 / [0.876]
mm/[in]
mm/[in]
mm/[in]
cm3/[in3]
g/[oz]
Height
Volume
Weight
6.48 / [0.255]
6.73 / [0.265]
4.81 / [0.294]
15.0 / [0.53]
6.98 / [0.275]
Vol
W
No heat sink
Nickel
0.51
0.02
2.03
0.15
Lead Finish
Palladium
Gold
µm
0.003
0.051
Thermal
VTM48EF040T050B0R (T-Grade)
VTM48EF040M050B0R (M-Grade)
VTM48ET040T050B0R (T-Grade)
VTM48ET040M050B0R (M-Grade)
-40
-55
-40
-55
125
125
125
125
Operating temperature
TJ
°C
Isothermal heat sink and
isothermal internal PCB
hJC
Thermal resistance
Thermal capacity
1
5
°C/W
Ws/°C
Assembly
6
lbs
Peak compressive force
applied to case (Z-axis)
Supported by J-lead only
5.41
125
125
125
125
lbs/in2
VTM48EF040T050B0R (T-Grade)
VTM48EF040M050B0R (M-Grade)
VTM48ET040T050B0R (T-Grade)
VTM48ET040M050B0R (M-Grade)
-40
-65
-40
-65
Storage temperature
ESD withstand
TST
°C
Human Body Model,
“JEDEC JESD 22-A114-F”
ESDHBM
ESDCDM
1000
400
VDC
Charge Device Model,
“JEDEC JESD 22-C101-D”
Soldering
Peak temperature during reflow
Peak time above 217°C
MSL 4 (Datecode 1528 and later)
245
90
3
°C
s
60
1.5
1.5
Peak heating rate during reflow
Peak cooling rate post reflow
°C/s
°C/s
6
VTM™ Current Multiplier
Page 11 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
General Characteristics (Cont.)
Specifications apply over all line and load conditions with power sourced from primary side unless otherwise noted; Boldface specifications apply over the
temperature range of -40ºC < TJ < 125ºC (T-Grade); All Other specifications are at TJ = 25°C unless otherwise noted.
Attribute
Symbol
Conditions / Notes
Safety
Min
Typ
Max
3800
Unit
Isolation voltage (hipot)
Isolation capacitance
Isolation resistance
VHIPOT
CPRI_SEC
RPRI_SEC
2250
2500
10
VDC
pF
Unpowered unit
3200
MΩ
MIL-HDBK-217 Plus Parts Count;
25ºC Ground Benign, Stationary,
Indoors / Computer Profile
3.8
5.7
MHrs
MHrs
MTBF
Telcordia Issue 2 - Method I Case 1;
Ground Benign, Controlled
cTUVus
cURus
Agency approvals / standards
CE Marked for Low Voltage Directive and ROHS Recast Directive, as applicable
VTM™ Current Multiplier
Page 12 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
nꢀFault detection flag: The TM voltage source is internally
turned off as soon as a fault is detected. For system
monitoring purposes (microcontroller interface) faults are
detected on falling edges of TM signal.
Using the Control Signals VC, PC, TM, IM
The VTM Control (VC) pin is a primary referenced pin which
powers the internal VCC circuitry when within the specified voltage
range of 11.5V to 16.5V. This voltage is required for VTM current
multiplier start up and must be applied as long as the primary is
below 26V. In order to ensure a proper start, the slew rate of the
applied voltage must be within the specified range.
Start Up Behavior
Depending on the sequencing of the VC voltage with respect
to the same voltage, whether the source is on the primary or
secondary, the behavior during start up will vary as follows:
Some additional notes on the using the VC pin:
nꢀIn most applications, the VTM module primary side will be
powered by an upstream PRM™ regulator which provides a
10ms VC pulse during start up. In these applications the VC
pins of the PRM regulator and VTM current multiplier should
be tied together.
nꢀNormal operation (VC applied prior to the source voltage):
In this case, the controller is active prior to the source
ramping. When the source voltage is applied, the VTM
module load voltage will track the source (See Figure 13).
The inrush current is determined by the source voltage rate
of rise and load capacitance. If the VC voltage is removed
prior to the primary voltage reaching 26V, the VTM may
shut down.
nꢀIn bi-directional applications, the primary of the VTM may
also be providing power to a PRM input. In these
applications, a proper VC voltage within the specified range
must be applied any time the primary voltage of the VTM is
below 26V.
nꢀStand-alone operation (VC applied after VPRI): In this case the
VTM secondary will begin to rise upon the application of the
VC voltage (See Figure 14). The Adaptive Soft Start Circuit may
vary the secondary voltage rate of rise in order to limit the inrush
current to its maximum level. When starting into high
capacitance, or a short, the secondary current will be limited for
a maximum of 1200µs. After this period, the Adaptive Soft Start
Circuit will time out and the VTM module may shut down. No
restart will be attempted until VC is re-applied or PC is toggled.
The maximum secondary capacitance is limited to 9100µF in this
mode of operation to ensure a successful start.
nꢀThe VC voltage can be applied indefinitely allowing for
continuous operation down to 0VPRI
.
nꢀThe fault response of the VTM module is latching. A positive
edge on VC is required in order to restart the unit. If VC is
continuously applied the PC pin may be toggled to restart
the VTM module.
Primary Control (PC) is a primary referenced pin that can be used
to accomplish the following functions:
nꢀDelayed start: Upon the application of VC, the PC pin will
source a constant 100µA current to the internal RC
network. Adding an external capacitor will allow further
delay in reaching the 2.5V threshold for module start.
Thermal Considerations
VI Chip® products are multi-chip modules whose temperature
distribution varies greatly for each part number as well as with
the line/load conditions, thermal management and environmental
conditions. Maintaining the top of the VTM48EF040T050B0R case
to less than 100ºC will keep all junctions within the VI Chip module
below 125ºC for most applications.
nꢀAuxiliary voltage source: Once enabled in regular
operational conditions (no fault), each VTM PC provides a
regulated 5V, 2mA voltage source.
nꢀDisable: PC pin can be actively pulled down in order
to disable the module. Pull down impedance shall be lower
than 400Ω.
The percent of total heat dissipated through the top surface
versus through the J-lead is entirely dependent on the particular
mechanical and thermal environment. The heat dissipated through
the top surface is typically 60%. The heat dissipated through the
J-lead onto the PCB board surface is typically 40%. Use 100% top
surface dissipation when designing for a conservative
cooling solution.
nꢀFault detection flag: The PC 5V voltage source is internally
turned off as soon as a fault is detected. It is important to
notice that PC doesn’t have current sink capability. Therefore,
in an array, PC line will not be capable of disabling
neighboring modules if a fault is detected.
nꢀFault reset: PC may be toggled to restart the unit if VC
It is not recommended to use a VI Chip module for an extended
period of time at full load without proper heat sinking.
is continuously applied.
Temperature Monitor (TM) is a primary referenced pin that
provides a voltage proportional to the absolute temperature of the
converter control IC.
It can be used to accomplish the following functions:
nꢀMonitor the control IC temperature: The temperature in
Kelvin is equal to the voltage on the TM pin scaled
by 100. (i.e. 3.0V = 300K = 27ºC). If a heat sink is applied,
TM can be used to thermally protect the system.
VTM™ Current Multiplier
Page 13 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Sine Amplitude Converter™ Point of Load Conversion
The Sine Amplitude Converter (SAC) uses a high frequency
resonant tank to move energy from primary to secondary or vice-
versa, depending on where the source is located. The resonant
tank is formed by Cr and leakage inductance Lr in the power
transformer windings. The resonant LC tank, operated at high
frequency, is amplitude modulated as a function of primary voltage
and secondary current. A small amount of capacitance embedded
in the primary and secondary stages of the module is sufficient for
full functionality and is key to achieving power density.
The VTM48EF040T050B0R SAC can be simplified into the
following model:
973pH
ISEC
RSEC
LPRI = 5.7nH
LSEC = 600pH
2.5mΩ
+
+
R
CSEC
R
CPRI
3.13Ω
1/12 • VPRI
430µΩ
V•I
K
0.57mΩ
1/12 • ISEC
+
–
C
PRI
2µF
CSEC
200µF
+
–
VSEC
V
Iq
PRI
98mA
–
–
Figure 17 — VI Chip® module AC model
At no load:
The use of DC voltage transformation provides additional
interesting attributes. Assuming that RSEC = 0Ω and IQ = 0A, Eq. (3)
now becomes Eq. (1) and is essentially load independent, resistor R
is now placed in series with VPRI as shown in Figure 18.
VSEC = VPRI • K
(1)
K represents the “turns ratio” of the SAC.
Rearranging Eq (1):
VSEC
K =
(2)
R
VPRI
SAC™
K = 1/12
VSEC
+
–
VPRI
In the presence of load, VSEC is represented by:
VSEC = VPRI • K – ISEC • RSEC
and ISEC is represented by:
IPRI – IQ
(3)
Figure 18 — K = 1/12 Sine Amplitude Converter™
with series primary resistor
ISEC
=
(4)
K
The relationship between VPRI and Vsec becomes:
RSEC represents the impedance of the SAC, and is a function of
VSEC = (VPRI – IPRI • RSEC) • K
(5)
the RDSON of the primary and secondary MOSFETs and the winding
resistance of the power transformer. IQ represents the quiescent
current of the SAC control and gate drive circuitry. For applications
where the source is located on the secondary side, equations 1 to
Substituting the simplified version of Eq. (4)
(IQ is assumed = 0A) into Eq. (5) yields:
4 can be re-arranged to represent VPRI and IPRI as a function of VSEC
and ISEC
2
.
VSEC = VPRI • K – ISEC • RSEC • K
(6)
VTM™ Current Multiplier
Page 14 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
This is similar in form to Eq. (3), where RSEC is used to represent the
characteristic impedance of the SAC™. However, in this case a real
R on the primary side of the SAC is effectively scaled by K2 with
respect to the secondary.
Low impedance is a key requirement for powering a high-
current, low voltage load efficiently. A switching regulation stage
should have minimal impedance while simultaneously providing
appropriate filtering for any switched current. The use of a SAC
between the regulation stage and the point of load provides a
dual benefit of scaling down series impedance leading back to
the source and scaling up shunt capacitance or energy storage
as a function of its K factor squared. However, the benefits are
not useful if the series impedance of the SAC is too high. The
impedance of the SAC must be low, i.e. well beyond the crossover
frequency of the system.
Assuming that R = 1Ω, the effective R as seen from the secondary
side is 6.9mΩ, with K = 1/12 as shown in Figure 18.
A similar exercise should be performed with the additon of a
capacitor or shunt impedance at the primary to the SAC. A switch
in series with VIN is added to the circuit. This is depicted in
Figure 19.
A solution for keeping the impedance of the SAC low involves
switching at a high frequency. This enables small magnetic
components because magnetizing currents remain low. Small
magnetics mean small path lengths for turns. Use of low loss core
material at high frequencies also reduces core losses.
S
SAC™
V
+
–
K = 1/12
SEC
C
V
PRI
The two main terms of power loss in the VTM module are:
nꢀNo load power dissipation (PNL): defined as the power used to
power up the module with an enabled powertrain at no load.
nꢀResistive loss (RSEC): refers to the power loss across the VTM
modeled as pure resistive impedance.
Figure 19 — Sine Amplitude Converter™ with primary capacitor
A change in VPRI with the switch closed would result in a change in
capacitor current according to the following equation:
PDISSIPATED = PNL + PRSEC
Therefore,
PSEC = PPRI –PDISSIPATED = PPRI – PNL – PRSEC
(10)
dVPRI
IC(t) = C
(7)
dt
(11)
Assume that with the capacitor charged to VPRI, the switch is
opened and the capacitor is discharged through the idealized SAC.
In this case,
The above relations can be combined to estimate the overall
module efficiency:
PPRI – PNL – PRSEC
PPRI
PSEC
PPRI
η =
=
(12)
IC = ISEC • K
(8)
2
Substituting Eq. (1) and (8) into Eq. (7) reveals:
VPRI • IPRI – PNL – (ISEC
)
• RSEC
=
VPRI • IPRI
dVSEC
dt
C
ISEC
=
(9)
•
2
K
2
PNL + (ISEC
)
• RSEC
= 1 –
(
)
VPRI • IPRI
The equation in terms of the secondary has yielded a K2 scaling
factor for C, specified in the denominator of the equation.
A K factor less than unity, results in an effectively larger
capacitance on the secondary when expressed in terms of the
primary. With a K = 1/12 as shown in Figure 19, C = 1µF would
appear as C = 144µF when viewed from the secondary. Note that
in situations where the souce voltage is located on the secondary
side, the effect is reversed and effective valve of capacitance
located on the secondary side is divided by a factor of 1/K2 when
reflected to the primary.
VTM™ Current Multiplier
Page 15 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Primary and Secondary Filter Design
Capacitive Filtering Considerations
for a Sine Amplitude Converter™
A major advantage of a SAC™ system versus a conventional PWM
converter is that the former does not require large functional
filters. The resonant LC tank, operated at extreme high frequency,
is amplitude modulated as a function of primary voltage and
secondary current and efficiently transfers charge through the
isolation transformer. A small amount of capacitance embedded in
the primary and secondary stages of the module is sufficient for full
functionality and is key to achieving high power density.
It is important to consider the impact of adding input and output
capacitance to a Sine Amplitude Converter on the system as a
whole. Both the capacitance value and the effective impedance of
the capacitor must be considered.
A Sine Amplitude Converter has a DC ROUT value which has already
been discussed in Page 13. The AC ROUT of the SAC contains
several terms:
This paradigm shift requires system design to carefully evaluate
external filters in order to:
nꢀResonant tank impedance
nꢀInput lead inductance and internal capacitance
nꢀOutput lead inductance and internal capacitance
nꢀGuarantee low source impedance.
To take full advantage of the VTM module dynamic response,
the impedance presented to its input terminals must be low
from DC to approximately 5MHz. Input capacitance may be
added to improve transient performance or compensate for high
source impedance.
The values of these terms are shown in the behavioral model in
Page 13. It is important to note on which side of the transformer
these impedances appear and how they reflect across the
transformer given the K factor.
nꢀFurther reduce input and/or output voltage ripple without
sacrificing dynamic response.
Given the wide bandwidth of the VTM module, the source
response is generally the limiting factor in the overall system
response. Anomalies in the response of the source will appear at
the output of the VTM module multiplied by its K factor.
The overall AC impedance varies from model to model. For most
models it is dominated by DC ROUT value from DC to beyond
500KHz. The behavioral model in Page 13 should be used to
approximate the AC impedance of the specific model.
Any capacitors placed at the output of the VTM module reflect
back to the input of the module by the square of the K factor
(Eq. 9) with the impedance of the module appearing in series. It is
very important to keep this in mind when using a PRM™ regulator
to power the VTM module. Most PRM modules have a limit on
the maximum amount of capacitance that can be applied to the
output. This capacitance includes both the PRM output capacitance
and the VTM module output capacitance reflected back to the
input. In PRM module remote sense applications, it is important to
consider the reflected value of VTM module output capacitance
when designing and compensating the PRM module control loop.
nꢀProtect the module from overvoltage transients imposed
by the system that would exceed maximum ratings and
cause failures.
The VI Chip® module input/output voltage ranges must not
be exceeded. An internal overvoltage lockout function prevents
operation outside of the normal operating input range. Even
during this condition, the powertrain is exposed to the applied
voltage and power MOSFETs must withstand it.
Capacitance placed at the input of the VTM module appear to
the load reflected by the K factor with the impedance of the VTM
module in series. In step-down ratios, the effective capacitance
is increased by the K factor. The effective ESR of the capacitor is
decreased by the square of the K factor, but the impedance of the
module appears in series. Still, in most step-down VTM modules
an electrolytic capacitor placed at the input of the module will have
a lower effective impedance compared to an electrolytic capacitor
placed at the output. This is important to consider when placing
capacitors at the output of the module. Even though the capacitor
may be placed at the output, the majority of the AC current will be
sourced from the lower impedance, which in most cases will be the
module. This should be studied carefully in any system design using
a module. In most cases, it should be clear that electrolytic output
capacitors are not necessary to design a stable,
well-bypassed system.
VTM™ Current Multiplier
Page 16 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Current Sharing
Fuse Selection
The SAC™ topology bases its performance on efficient transfer
of energy through a transformer without the need of closed
loop control. For this reason, the transfer characteristic can be
approximated by an ideal transformer with some resistive drop and
positive temperature coefficient.
In order to provide flexibility in configuring power systems
VI Chip® products are not internally fused. Input line fusing of
VI Chip products is recommended at system level to provide
thermal protection in case of catastrophic failure.
The fuse shall be selected by closely matching system
requirements with the following characteristics:
This type of characteristic is close to the impedance characteristic
of a DC power distribution system, both in behavior (AC dynamic)
and absolute value (DC dynamic).
nꢀCurrent rating
(usually greater than maximum current of VTM module)
When connected in an array with the same K factor, the VTM
module will inherently share the load current (typically 5%) with
parallel units according to the equivalent impedance divider that
the system implements from the power source to the point of load.
nꢀMaximum voltage rating
(usually greater than the maximum possible input voltage)
nꢀAmbient temperature
nꢀNominal melting I2t
Some general recommendations to achieve matched array
impedances:
Bi-Directional Operation
nꢀDedicate common copper planes within the PCB to deliver
and return the current to the modules.
The VTM48EF040T050B0R is capable of bi-directional operation. If
a voltage is present at the secondary which satisfies the condition
VSEC > VPRI • K at the time the VC voltage is applied, or after the
unit has started, then energy will be transferred from secondary
to primary. The primary to secondary ratio will be maintained. The
VTM48EF040T050B0R will continue to operate bi-directional as
long as the primary and secondary are within the specified limits.
nꢀProvide the PCB layout as symmetric as possible.
nꢀApply same input / output filters (if present) to each unit.
For further details see:
AN:016 Using BCM® Bus Converters in High Power Arrays.
ZPRI_EQ1
ZSEC_EQ1
VTM®1
RS_1
VPRI
VSEC
ZPRI_EQ2
ZSEC_EQ2
VTM®2
RS_2
+
–
Load
DC
ZPRI_EQn
ZSEC_EQn
VTM®n
RS_n
Figure 20 — VTM module array
VTM™ Current Multiplier
Page 17 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
J-Lead Package Mechanical Drawing
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
J-Lead Package Recommended Land Pattern
+SEC1
-SEC1
+PRI
+SEC2
-SEC2
-PRI
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4. PRODUCT MARKING ON TOP SURFACE
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
VTM™ Current Multiplier
Page 18 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Through-Hole Package Mechanical Drawing
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
Through-Hole Package Recommended Land Pattern
+SEC1
-SEC1
+PRI
+SEC2
-SEC2
-PRI
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4. PRODUCT MARKING ON TOP SURFACE
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
VTM™ Current Multiplier
Page 19 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Recommended Heat Sink Push Pin Location
(NO GROUNDING CLIPS)
(WITH GROUNDING CLIPS)
Notes:
5. Unless otherwise specified:
Dimensions are mm (inches)
tolerances are:
1. Maintain 3.50 (0.138) Dia. keep-out zone
free of copper, all PCB layers.
2. (A) Minimum recommended pitch is 39.50 (1.555).
This provides 7.00 (0.275) component
edge-to-edge spacing, and 0.50 (0.020)
clearance between Vicor heat sinks.
(B) Minimum recommended pitch is 41.00 (1.614).
This provides 8.50 (0.334) component
edge-to-edge spacing, and 2.00 (0.079)
clearance between Vicor heat sinks.
3. VI Chip® module land pattern shown for reference
only; actual land pattern may differ.
Dimensions from edges of land pattern
to push–pin holes will be the same for
all full-size VI Chip® products.
x.x (x.xx) = 0.3 (0.01)
x.xx (x.xxx) = 0.13 (0.005)
4. RoHS compliant per CST–0001 latest revision.
6. Plated through holes for grounding clips (33855)
shown for reference, heat sink orientation and
device pitch will dictate final grounding solution.
VTM Module Pin Configuration
4
3
2
1
A
B
C
D
A
B
C
D
E
Signal Name
+PRI
Pin Designation
A1-E1, A2-E2
L1-T1, L2-T2
H1, H2
J1, J2
+SEC
-SEC
+SEC
-SEC
+PRI
E
F
–PRI
TM
VC
PC
+SEC
–SEC
G
H
TM
VC
PC
H
J
J
K
L
K
L
M
N
P
R
T
K1, K2
M
N
P
R
T
A3-D3, A4-D4, J3-M3, J4-M4
E3-H3, E4-H4, N3-T3, N4-T4
-PRI
Bottom View
VTM™ Current Multiplier
Page 20 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
VTM48Ex040y050B0R
Vicor’s comprehensive line of power solutions includes high density AC-DC and DC-DC modules and
accessory components, fully configurable AC-DC and DC-DC power supplies, and complete custom
power systems.
Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for its use. Vicor makes no
representations or warranties with respect to the accuracy or completeness of the contents of this publication. Vicor reserves the right to make
changes to any products, specifications, and product descriptions at any time without notice. Information published by Vicor has been checked and
is believed to be accurate at the time it was printed; however, Vicor assumes no responsibility for inaccuracies. Testing and other quality controls
are used to the extent Vicor deems necessary to support Vicor’s product warranty. Except where mandated by government requirements, testing of
all parameters of each product is not necessarily performed.
Specifications are subject to change without notice.
Vicor’s Standard Terms and Conditions
All sales are subject to Vicor’s Standard Terms and Conditions of Sale, which are available on Vicor’s webpage or upon request.
Product Warranty
In Vicor’s standard terms and conditions of sale, Vicor warrants that its products are free from non-conformity to its Standard Specifications (the
“Express Limited Warranty”). This warranty is extended only to the original Buyer for the period expiring two (2) years after the date of shipment
and is not transferable.
UNLESS OTHERWISE EXPRESSLY STATED IN A WRITTEN SALES AGREEMENT SIGNED BY A DULY AUTHORIZED VICOR SIGNATORY, VICOR
DISCLAIMS ALL REPRESENTATIONS, LIABILITIES, AND WARRANTIES OF ANY KIND (WHETHER ARISING BY IMPLICATION OR BY OPERATION OF LAW)
WITH RESPECT TO THE PRODUCTS, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OR REPRESENTATIONS AS TO MERCHANTABILITY,
FITNESS FOR PARTICULAR PURPOSE, INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT, OR ANY OTHER
MATTER.
This warranty does not extend to products subjected to misuse, accident, or improper application, maintenance, or storage. Vicor shall not be liable
for collateral or consequential damage. Vicor disclaims any and all liability arising out of the application or use of any product or circuit and assumes
no liability for applications assistance or buyer product design. Buyers are responsible for their products and applications using Vicor products
and components. Prior to using or distributing any products that include Vicor components, buyers should provide adequate design, testing and
operating safeguards.
Vicor will repair or replace defective products in accordance with its own best judgment. For service under this warranty, the buyer must contact
Vicor to obtain a Return Material Authorization (RMA) number and shipping instructions. Products returned without prior authorization will be
returned to the buyer. The buyer will pay all charges incurred in returning the product to the factory. Vicor will pay all reshipment charges if the
product was defective within the terms of this warranty.
Life Support Policy
VICOR’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS
PRIOR WRITTEN APPROVAL OF THE CHIEF EXECUTIVE OFFICER AND GENERAL COUNSEL OF VICOR CORPORATION. As used herein, life support
devices or systems are devices which (a) are intended for surgical implant into the body, or (b) support or sustain life and whose failure to perform
when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in a significant injury to the
user. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or system or to affect its safety or effectiveness. Per Vicor Terms and Conditions of Sale, the user of Vicor products
and components in life support applications assumes all risks of such use and indemnifies Vicor against all liability and damages.
Intellectual Property Notice
Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent applications) relating to the
products described in this data sheet. No license, whether express, implied, or arising by estoppel or otherwise, to any intellectual property rights is
granted by this document. Interested parties should contact Vicor’s Intellectual Property Department.
The products described on this data sheet are protected by the following U.S. Patents Numbers:
5,945,130; 6,403,009; 6,710,257; 6,911,848; 6,930,893; 6,934,166; 6,940,013; 6,969,909; 7,038,917; 7,145,186; 7,166,898; 7,187,263;
7,202,646; 7,361,844; D496,906; D505,114; D506,438; D509,472; and for use under 6,975,098 and 6,984,965.
Vicor Corporation
25 Frontage Road
Andover, MA, USA 01810
Tel: 800-735-6200
Fax: 978-475-6715
email
Customer Service: custserv@vicorpower.com
Technical Support: apps@vicorpower.com
VTM™ Current Multiplier
Page 21 of 21
Rev 1.3
11/2016
vicorpower.com
800 927.9474
厂商 型号 描述 页数 下载

MACOM

 		VTM-1 规格等级，接通延时时序模块[ Specification Grade, On-Delay Timing Module ] 1 页

CPI

 		VTM-6096R1 12 W ， CW螺旋TWT系列[ 12 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6113R1 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2D 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6195R1 28 W， CW螺旋TWT系列[ 28 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6196R1 20 W， CW螺旋TWT系列[ 20 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6292F8 200瓦螺旋TWT系列[ 200 W Helix TWT Series ] 1 页

CPI

 		VTM-6292M4 250W的螺旋TWT系列[ 250 W Helix TWT Series ] 1 页

TE

 		VTM1 接通延时时序模块[ On-Delay Timing Module ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.233326s
